Automatic Transaxle Unit: Disassembly

  1. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Remove the nut, washer and control shaft lever.
    2. Using a screwdriver, unstake the lock nut and remove the lock washer and lock nut.
    3. Remove the 2 bolts and pull out the position switch.

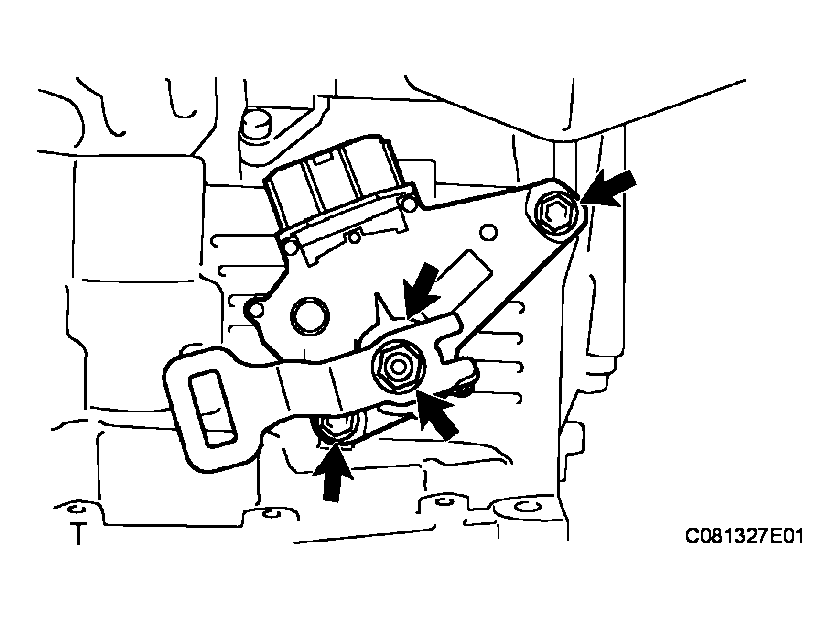

      Fig 1: Removing Nut, Washer And Control Shaft Lever
      G04227661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE TRANSMISSION REVOLUTION SENSOR
    1. Remove the bolt and transmission revolution sensor.

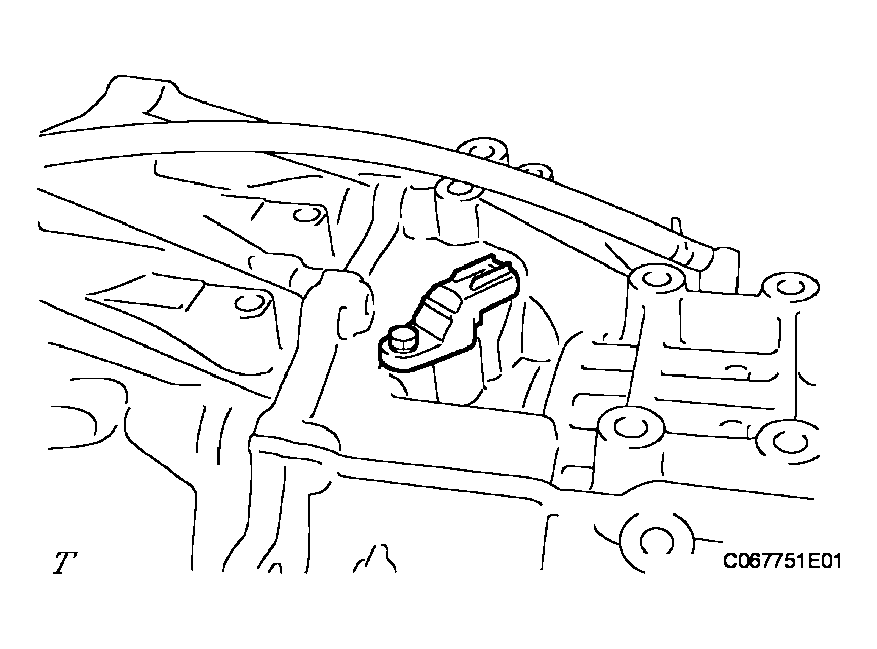

      Fig 2: Removing Bolt And Transmission Revolution Sensor
      G04227662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE OIL COOLER TUBE UNION (OUTLET)
    1. Remove the oil cooler tube union.
    2. Remove the O-ring from the oil cooler tube union.

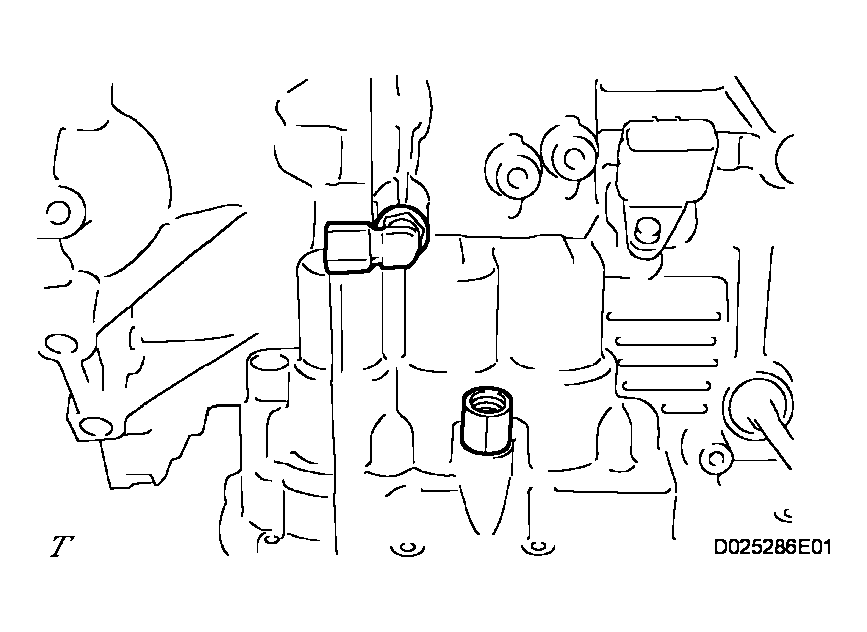

      Fig 3: Removing Oil Cooler Tube Union (Outlet)
      G04227663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE OIL COOLER TUBE UNION (INLET)
    1. Remove the oil cooler tube union.
    2. Remove the O-ring from the oil cooler tube union.

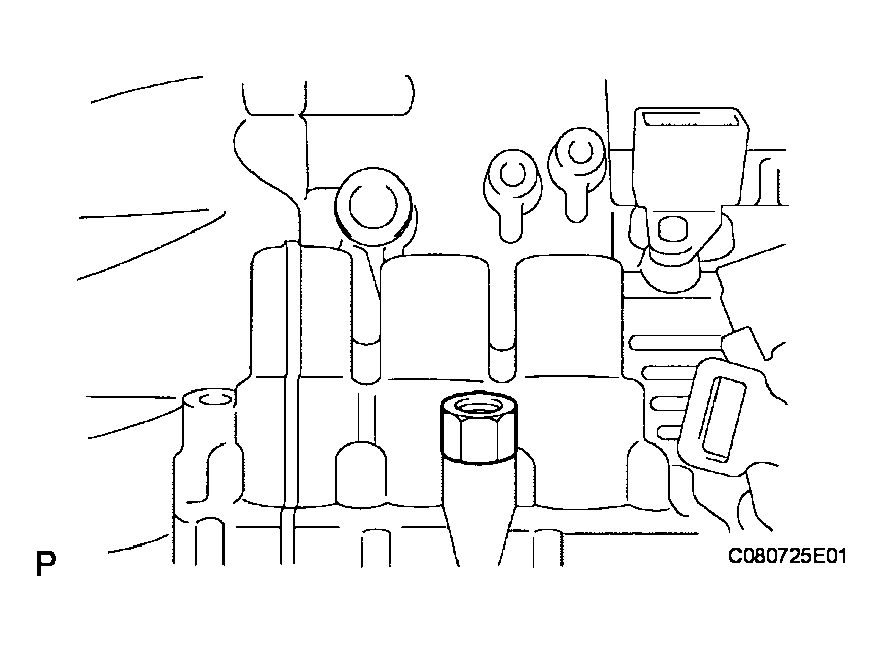

      Fig 4: Removing Oil Cooler Tube Union (Inlet)
      G04227664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 TRANSAXLE CASE PLUG
    1. Remove the 4 case plugs from the transaxle housing and transaxle case.

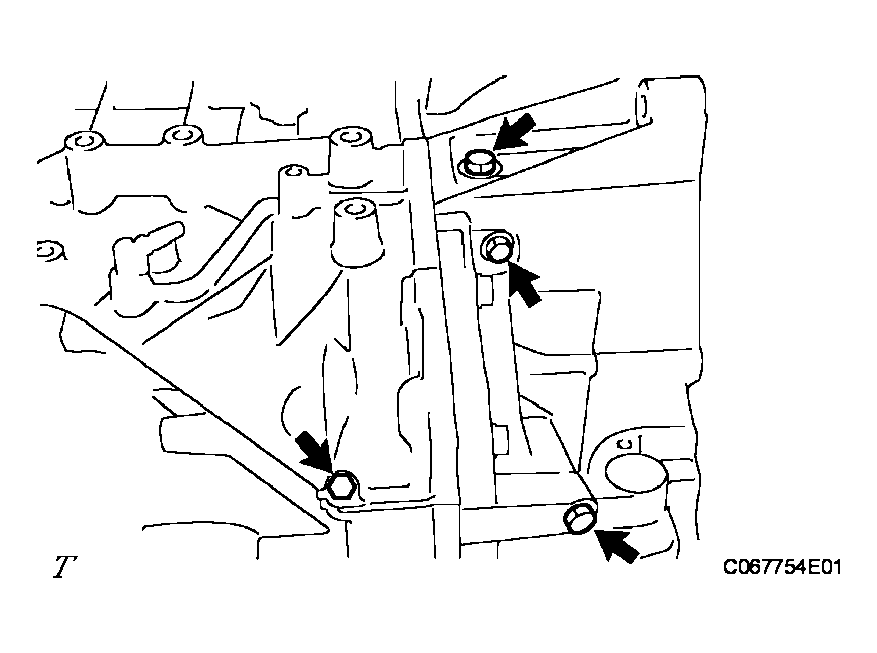

      Fig 5: Removing Case Plugs From Transaxle Housing And Transaxle Case
      G04227665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

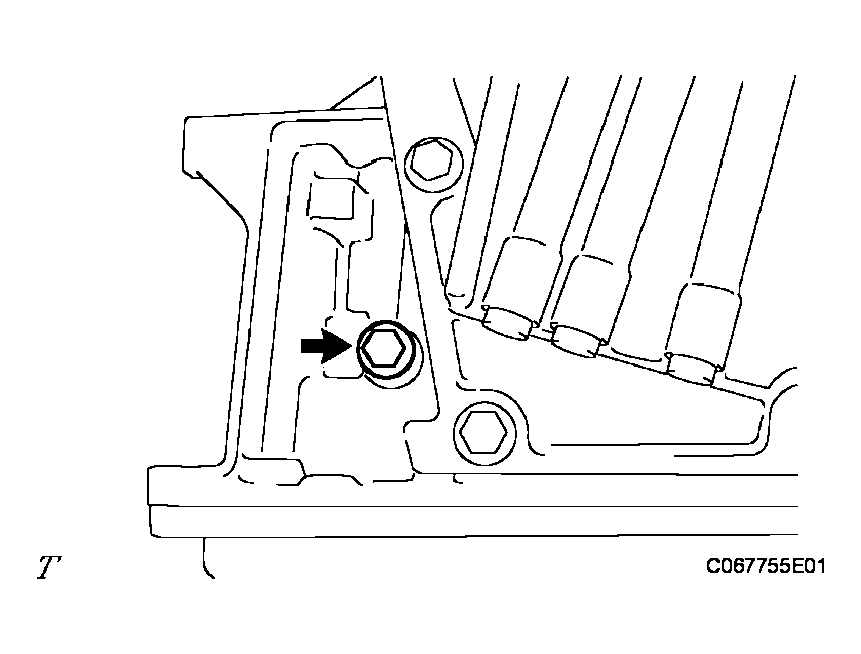

    2. Remove the case plug from the transaxle case.
    3. Remove the 5 O-rings from the case plugs.
      Fig 6: Removing Case Plug From Transaxle Case
      G04227666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. PLACE AUTOMATIC TRANSAXLE ASSEMBLY
    NOTE: Be careful not to damage the oil seal.

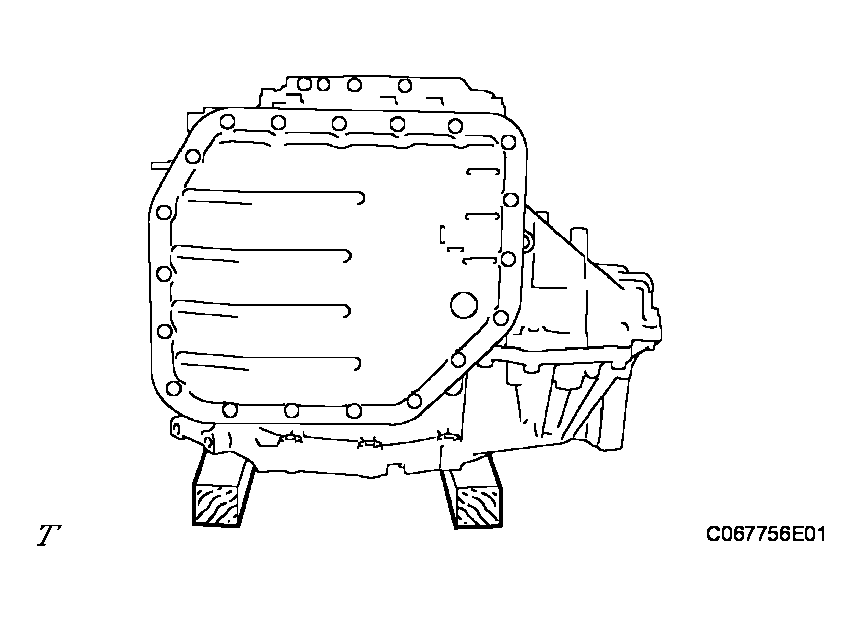

    Fig 7: Identifying Automatic Transaxle Assembly
    G04227667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

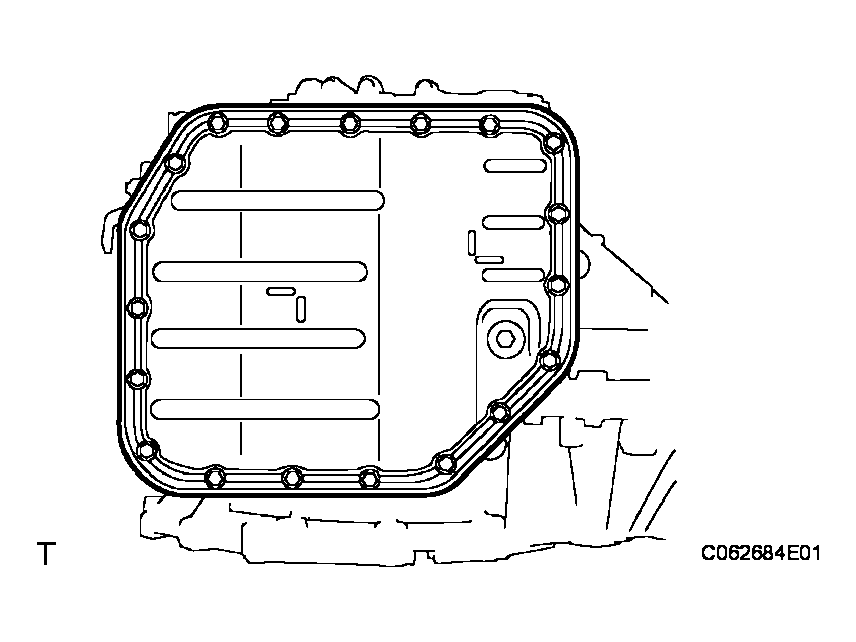

  7. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY
    1. Remove the drain plug and gasket from the oil pan.
    2. Remove the 19 bolts.
    3. Remove the oil pan and gasket.
      Fig 8: Removing Automatic Transaxle Oil Pan
      G04227668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

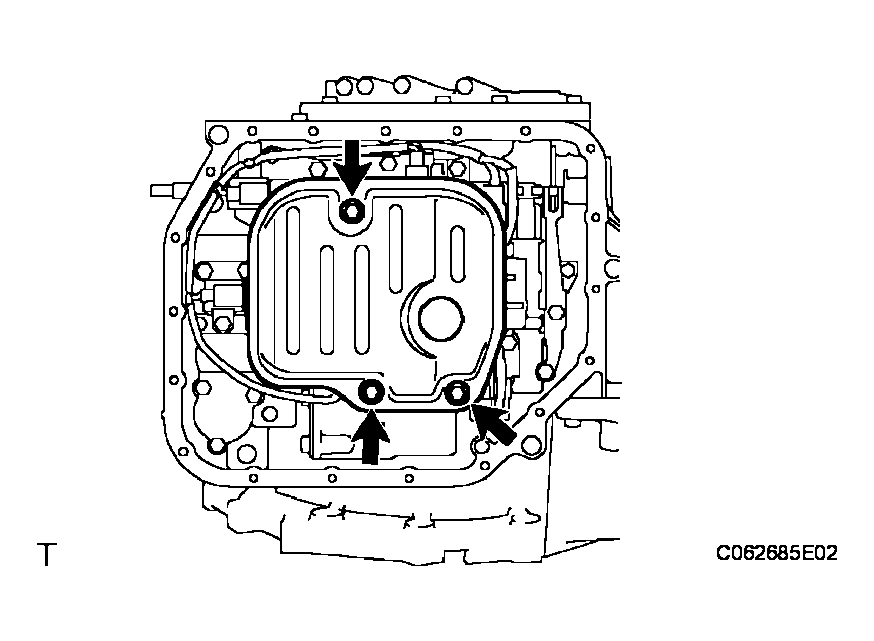

  8. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
    1. Remove the 3 bolts and oil strainer.
      Fig 9: Removing Bolts And Oil Strainer
      G04227669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the oil strainer.

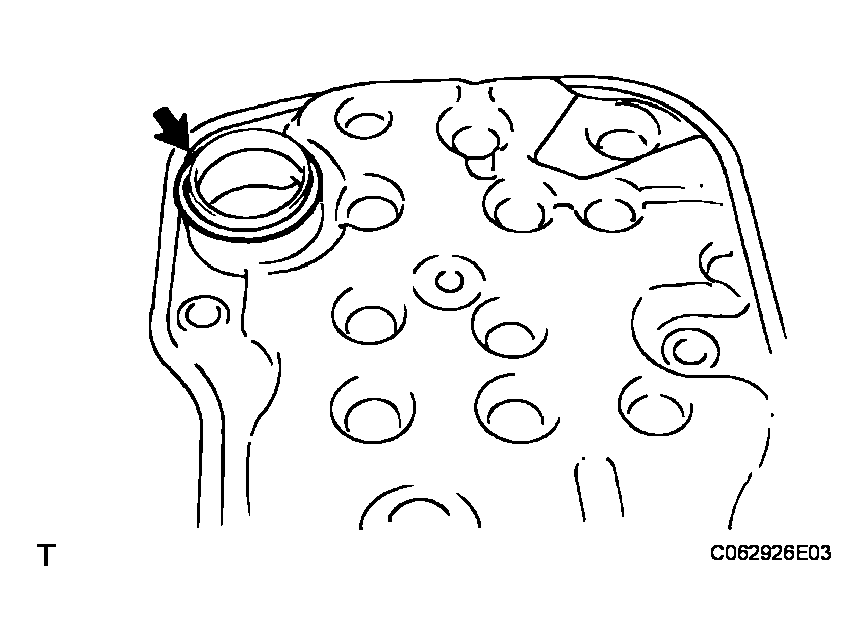

      Fig 10: Removing O-Ring From Oil Strainer
      G04227670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
    1. Disconnect the 5 solenoid connectors.
    2. Remove the bolt, lock plate and ATF temperature sensor.
    3. Remove the O-ring from the ATF temperature sensor.

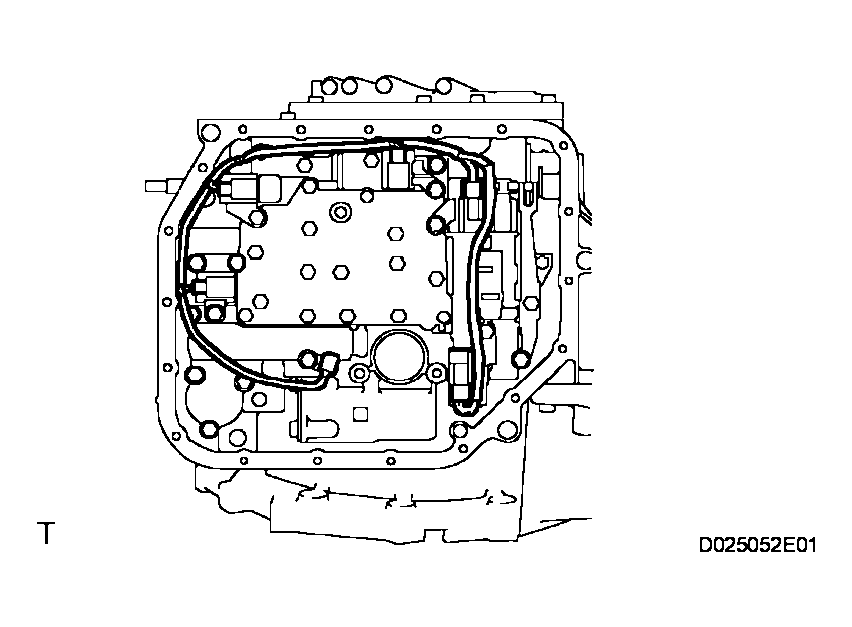

      Fig 11: Removing Transmission Valve Body Assembly
      G04227671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

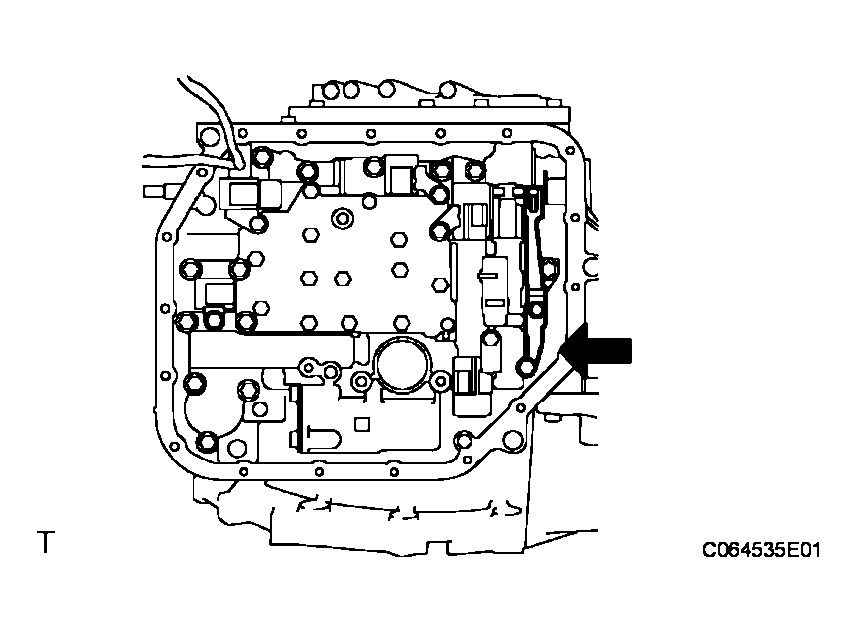

    4. Remove the 2 bolts, detent spring cover and detent spring.
      Fig 12: Removing Bolts, Detent Spring Cover And Detent Spring
      G04227672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove 13 bolts and valve body.

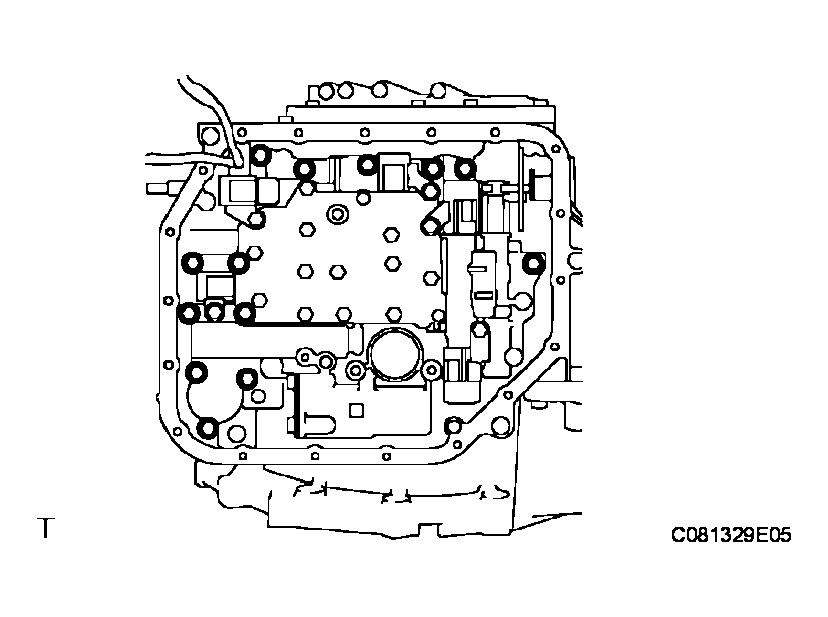

      Fig 13: Removing Bolts And Valve Body
      G04227673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE TRANSMISSION WIRE
    1. Remove the bolt.
    2. Remove the transmission wire from the transaxle case.
    3. Remove the O-ring from the transmission wire.

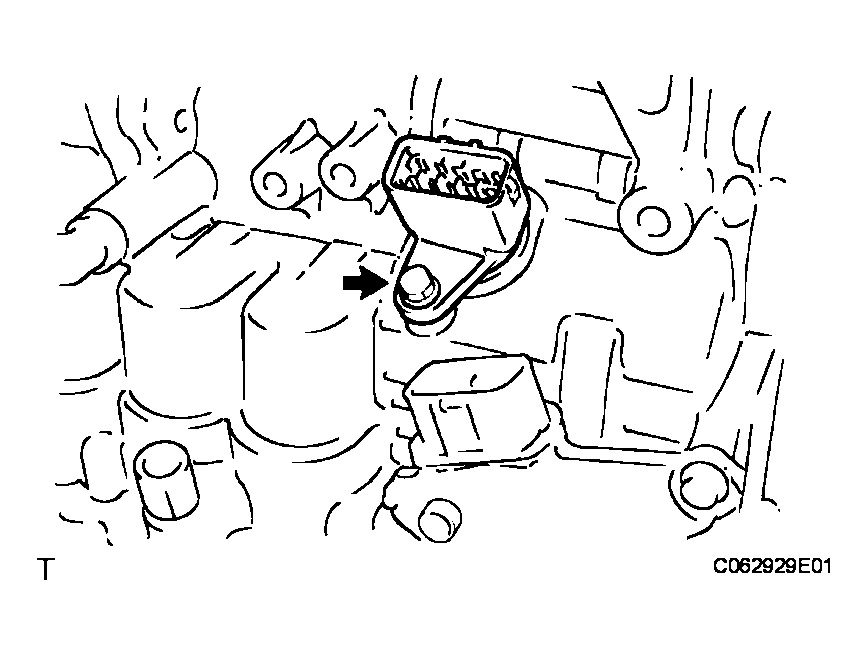

      Fig 14: Removing Transmission Connector Bolts
      G04227674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TRANSAXLE CASE 2ND BRAKE GASKET

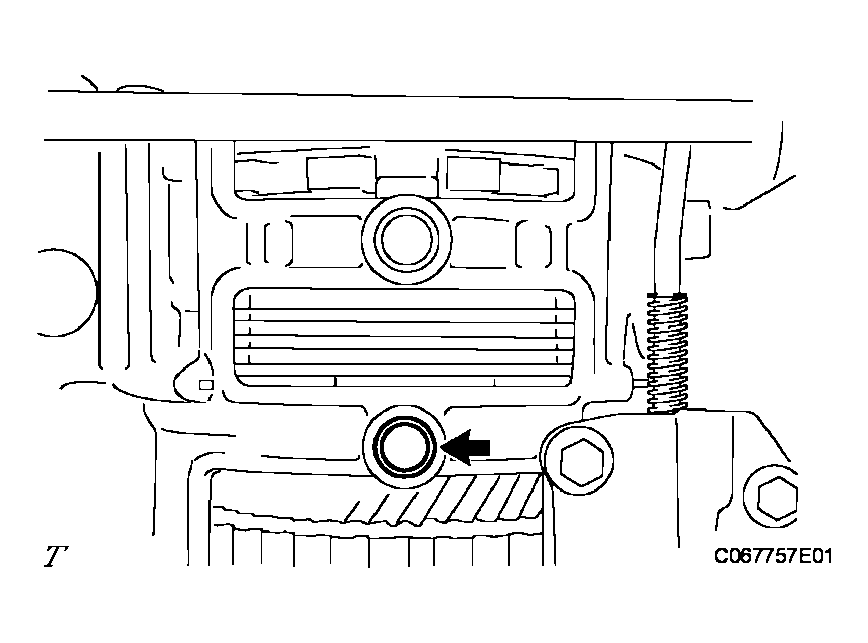

    Fig 15: Identifying Transaxle Case 2ND Brake Gasket
    G04227675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE TRANSAXLE CASE GASKET

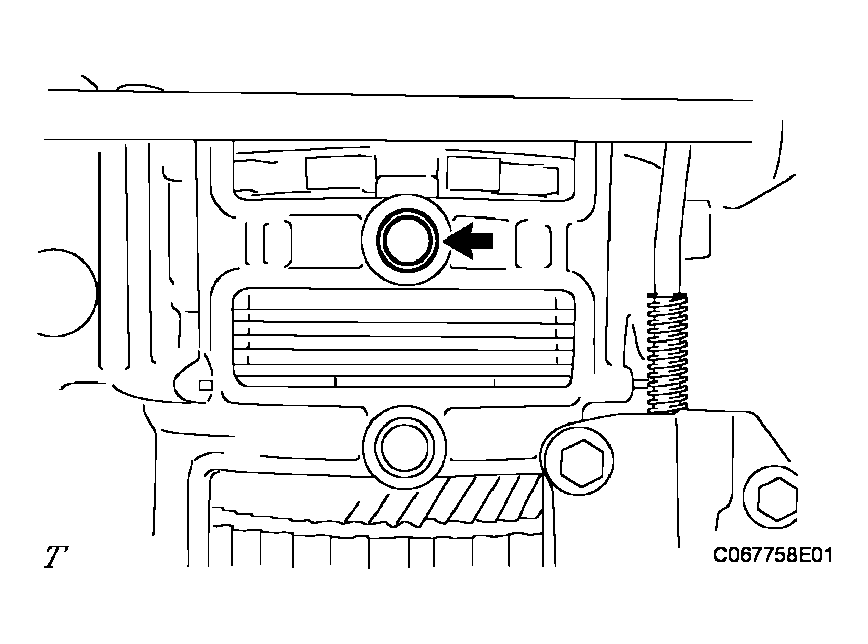

    Fig 16: Identifying Transaxle Case Gasket
    G04227676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE BRAKE DRUM GASKET

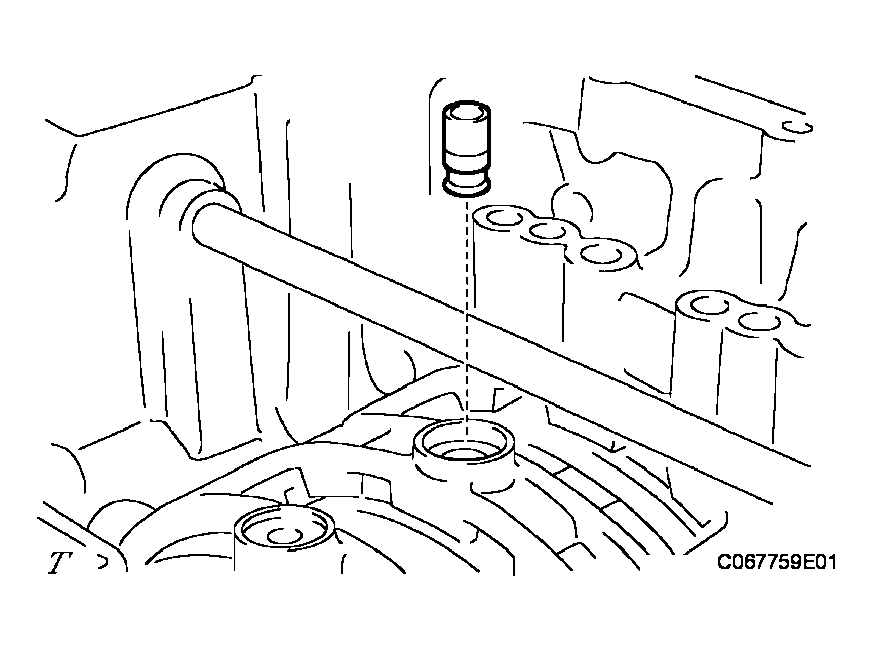

    Fig 17: Removing Brake Drum Gasket
    G04227677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

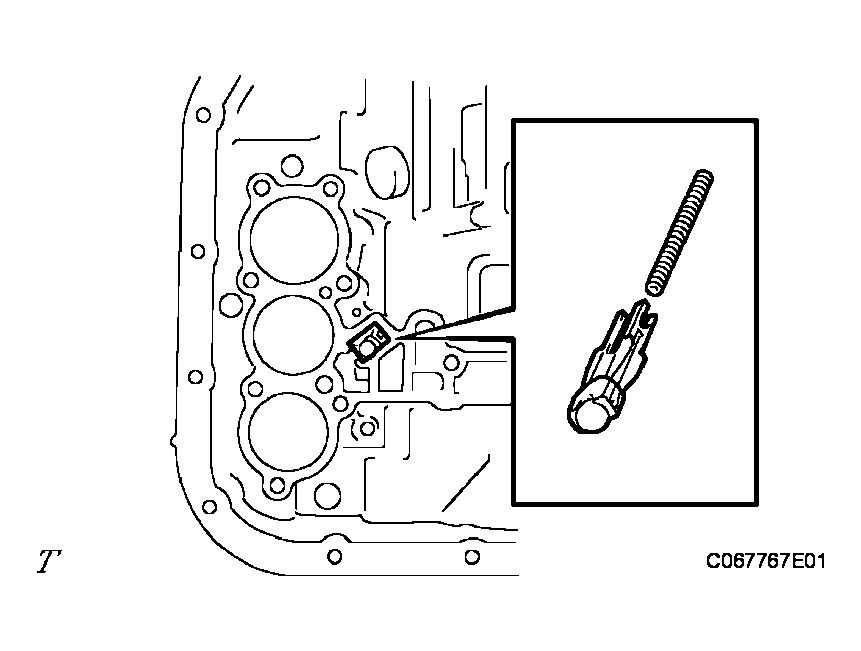

  14. REMOVE CHECK BALL BODY
    Fig 18: Removing Check Ball Body
    G04227678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

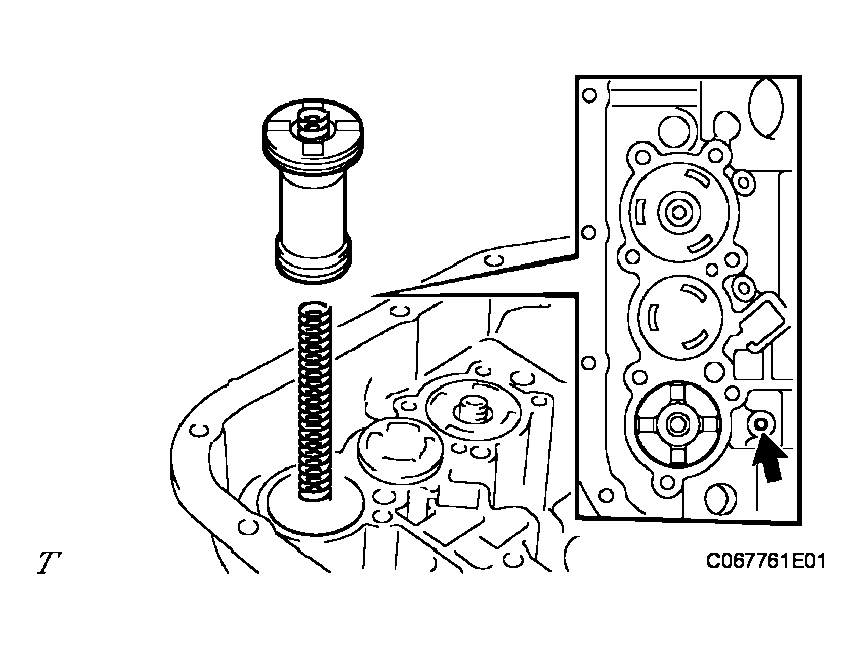

  15. REMOVE B-2 ACCUMULATOR PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the oil hole and remove the B-2 accumulator piston and spring.

      Remove the spring.

      NOTE:
      • Blowing air may cause the piston to jump out. When removing the piston, hold it with your hand using a waste cloth.
      • Take care not to splash ATF when blowing air.
        Fig 19: Removing B-2 Accumulator Piston
        G04227679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the B-2 accumulator piston.

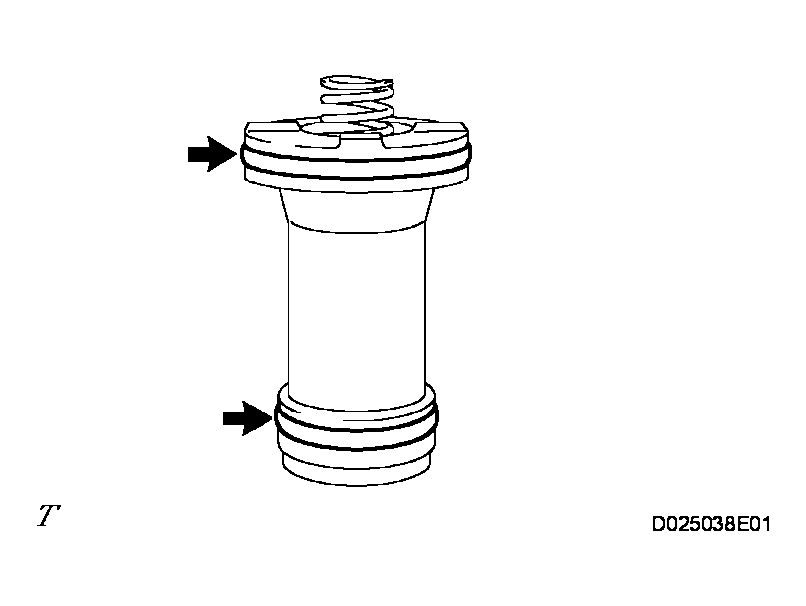

      Fig 20: Removing 2 O-Rings From B-2 Accumulator Piston
      G04227680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE C-3 ACCUMULATOR PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the oil hole and remove the C-3 accumulator piston and spring.

      Remove the spring.

      NOTE:
      • Blowing air may cause the piston to jump out. When removing the piston, hold it with your hand using a waste cloth.
      • Take care not to splash ATF when blowing air.

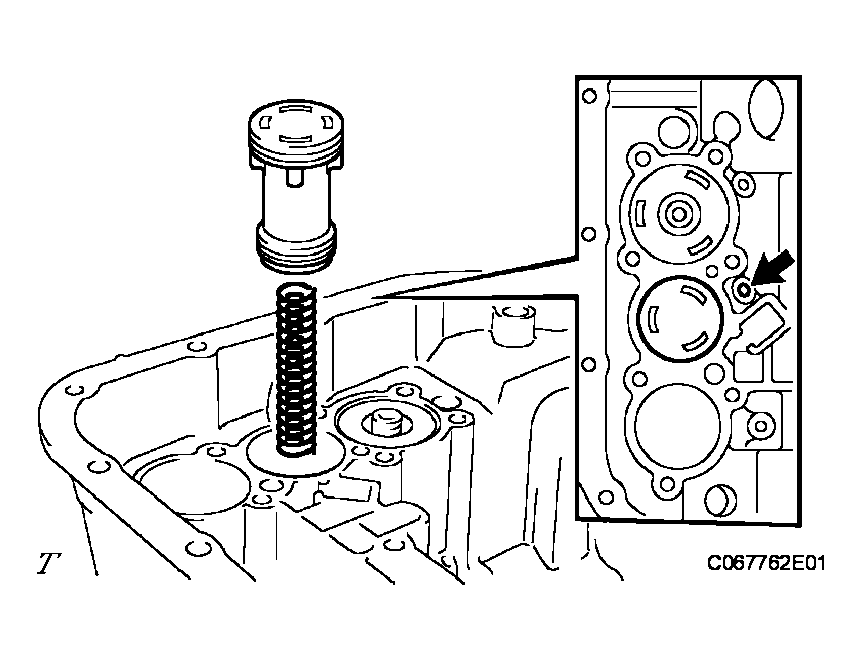

        Fig 21: Removing C-3 Accumulator Piston
        G04227681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

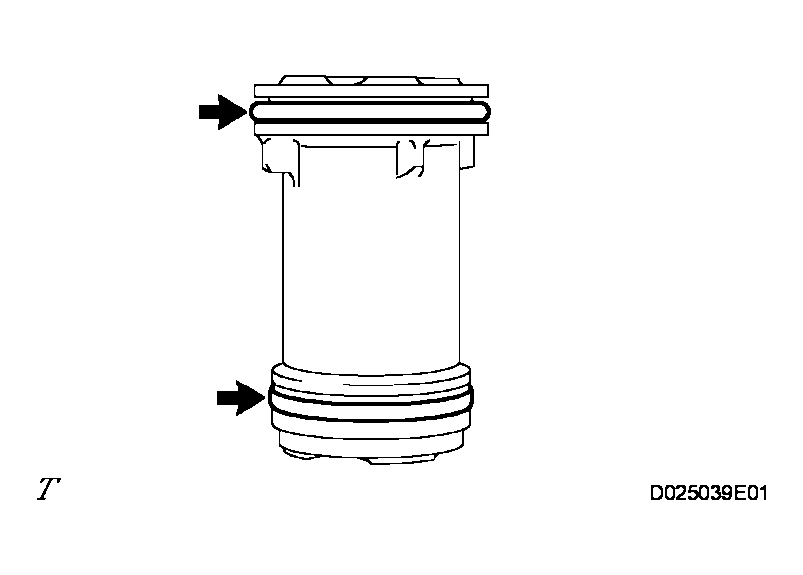

    2. Remove the 2 O-rings from the C-3 accumulator piston.
      Fig 22: Removing 2 O-Rings From C-3 Accumulator Piston
      G04227682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

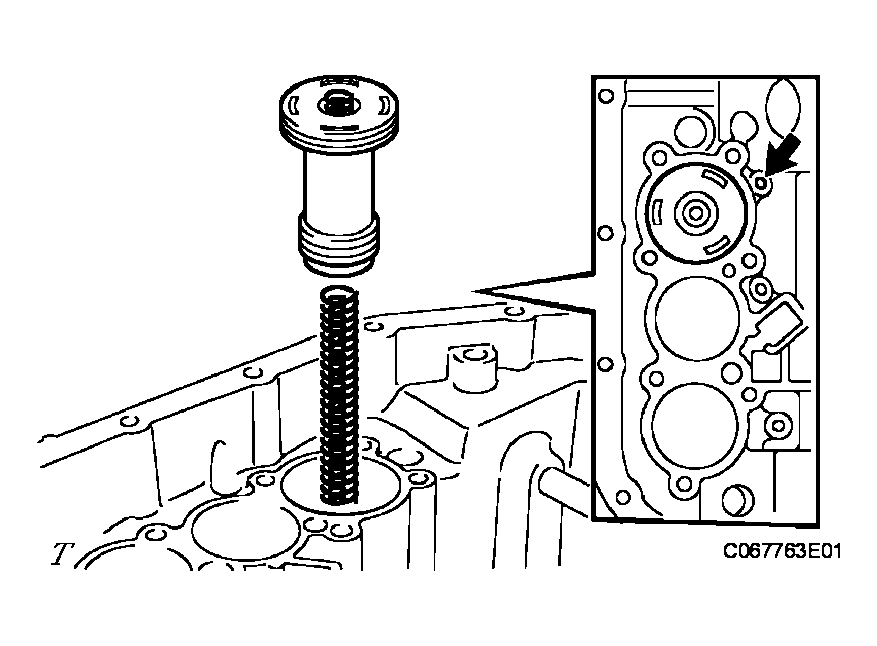

  17. REMOVE C-2 ACCUMULATOR PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the oil hole and remove the C-2 accumulator piston and spring.

      Remove the spring.

      NOTE:
      • Blowing air may cause the piston to jump out. When removing the piston, hold it with your hand using a waste cloth.
      • Take care not to splash ATF when blowing air.
        Fig 23: Removing C-2 Accumulator Piston
        G04227683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the C-2 accumulator piston.

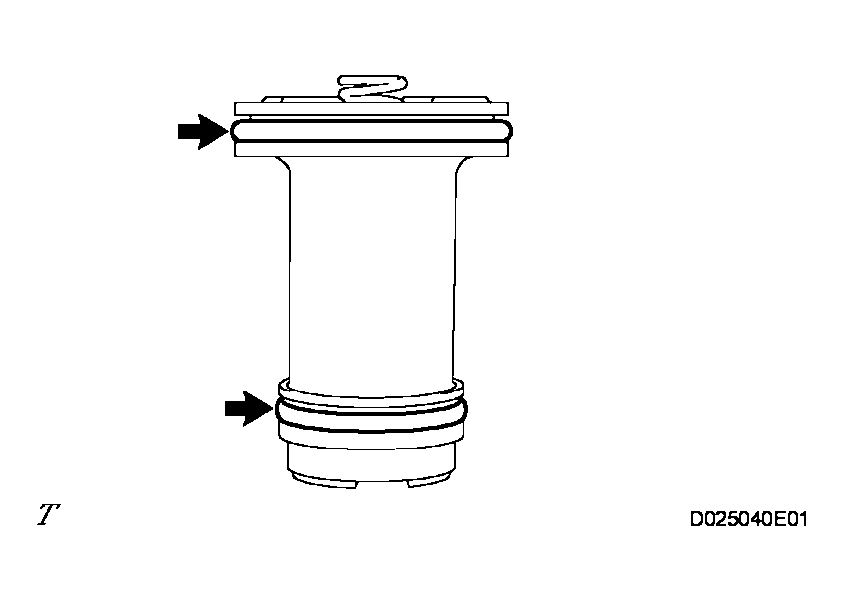

      Fig 24: Removing 2 O-Rings From C-2 Accumulator Piston
      G04227684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE TRANSAXLE HOUSING
    1. Remove the 14 bolts.
    2. Tap on the circumference of the transaxle housing with a plastic-faced hammer to remove the transaxle housing from the transaxle case.
      NOTE: When removing the transaxle housing, do not accidentally remove the differential gear assembly.

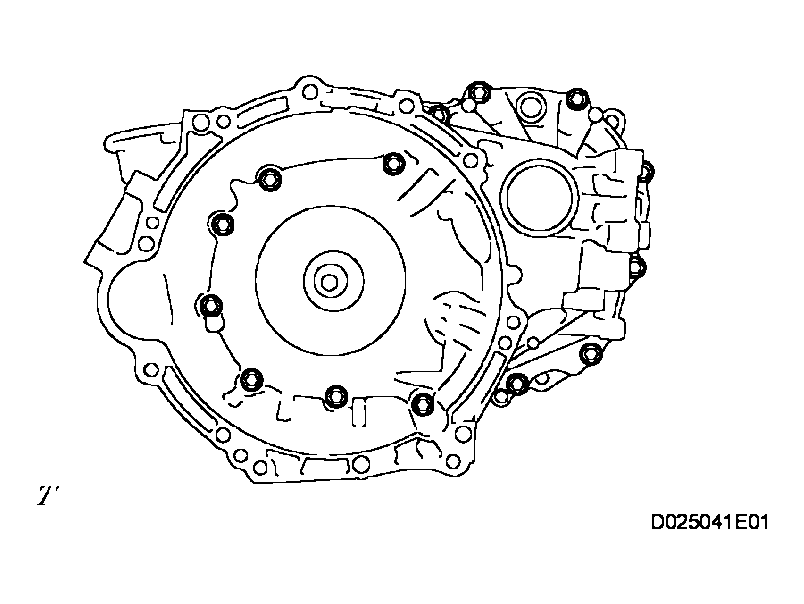

      Fig 25: Removing Transaxle Housing From Transaxle Case
      G04227685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

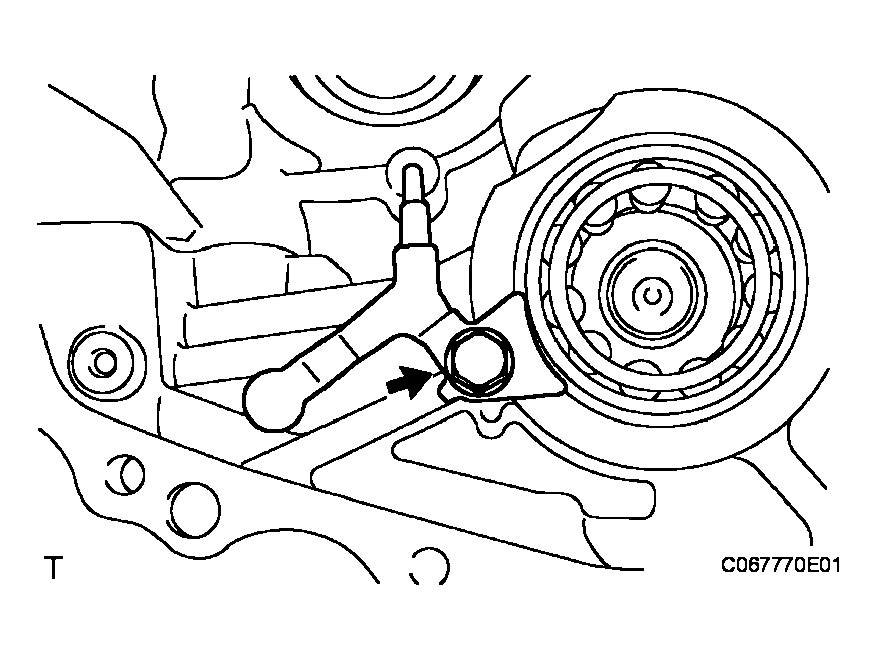

  19. REMOVE BEARING LOCK PLATE
    1. Remove the bolt.
    2. Remove the bearing lock plate.
      Fig 26: Removing Bearing Lock Plate
      G04227686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

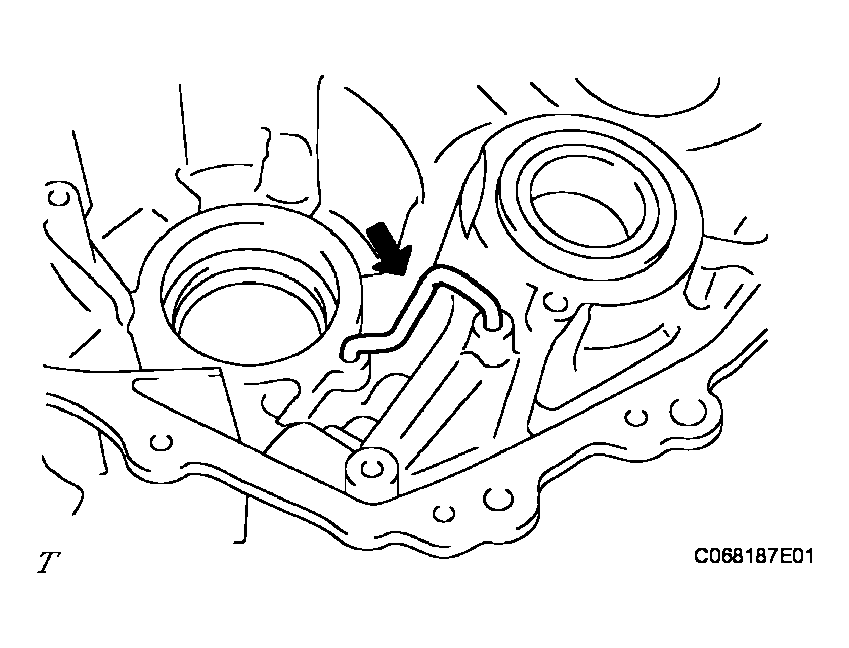

  20. REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE
    1. Remove the bolt and differential gear lube apply tube from the transaxle housing.
      Fig 27: Identifying Differential Gear Lube Apply Tube
      G04227687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FRONT DRIVE PINION FRONT TAPERED ROLLER BEARING (RH Side)
    1. Using SST, remove the RH cylindrical roller bearing from the transaxle housing.

      SST 09308-10010

  22. INSPECT INPUT SHAFT END PLAY (See  INSPECTION   )

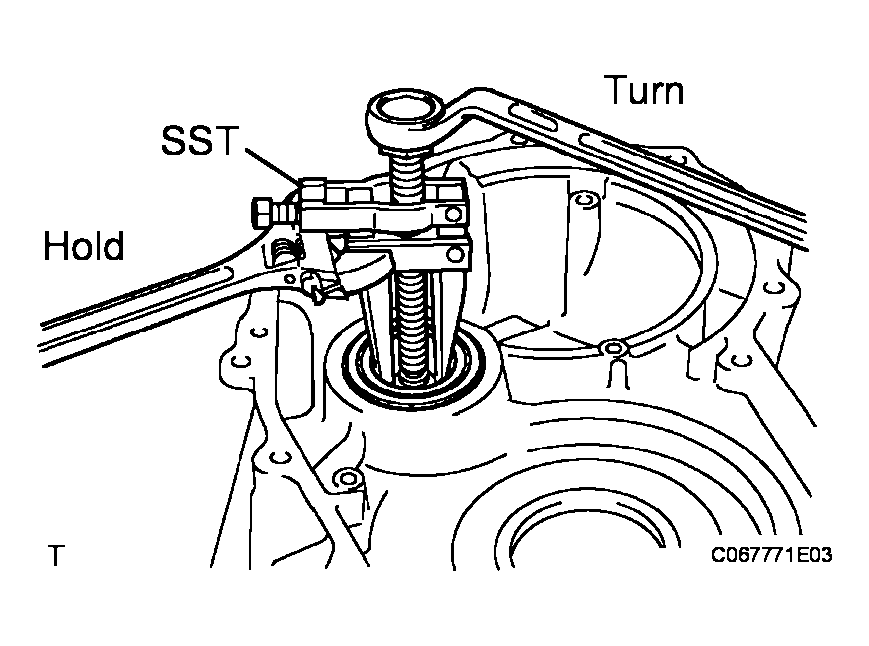

    Fig 28: Removing RH Cylindrical Roller Bearing From Transaxle Housing Using SST
    G04227688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE OIL PUMP ASSEMBLY
    1. Remove the 7 bolts and oil pump.

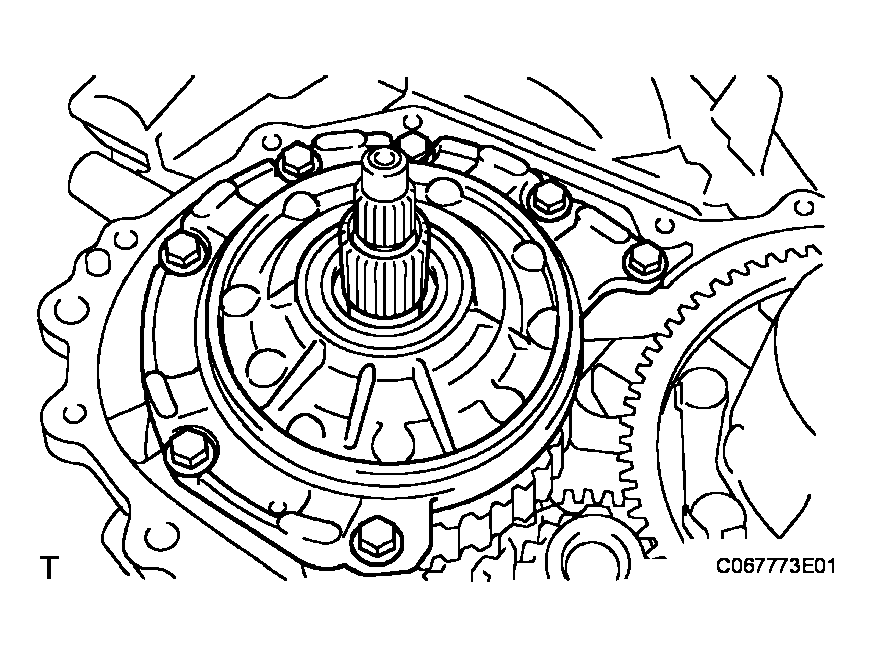

      Fig 29: Removing Bolts And Oil Pump Assembly
      G04227689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE DIFFERENTIAL GEAR ASSEMBLY
    1. Remove the differential gear.

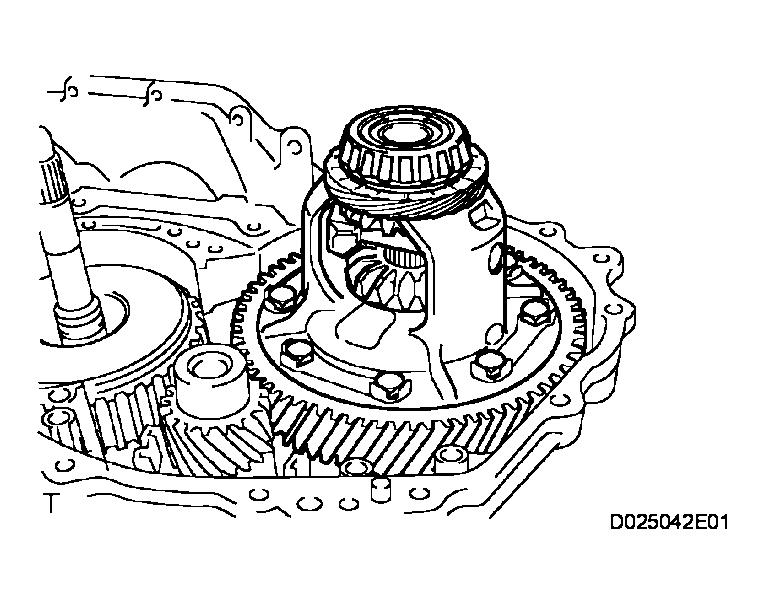

      Fig 30: Removing Differential Gear
      G04227690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

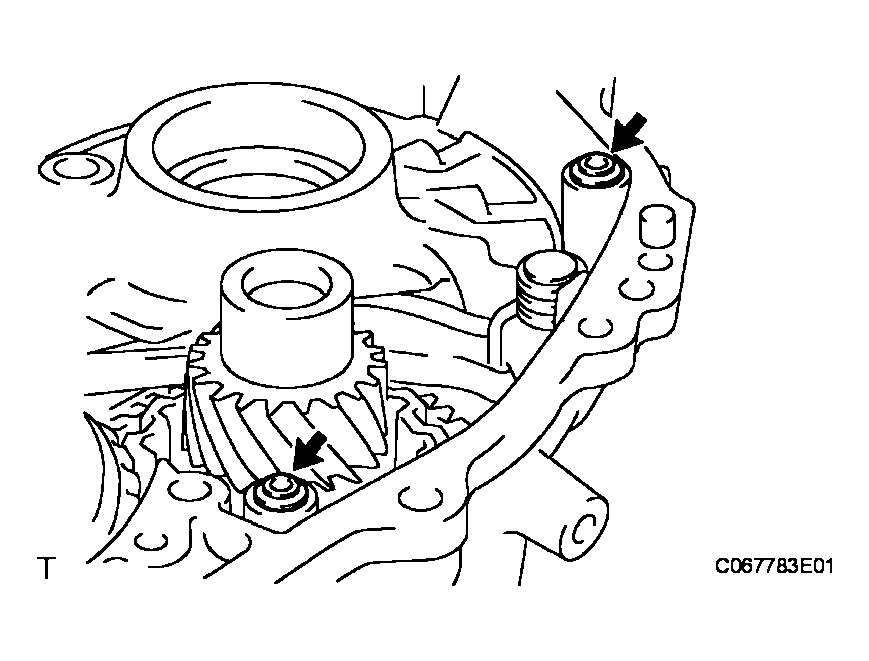

  25. REMOVE OVERDRIVE BRAKE GASKET
    1. Using a screwdriver, remove the 2 overdrive brake gaskets from the transaxle case.
      Fig 31: Removing Overdrive Brake Gaskets From Transaxle Case
      G04227691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

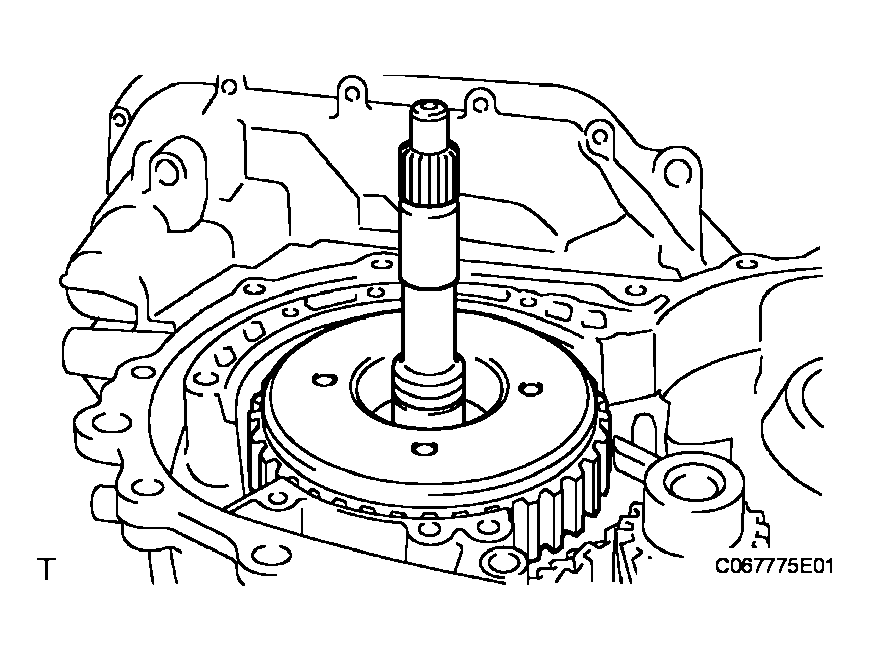

  26. REMOVE INPUT SHAFT ASSEMBLY
    1. Remove the input shaft from the transaxle case.
      Fig 32: Removing Input Shaft From Transaxle Case
      G04227692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE STATOR SHAFT THRUST NEEDLE ROLLER BEARING
    1. Remove the thrust needle roller bearing from the input shaft.

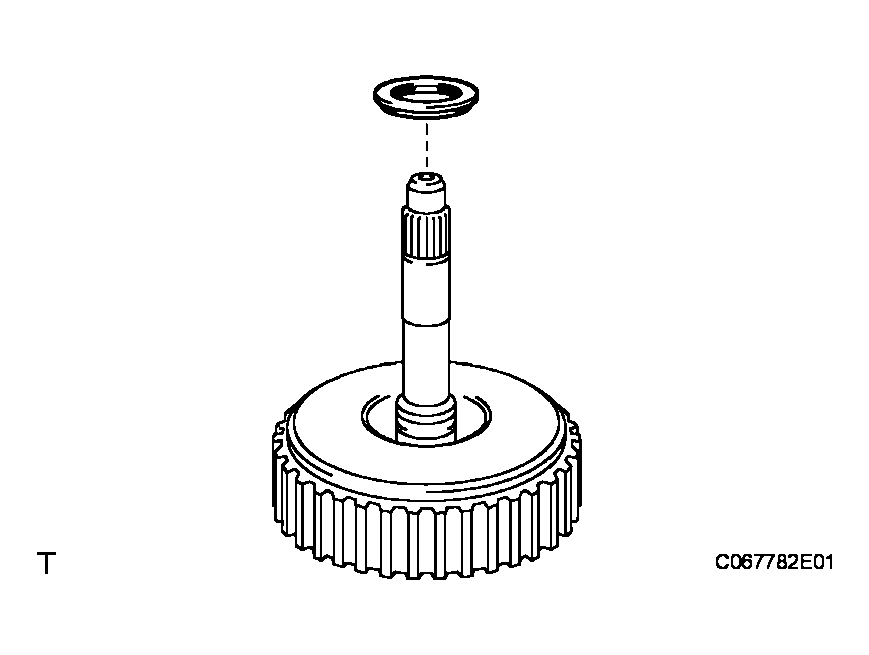

      Fig 33: Removing Thrust Needle Roller Bearing From Input Shaft
      G04227693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FORWARD CLUTCH HUB THRUST NEEDLE ROLLER BEARING
    1. Remove the thrust needle roller bearing from the forward clutch hub.
  29. INSPECT INTERMEDIATE SHAFT ASSEMBLY (See  INSPECTION   )

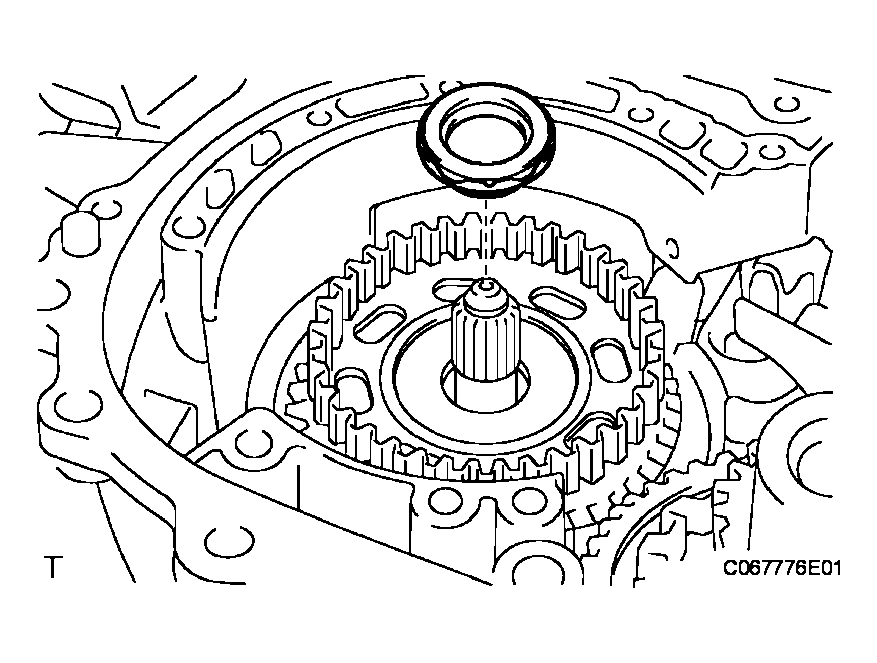

    Fig 34: Removing Thrust Needle Roller Bearing From Forward Clutch Hub
    G04227694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

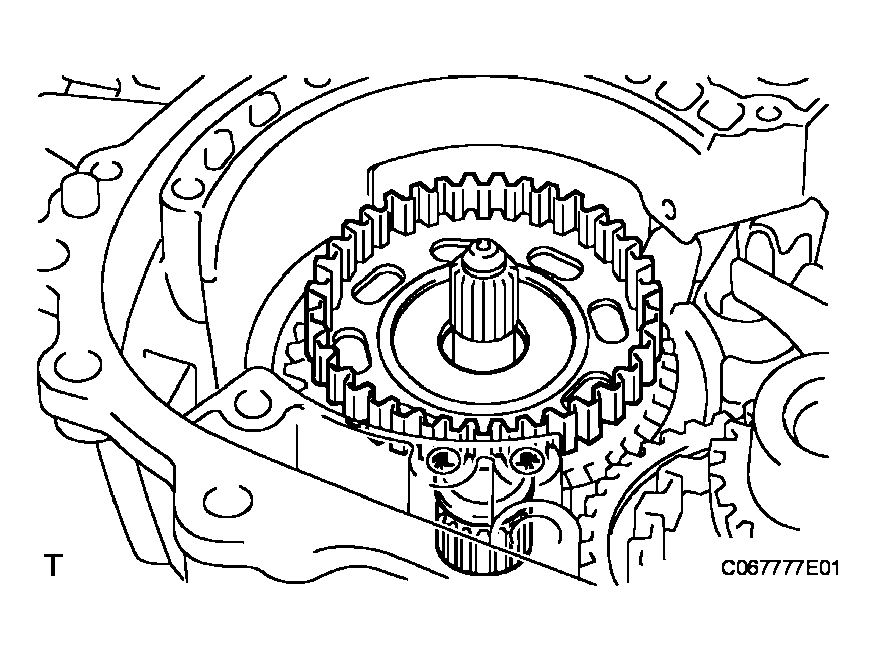

  30. REMOVE FORWARD CLUTCH HUB SUB-ASSEMBLY
    1. Remove the forward clutch hub from the transaxle case.
      Fig 35: Removing Forward Clutch Hub From Transaxle Case
      G04227695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE TRANSAXLE REAR COVER ASSEMBLY
    1. Remove the 11 bolts.
    2. Tap on the circumference of the transaxle rear cover with a plastic-faced hammer to remove the transaxle rear cover from the transaxle case.

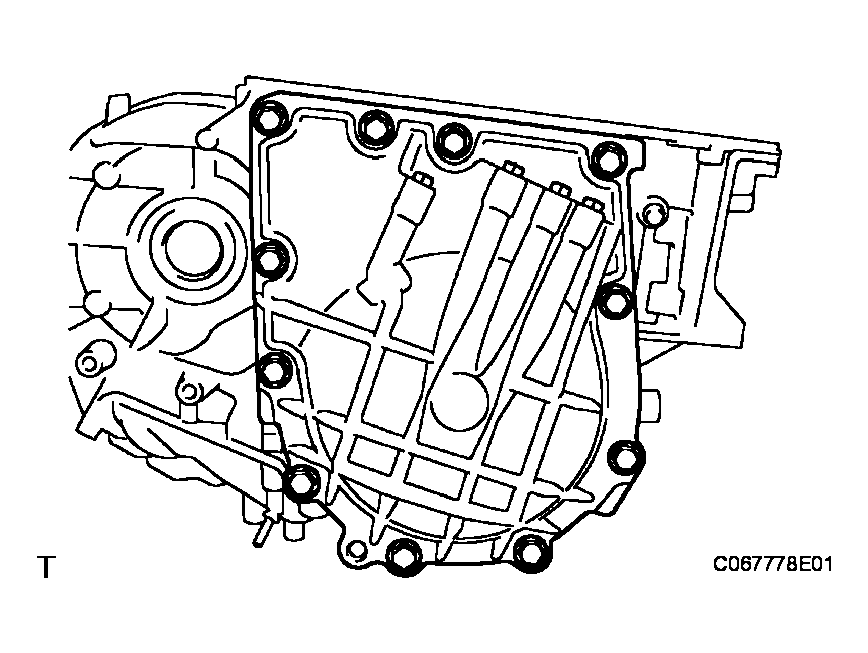

      Fig 36: Removing Transaxle Rear Cover From Transaxle Case
      G04227696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE TRANSAXLE CASE GASKET
    1. Remove the 4 transaxle case gaskets.

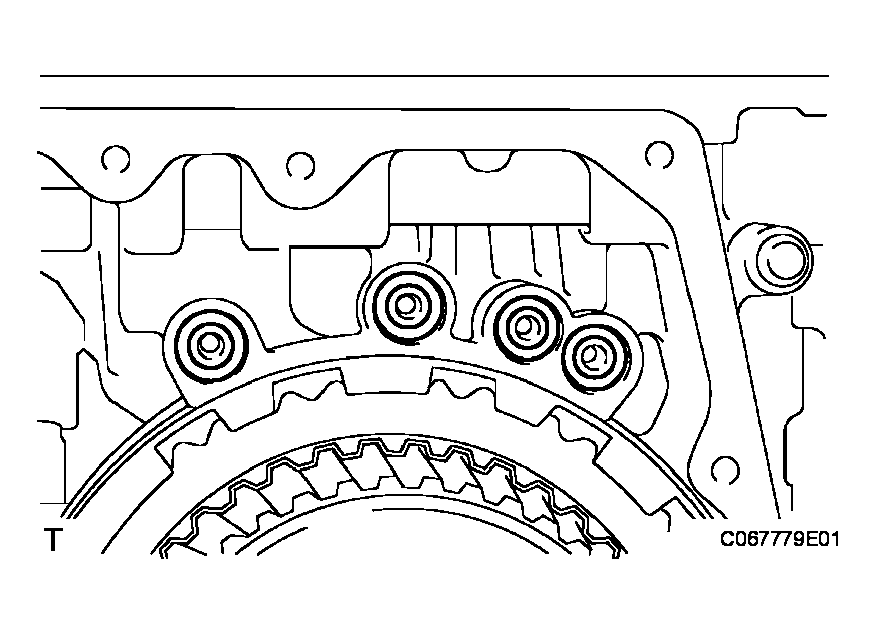

      Fig 37: Removing Transaxle Case Gaskets
      G04227697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

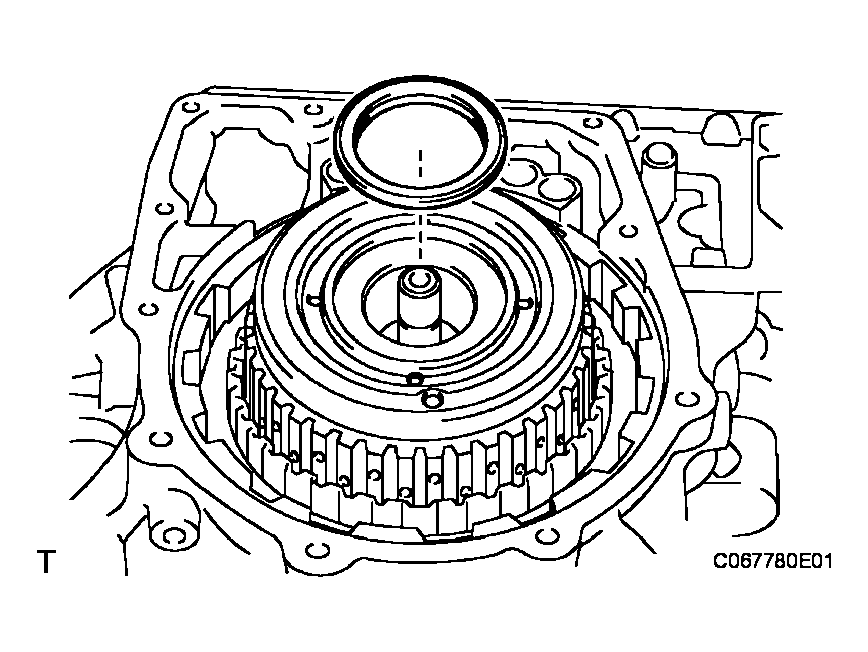

  33. REMOVE REAR CLUTCH DRUM THRUST NEEDLE ROLLER BEARING
    1. Using a magnetic finger, remove the thrust needle roller bearing.
      Fig 38: Removing Thrust Needle Roller Bearing
      G04227698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE INTERMEDIATE SHAFT ASSEMBLY
    1. Remove the intermediate shaft from the transaxle case.

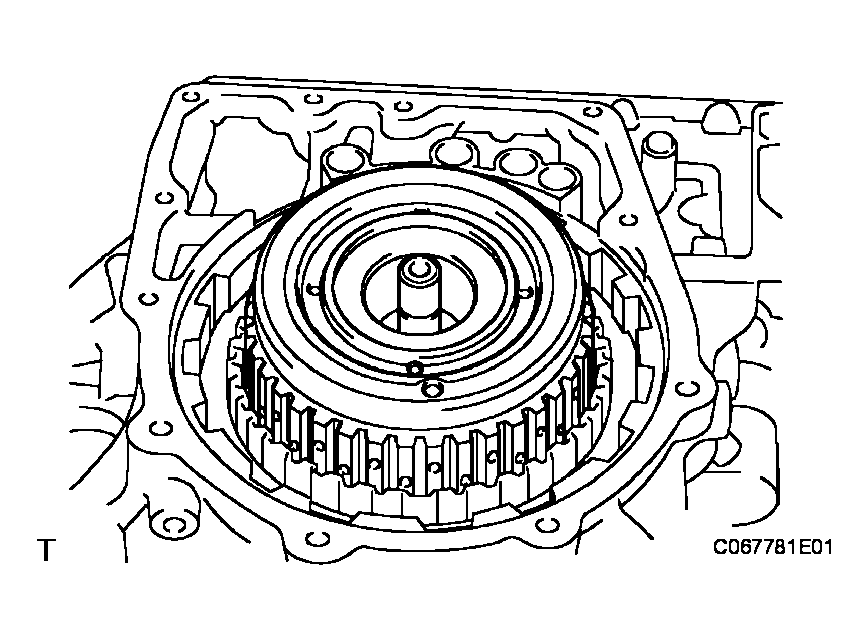

      Fig 39: Removing Intermediate Shaft From Transaxle Case
      G04227699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

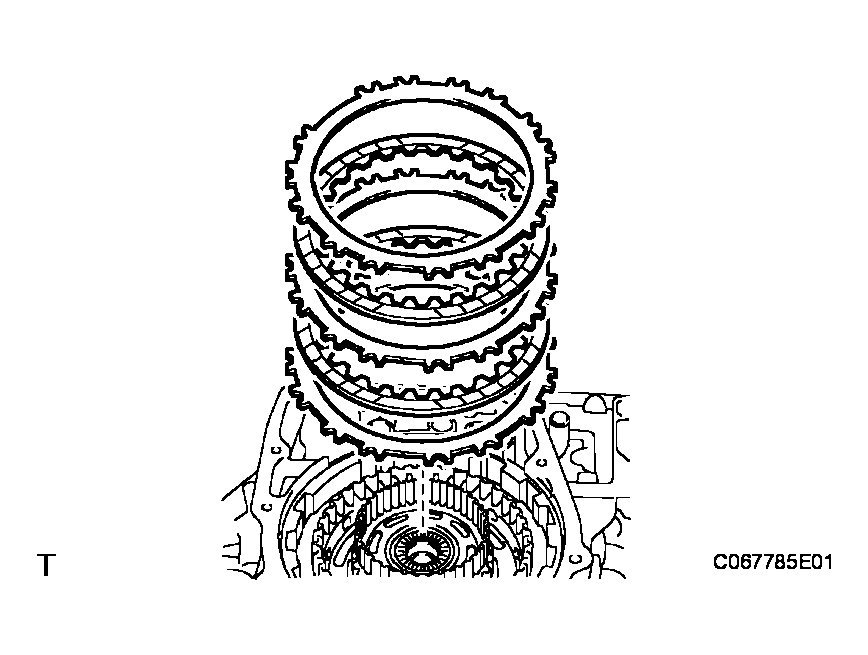

  35. REMOVE 2ND COAST AND OVERDRIVE BRAKE DISC
    1. Remove the 2 flanges, 2 discs and 2 plates from the transaxle case.
  36. INSPECT 2ND COAST AND OVERDRIVE BRAKE DISC (See  INSPECTION   )
    Fig 40: Removing Flanges, Discs And Plates From Transaxle Case
    G04227700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

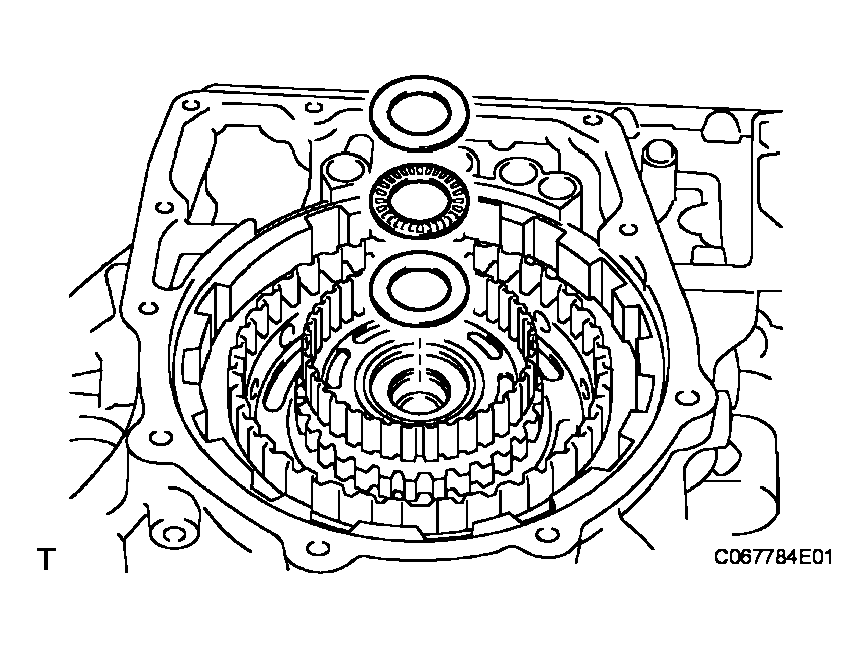

  37. REMOVE THRUST NEEDLE ROLLER BEARING
    1. Using a magnetic finger, remove the C-2 hub thrust bearing race, thrust needle roller bearing and No. 3 thrust bearing race from the direct clutch hub.
      Fig 41: Removing Thrust Needle Roller Bearing
      G04227701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE DIRECT CLUTCH HUB
    1. Remove the direct clutch hub from the transaxle case.

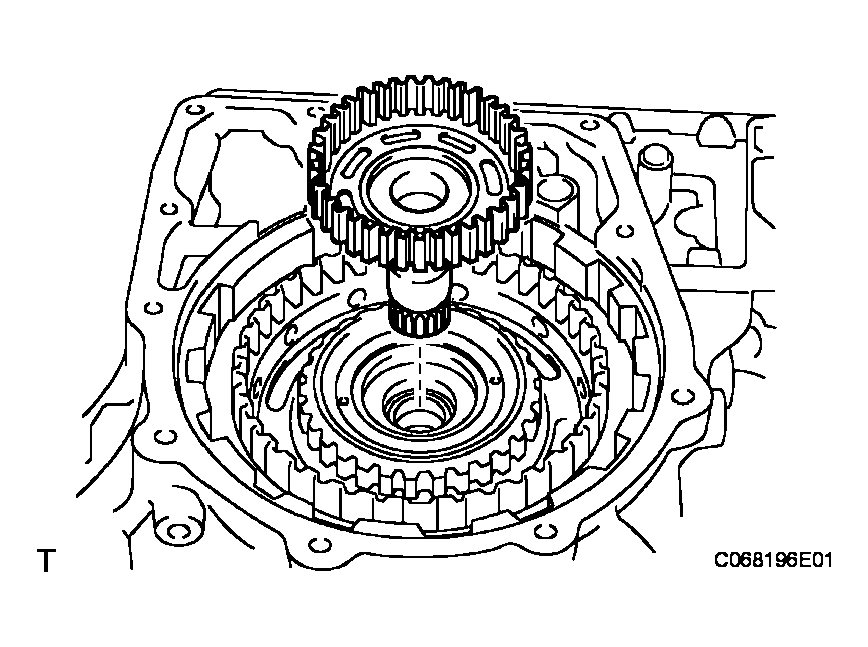

      Fig 42: Removing Direct Clutch Hub From Transaxle Case
      G04227702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REAR PLANETARY SUN GEAR, NO. 2 THRUST NEEDLE BEARING
    1. Using a magnetic finger, remove the thrust bearing from the rear thrust needle bearing.

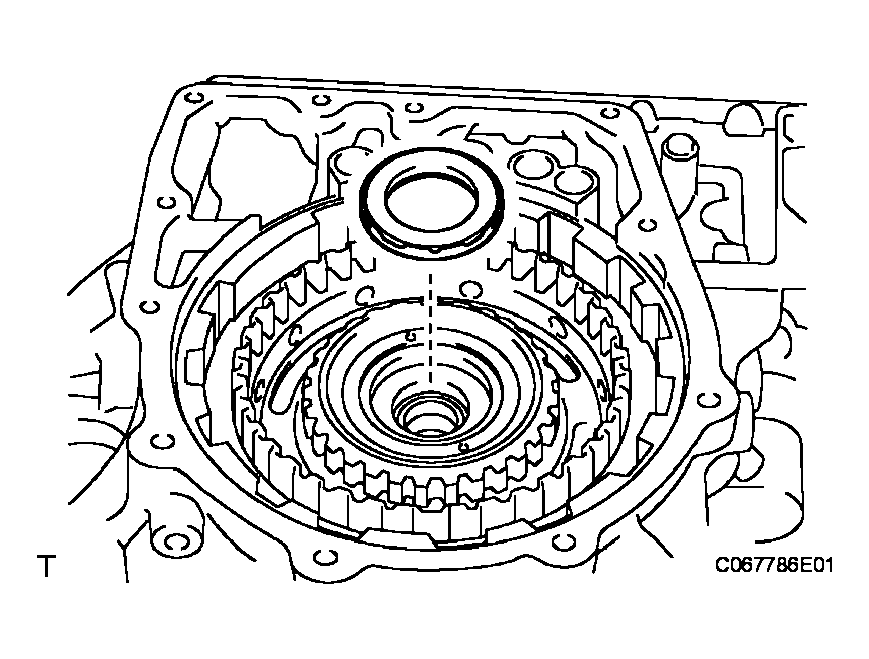

      Fig 43: Removing Thrust Bearing From Rear Thrust Needle Bearing
      G04227703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE REAR PLANETARY SUN GEAR ASSEMBLY
    1. Remove the rear planetary sun gear from the transaxle case.

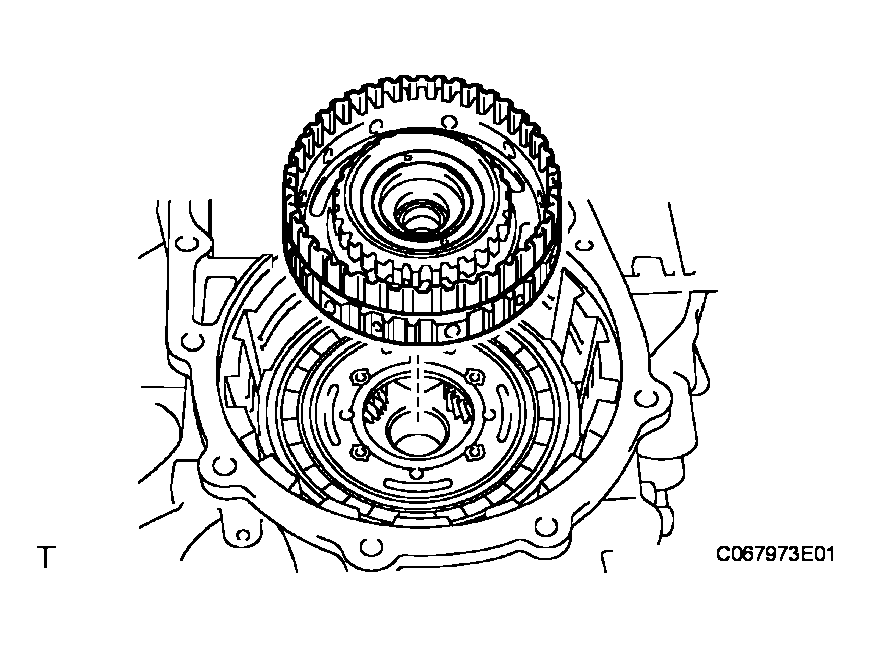

      Fig 44: Removing Rear Planetary Sun Gear From Transaxle Case
      G04227704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE REAR PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING
    1. Remove the rear planetary sun gear thrust needle roller bearing and No. 1 thrust washer from the rear planetary sun gear.
  42. INSPECT 1-WAY CLUTCH ASSEMBLY (See  INSPECTION   )

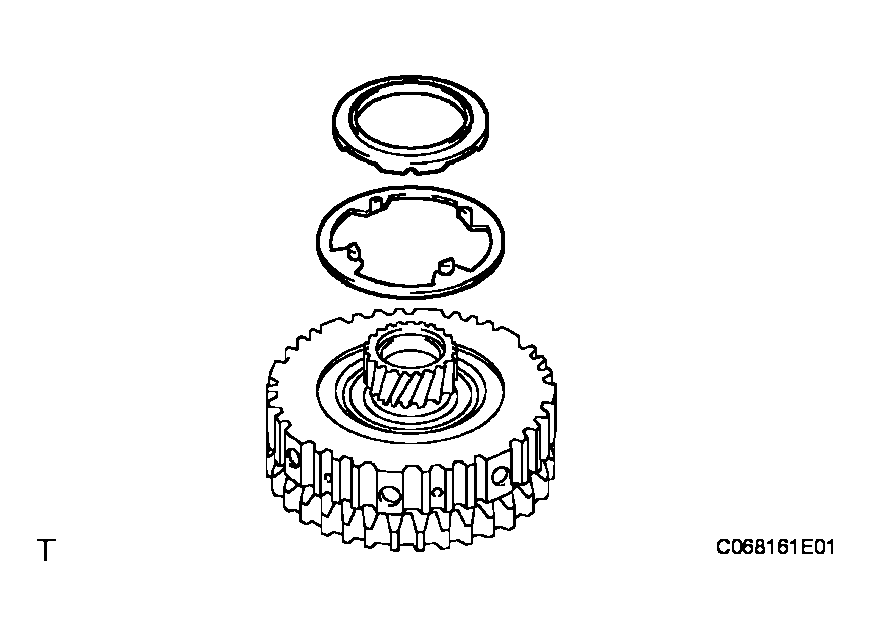

    Fig 45: Removing Rear Planetary Sun Gear Thrust Needle Roller Bearing
    G04227705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

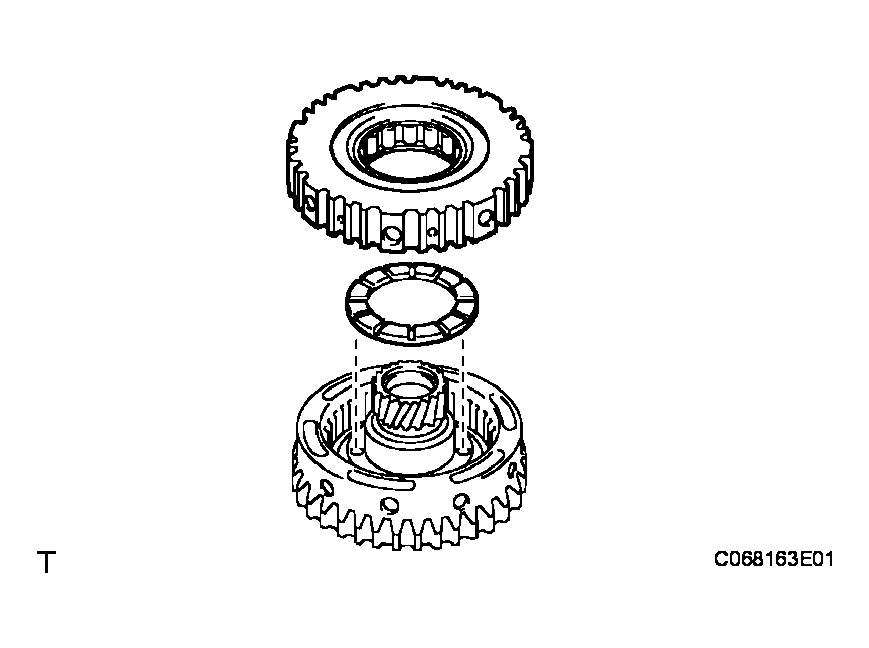

  43. REMOVE 1-WAY CLUTCH ASSEMBLY
    1. Remove the 1-way clutch and planetary carrier No. 2 thrust washer from the rear planetary sun gear.
      Fig 46: Removing 1-Way Clutch Assembly
      G04227706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE 2ND COAST AND OVERDRIVE BRAKE FLANGE HOLE SNAP RING
    1. Using a screwdriver, remove the snap ring from the transaxle case.

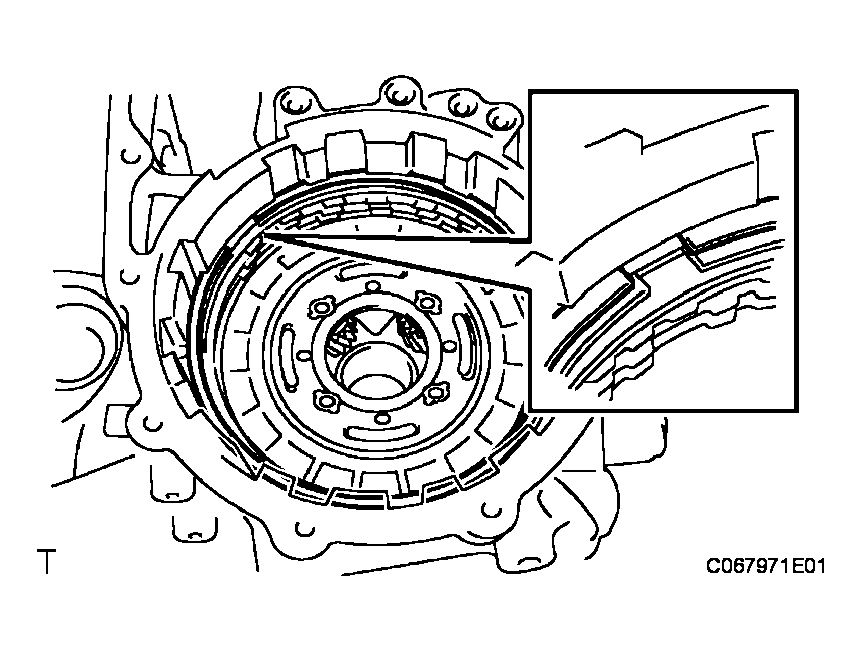

      Fig 47: Removing Snap Ring From Transaxle Case
      G04227707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE 2ND BRAKE DISC
    1. Using a screwdriver, remove the snap ring.
    2. Remove the flange, 3 discs and 3 plates from the transaxle.
  46. INSPECT 2ND BRAKE DISC (See  INSPECTION   )

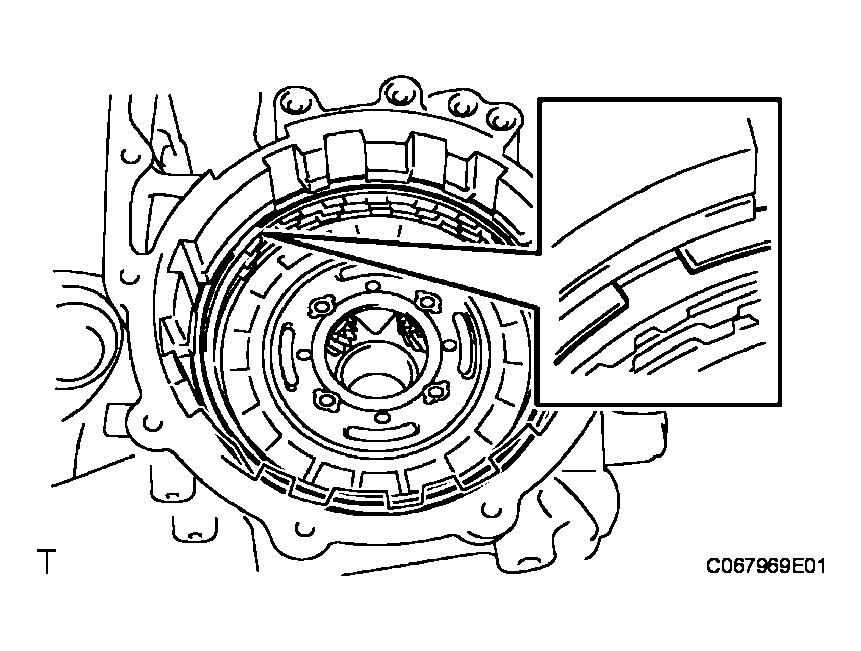

    Fig 48: Removing Flange, Discs And Plates From Transaxle
    G04227708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE 2ND BRAKE PISTON SLEEVE
    1. Remove the 2nd brake piston sleeve from the transaxle case.
  48. INSPECT NO. 2 1-WAY CLUTCH (See  REASSEMBLY   )

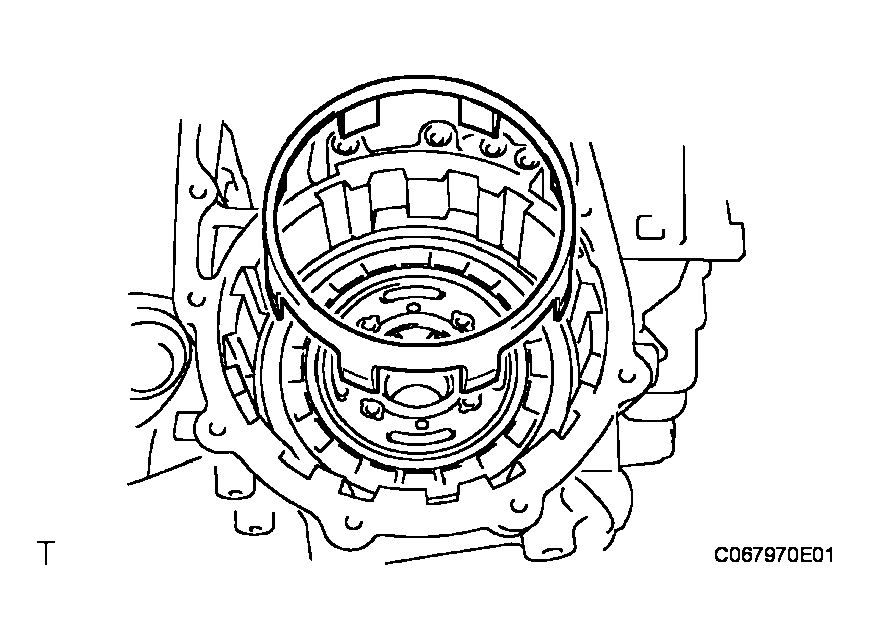

    Fig 49: Removing 2Nd Brake Piston Sleeve From Transaxle Case
    G04227709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE REAR PLANETARY GEAR ASSEMBLY
    1. Using a screwdriver, remove the snap ring.
    2. Remove the rear planetary gear from the transaxle case.

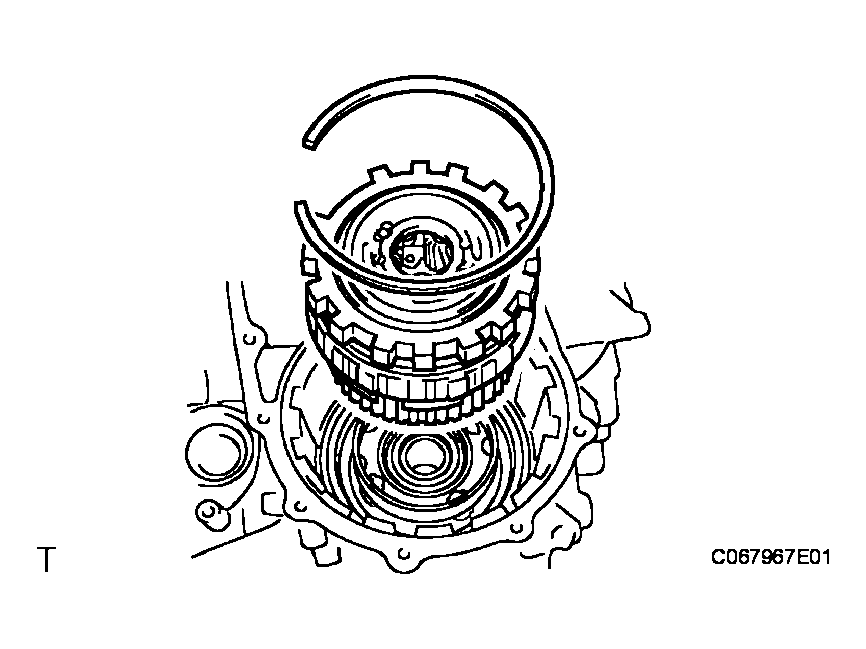

      Fig 50: Removing Rear Planetary Gear From Transaxle Case
      G04227710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE PLANETARY GEAR REAR THRUST NEEDLE ROLLER BEARING
    1. Remove the thrust needle roller bearing and 2 bearing races from the rear planetary gear.

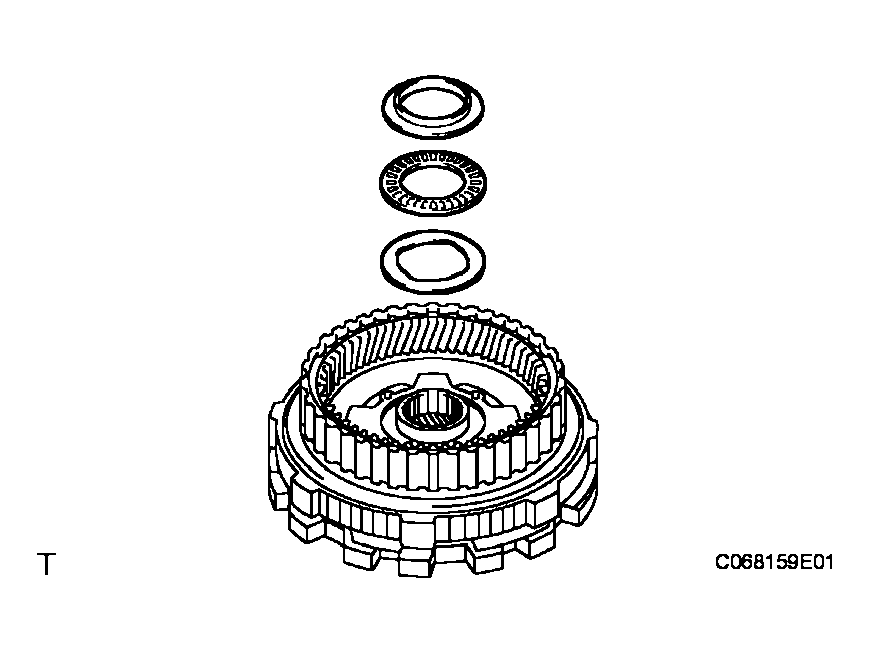

      Fig 51: Removing Thrust Needle Roller Bearing And Bearing Races From Rear Planetary Gear
      G04227711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

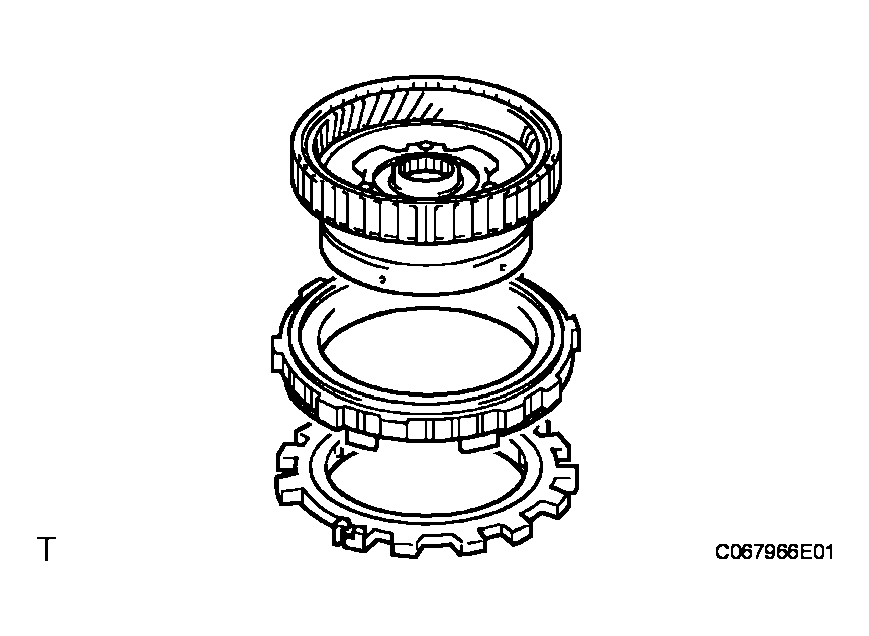

  51. REMOVE NO. 2 1-WAY CLUTCH
    1. Separate the 2nd brake piston assembly, No. 2 1-way clutch and rear planetary gear.
      Fig 52: Removing 2 1-Way Clutch
      G04227712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

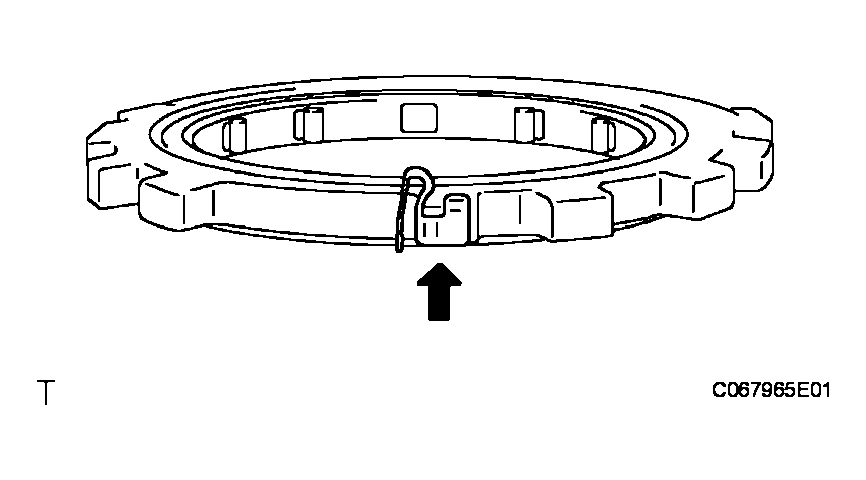

  52. REMOVE OUTER RACE RETAINER
    1. Remove the retainer from the No. 2 1-way clutch.
      Fig 53: Removing Retainer From No. 2 1-Way Clutch
      G04227713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE FRONT PLANETARY SUN GEAR
    1. Remove the front planetary sun gear and thrust needle roller bearing from the transaxle case.

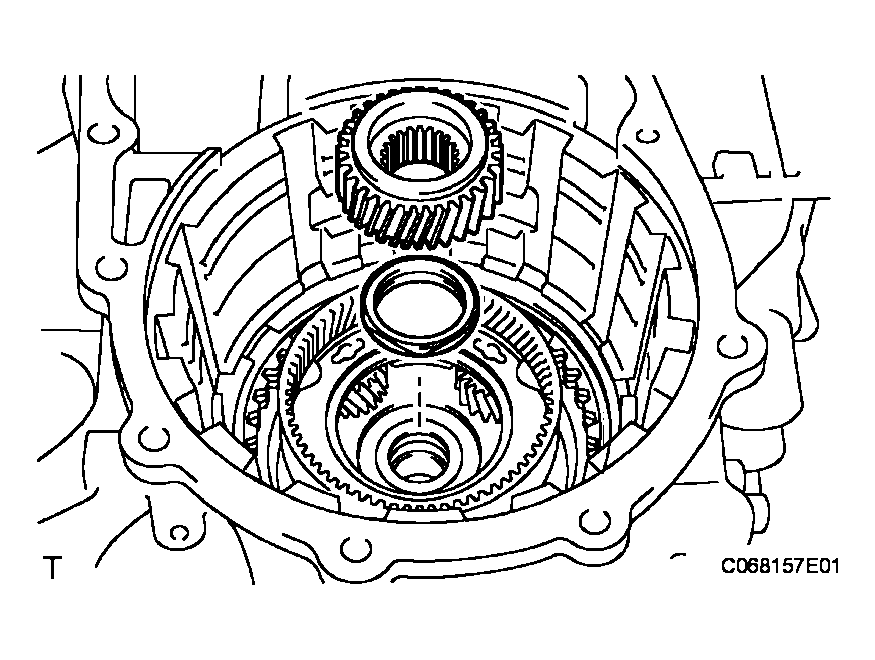

      Fig 54: Removing Front Planetary Sun Gear And Thrust Needle Roller Bearing From Transaxle Case
      G04227714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE 1ST AND REVERSE BRAKE DISC
    1. Using a screwdriver, remove the snap ring.
    2. Remove the flange, 4 discs and 4 plates from the transaxle case.
  55. INSPECT 1ST AND REVERSE BRAKE DISC (See  REASSEMBLY   )

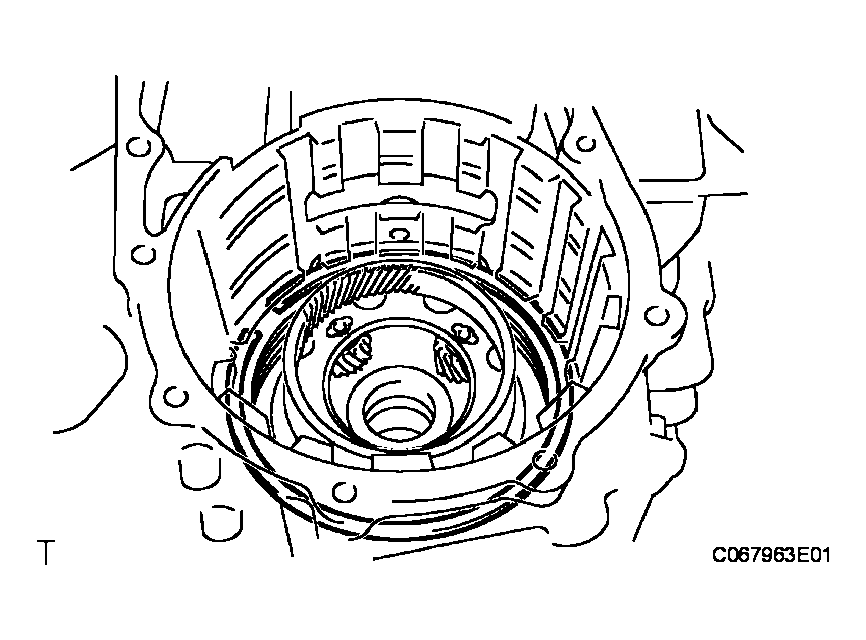

    Fig 55: Removing 1St And Reverse Brake Disc
    G04227715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
    1. Using SST, a press and screwdriver, remove the snap ring.

      SST 09387-00070

    2. Remove the 1st and reverse brake return spring sub-assembly.
  57. INSPECT 1ST AND REVERSE BRAKE RETUR SPRING SUB-ASSEMBLY (See  REASSEMBLY   )

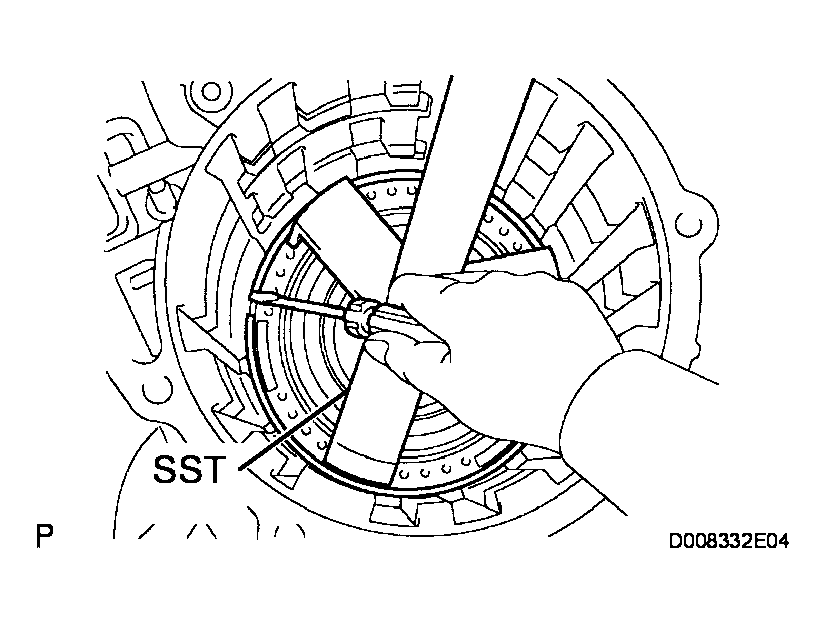

    Fig 56: Removing Snap Ring Using Screwdriver
    G04227716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE 1ST AND NO. 2 REVERSE BRAKE PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the transaxle case to remove the 1st and reverse brake piston.
      NOTE:
      • Blowing air may cause the piston to jump out. When removing the piston, hold it with your hand using a waste cloth.
      • Take care not to splash ATF when blowing air.

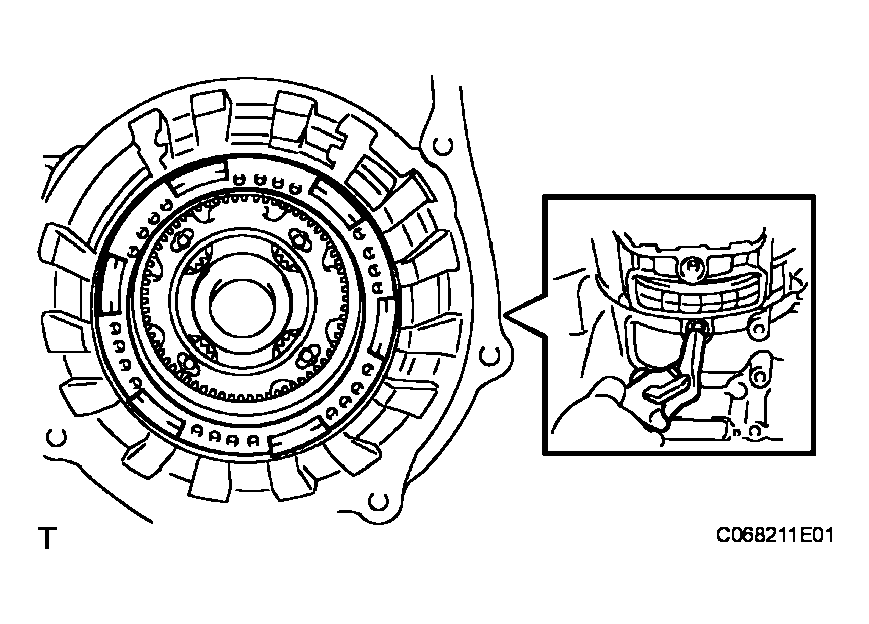

        Fig 57: Removing 1St And Reverse Brake Piston
        G04227717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

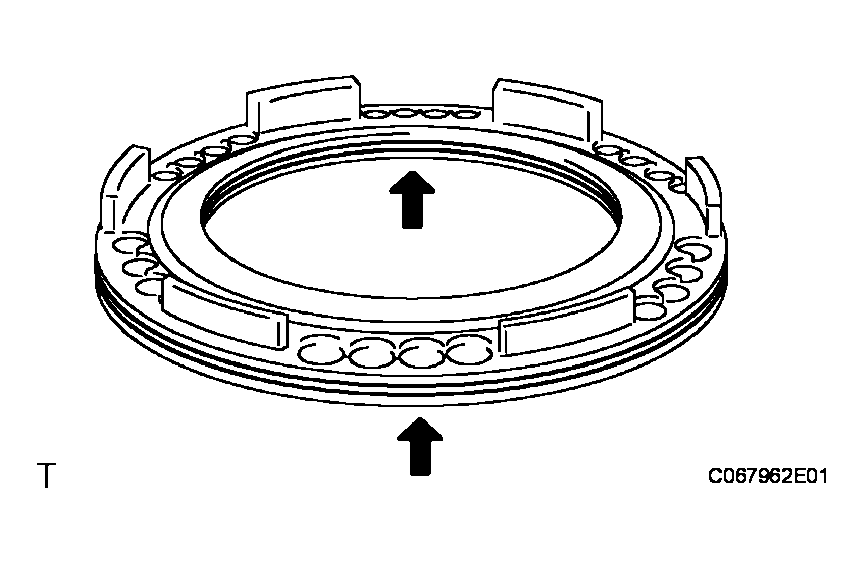

  59. REMOVE 1ST AND NO. 2 REVERSE BRAKE PISTON O-RING
    1. Remove the 2 O-rings from the 1st and No. 2 reverse brake piston.
      Fig 58: Removing 2 O-Rings From 1St And No. 2 Reverse Brake Piston
      G04227718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE COUNTER DRIVE GEAR NUT

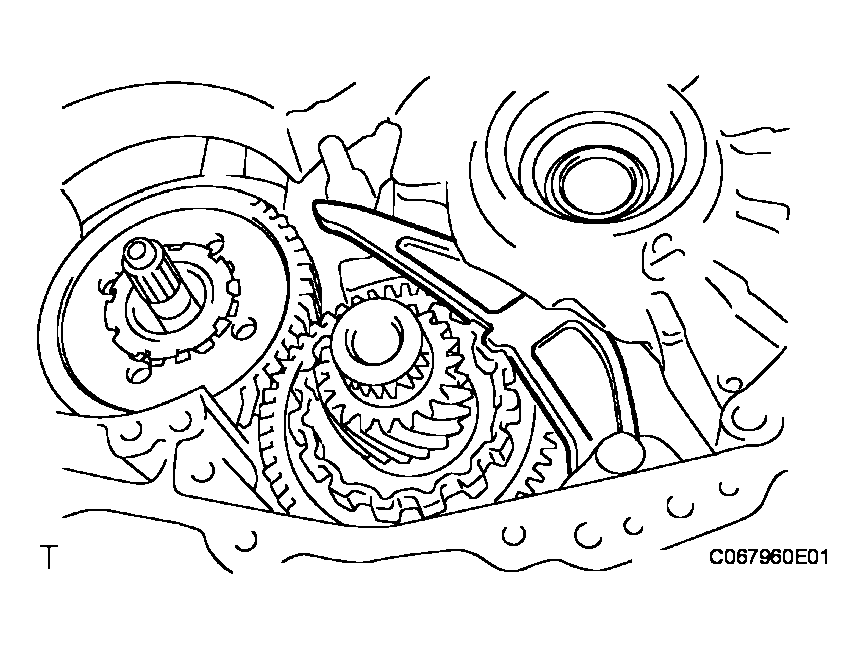

    1. Fix the counter driven gear with the parking lock pawl.
      Fig 59: Removing Counter Driven Gear With Parking Lock Pawl
      G04227719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, unstake the lock washer.

      SST 09930-00010

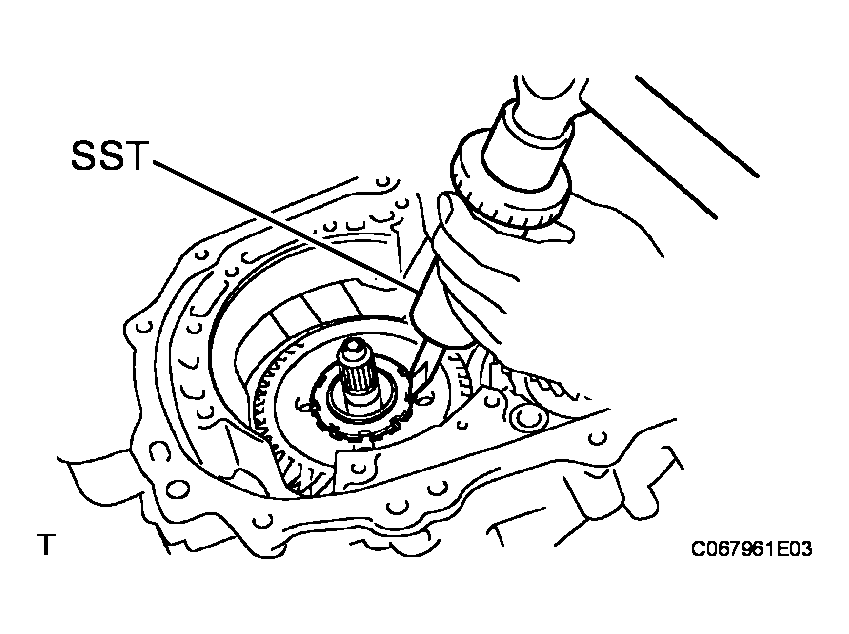

      Fig 60: Removing Lock Washer
      G04227720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the nut and lock washer.

      SST 09387-00120

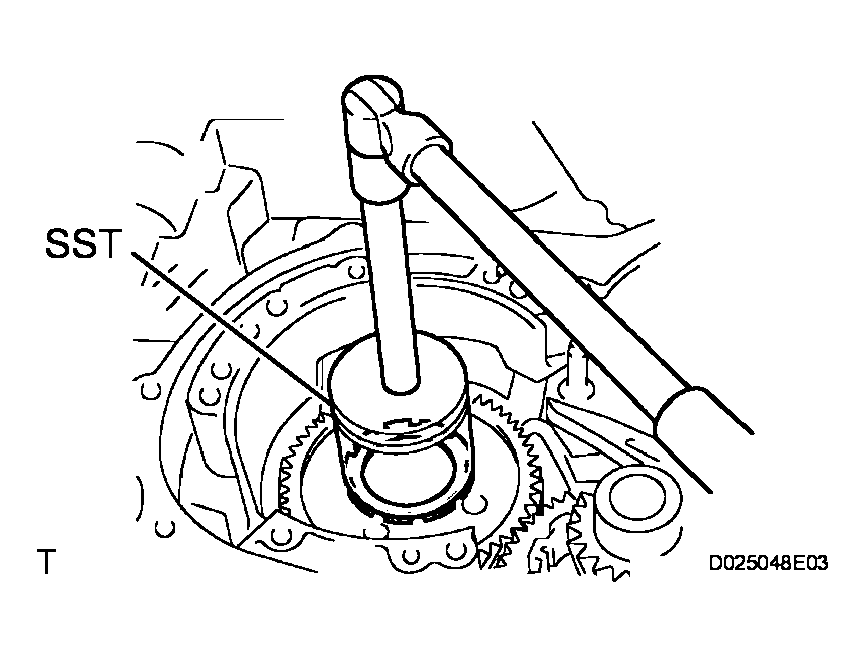

      Fig 61: Removing Nut And Lock Washer Using SST
      G04227721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  61. REMOVE PLANETARY GEAR ASSEMBLY
    1. Using SST and a press, press out the planetary gear from the transaxle case.

      SST 09950-60010 (09951-00400, 09951-00320, 09952-06010), 09950-70010 (09951-07100)

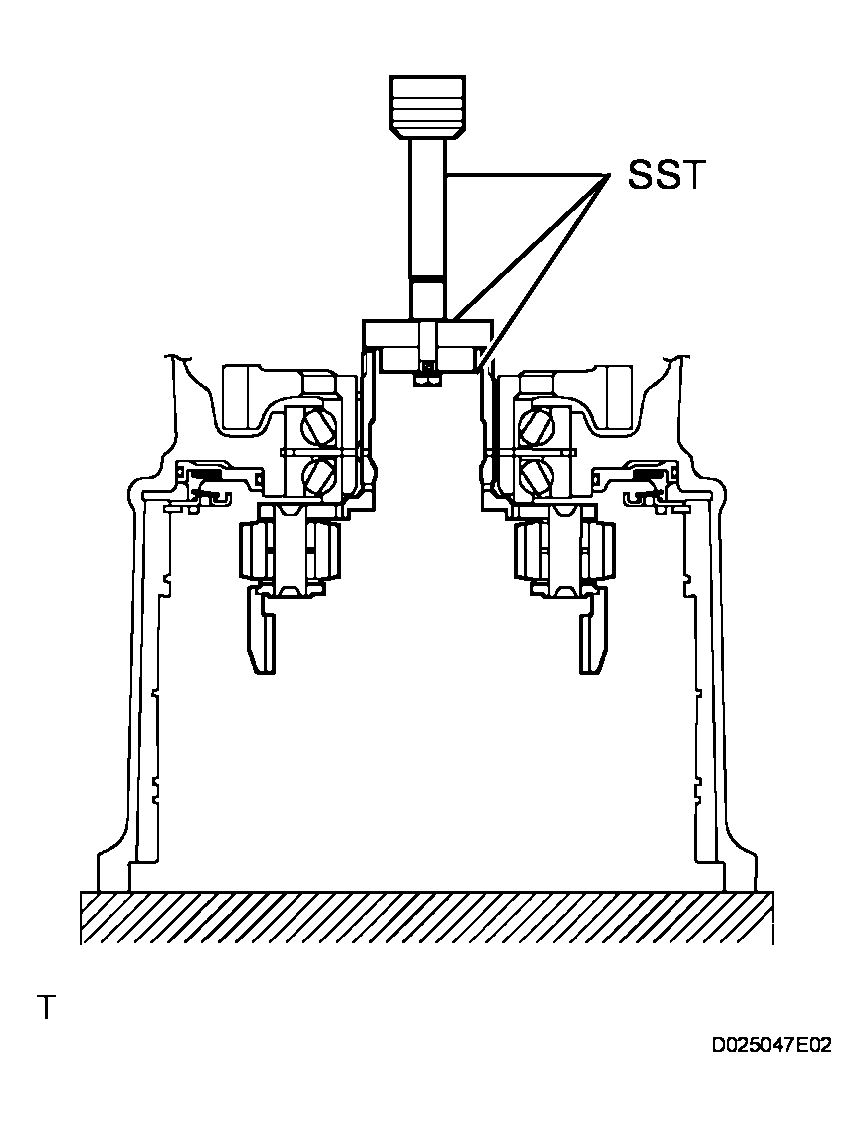

      Fig 62: Pressing Out Planetary Gear From Transaxle Case
      G04227722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE COUNTER DRIVE GEAR
    1. Install the 2 bolts to the counter drive gear.

      Bolt (M6):

      Length = 40 to 80 mm

      Pitch = 1.0 mm

    2. Rotate the 2 bolts in order and remove the counter drive gear and front planetary sun gear.
    3. Remove the 2 radial ball bearings from the counter drive gear and front planetary sun gear.

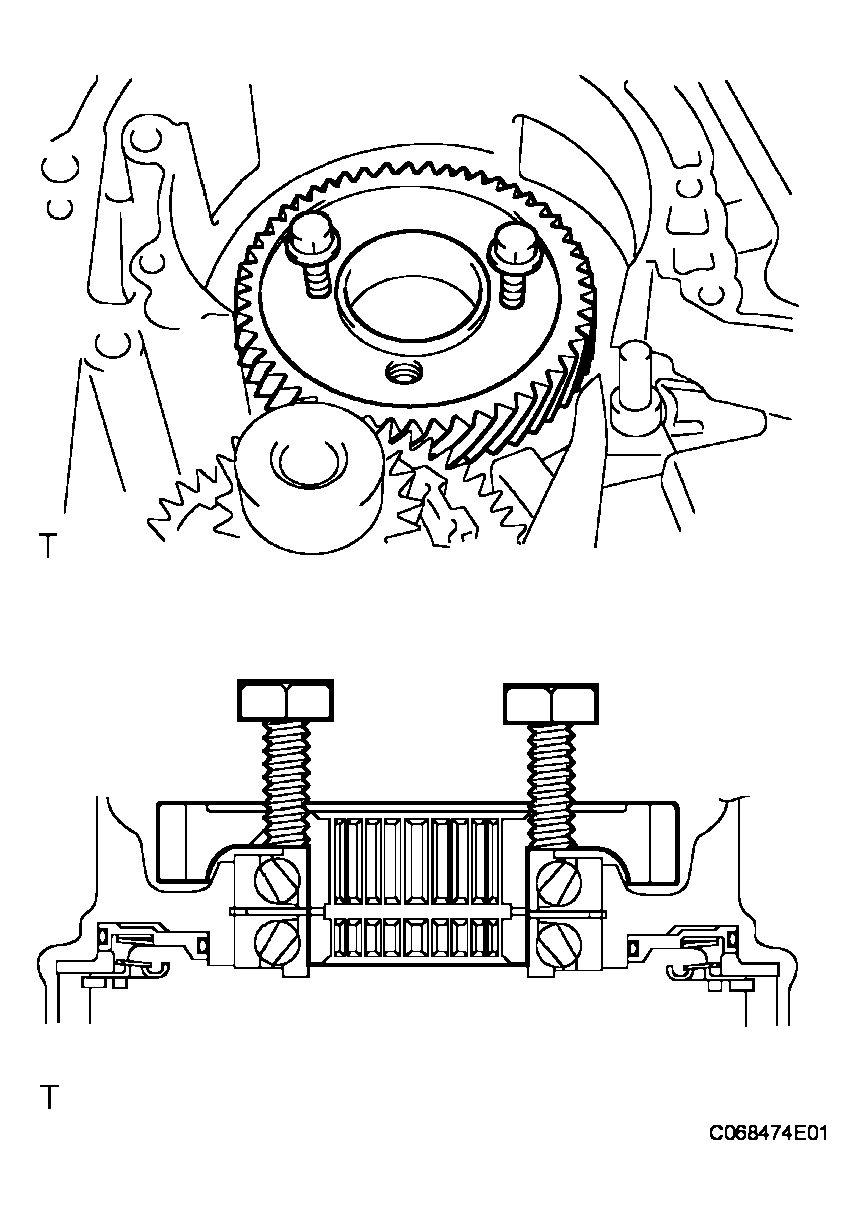

      Fig 63: Removing Bolts To Counter Drive Gear
      G04227723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

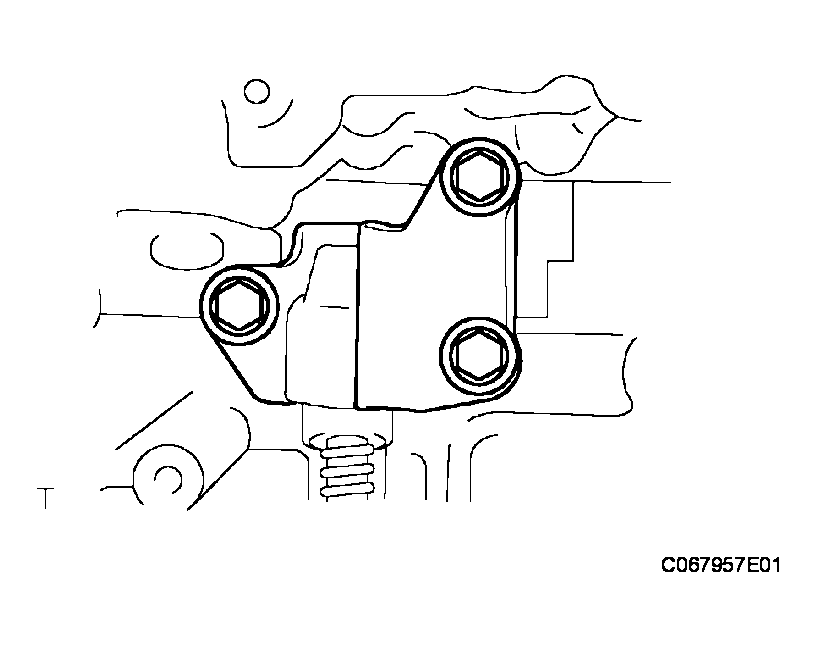

  63. REMOVE PARKING LOCK PAWL BRACKET
    1. Remove the 3 bolts, cam guide and bracket.
      Fig 64: Removing Parking Lock Pawl Bracket
      G04227724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. REMOVE MANUAL VALVE LEVER SHAFT RETAINER SPRING
    1. Remove the retainer spring.

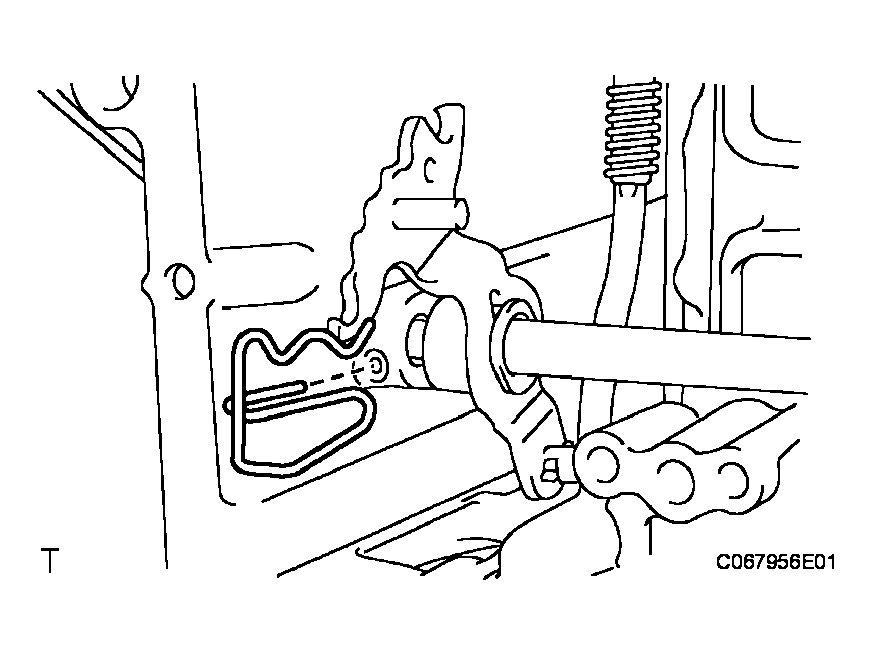

      Fig 65: Removing Manual Valve Lever Shaft Retainer Spring
      G04227725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY
    1. Using a screwdriver, unstake and remove the spacer.

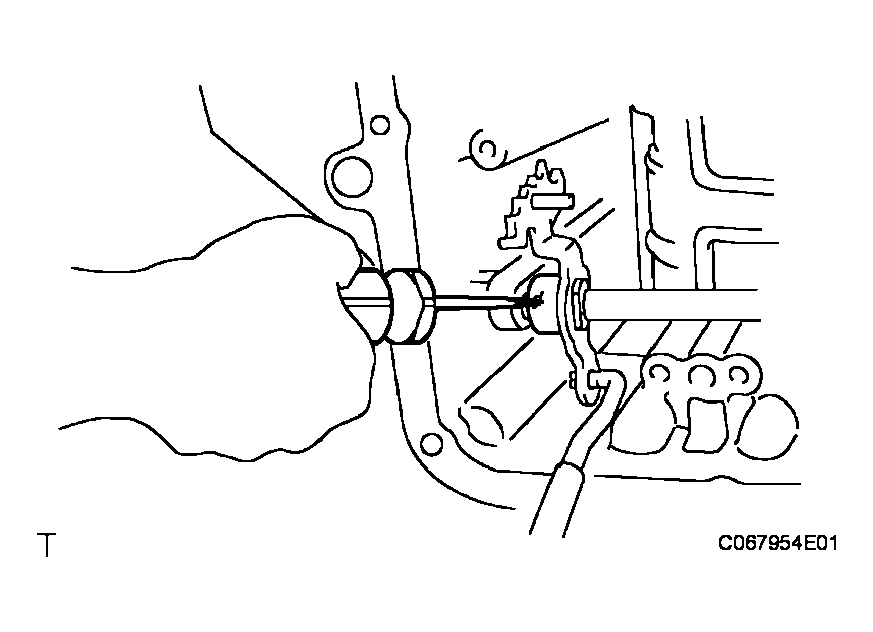

      Fig 66: Removing Spacer Using Screwdriver
      G04227726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a pin punch and hammer, tap out the pin.
    3. Remove the manual valve lever shaft and manual valve lever.

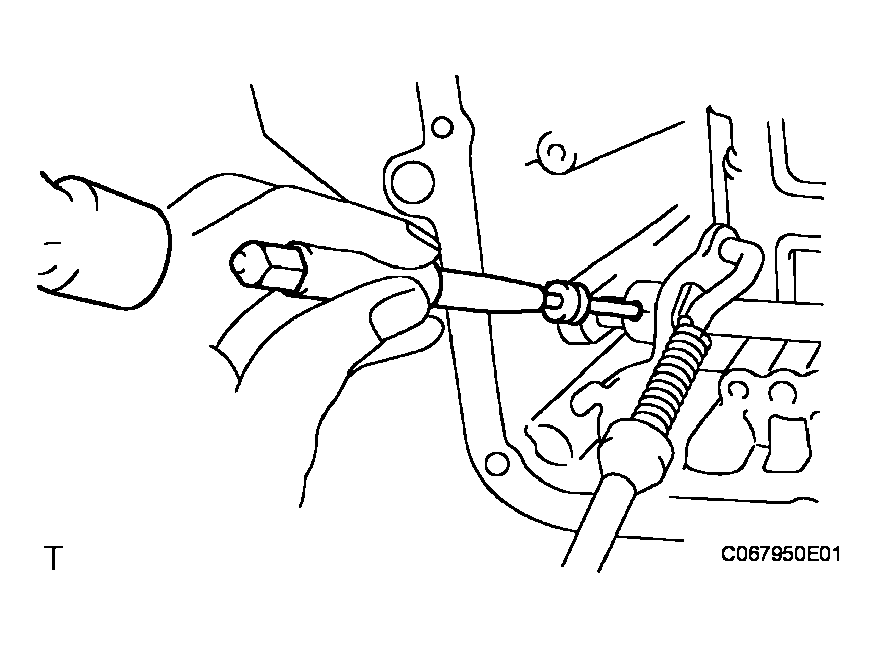

      Fig 67: Removing Manual Valve Lever Shaft
      G04227727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. REMOVE PARKING LOCK ROD SUB-ASSEMBLY
    1. Remove the parking lock rod from the manual valve lever.

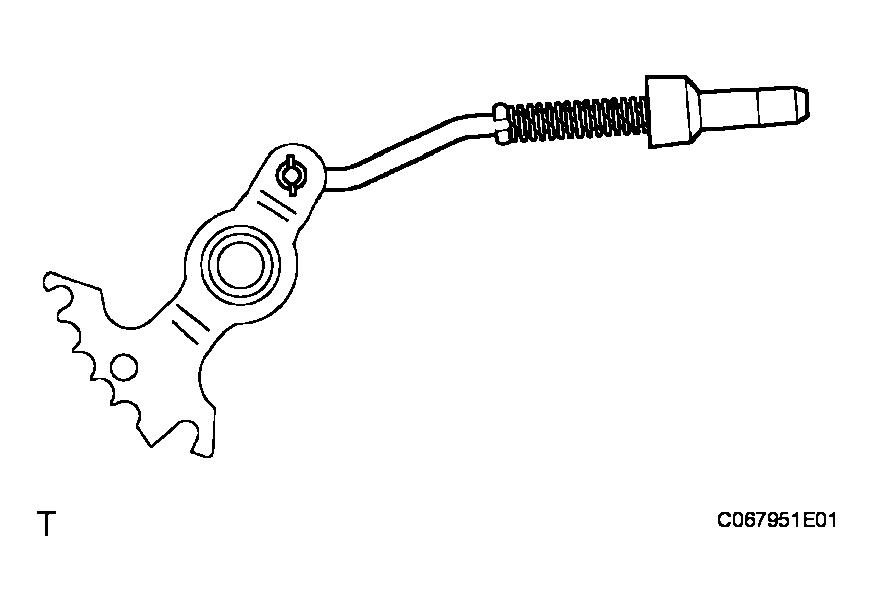

      Fig 68: Removing Parking Lock Rod From Manual Valve Lever
      G04227728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE MANUAL VALVE LEVER SHAFT
    1. Remove the manual valve lever shaft from the transaxle case.

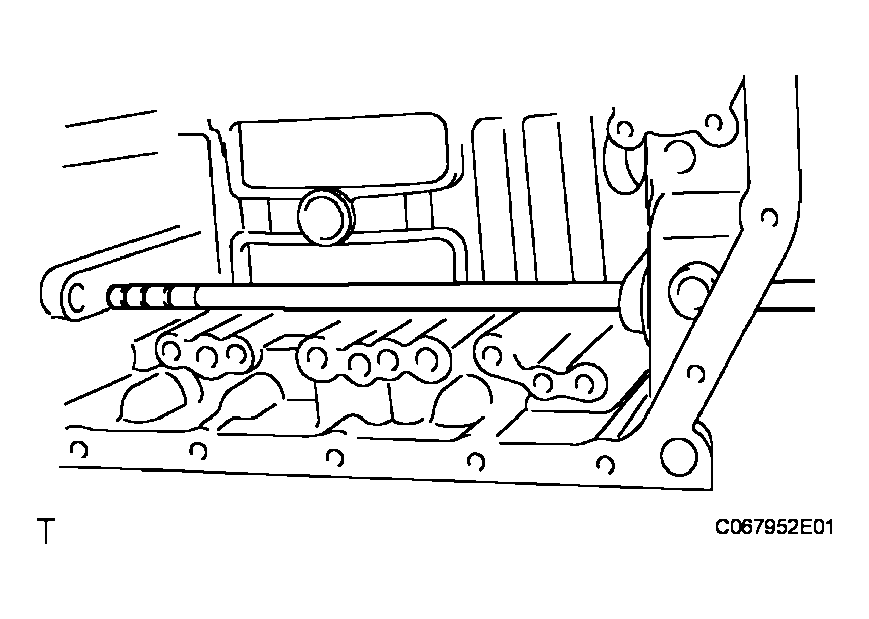

      Fig 69: Removing Manual Valve Lever Shaft From Transaxle Case
      G04227729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. REMOVE PARKING LOCK PAWL
    1. Using a screwdriver, remove the parking lock pawl shaft.
    2. Remove the torsion spring and parking lock pawl.

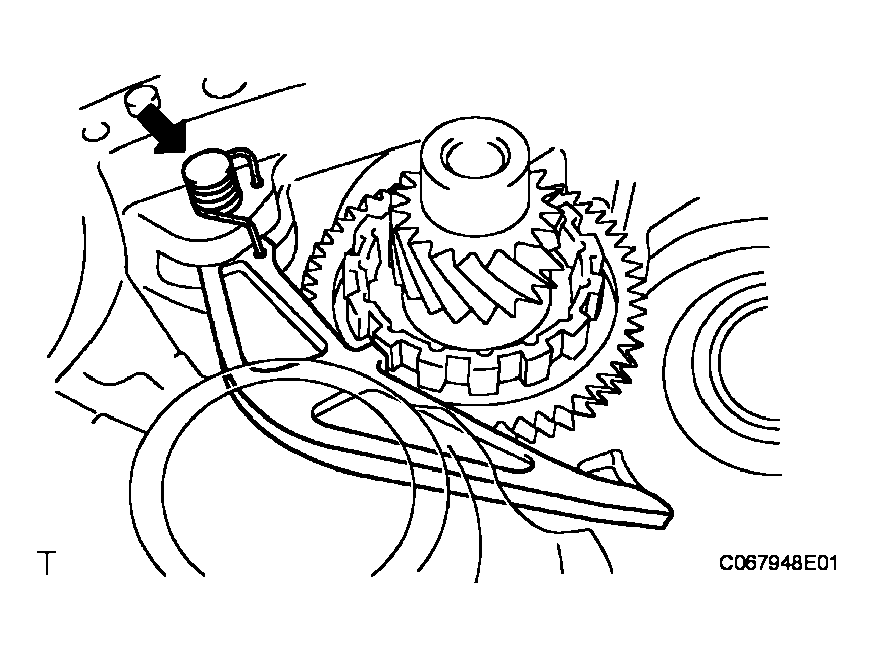

      Fig 70: Removing Torsion Spring And Parking Lock Pawl
      G04227730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE COUNTER DRIVEN GEAR
    1. Remove the counter driven gear, drive pinion and thrust needle roller bearing from the transaxle case.

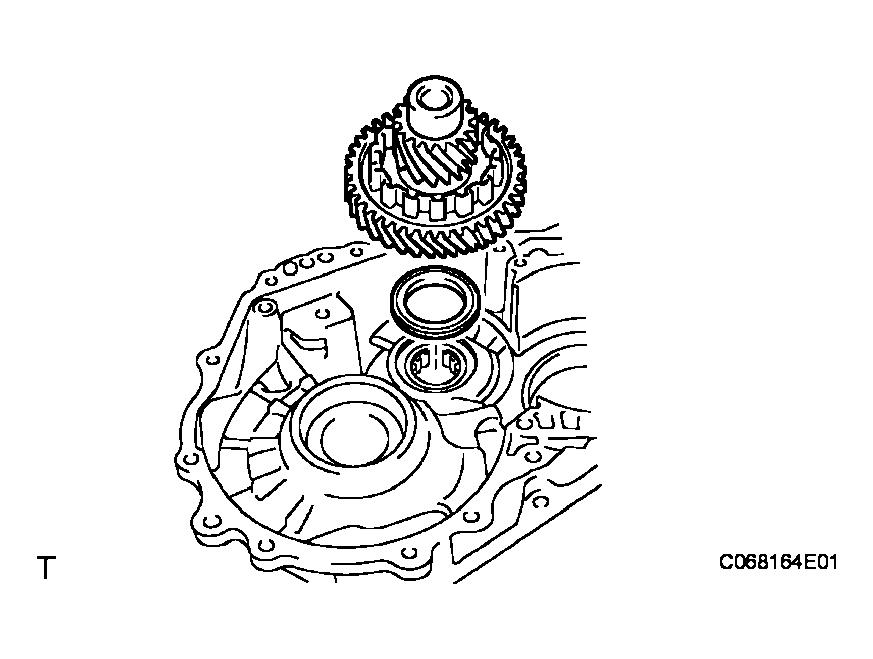

      Fig 71: Removing Counter Driven Gear
      G04227731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  70. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL
    1. Using a screwdriver, pry out the oil seal.
      Fig 72: Prying Out Oil Seal
      G04227732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  71. REMOVE COUNTER DRIVE GEAR BEARING
    1. Remove the 2 counter drive gear bearing inner races RH from the transaxle case.
    2. Using SST, remove the counter drive gear bearing LH outer race from the transaxle case.

      SST 09308-00010

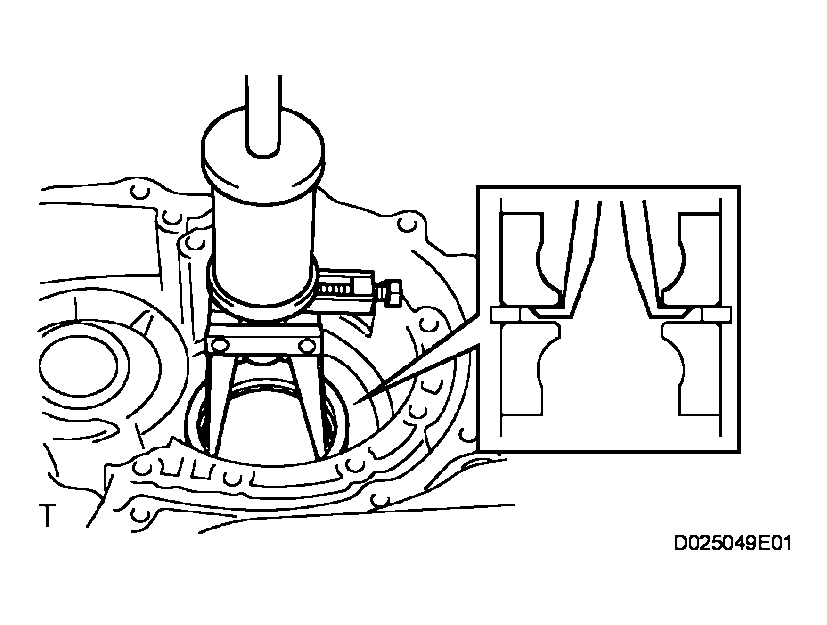

      Fig 73: Removing Counter Drive Gear Bearing LH Outer Race From Transaxle Case
      G04227733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the counter drive gear bearing RH outer race from the transaxle case.

      SST 09308-00010

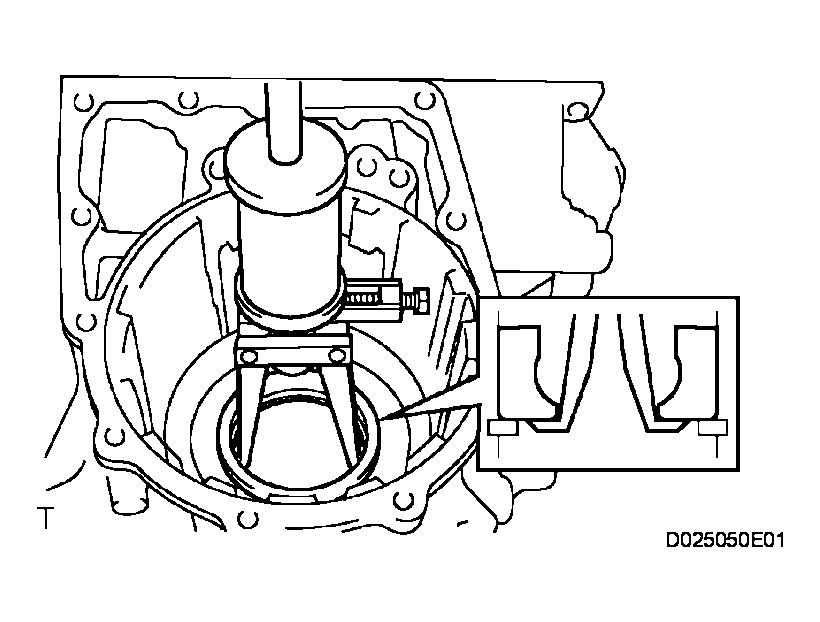

      Fig 74: Removing Counter Drive Gear Bearing RH Outer Race From Transaxle Case
      G04227734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE COUNTER DRIVE GEAR HOLE SNAP RING
    1. Using a screwdriver, remove the counter drive gear hole snap ring from the transaxle case.

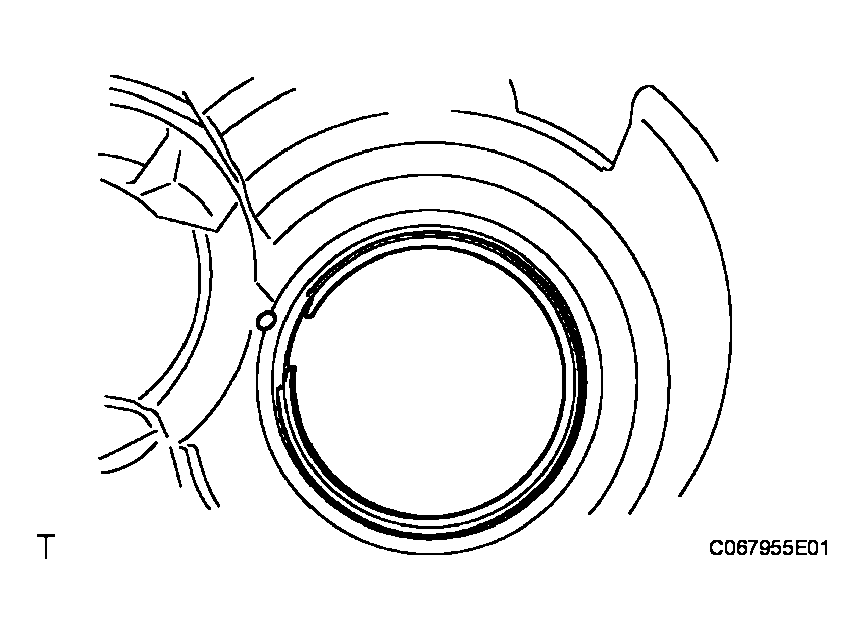

      Fig 75: Removing Counter Drive Gear Hole Snap Ring From Transaxle Case
      G04227735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  73. REMOVE BREATHER PLUG HOSE

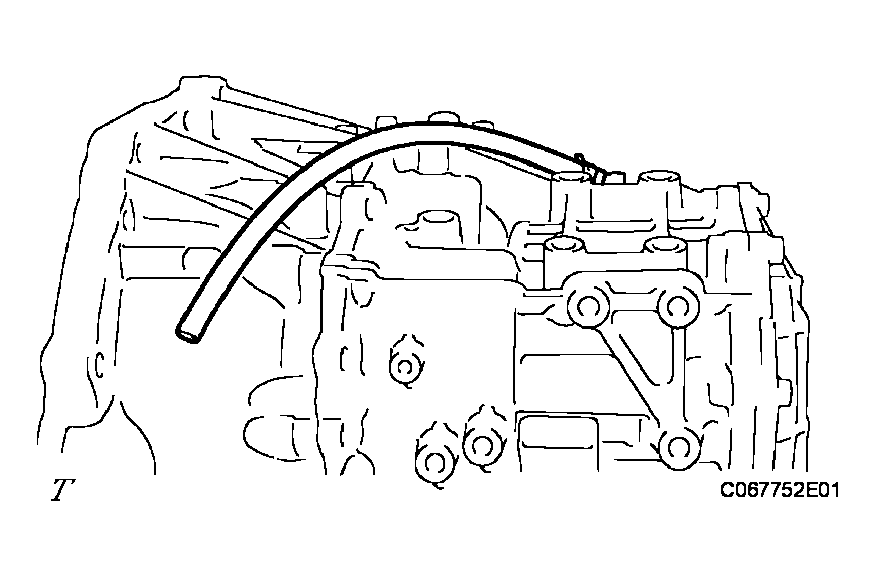

    Fig 76: Removing Breather Plug Hose
    G04227736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  74. REMOVE FRONT DRIVE PINION REAR TAPERED ROLLER BEARING (for LH Side)
    1. Using SST, remove the drive pinion roller bearing from the transaxle case.

      SST 09612-65014 (09612-01040)

    2. Remove the No. 1 transaxle case plate.

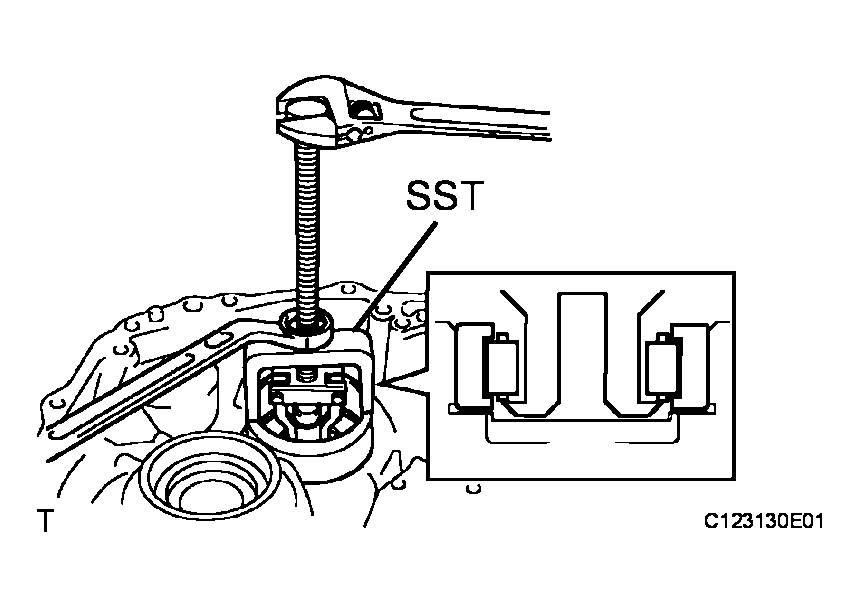

      Fig 77: Removing Drive Pinion Roller Bearing From Transaxle Case Using SST
      G04227737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
    1. Using SST, remove the front differential case front tapered roller bearing from the differential case.

      SST 09950-40011 (09951-04010, 09952-04010, 09953-04030, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00390)

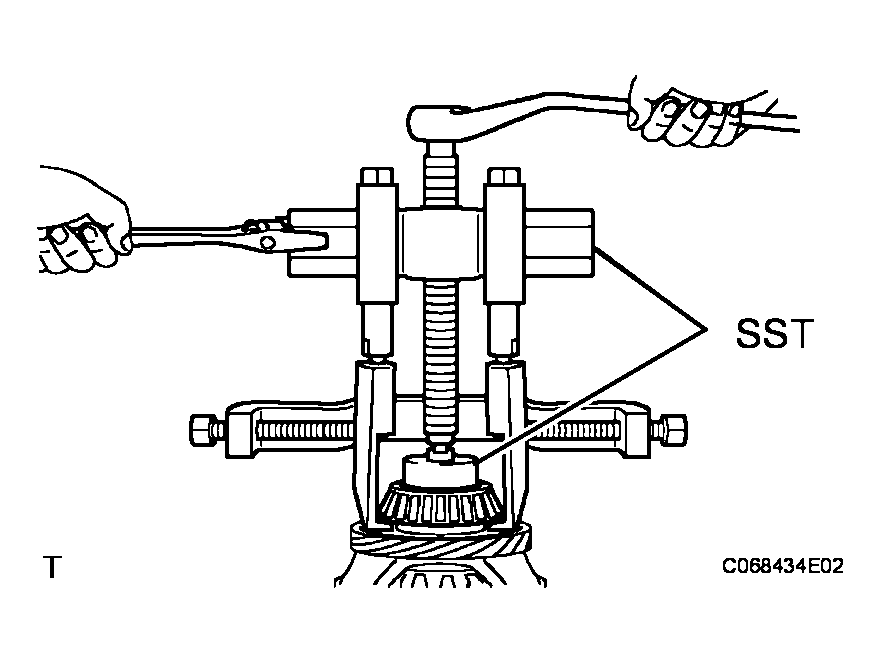

      Fig 78: Removing Front Differential Case Front Tapered Roller Bearing From Differential Case Using SST
      G04227738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

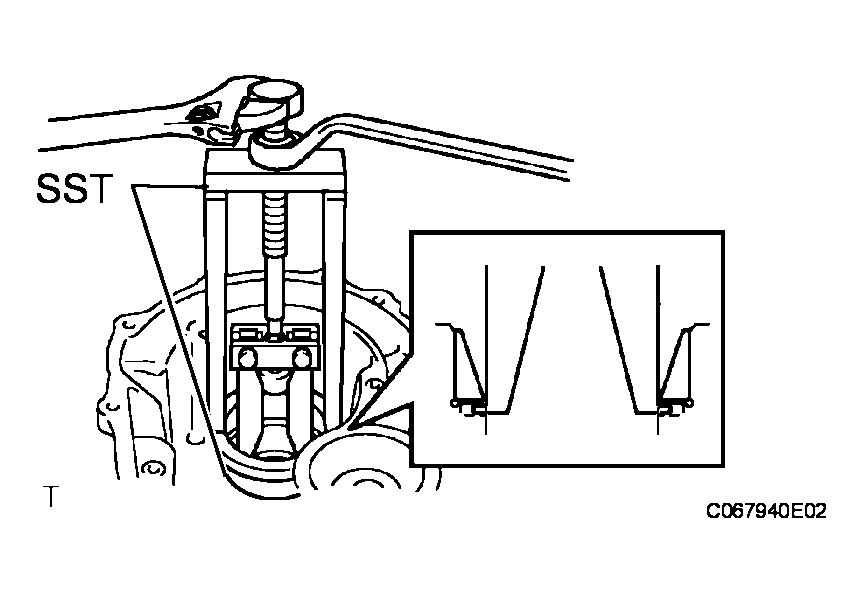

    2. Using SST, remove the front differential case tapered roller bearing outer race from the transaxle housing.

      SST 09387-00041 (09387-02020, 09387-02010)

      Fig 79: Removing Front Differential Case Tapered Roller Bearing Outer Race From Transaxle Housing Using SST
      G04227739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  76. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

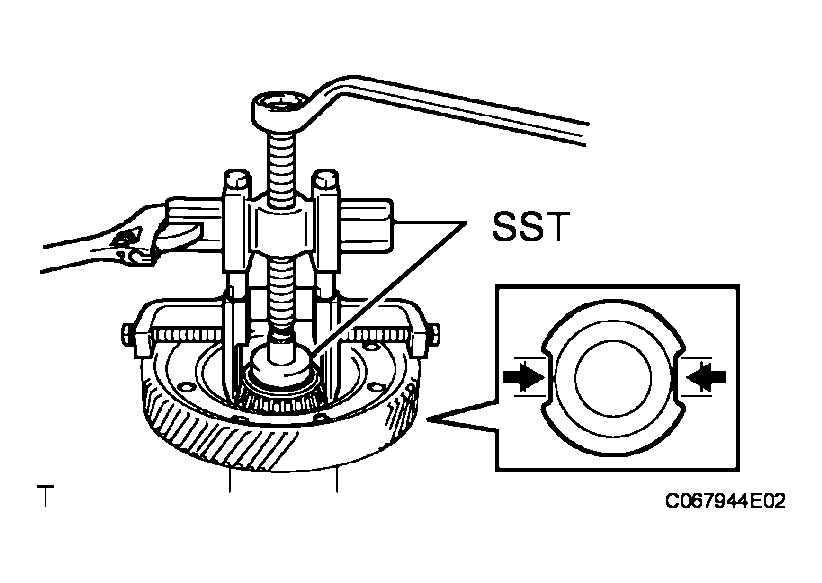

    1. Using SST, remove the front differential case rear tapered roller bearing from the differential case.

      SST 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00430)

      Fig 80: Removing Front Differential Case Rear Tapered Roller Bearing From Differential Case Using SST
      G04227740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the front differential case tapered roller bearing outer race from the transaxle housing.

      SST 09612-65014 (09612-01010)

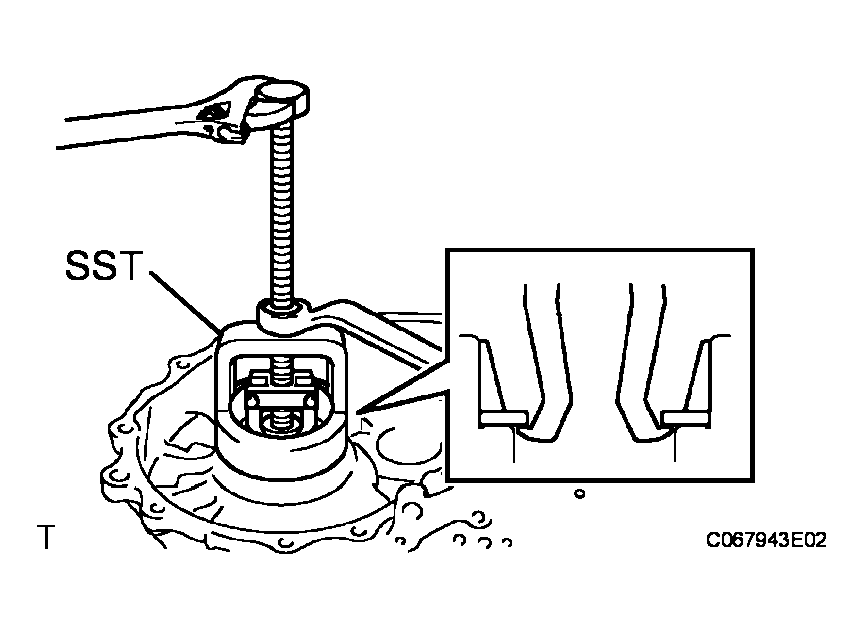

      Fig 81: Removing Front Differential Case Tapered Roller Bearing Outer Race From Transaxle Housing Using SST
      G04227741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  77. REMOVE FRONT TRANSAXLE CASE OIL SEAL
    1. Using SST and a hammer, tap out the oil seal from the transaxle case.

      SST 09950-60010 (09951-00550), 09950-70010 (09951-07100)

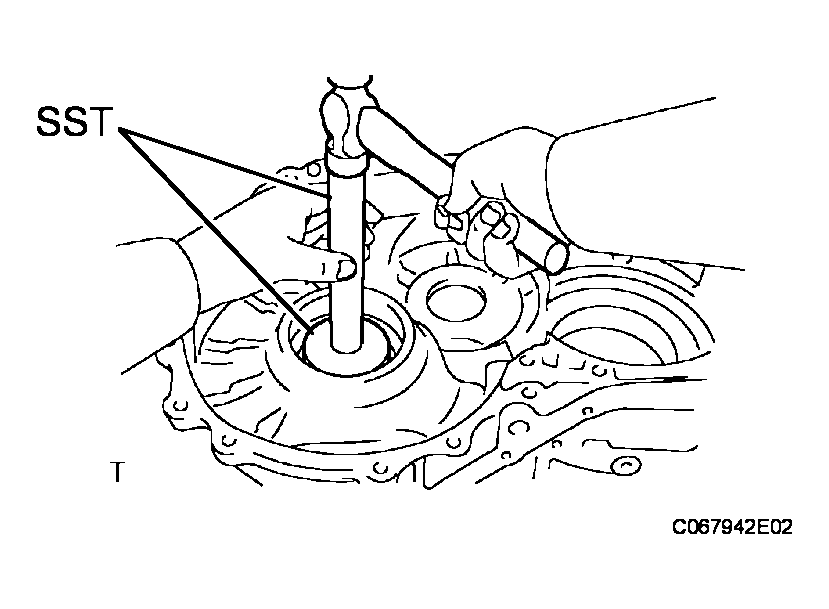

      Fig 82: Taping Out Oil Seal From Transaxle Case
      G04227742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

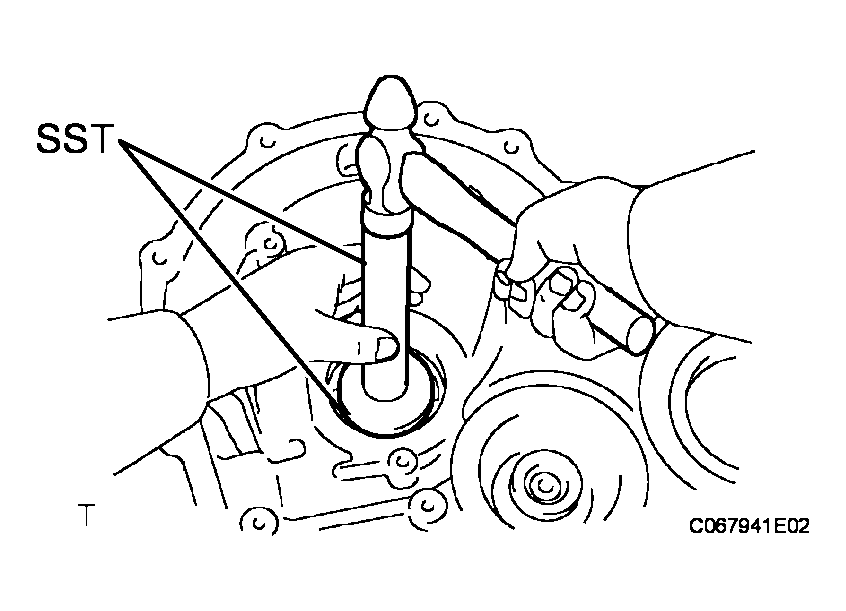

  78. REMOVE TRANSAXLE CASE OIL SEAL
    1. Using SST and a hammer, tap out the transaxle case oil seal from the transaxle housing.

      SST 09950-60010 (09951-00530), 09950-70010 (09951-07100)

      Fig 83: Taping Out Transaxle Case Oil Seal From Transaxle Housing
      G04227743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
· About lemon-mirror
