Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/C Fuse | In A/C relay holder. |
| A/C Relay Holder | On left side of engine compartment. See Figure. |

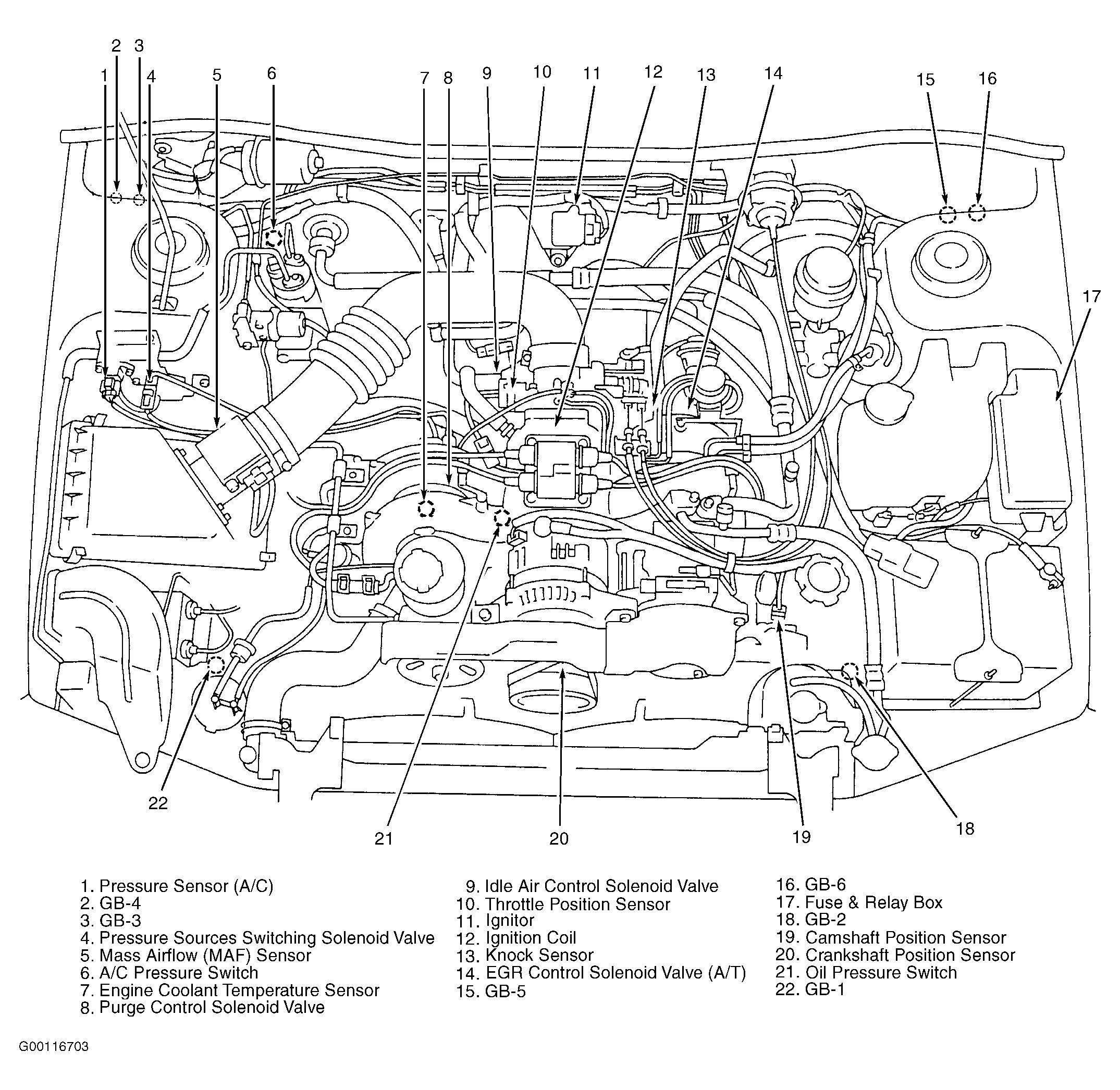

| Fuse & Relay Box | On left side of engine compartment. See Figure. |
| Fuse Holder (Outback) | Behind left side of dash, near fuse box. |
| Main Fuse Box | Behind dash, left of steering column. See Figure. |
| Power Window Circuit Breaker | Behind dash, right of steering column. See Figure. |
| Slow Blow Fuse (SBF) Holder | On left side of engine compartment. |
