Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | On right side of engine compartment. |
| Air Bag Control Module | Behind center of dash. |
| Cruise Control Module | Behind left side of dash. |
| Daytime Running Light (DRL) Control Module | Behind right side of dash. |

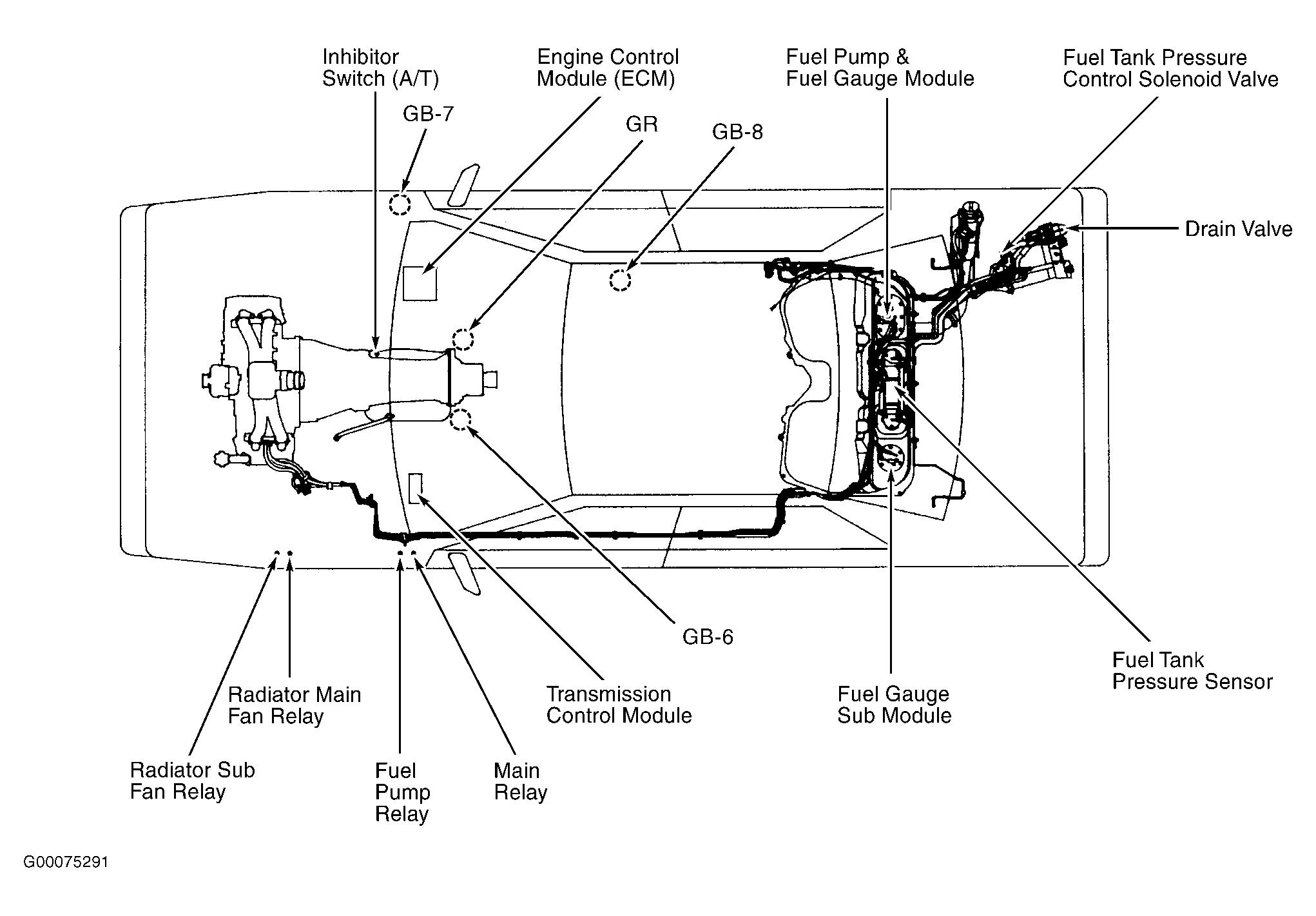

| Engine Control Module (ECM) | Behind right side of dash. See Figure . |
| Illumination Control Module | Behind right side of dash. |
| Key Warning Module | Behind left side of dash. |
| Shift Lock Control Module (A/T) | Behind left side of dash. |
| Sun Roof Control Module | On center underside of roof. |
| Transmission Control Module | Behind left side of dash. See Figure . |
| Turn Signal & Hazard Module | Behind dash, right of steering column. |
