Removal & Installation: Starter: Removal

1. Disconnect ground cable from battery.
2. Remove air cleaner case. See AIR CLEANER CASE  .
3. Remove air cleaner case stay. See Fig 1 .
4. Disconnect connector and terminal from starter. See Fig 2 .
5. Remove starter from transmission. See Fig 3 .

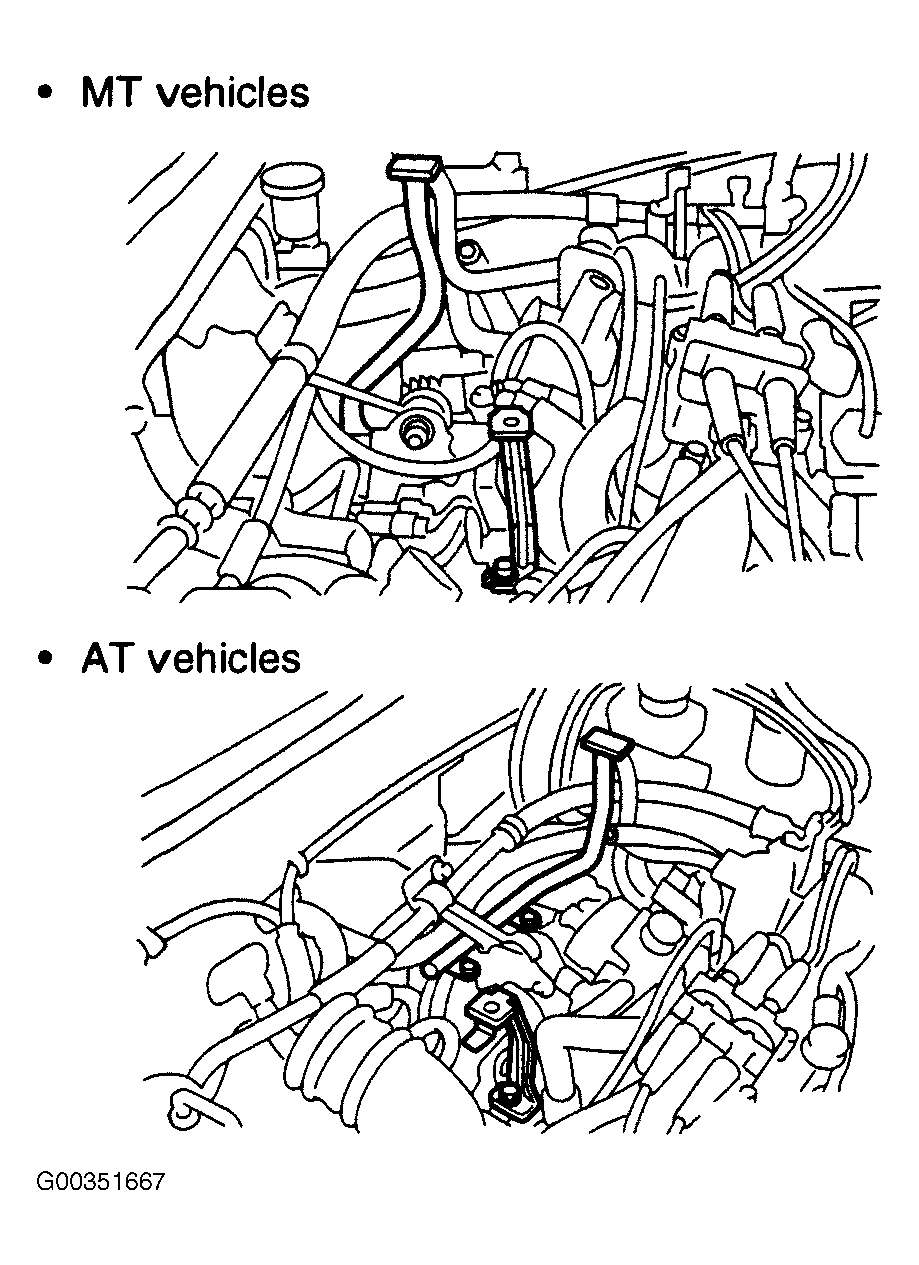

Fig 1: Removing Air Cleaner Case Stay

Courtesy of SUBARU OF AMERICA, INC.

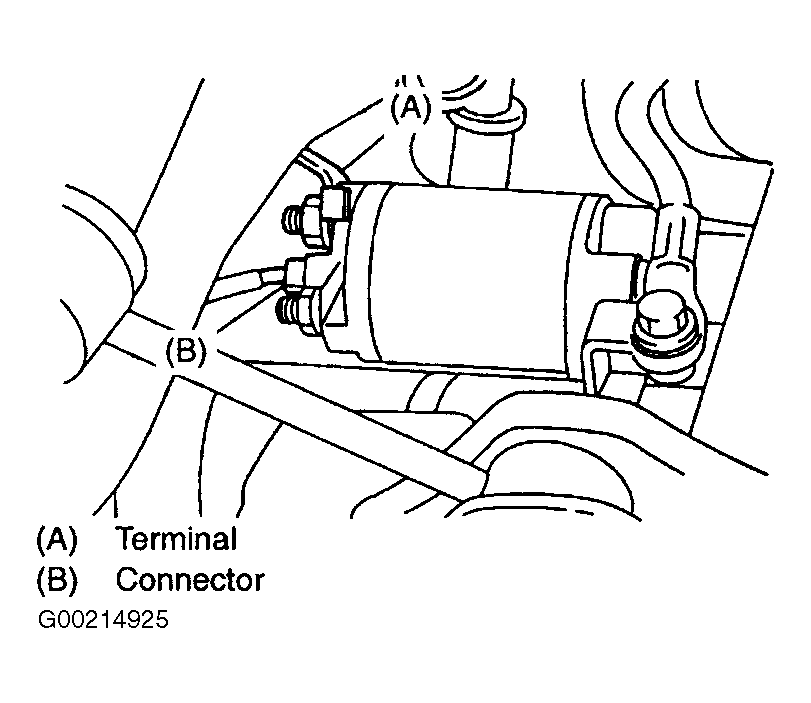

Fig 2: Disconnecting Connector & Terminal

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Removing Starter From Transmission

Courtesy of SUBARU OF AMERICA, INC.
