Extension Case: Removal

  1. Remove the transmission assembly. Refer to REMOVAL , Automatic Transmission Assembly.
  2. Remove rear vehicle speed sensor.

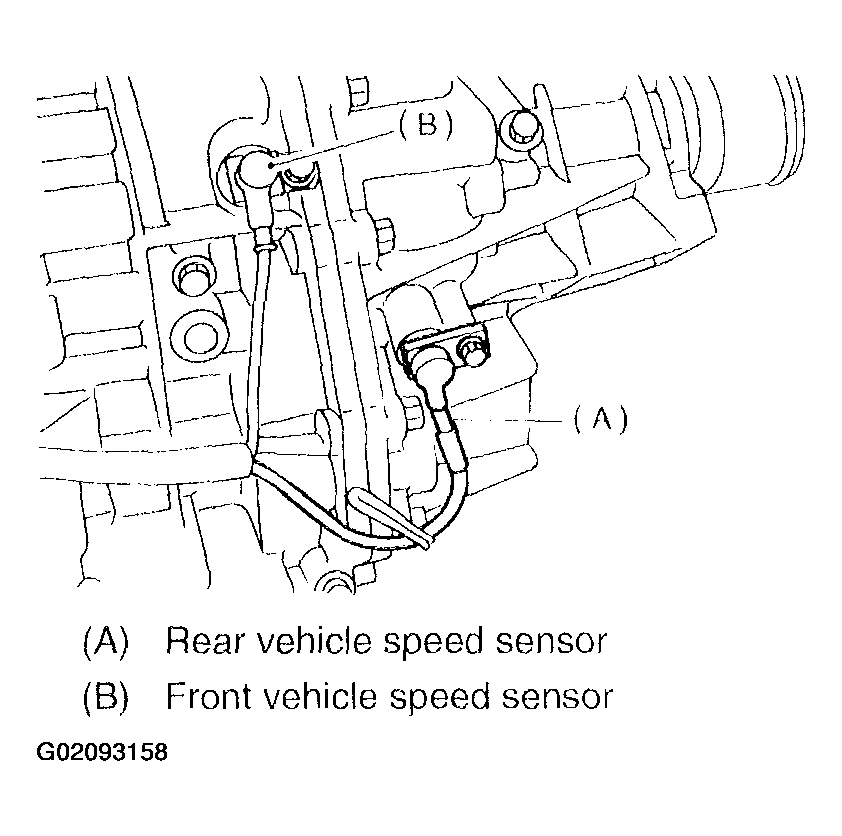

    Fig 1: Removing Rear Vehicle Speed Sensor
    G02093158Courtesy of SUBARU OF AMERICA, INC.
  3. Separate transmission case and extension case sections.

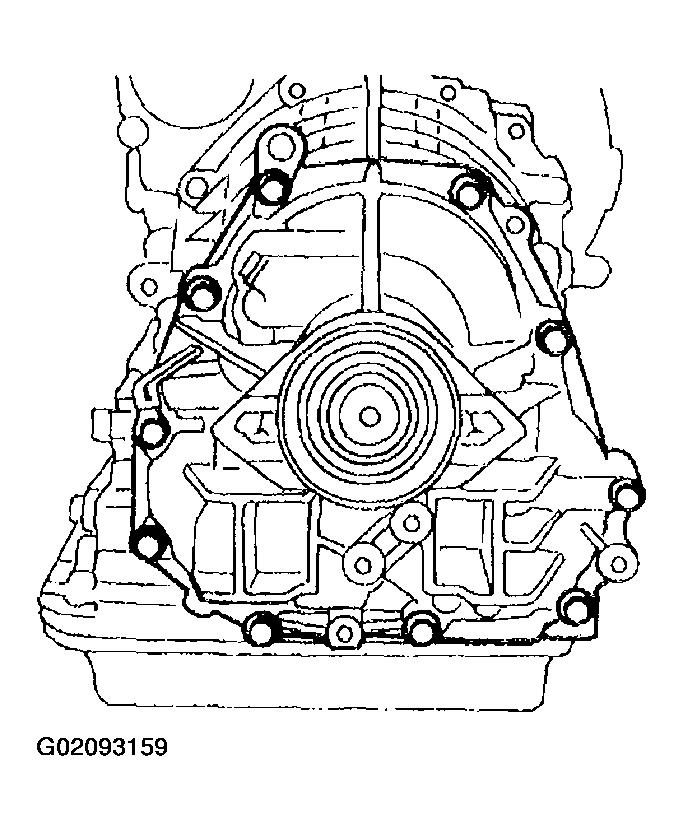

    Fig 2: Separating Transmission Case & Extension Case Sections
    G02093159Courtesy of SUBARU OF AMERICA, INC.
