Rear Window Glass: Installation

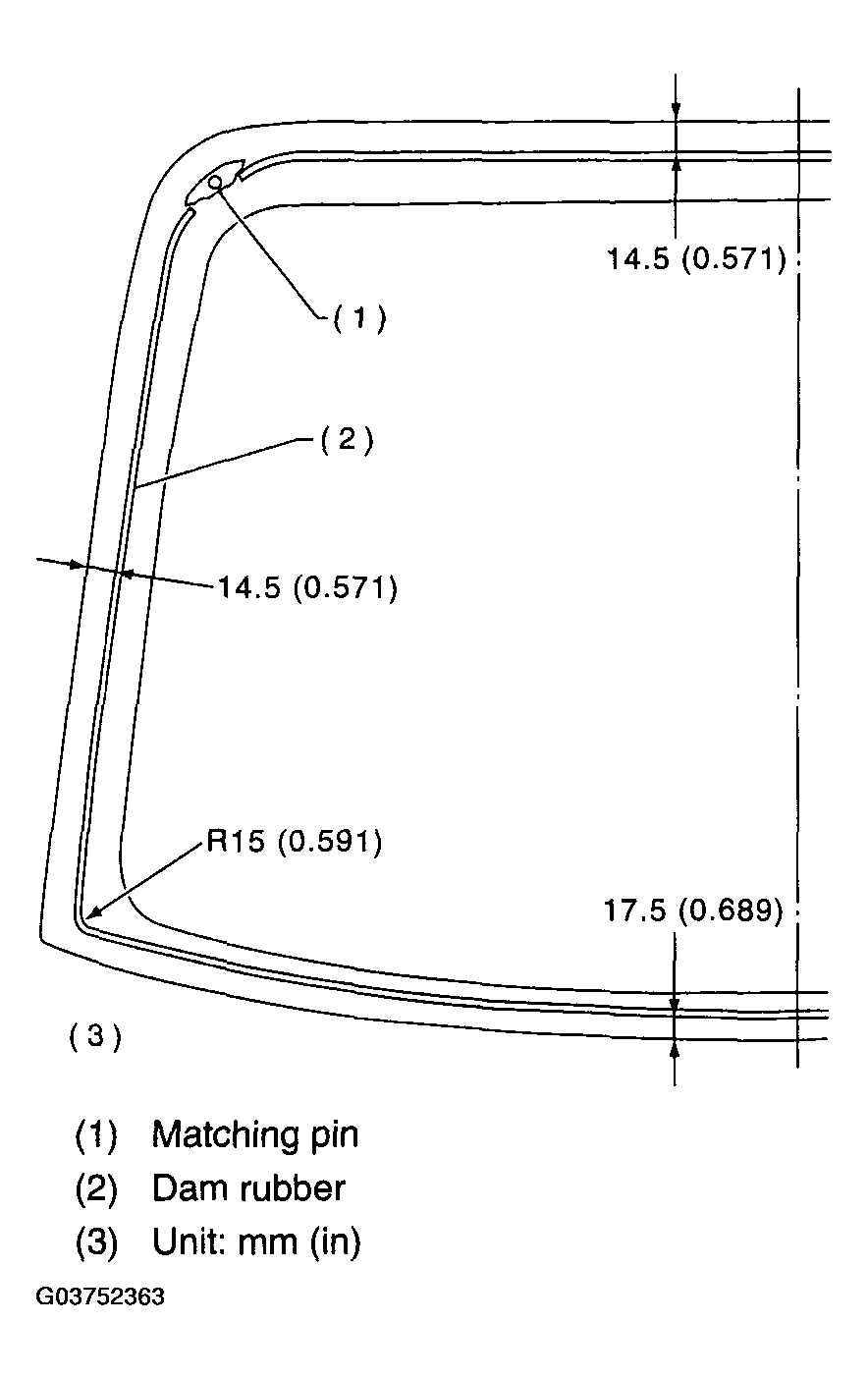

Bond dam rubber and matching pin.

Fig 1: Identifying Rear Window Glass
Courtesy of SUBARU OF AMERICA, INC.
Install glass in the same procedure as for windshield glass. < Ref. to , INSTALLATION , Windshield Glass. >
Connect rear defogger terminals.
CAUTION:
- When door is opened/closed after glass is bonded, always lower door glass and then open/close door carefully.
- Move vehicle slowly.
After completion of all work, allow vehicle to stand for about 24 hours.
NOTE: For minimum drying time and time the vehicle must be left standing before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
After curing of adhesive, pour water on external surface of vehicle to check that there are no water leaks.
CAUTION: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
