Inhibitor Switch: Inspection

When the driving condition or starter motor operation is erroneous, first check the shift linkage for improper operation. If the shift linkage is functioning properly, check the inhibitor switch.

1. Disconnect the inhibitor switch connector.
2. Check continuity in inhibitor switch circuits with the select lever moved to each position.
   NOTE:

   • Also check that continuity in ignition circuit does not exist when the select lever is in "R", "D", "3", "2" and "1" ranges.
   • If the inhibitor switch is inoperative, check for poor contact of connector on transmission side.
   INHIBITOR SWITCH POSITION AND PIN NO SPECIFICATION



   Signal sent to TCM	Position	Pin No.
   	P	4 - 3
   	R	4 - 2
   	N	4 - 1
   	D	4 - 8
   	3	4 - 7
   	2	4 - 6
   	1	4 - 5
   Ignition circuit	P/N	12 - 11
   Back-up light circuit	R	10 - 9

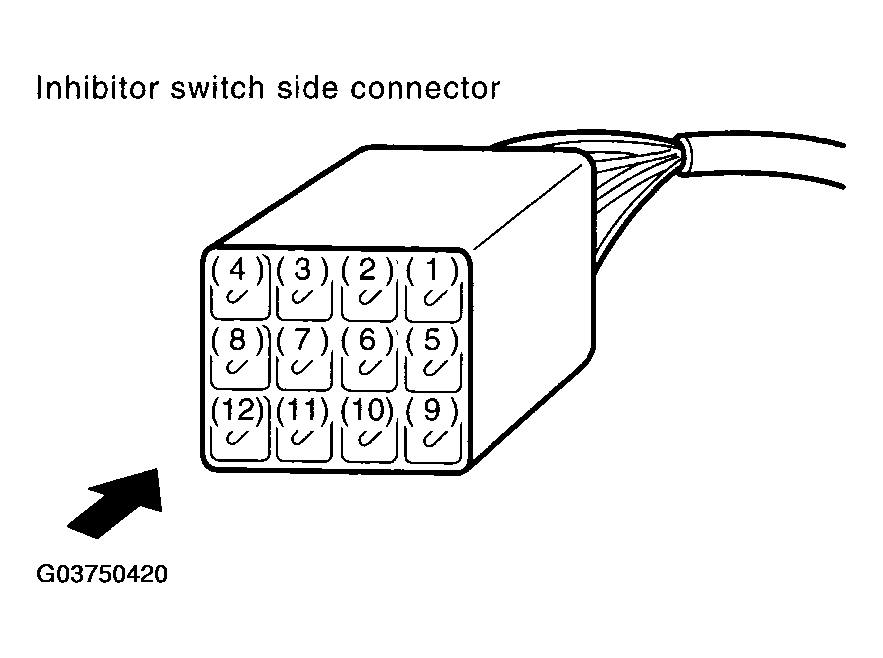

   Fig 1: Identifying Inhibitor Switch Side Connector Terminal

   Courtesy of SUBARU OF AMERICA, INC.
3. Check if there is continuity at equal points when the select lever is turned 1.5° in both directions from "N" range.

   If there is continuity in one direction and the continuity in the other or if there is continuity at unequal points, adjust the inhibitor switch. < Ref. to , ADJUSTMENT . >

   Except model with SPORTS shift

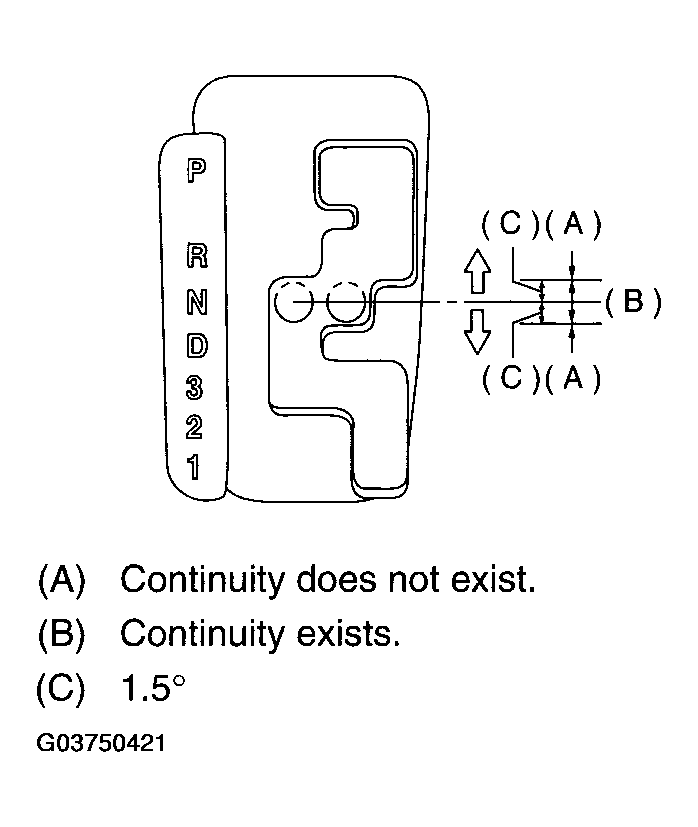

   Fig 2: Adjusting Inhibitor Switch (Except Model With Sports Shift)

   Courtesy of SUBARU OF AMERICA, INC.

   Model with SPORT shift

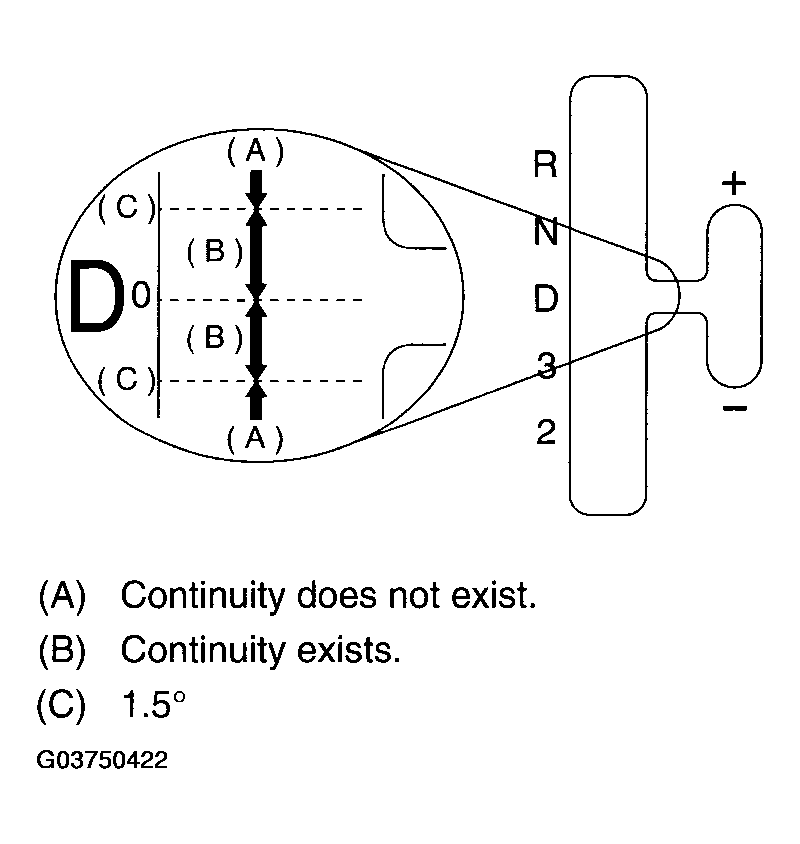

   Fig 3: Adjusting Inhibitor Switch (Model With Sports Shift)

   Courtesy of SUBARU OF AMERICA, INC.
4. Repeat the above checks. If there are abnormalities, adjust the select cable. < Ref. to ADJUSTMENT , Select Cable. >
