Transmission Control Device: Installation

Install the detention spring to transmission case.
Tightening torque:

6 N.m (0.6 kgf-m, 4.3 ft-lb)

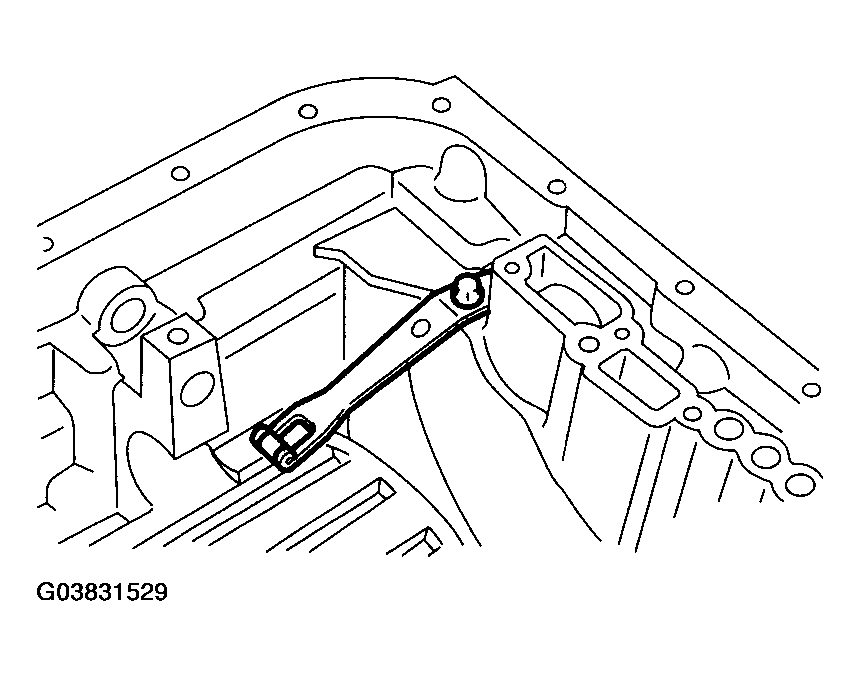

Fig 1: Installing Detention Spring
Courtesy of SUBARU OF AMERICA, INC.
Insert the select lever, and then tighten the bolt.
Tightening torque:

6 N.m (0.6 kgf-m, 4.3 ft-lb)

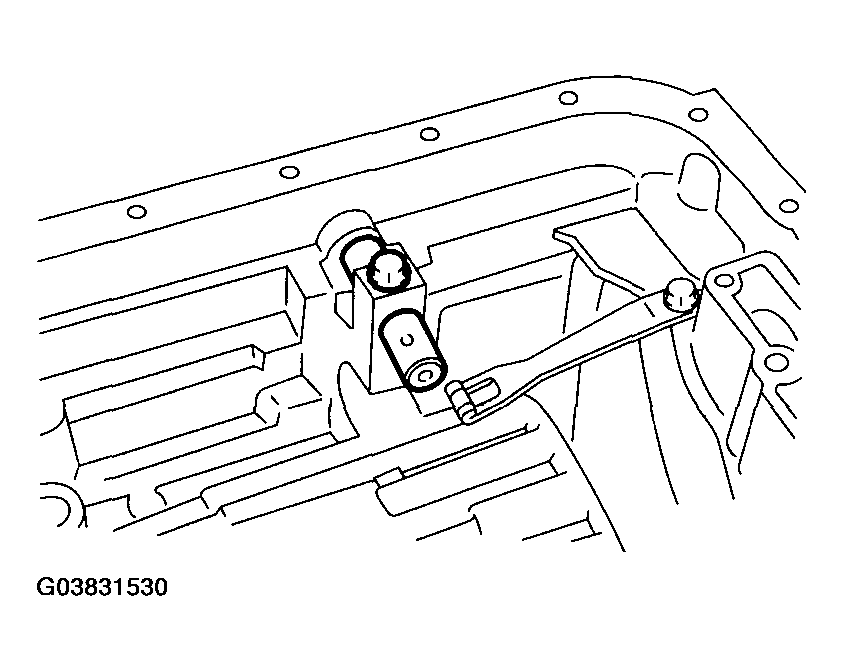

Fig 2: Identifying Selector Level
Courtesy of SUBARU OF AMERICA, INC.
Insert the manual plate and parking rod.

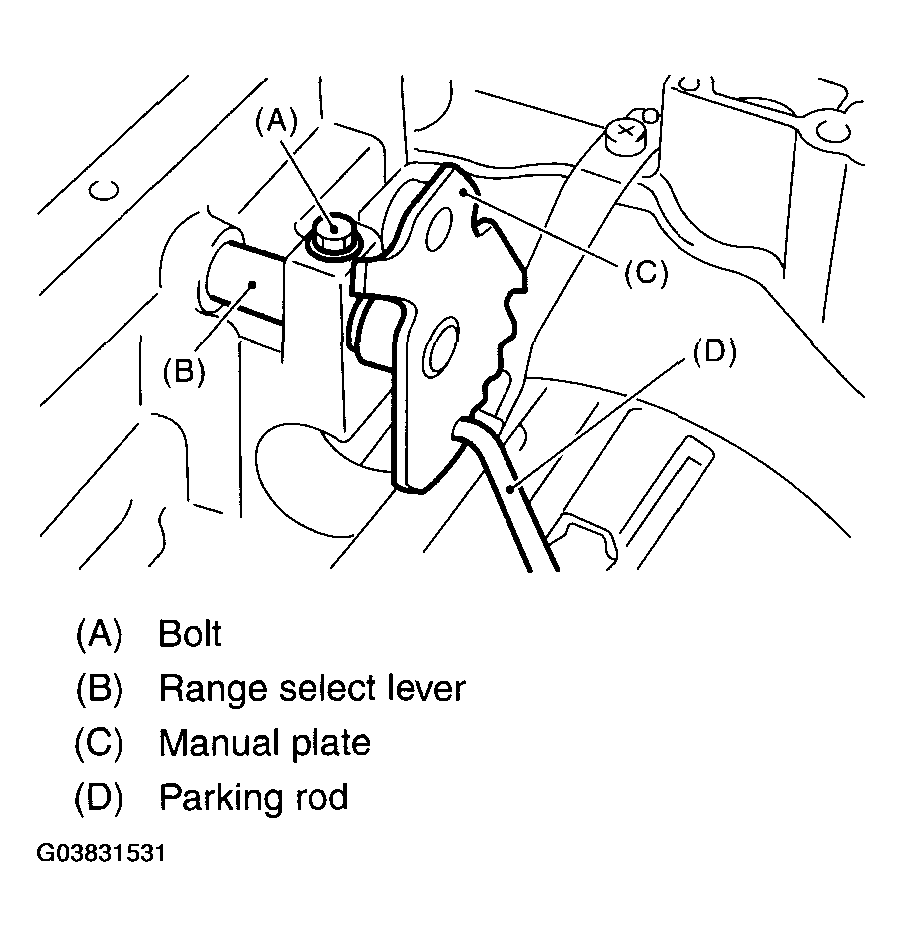

Fig 3: Inserting Manual Plate And Parking Rod
Courtesy of SUBARU OF AMERICA, INC.
Insert a new straight pin to manual plate.

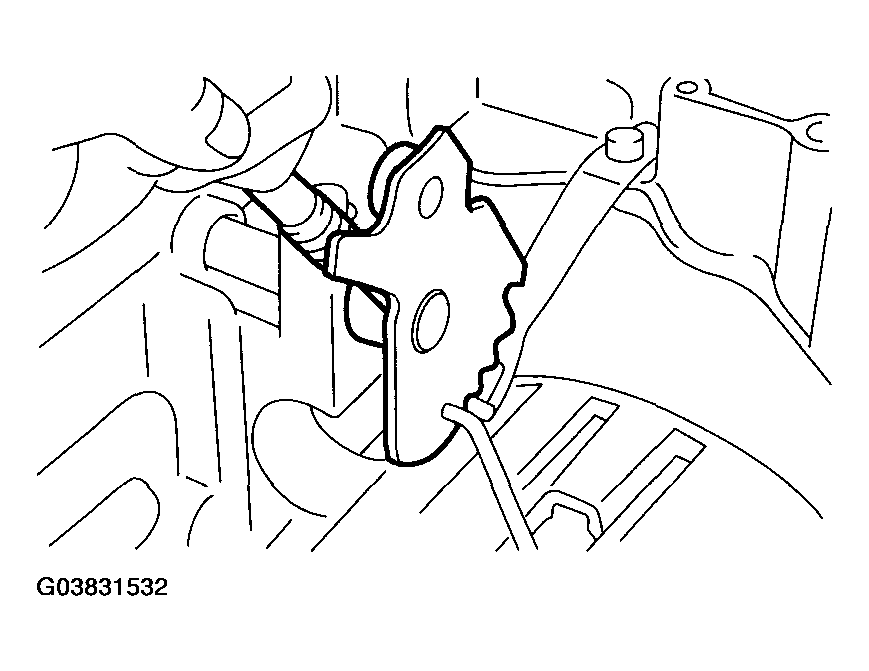

Fig 4: Inserting Straight Pin To Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan and control valve assembly. < Ref. to , INSTALLATION , Control Valve Body. >
Turn over the transmission case to its original position.
Install the pitching stopper bracket.
Tightening torque:

41 N.m (4.2kgf-m, 30.4 ft-lb)
Install and adjust the inhibitor switch. < Ref. to , INHIBITOR SWITCH . >
Insert the inhibitor switch and transmission connector to the stay.

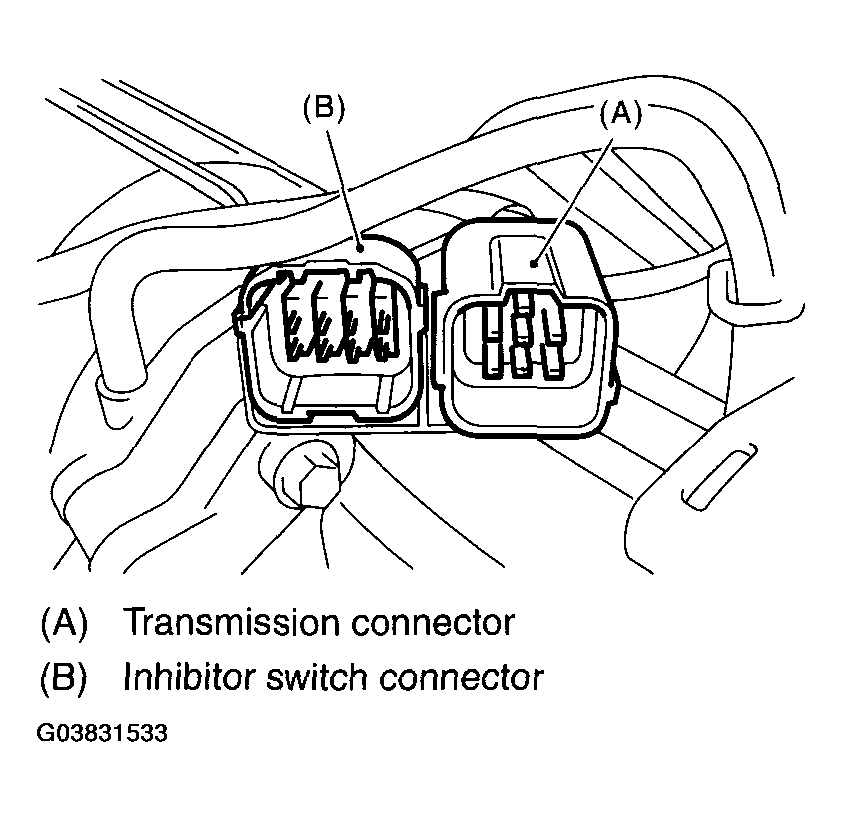

Fig 5: Inserting Inhibitor Switch And Transmission Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air breather hose. < Ref. to , INSTALLATION , Air Breather Hose. >
Insert the input shaft with rotating it by hand lightly, and then check the protrusion amount.
Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

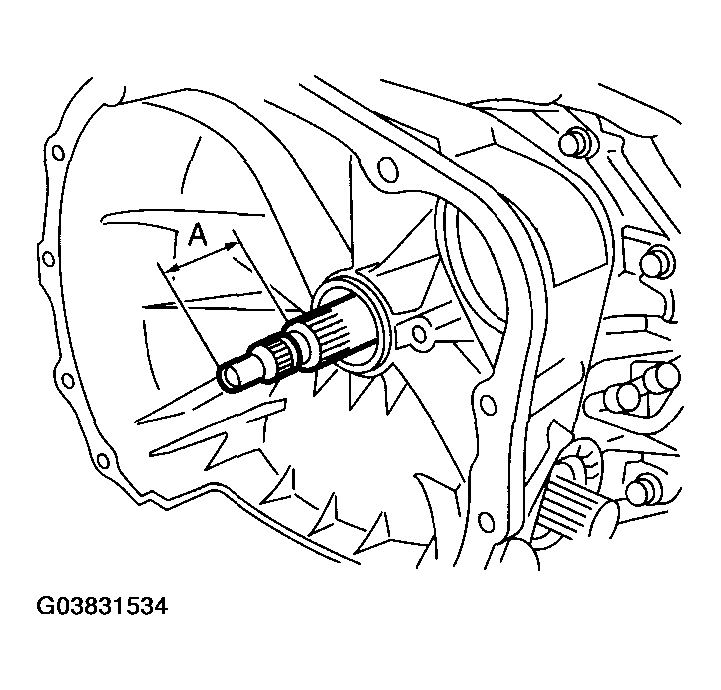

Fig 6: Checking Input Shaft Protrusion
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter assembly. < Ref. to , INSTALLATION , Torque Converter Assembly. >
Install the transmission assembly into the vehicle. < Ref. to , INSTALLATION , Automatic Transmission Assembly. >
