Front Arm: Removal

1. Lift-up the vehicle, and then remove the front wheels.
2. Remove the front crossmember support plate. < Ref. to , REMOVAL , Front Crossmember Support Plate. >
3. Remove the front stabilizer. < Ref. to , REMOVAL , Front Stabilizer. >
4. Remove the ball joint of front arm.

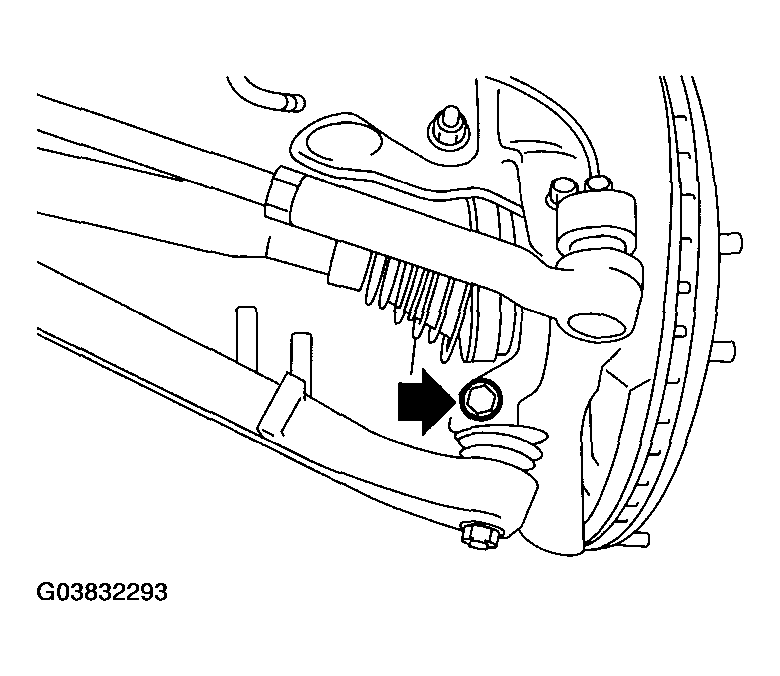

   Fig 1: Removing Ball Joint Of Front Arm

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the nut securing the front arm to cross-member. (Do not remove the bolt.)

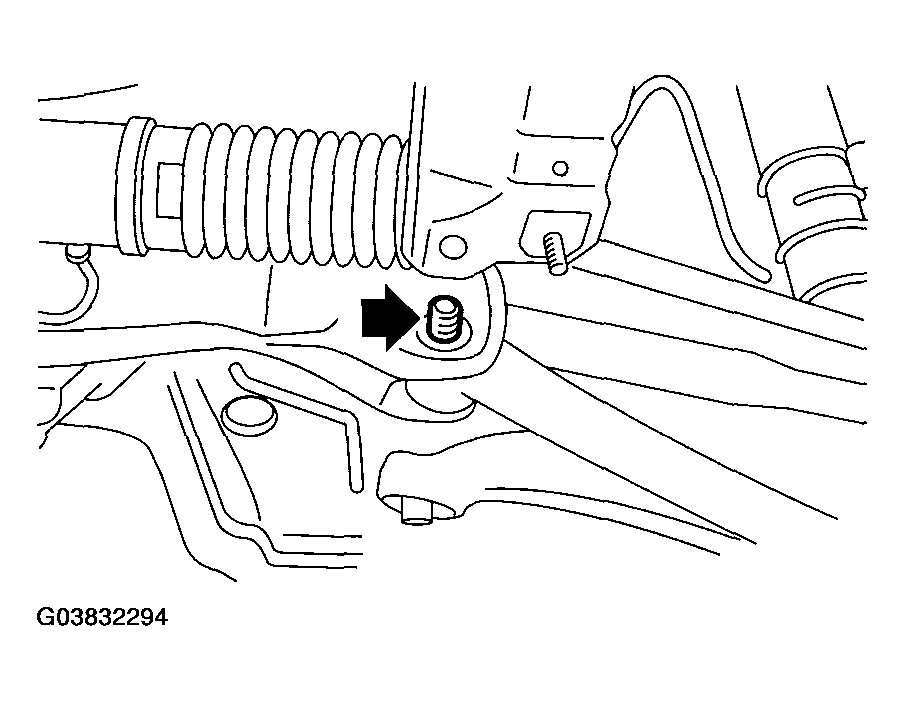

   Fig 2: Removing Nut Securing Front Arm

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the front arm support plate.

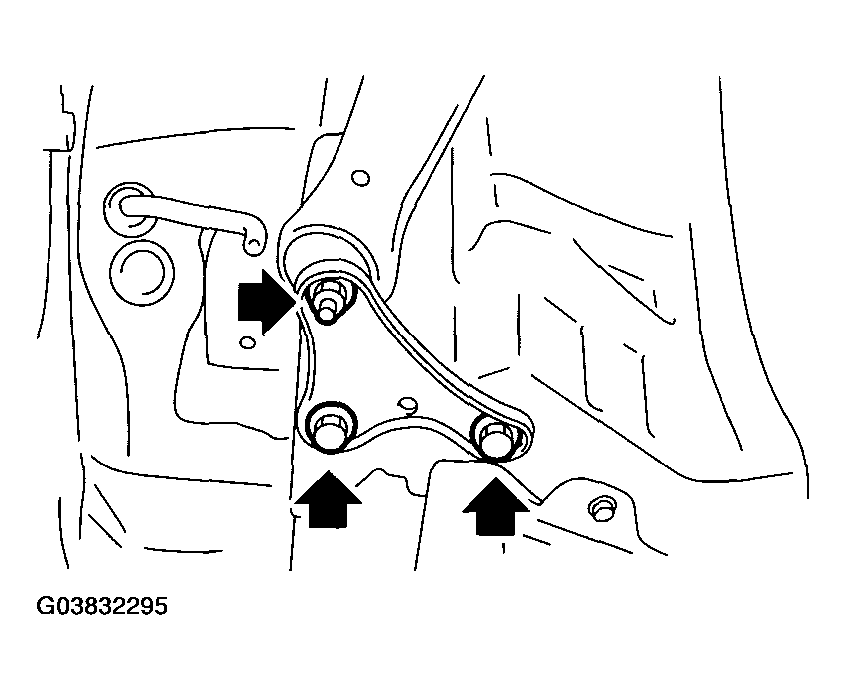

   Fig 3: Removing Front Arm Support Plate

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the bolt securing the front arm to cross-member and extract the front arm from crossmember.
8. To remove the stud bolt, use ST.

ST 20299AG020 STUD BOLT SOCKET

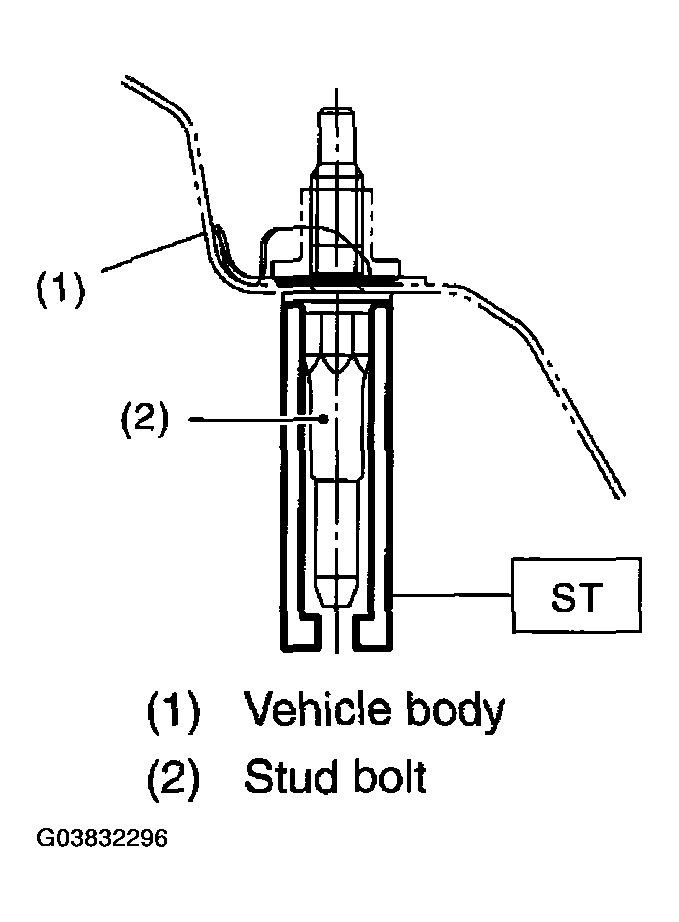

Fig 4: Locating Stud Bolt

Courtesy of SUBARU OF AMERICA, INC.
