Front Stabilizer: Removal

  1. Jack-up the front part of the vehicle and support it with rigid racks.
  2. Remove the jack-up plate from lower part of crossmember.
  3. Remove the sub frame. < Ref. to REMOVAL , Sub Frame. >
  4. Remove the nuts which secures stabilizer link to front transverse link.

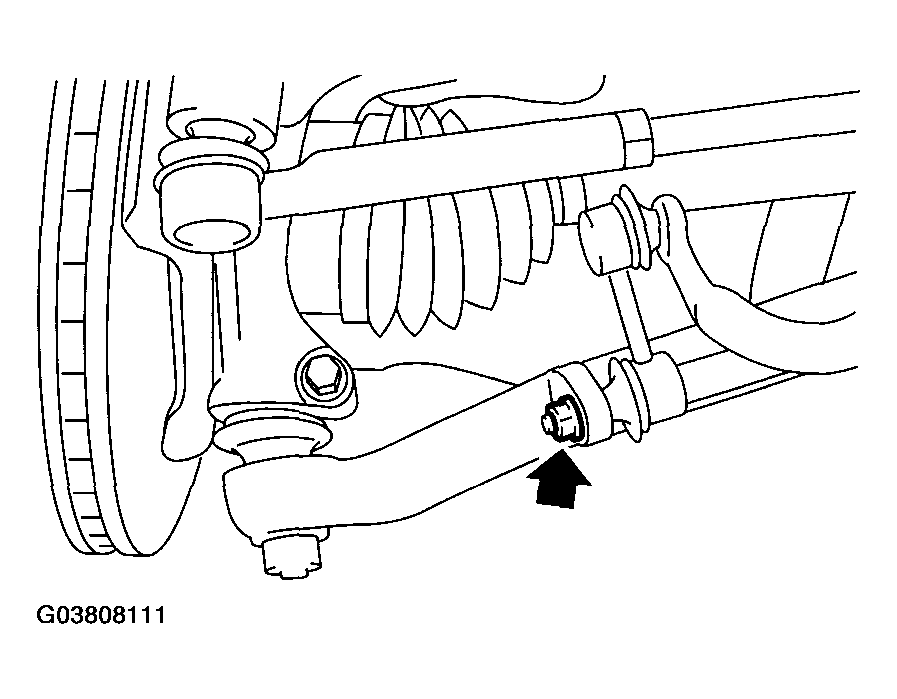

    Fig 1: Identifying Nuts Securing Stabilizer Link To Front Transverse Link
    G03808111Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolt and nut which secure stabilizer to crossmember.

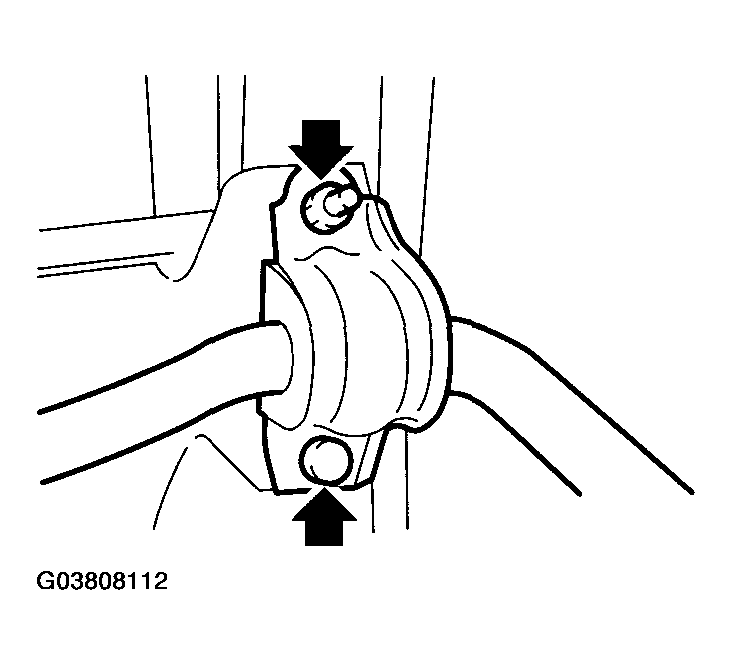

    Fig 2: Identifying Bolt And Nut Securing Stabilizer To Crossmember
    G03808112Courtesy of SUBARU OF AMERICA, INC.
