Remote Control Mirror Switch: Removal

  1. Remove the panel - power window main switch. < Ref. to MAIN SWITCH , REMOVAL, Power Window Control Switch.>
  2. Release the claws, and then remove the switch - door mirror.

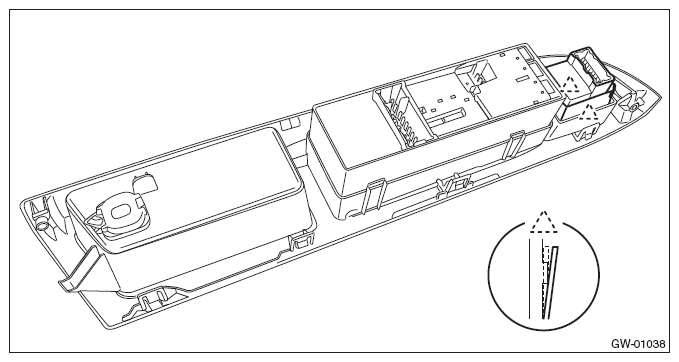

    Fig 1: Identifying Door Mirror Switch Claws
    G08315160Courtesy of SUBARU OF AMERICA, INC.
