Transmission Control Device: Installation

Install the parking support.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 1: Locating Parking Support Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case. Ref. to INSTALLATION , Extension Case.
Install the manual valve.

Fig 2: Installing Manual Valve
Courtesy of SUBARU OF AMERICA, INC.
Install the parking rod to the manual plate.
Insert the parking rod into the transmission case, and install the shift connecting rod of the manual valve to the manual plate.

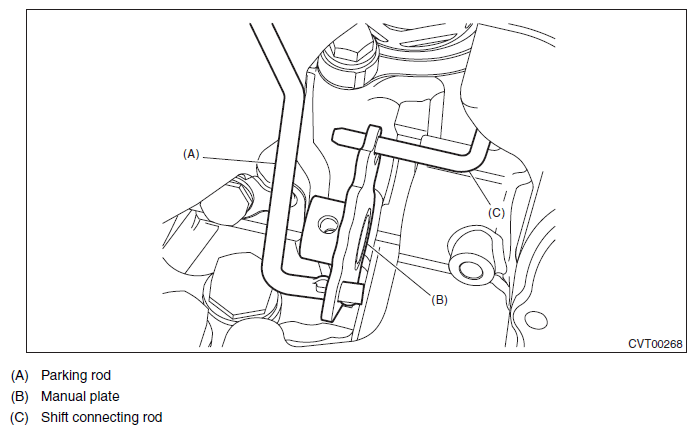

Fig 3: Inserting Parking Rod Into Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Insert the shifter arm shaft to the transmission assembly, install the manual plate to the shifter arm shaft, and secure the shifter arm shaft with a bolt.
NOTE: Do not damage the lip of oil seal press-fitted in the case.

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 4: Locating Shifter Arm Shaft Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the detent spring.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 5: Locating Detent Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the spring pin.
NOTE: Use new spring pin.

Fig 6: Locating Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the inhibitor switch. Ref. to INSTALLATION , Inhibitor Switch.
Adjust the inhibitor switch. Ref. to ADJUSTMENT , Inhibitor Switch.
Install the oil strainer and oil pan. Ref. to INSTALLATION , Oil Pan and Strainer.
Install the transmission assembly to the vehicle. Ref. to INSTALLATION , Automatic Transmission Assembly.
