Power Window Control Switch: Removal: Sub-Switch

Switch - power window sub front

For removal of the switch - power window sub front on the passenger's seat, refer to the removal procedure of the switch - power window main. <Ref. to MAIN SWITCH , REMOVAL, Power Window Control Switch.>

Switch - power window sub rear

1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the trim panel - rear door. <Ref. to REAR DOOR , REMOVAL, Door Trim.>
3. Remove the panel - power window sub switch rear.
   CAUTION: Be careful not to damage the trim panel - rear door with the panel - power window sub switch rear.

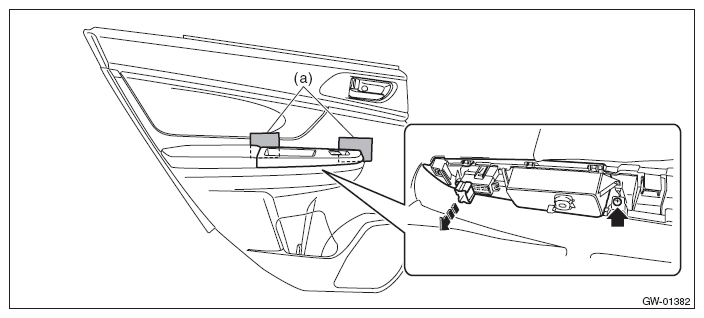

   1. Insert a sheet of protective paper (a) between panel - power window sub switch rear and trim panel - rear door.
   2. Remove the screws and disconnect the connector.
      Fig 1: Removing Power Window Sub Switch Rear Panel

      Courtesy of SUBARU OF AMERICA, INC.

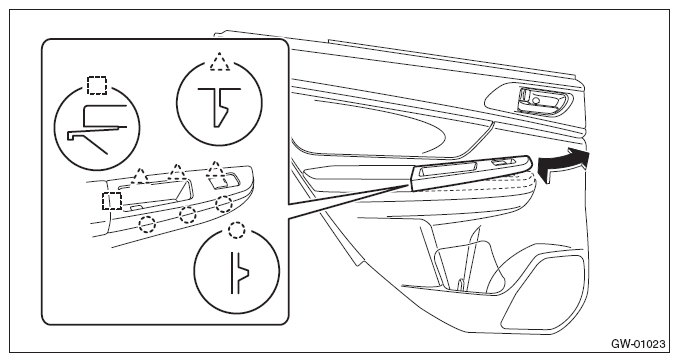

   3. Release the claws, and then remove the panel - power window sub switch rear.
      Fig 2: Removing Power Window Sub Switch Rear Panel

      Courtesy of SUBARU OF AMERICA, INC.
4. Release the claws, and then remove the switch - power window sub rear.
   Fig 3: Power Window Sub Rear Switch Claws Location

   Courtesy of SUBARU OF AMERICA, INC.
