Front Differential Assembly: Installation

  1. Install the front differential assembly to the converter case.
    NOTE: Be careful not to damage the inside of the case (especially the mating surface of the differential side retainers).
  2. Temporarily install the differential side retainers using ST.
    ST 18658AA020 WRENCH COMPL RETAINER
    G06654708Courtesy of SUBARU OF AMERICA, INC.
  3. Adjust the backlash of the front differential. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FRONT DIFFERENTIAL ASSEMBLY>ADJUSTMENT .
  4. Inspect and adjust the tooth contact. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION SHAFT ASSEMBLY>ADJUSTMENT .
  5. Remove the differential side retainers and install the O-rings and oil seals. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FRONT DIFFERENTIAL ASSEMBLY>ASSEMBLY>SIDE RETAINER .
    NOTE:
    • Record how many turns were needed to remove.
    • Use new O-rings and oil seals.
  6. Install the differential side retainers using ST.
    NOTE: When attaching, turn the differential side retainer by the same number of turns it took to remove, and align the marks.
    ST 18658AA020 WRENCH COMPL RETAINER

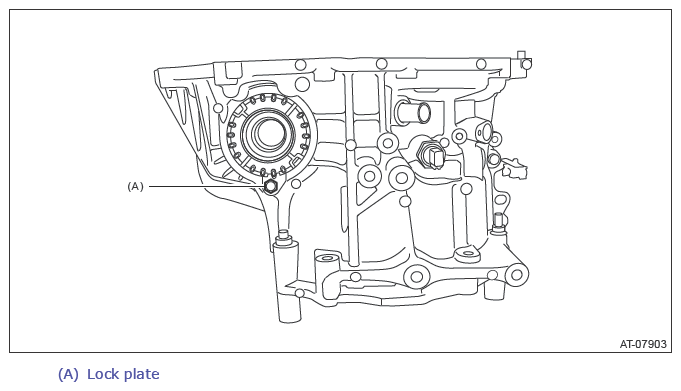

  7. Install the lock plate.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    G13261190Courtesy of SUBARU OF AMERICA, INC.
  8. Install the drive pinion shaft assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION SHAFT ASSEMBLY>INSTALLATION .
  9. Install the primary pulley, secondary pulley and variator chain. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PRIMARY PULLEY AND SECONDARY PULLEY>INSTALLATION .
  10. Install the transmission case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION CASE>INSTALLATION .
  11. Install the forward clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FORWARD CLUTCH ASSEMBLY>INSTALLATION .
  12. Install the intermediate case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INTERMEDIATE CASE>INSTALLATION .
  13. Install the transfer reduction driven gear assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER REDUCTION DRIVEN GEAR>INSTALLATION .
  14. Install the center differential carrier. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CENTER DIFFERENTIAL CARRIER>INSTALLATION .
  15. Install the transfer clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>INSTALLATION .
  16. Install the rear drive shaft. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>INSTALLATION .
  17. Install the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION .
  18. Install the transmission harness. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION HARNESS>INSTALLATION .
  19. Install the control valve body and oil pan. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>INSTALLATION .
  20. Install the air breather hose. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AIR BREATHER HOSE>INSTALLATION .
  21. Install the transmission assembly to the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
