Rain Sensor: Installation
CAUTION:
Check if the glass windshield and bracket is damaged, and install after removing dust and dirt
.
NOTE:

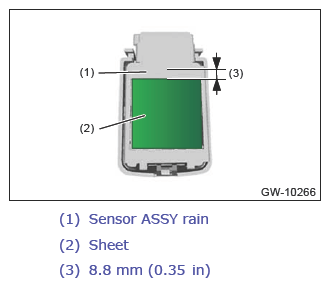

When replacing the sheet only, install the sheet on the sensor assembly rain.
- Install the sensor assembly rain.
- Install the connector.
- Install the stereo camera cover assembly. Ref. to EYESIGHT>Stereo Camera>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- When removing or replacing the sensor assembly rain, perform the initial setting. Ref. to GLASS/WINDOWS/MIRRORS>Rain Sensor>INSPECTION .
