Oil Pump: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Assembly>REMOVAL .
  2. Remove the torque converter. Ref. to REMOVAL .
  3. Remove the oil pump chain cover. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Oil Pump Chain>REMOVAL .

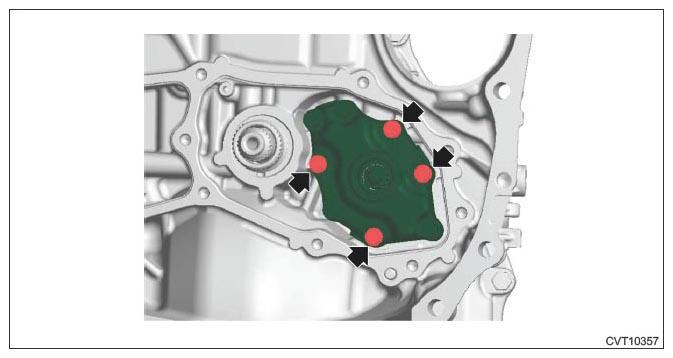

  4. Remove the oil pump and the plate.
    G11256035Courtesy of SUBARU OF AMERICA, INC.

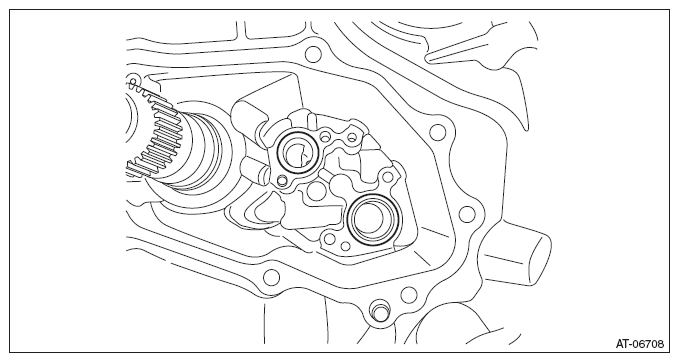

  5. Remove the O-rings.
    G08318182Courtesy of SUBARU OF AMERICA, INC.
