Ball Joint: Inspection

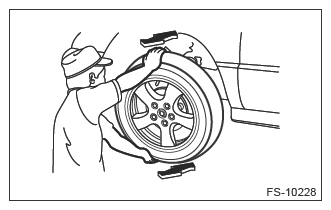

Check that there is no looseness by moving the upper and lower portions of front tire in an axial direction with the brake pedal depressed.

Courtesy of SUBARU OF AMERICA, INC.
- Looseness exists → Replace the ball joint COMPL. Ref. to FRONT SUSPENSION>BALL JOINT>REMOVAL .
Check that there is no looseness by moving the upper and lower portions of front tire in an axial direction with the brake pedal released.
- Looseness exists → Check the front hub unit bearing. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>FRONT HUB UNIT BEARING>INSPECTION .
Inspect the dust cover, and replace the ball joint COMPL if the dust cover is damaged.
