Reduction Driven Gear: Installation

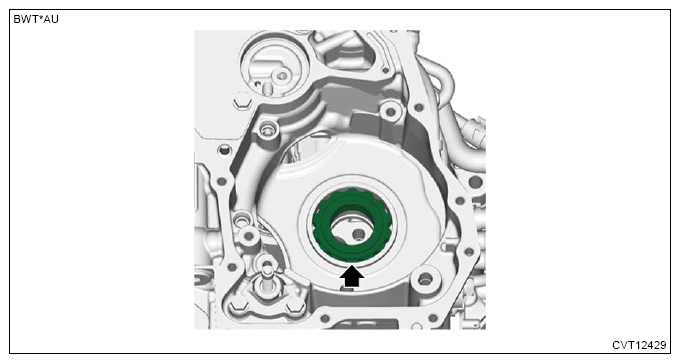

Install the thrust bearing.
NOTE: Make sure to install in the right direction.

Courtesy of SUBARU OF AMERICA, INC.

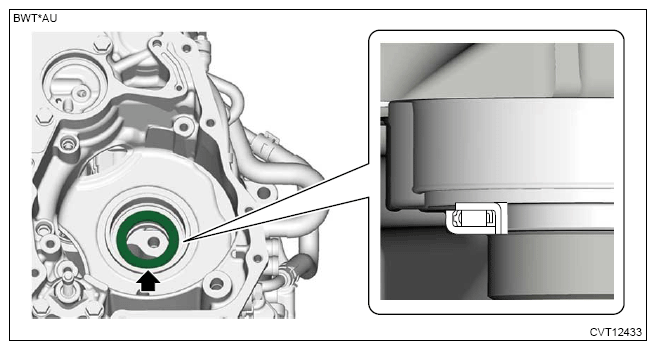

Install the roller bearing.

Courtesy of SUBARU OF AMERICA, INC.

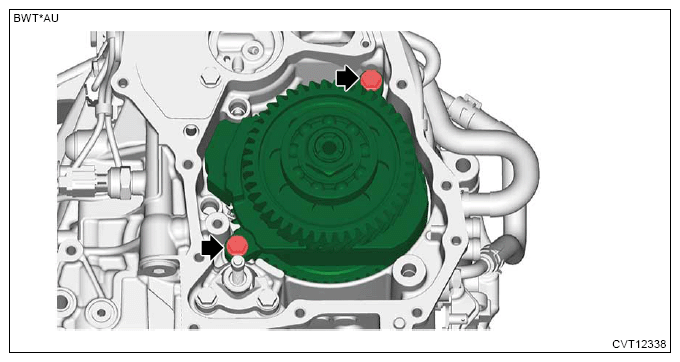

Install the transfer drive gear and oil spacer as a unit.
Tightening torque:

17 N.m (1.7 kgf-m, 12.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

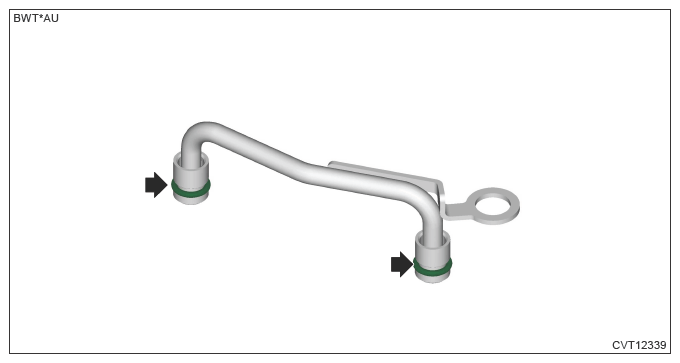

Install a new O-ring.
NOTE: Apply CVTF to the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

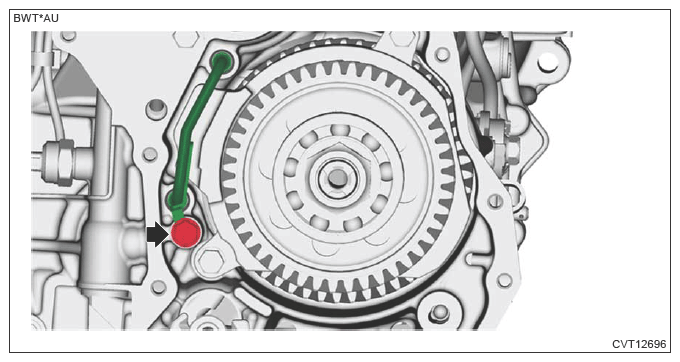

Install the lubrication pipe.
Tightening torque:

17 N.m (1.7 kgf-m, 12.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Select the transfer drive gear shim.

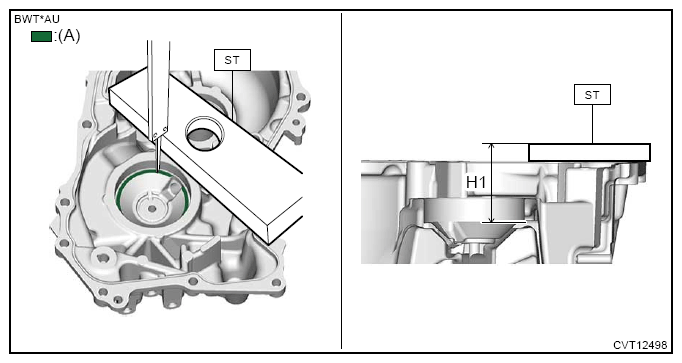

Using the ST, measure the height "H1" from the ST end face to the ball bearing catch surface (extension case side).

Preparation tool:

ST: GAUGE (499575600)

Courtesy of SUBARU OF AMERICA, INC.

(A)	Measurement surface

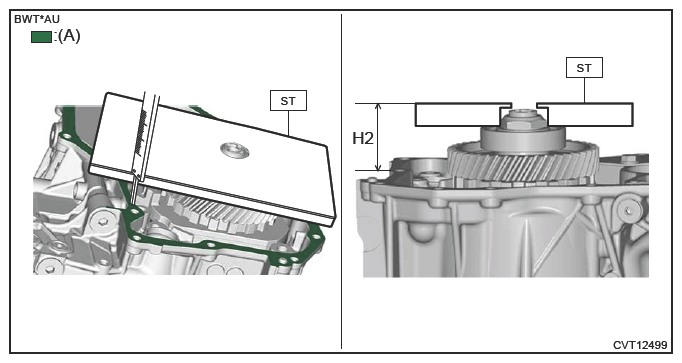

Using the ST, measure the height "H2" from the ST end face to the transmission case mating surface.

Preparation tool:

ST: GAUGE (499575600)

Courtesy of SUBARU OF AMERICA, INC.

(A)	Measurement surface

Using the following calculation, select an appropriate thickness "T" of the transfer drive gear shim.
NOTE: Adjust using 1 - 3 pieces.

T = H1 - H2 - 0.05 - 0.25 mm (0.002 - 0.010 in)

T	Transfer drive gear shim thickness (mm (in))
H1	Measured value (mm (in)) of step (1)
H2	Measured value (mm (in)) of step (2)
0.05 - 0.25 mm (0.002 - 0.010 in)	Clearance specification

Install the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>PARKING PAWL>INSTALLATION .
Install the transfer driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSFER DRIVEN GEAR>INSTALLATION .
