Transmission Case: Removal

  1. Remove the secondary pressure sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>SECONDARY PRESSURE SENSOR>REMOVAL .
  2. Remove the turbine speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TURBINE SPEED SENSOR>REMOVAL .
  3. Remove the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>SECONDARY SPEED SENSOR>REMOVAL .
  4. Remove the primary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>PRIMARY SPEED SENSOR>REMOVAL .
  5. Remove the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION HARNESS>REMOVAL .
  6. Remove the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>CONTROL VALVE BODY>REMOVAL .
  7. Remove the reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>REDUCTION DRIVEN GEAR>REMOVAL .
  8. Remove the transmission control device. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION CONTROL DEVICE>REMOVAL .
  9. Remove the bolt securing the oil baffle.
    G13936159Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the bolt securing the transmission case.
    G13225854Courtesy of SUBARU OF AMERICA, INC.

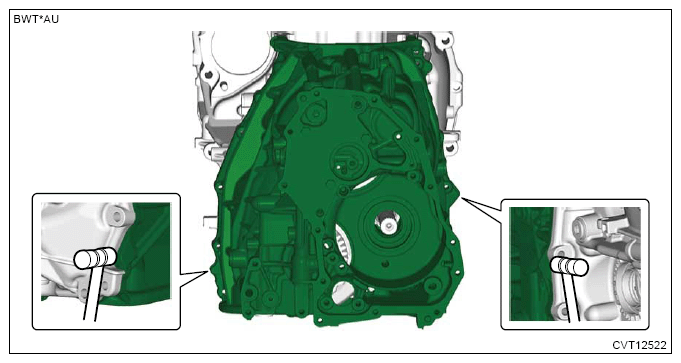

  11. Using a plastic hammer, expand the clearance and remove the transmission case.
    G13936161Courtesy of SUBARU OF AMERICA, INC.

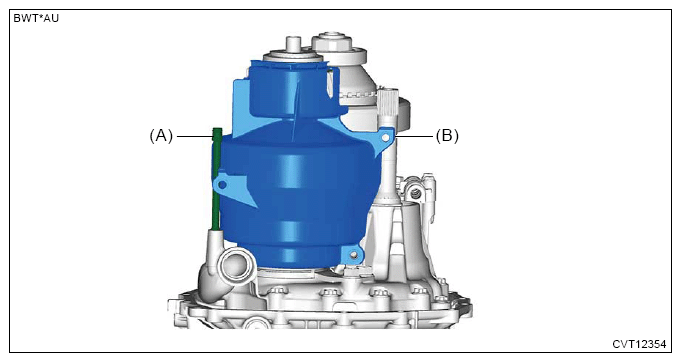

  12. Remove the oil pressure pipe (A) and the oil baffle (B).
    NOTE: The oil pressure pipe (A) may remain on the transmission case side.
    G13936162Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the O-rings.
    G13936163Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the bearing race.
    G13936164Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the reduction drive gear shim.
    G13936164Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the O-rings.
    G13936166Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the seal rings.
    G13936167Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the liquid gasket from the transmission case and converter case.
