Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

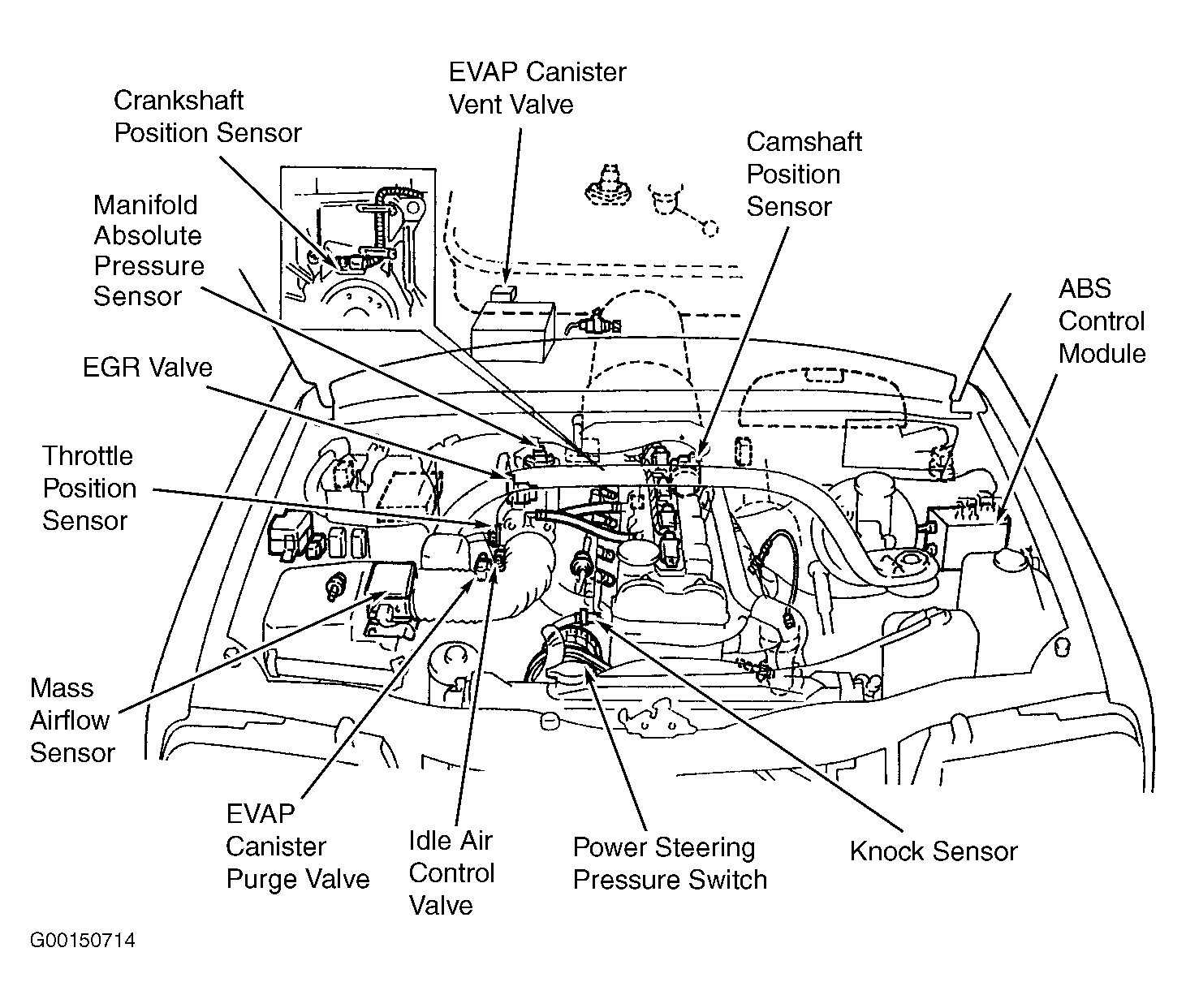

| ABS Control Module | At left rear corner of engine compartment. See Figure . |
| A/C Amplifier | Behind center of dash. |

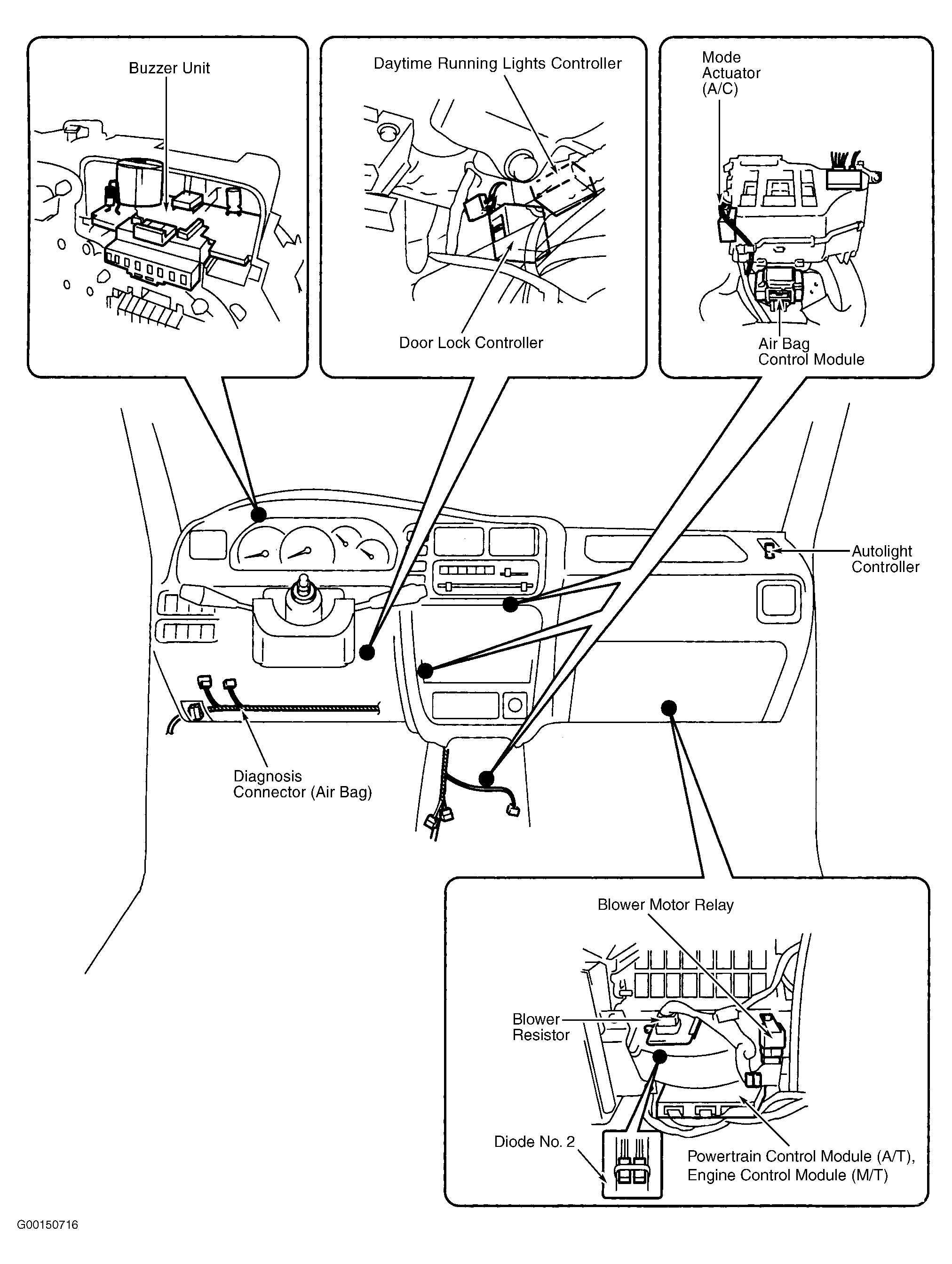

| Air Bag Control Module | At lower center of dash. See Figure . |
| Autolight Controller | On top right side of dash. See Figure . |
| Daytime Running Lights Controller | Behind left side of dash, right of steering column. See Figure . |
| Door Lock & Keyless Entry Controller | Behind left side of dash. |
| Door Lock Controller | Behind left side of dash, right of steering column. See Figure . |
| Engine Control Module (M/T) | Behind glove box. See Figure . |
| Illumination Controller | Behind left side of dash. |
| Keyless Controller | At lower left side of dash. |
| Powertrain Control Module (A/T) | Behind glove box. See Figure . |
