Control Units

CONTROL UNITS LOCATION

Component Component Location
AB Control Module Behind lower center of dash.

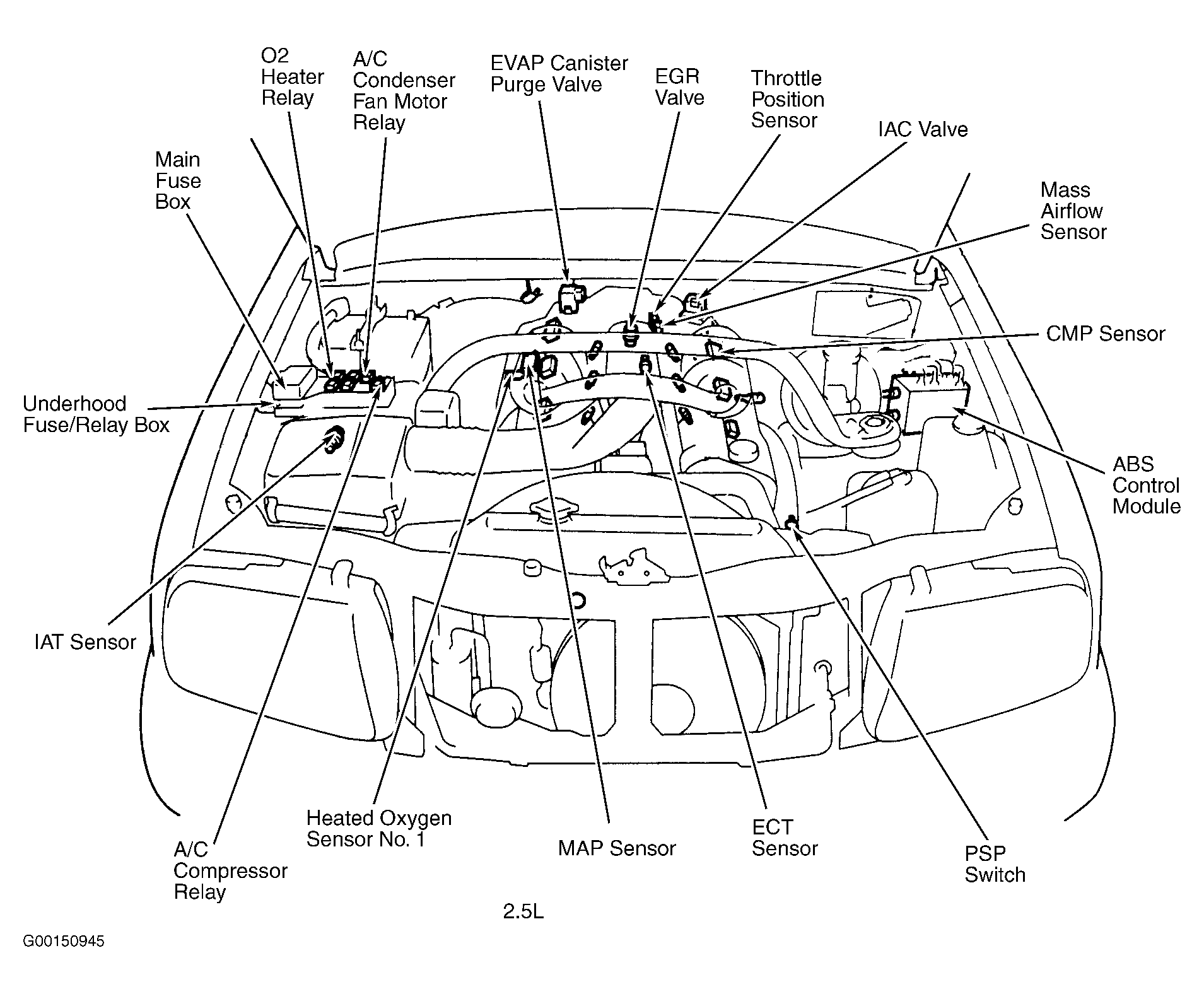

ABS Control Module (2.5L) At left rear corner of engine compartment. See Figure.

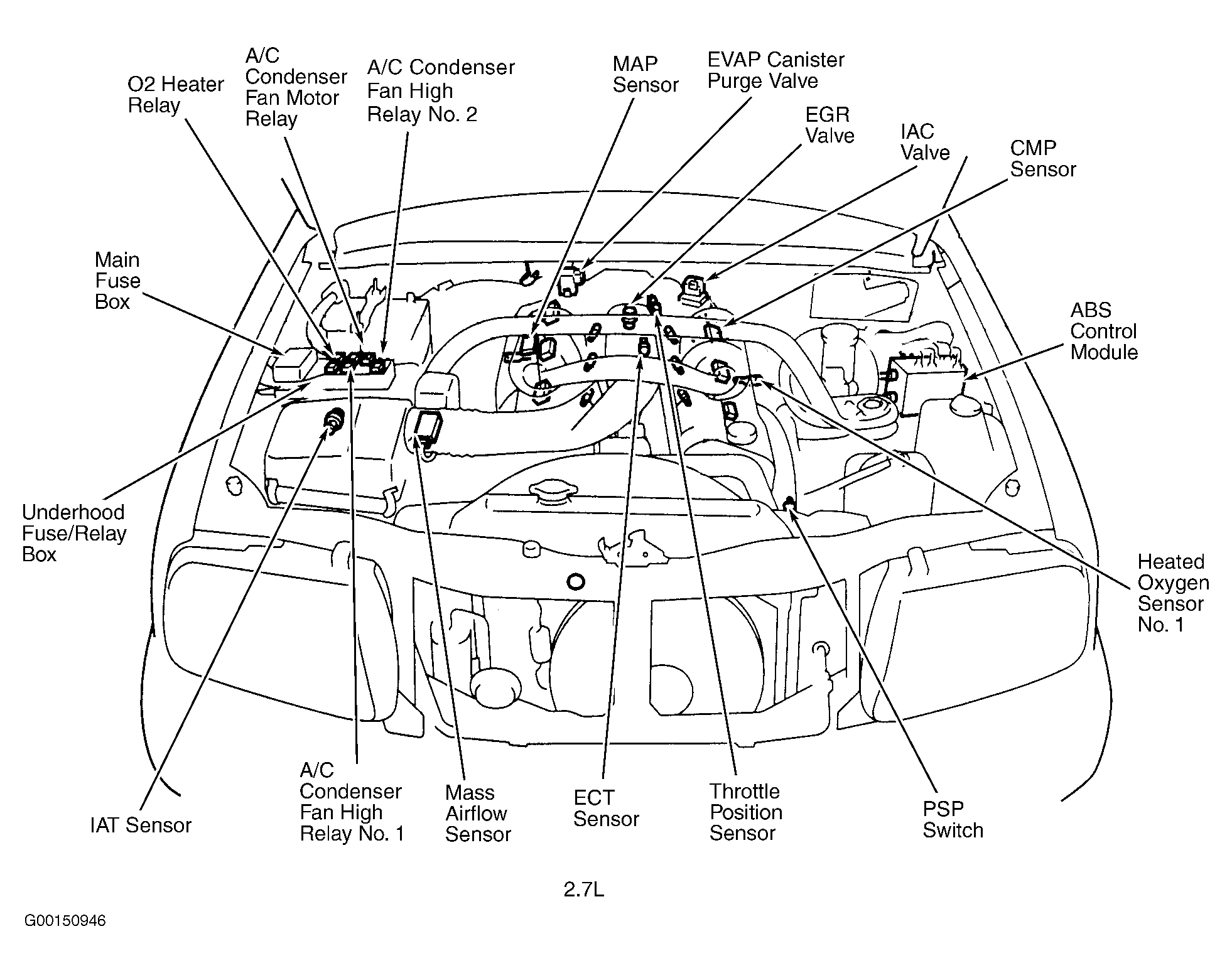

ABS Control Module (2.7L) At left rear corner of engine compartment. See Figure.
Autolight Controller On top right side of dash.
Body Control Module Behind center of dash.
ECM/PCM Behind glove box.
Illumination Controller Behind left side of dash.
Keyless Controller At lower left side of dash.
