Toe-In Adjustment: Procedure: Front

  1. Measure toe-in and compare to WHEEL ALIGNMENT SPECIFICATIONS  . If toe-in is not within specification, go to next step.
  2. Loosen front toe-in adjusting nuts and rotate right and left outer tie rods by the same amount to align toe-in to specification. See Fig 1 and WHEEL ALIGNMENT SPECIFICATIONS  . In this adjustment, right and left tie rods should become equal in length.
  3. Reconnect the outer tie rods to the knuckle assemblies. Tighten adjusting nuts and outer tie rod nuts to specification. See TORQUE SPECIFICATIONS  .

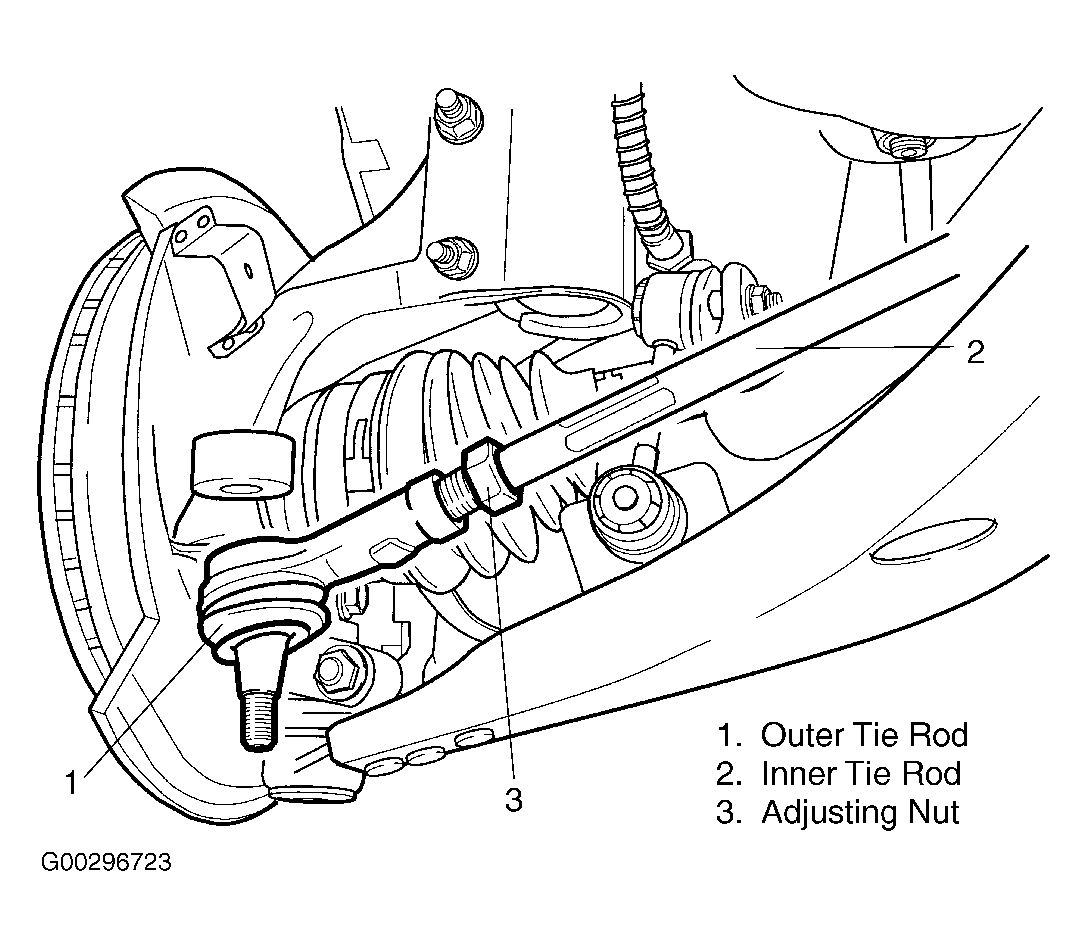

Fig 1: Adjusting Front Toe-In
G00296723Courtesy of SUZUKI OF AMERICA CORP.
