Transaxle Control Module: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the wiring connectors.
  3. Remove the transaxle control module (TCM) and nuts. See Fig 1 .

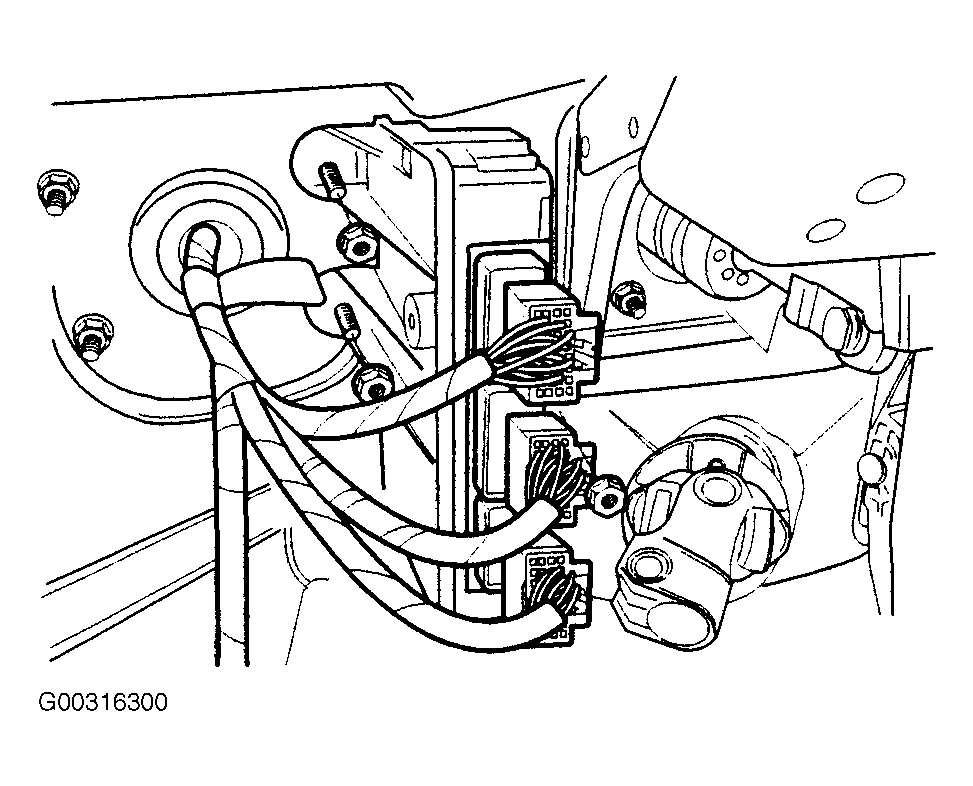

Fig 1: Removing/Installing Transaxle Control Module
G00316300Courtesy of SUZUKI OF AMERICA CORP.
