Shift Control Replacement

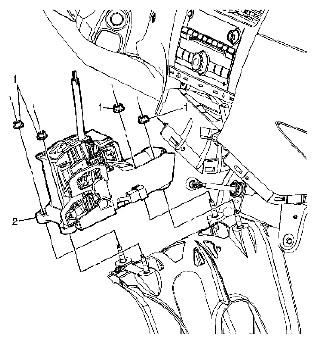

Fig 1: Identifying Shift Control & Nuts

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR DISABLING AND ENABLING . Remove the shift control lever knob. Refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT . Remove the shift control boot. Refer to TRANSMISSION CONTROL BOOT REPLACEMENT . Remove the instrument panel lower brace bezel. Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT . Disconnect the shift control cable. Refer to REMOVAL PROCEDURE . Disconnect the shift control electrical connector.
1	Shift Control Nuts (Qty 4). CAUTION: Refer to. Tightening torque Tighten the nuts to 25 N.m (18 lb ft) .
2	Shift Control
