Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module (E03) | Left front of engine compartment. See Figure. |
| A/B SDM (G46) | Behind center floor console. See Figure. |
| AUX (G65) | Behind right side of dash. See Figure. |

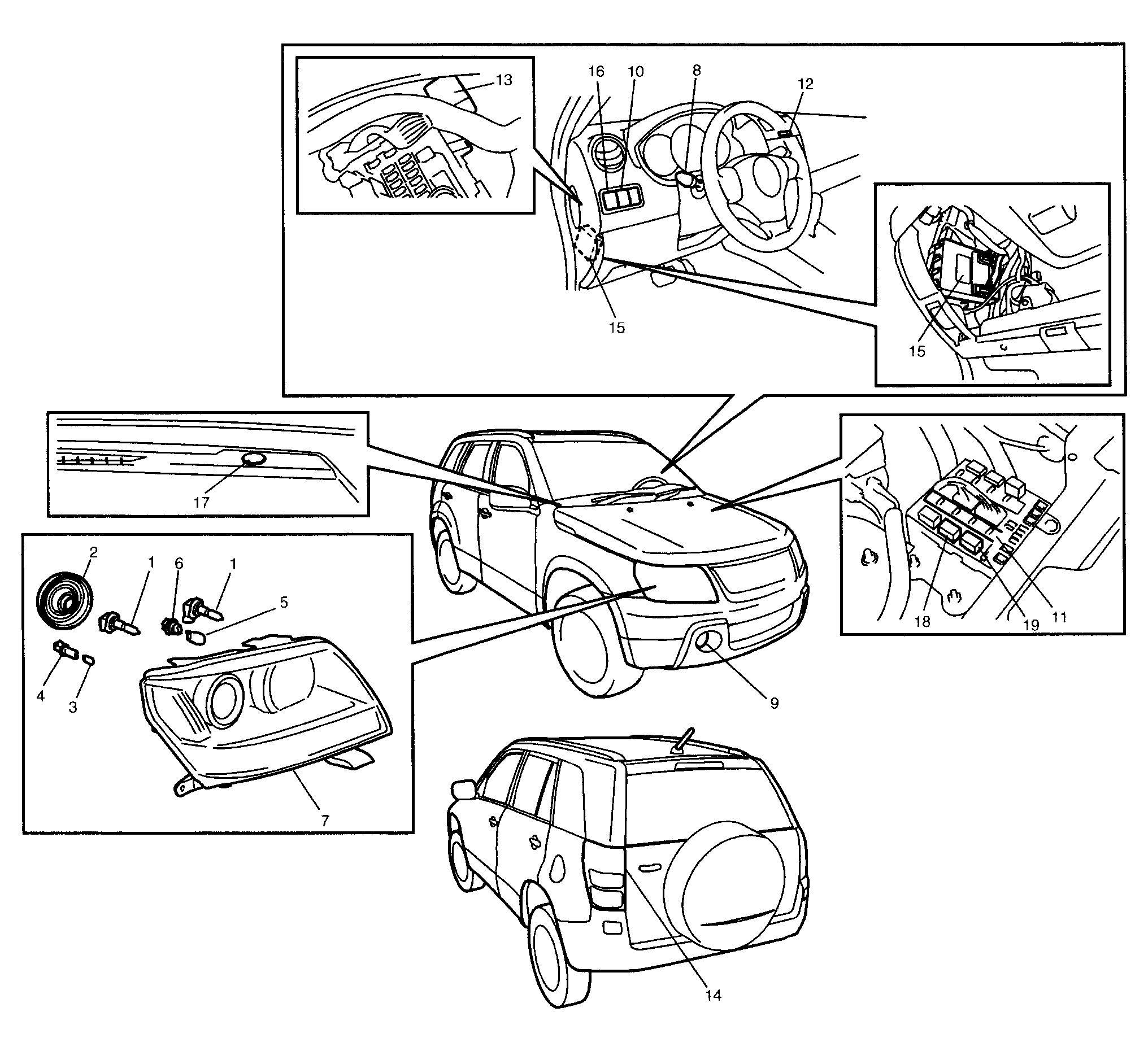

| (BCM) Body Control Module (15) | Behind left side of dash. See Figure. |

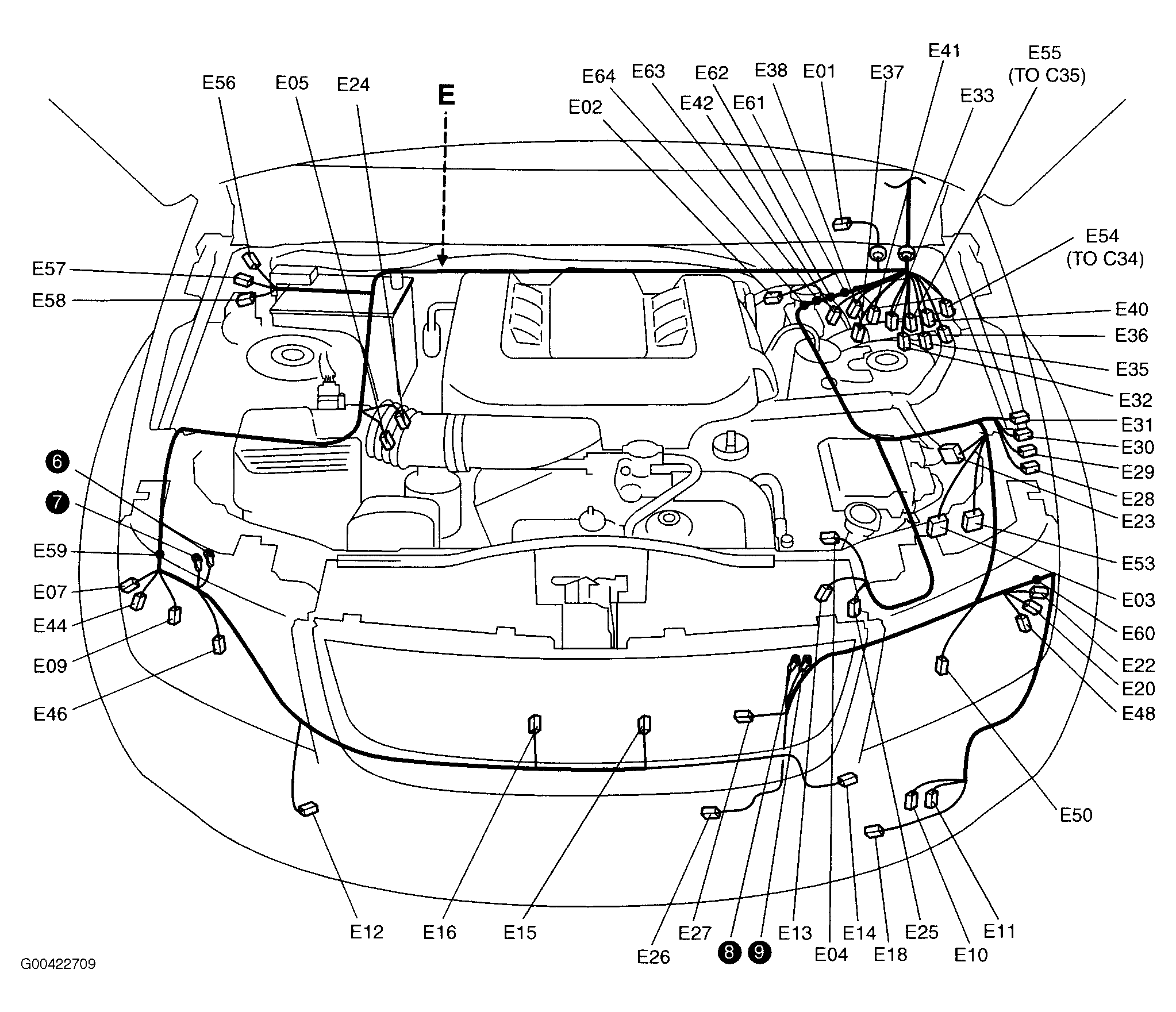

| ECM (C37) | Left side of engine compartment. See Figure. |
| ELCM (L70) | Under left rear of vehicle. See Figure. |
| ESP® Control Module (E53) | Left side of engine compartment. See Figure. |
| ICM (G24) | On steering column assembly. See Figure. |
| Occupancy Classification ECM (L78) | Under right front seat. See Figure. |
| Sliding Roof Unit (K06) | Center front of roof. See Figure. |
| Smart ECM (G44) | Behind right side of dash. See Figure. |
| TCM (E83) | Behind right side of dash. See Figure. |
| 4WD Control Module (E92) | Behind right side of dash. See Figure. |
