Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Idle Stabilizer Amplifier | On side of evaporator housing. See Figure. |
| A/C Thermistor | On evaporator housing. See Figure. |
| Defogger Circuit Breaker | On fuse/relay panel No. 2. See Figure. |

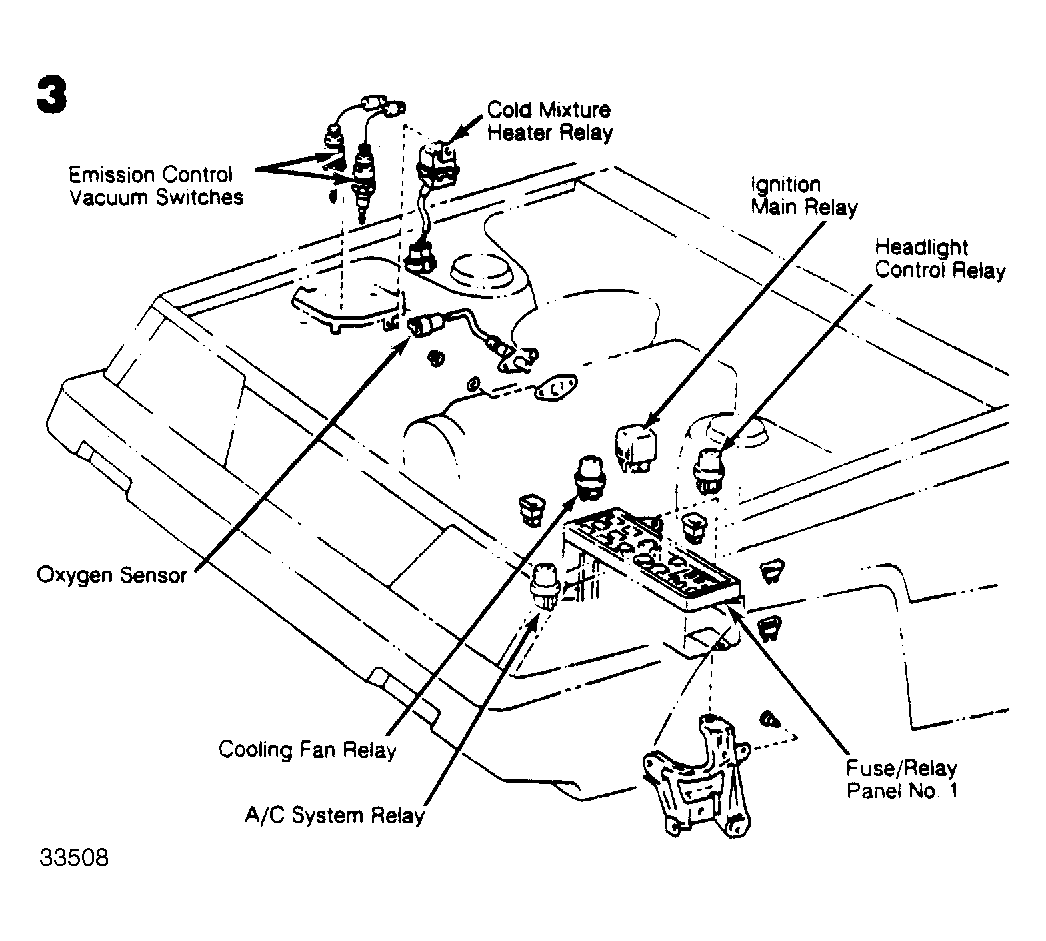

| Fuse/Relay Panel No. 1 | On left shock tower in engine compartment. See Figure. |
| Fuse/Relay Panel No. 2 | Behind left kick panel. See Figure. |
| Fuse/Relay Panel No. 3 | Behind right kick panel. See Figure. |
| Heater Circuit Breaker | On fuse/relay panel No. 3. See Figure. |
| Main Power Circuit Breaker | On fuse/relay panel No. 2. See Figure. |
