Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Automatic Shoulder Belt (ASB) Computer | ||

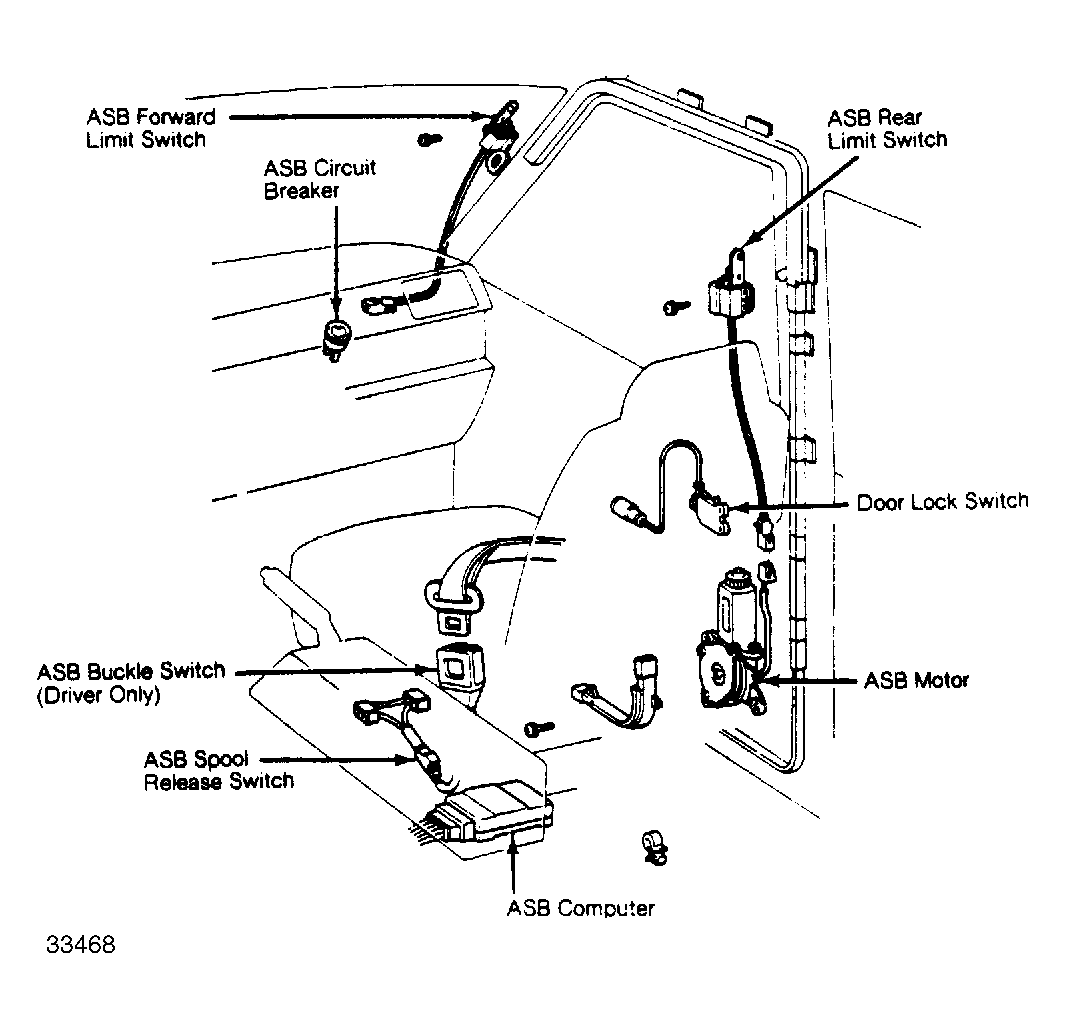

| Component View | Under rear of center console. See Figure. | |
| Component Location View | Under rear of center console. See Figure. | |
| Cruise Control Computer | ||
| Component Location View | Behind left kick panel. See Figure. | |
| Component Location View | Behind left kick panel. See Figure. | |
| Electronic Controlled Transmission (ECT) Computer | ||
| Component Location View | Behind glove box, under ECU. See Figure. | |
| Components View | Behind glove box, under ECU. See Figure. | |
| Electronic Control Unit (ECU) | ||
| Component Location View | Behind glove box. See Figure. | |
| Components View | Behind glove box. See Figure. | |
| Power Seat Memory Computer | Under driver's seat. | |
| Power Steering Computer | Under center console, near dash. See Figure. | |
| Sun Roof Computer | In roof panel, forward of sun roof. | |
| Super Monitor Main Computer | Behind center console. See Figure. | |
| Theft Deterrent Computer | ||
| Component Location View | Under dash, to left of steering column. See Figure. | |
| Component Location View | Under dash, to left of steering column. See Figure. | |
| Toyota Electronic Modulated Suspension (TEMS) Computer | Under center console, near dash. See Figure. | |
