Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

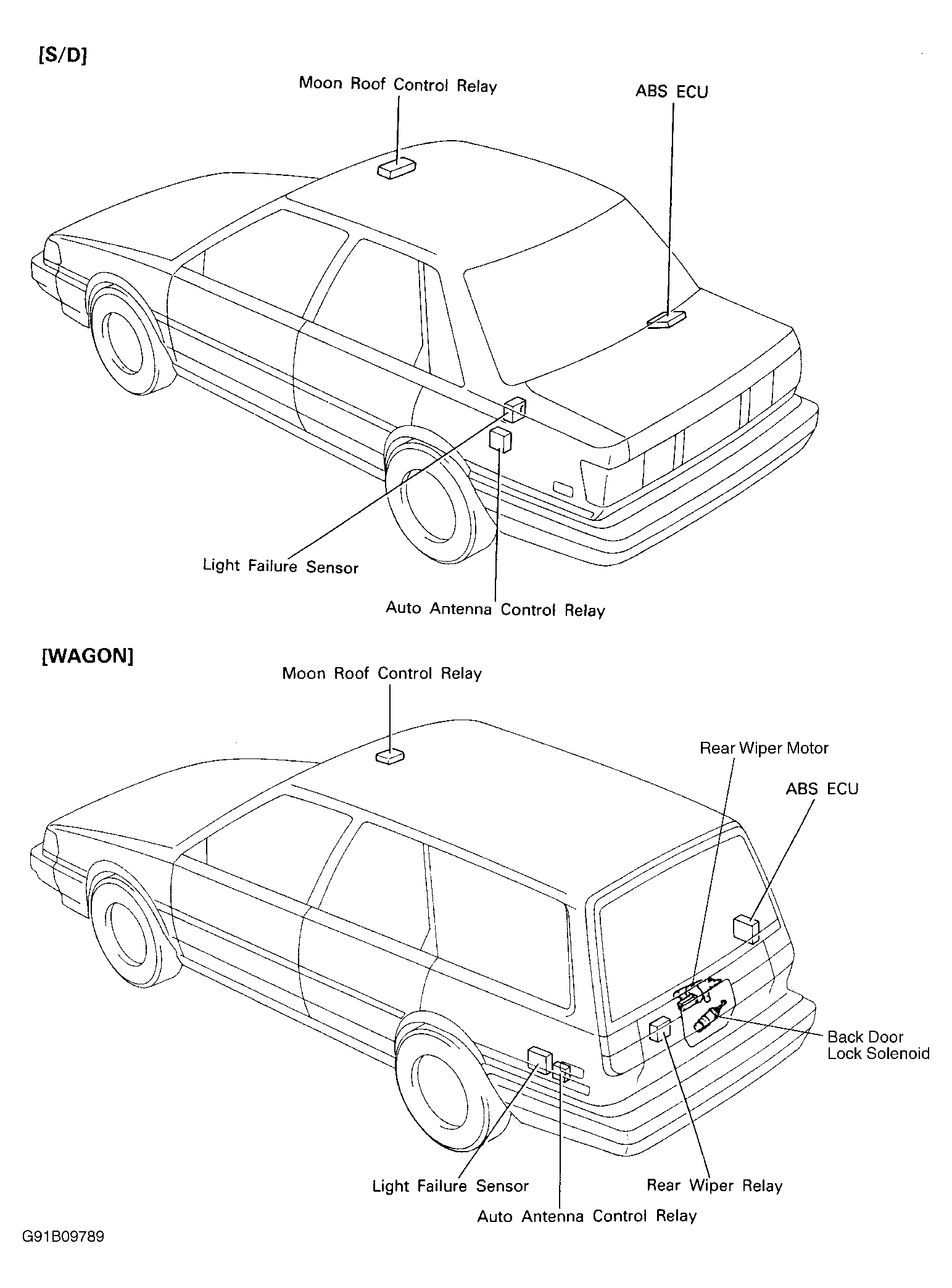

| Anti-Lock Brake System (ABS) Computer | ||
| Sedan | Center of trunk compartment, below rear window deck surface. See Figure. | |
| Wagon | Behind right rear quarter panel. See Figure. | |

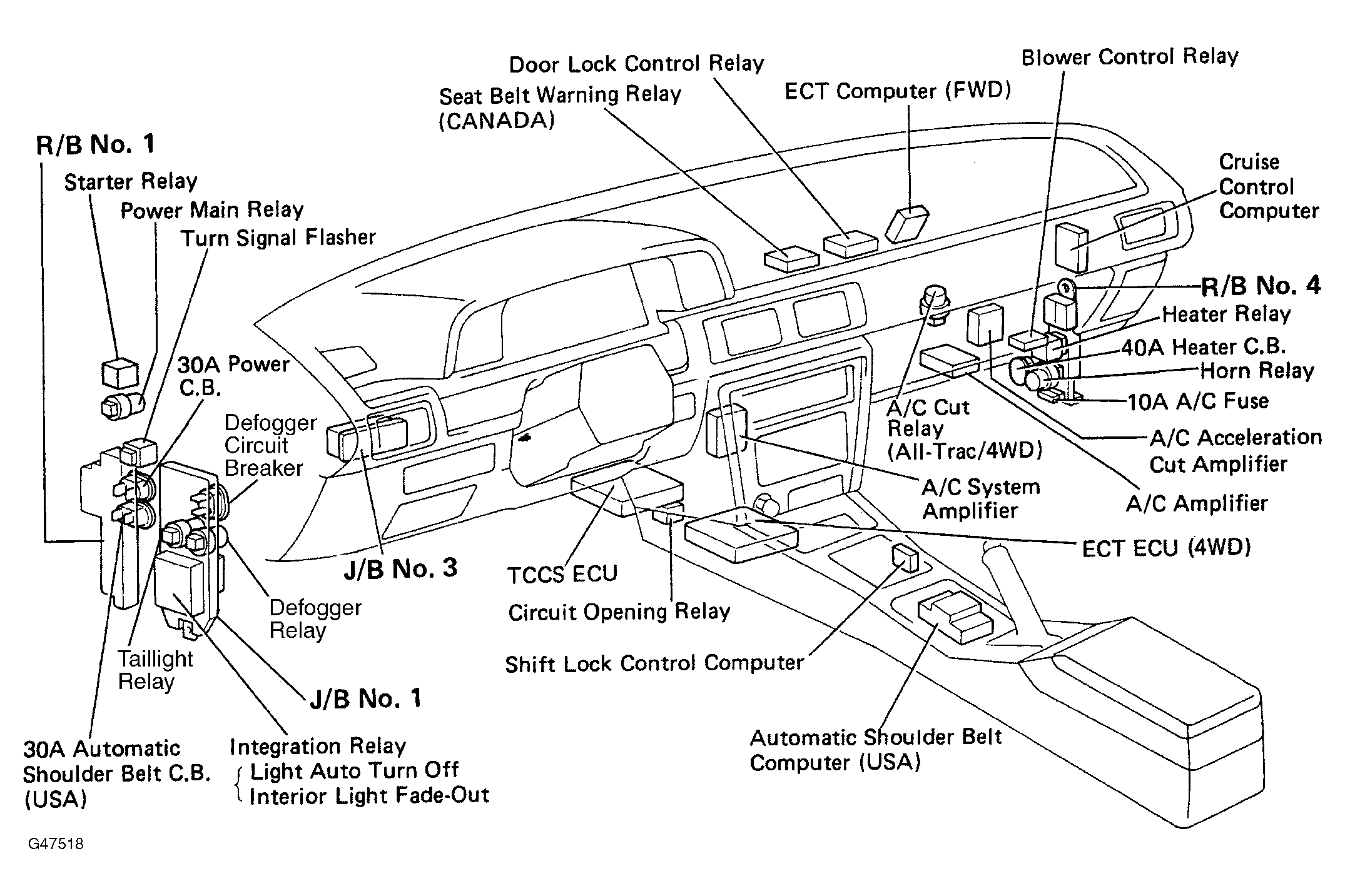

| Auto. Shoulder Belt Computer | In center console, near parking brake. See Figure. | |
| Cruise Control Computer | Under right side of instrument panel. See Figure. | |
| Electronic Controlled Transaxle (ECT) Computer | ||

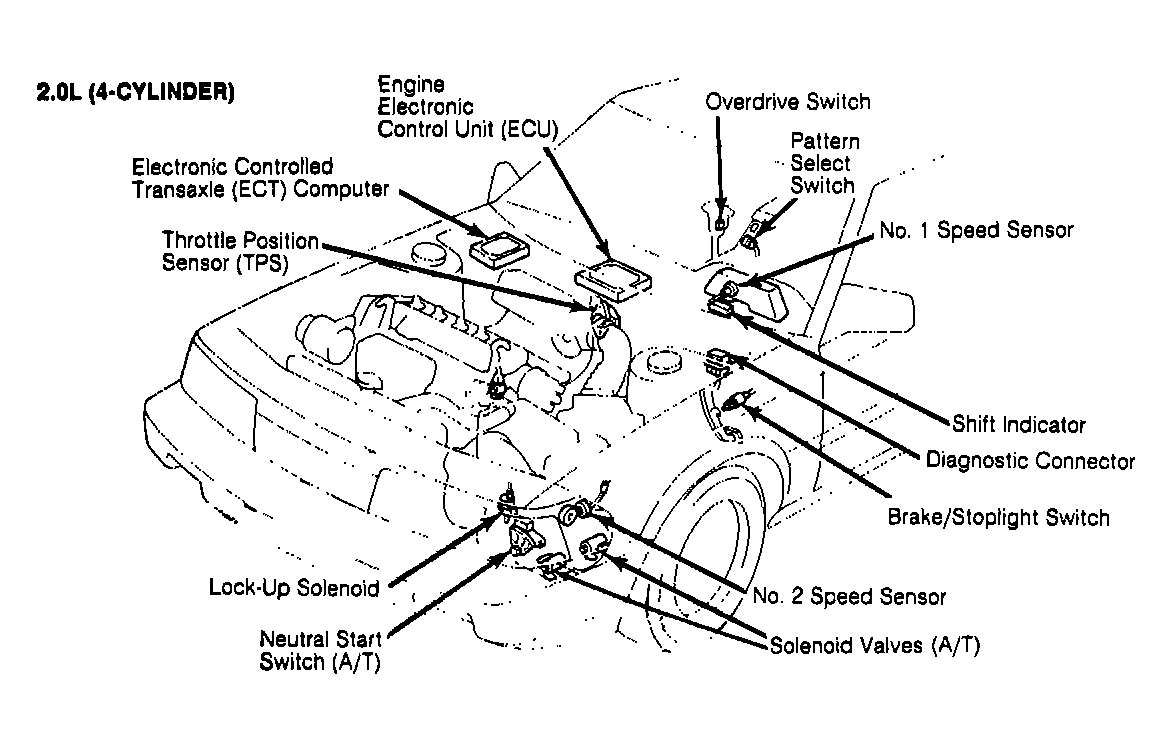

| 2.0L (4-Cylinder) | Under right side of instrument panel. See Figure. | |

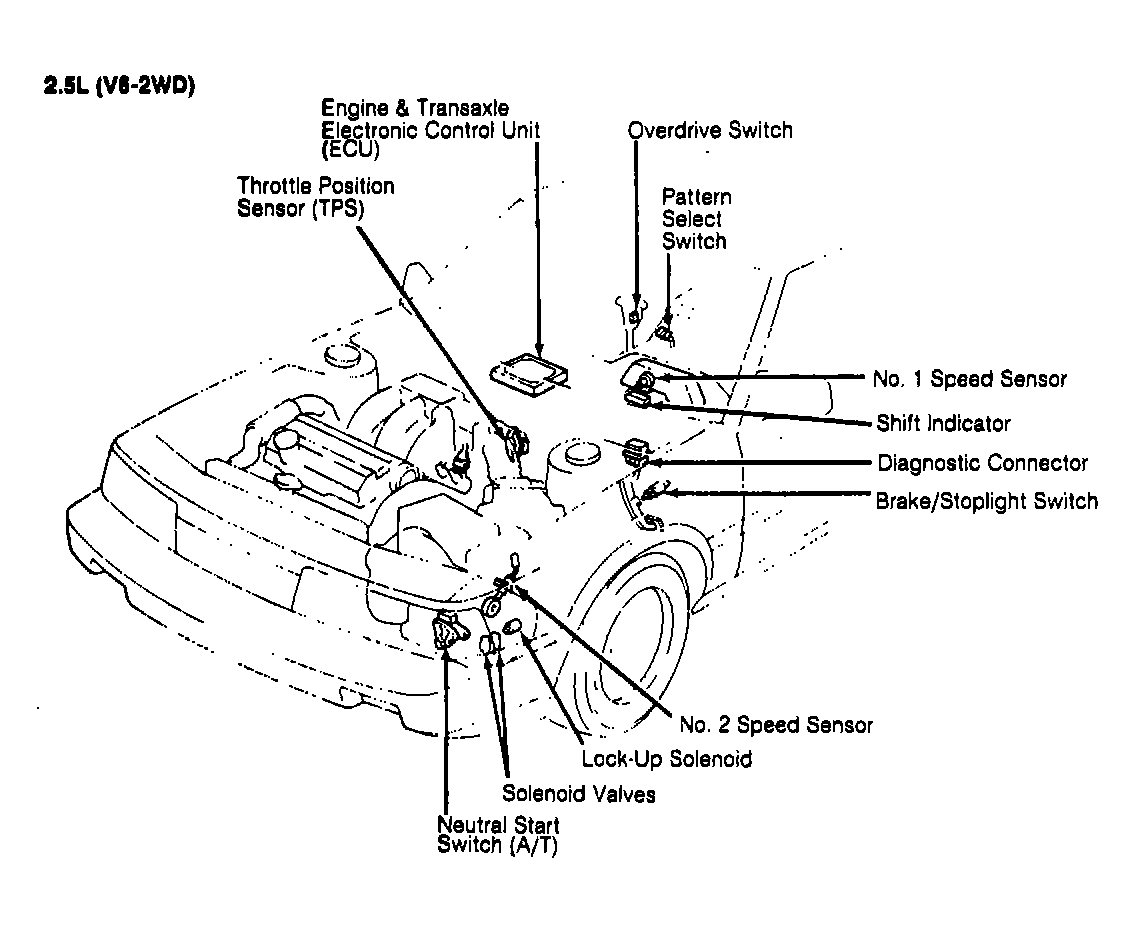

| 2.5L (V6-2WD) | Incorporated with engine ECU, behind center console. See Figure. | |

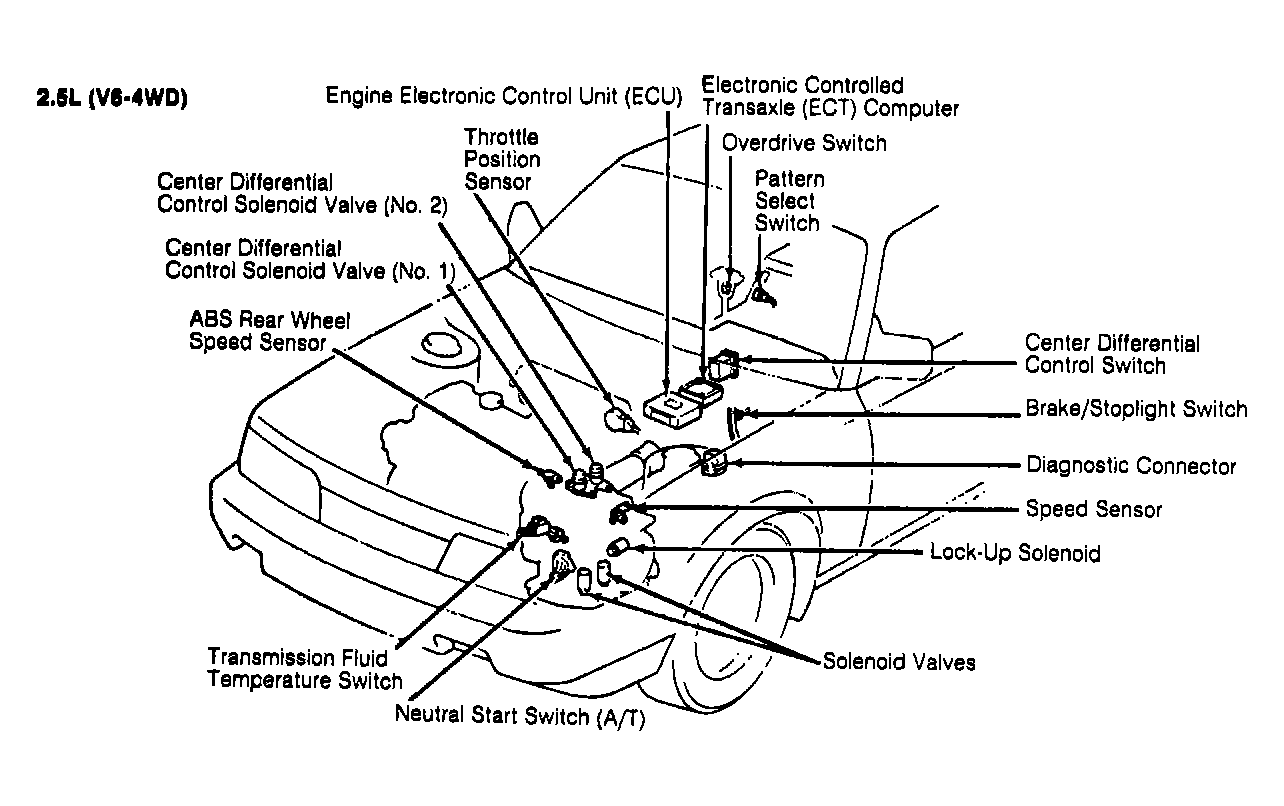

| 2.5L (V6-4WD) | Under center of instrument panel, behind console. See Figure. | |
| Engine Electronic Control Unit (ECU) | ||

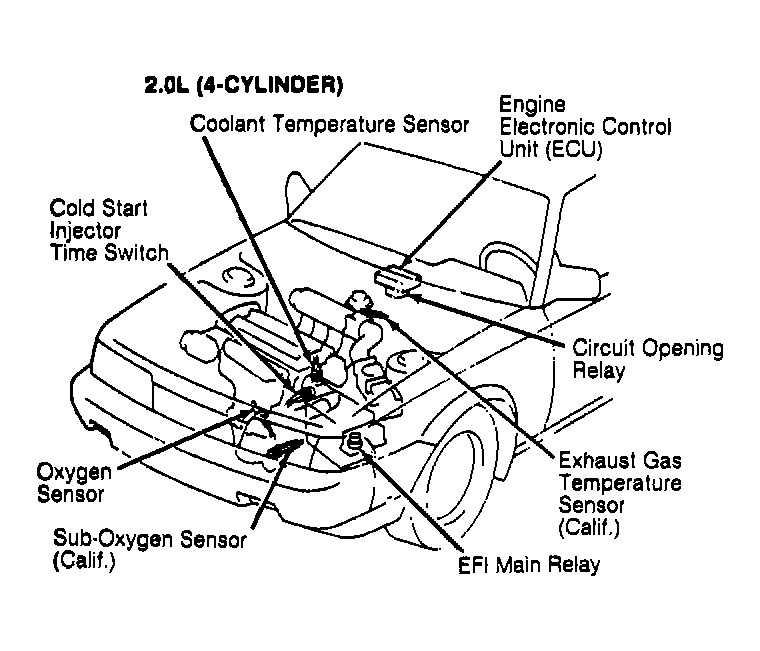

| 2.0L (4-Cyl) | Under center of instrument panel, behind console. See Figure & Figure . | |

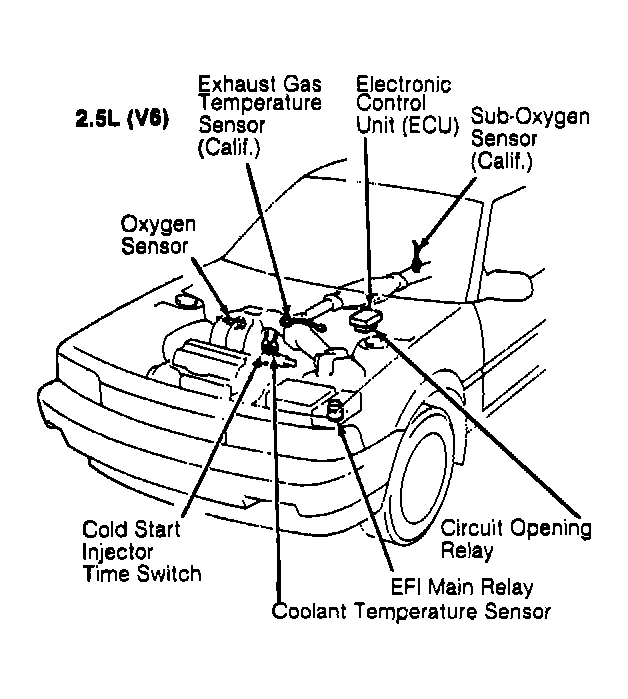

| 2.5L (V6-2WD) | Incorporated with transaxle control unit, behind center console. See Figure & Figure . | |
| 2.5L (V6-4WD) | Under center of instrument panel, behind console. See Figure & Figure . | |

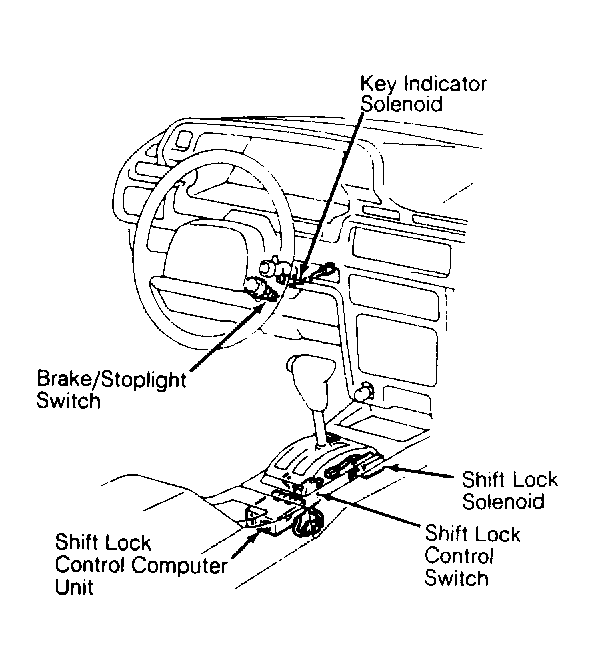

| Shift Lock Control Computer Unit | Mounted at rear of gearshift. See Figure. | |
