Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Defogger | On fuse relay/block No. 1. See Figure. | |
| Heater | On fuse relay/block No. 4. See Figure. | |
| Power Window | On fuse relay/block No. 1. See Figure. | |
| Fuse/Relay Blocks | ||
| No. 1 | Behind left kick panel. See Figure. | |

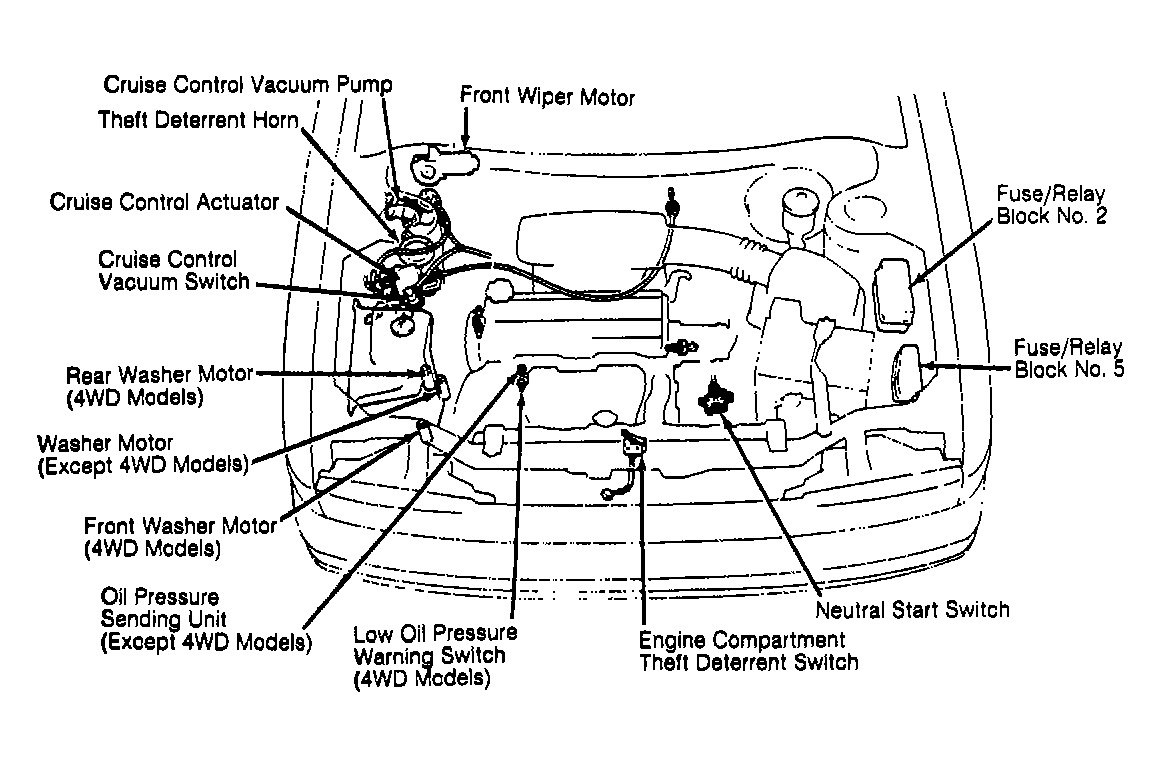

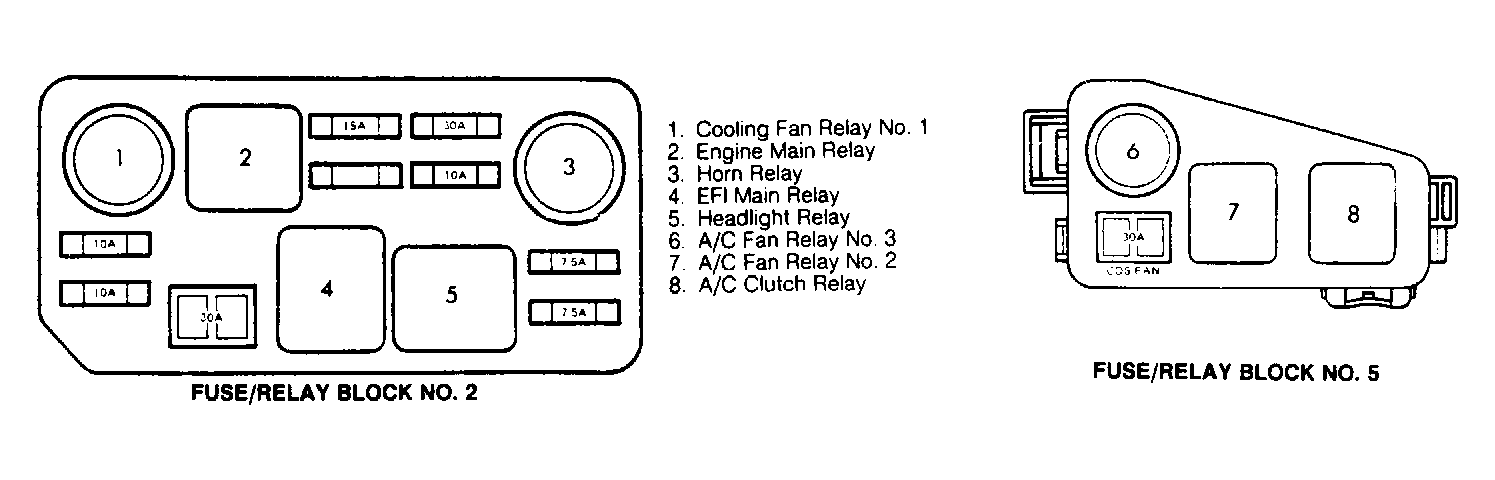

| No. 2 | On inner left front fenderwell. See Figure & Figure . | |
| No. 4 | Behind right kick panel. See Figure. | |
| No. 5 | On left front side of engine compartment. See Figure & Figure . | |
| Fusible Links | On positive battery terminal. | |
| Junction Block No. 3 | Behind left side of dash. See Figure. | |
