Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers (4Runner) | ||
| Heater | In fuse/relay block No. 3. See Figure. | |
| Power Door/Window Lock | In fuse/relay block No. 1. See Figure. | |
| Fuse/Relay Block No. 1 | Under left side of dash. See Figure & Figure . | |
| Fuse/Relay Block No. 2 | On front right corner of engine compartment. See Figure. | |

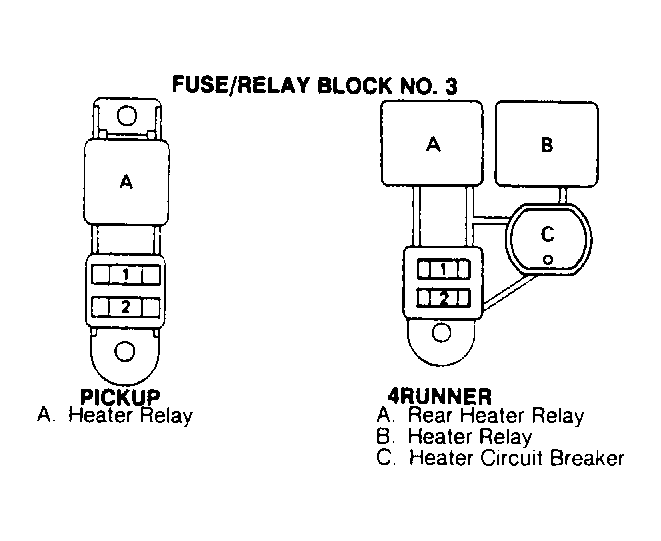

| Fuse/Relay Block No. 3 | Behind glove box. See Figure & Figure . | |
| Fuse/Relay Block No. 4 | Next to fuse relay block No. 2. See Figure. | |
| Fusible Links | On fuse/relay block No. 2. | |
| Main Fusible Link | On positive battery cable. See Figure. | |
