Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

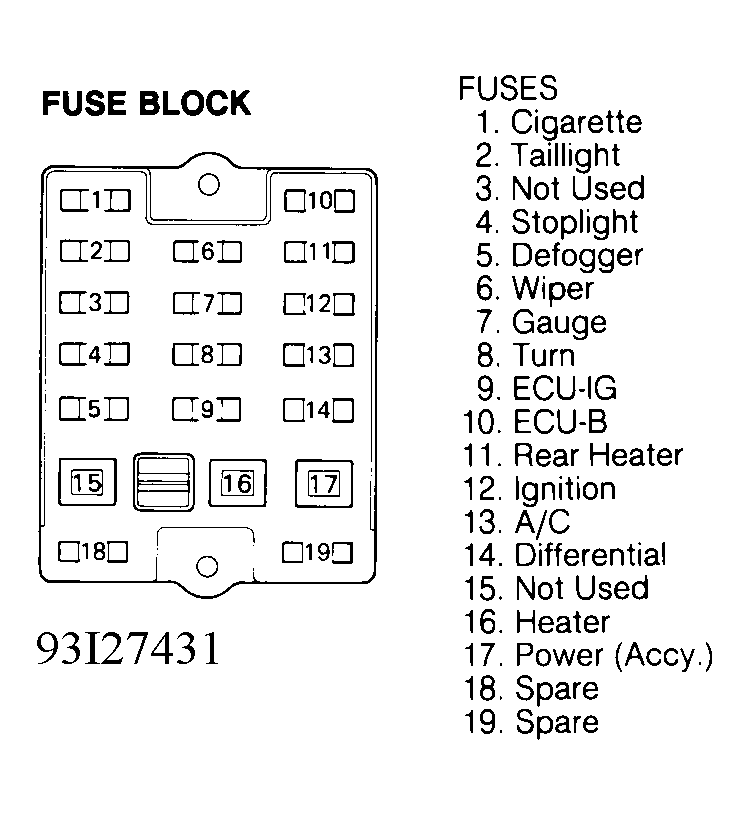

Fuse Block Under left instrument panel lower trim panel. See Figure & Figure .

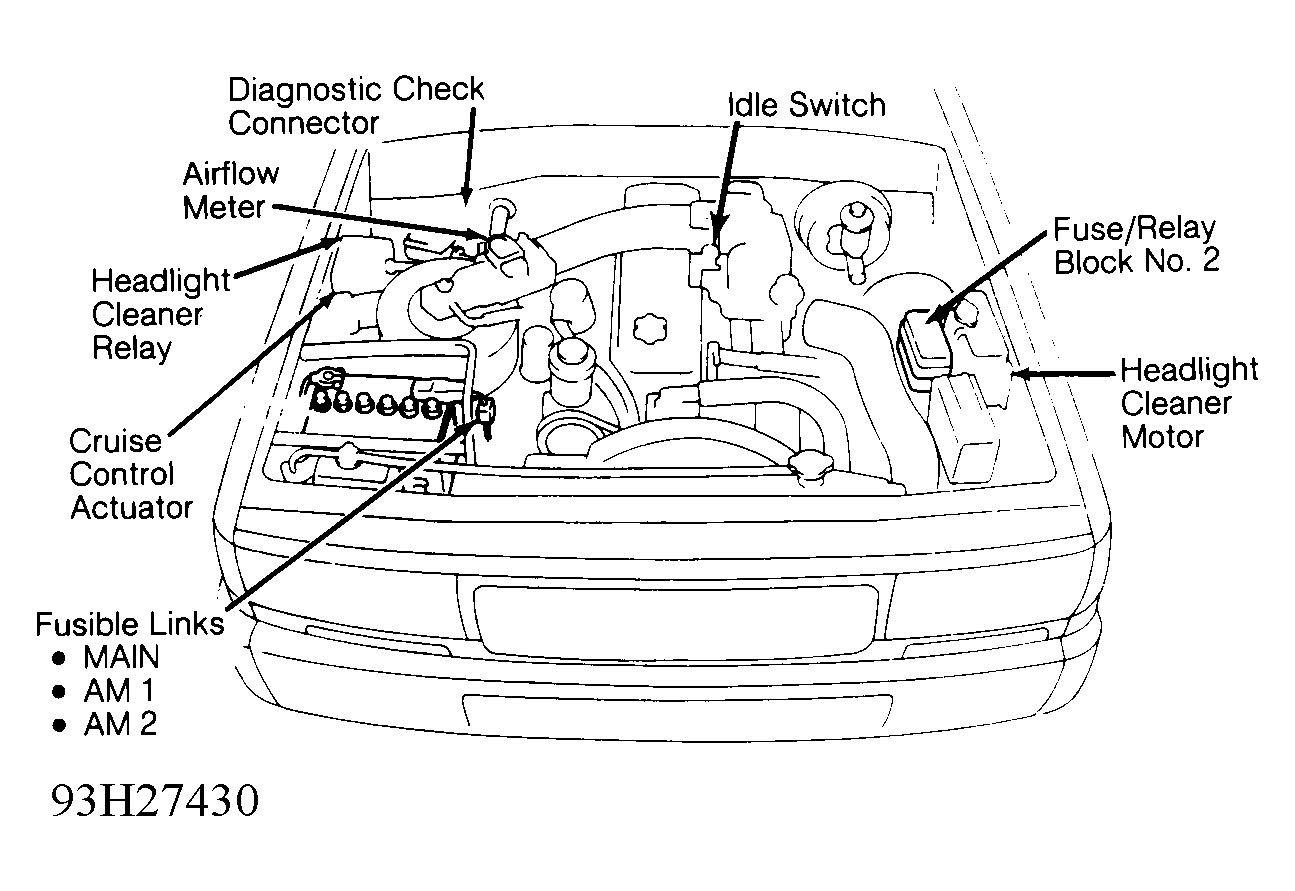

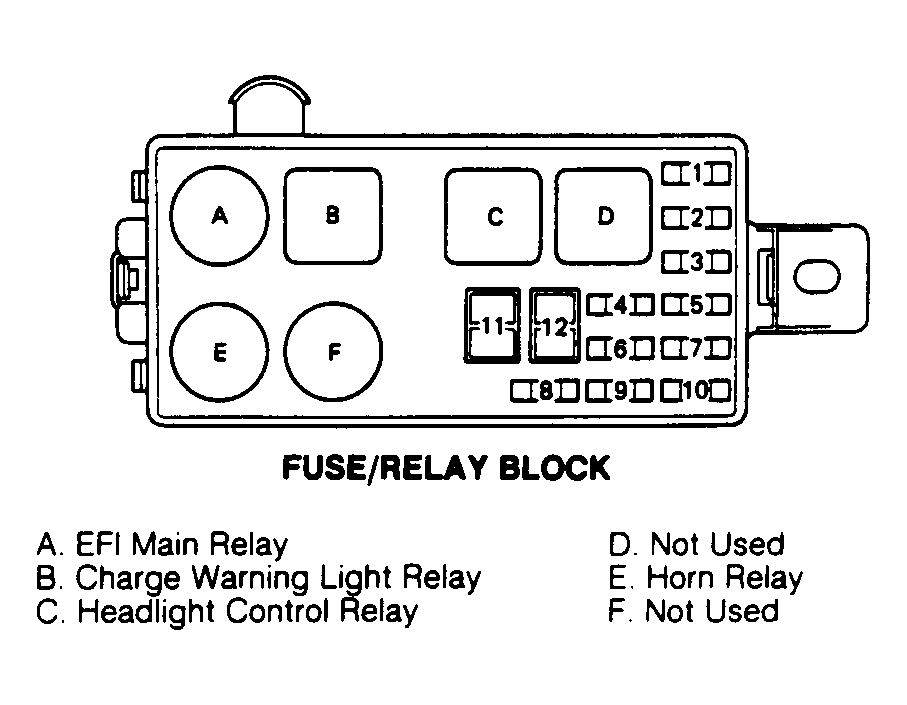

Fuse/Relay Block No. 2 On left inner fender panel. See Figure & Figure .
Fusible Links Near battery positive terminal. See Figure.

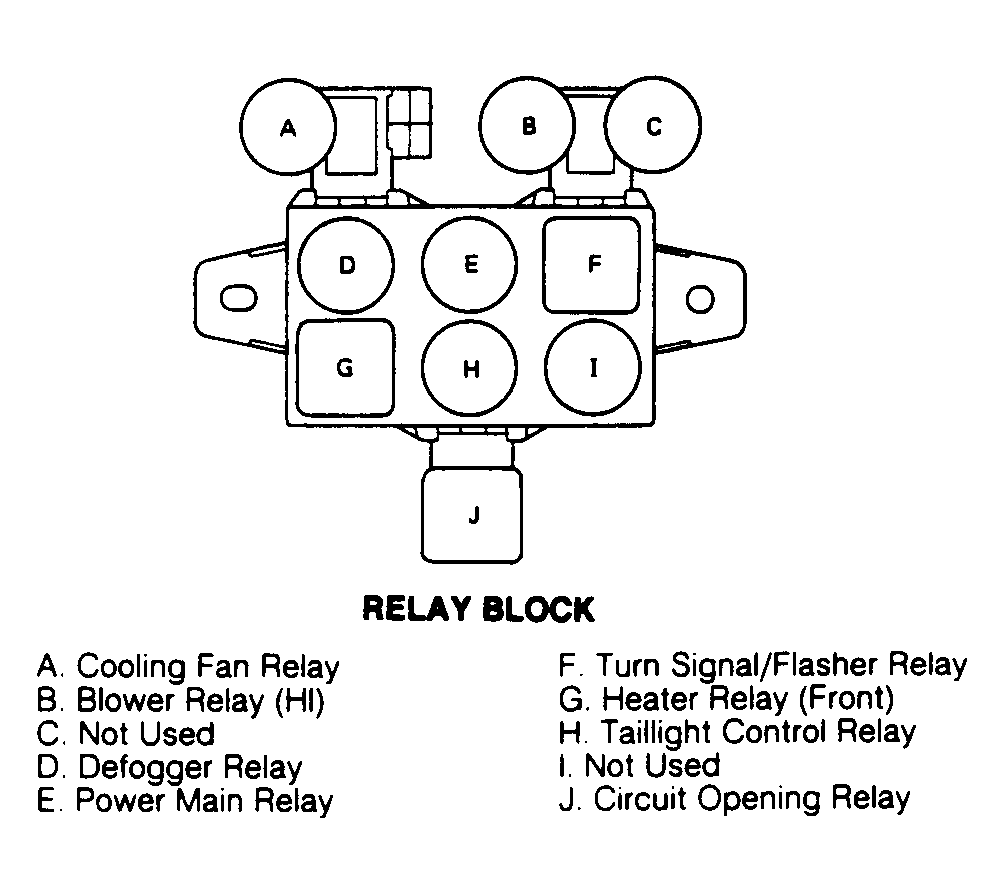

Relay Block No. 1 On left kick panel. See Figure & Figure .
