Control Units

CONTROL UNITS LOCATION

Component Location

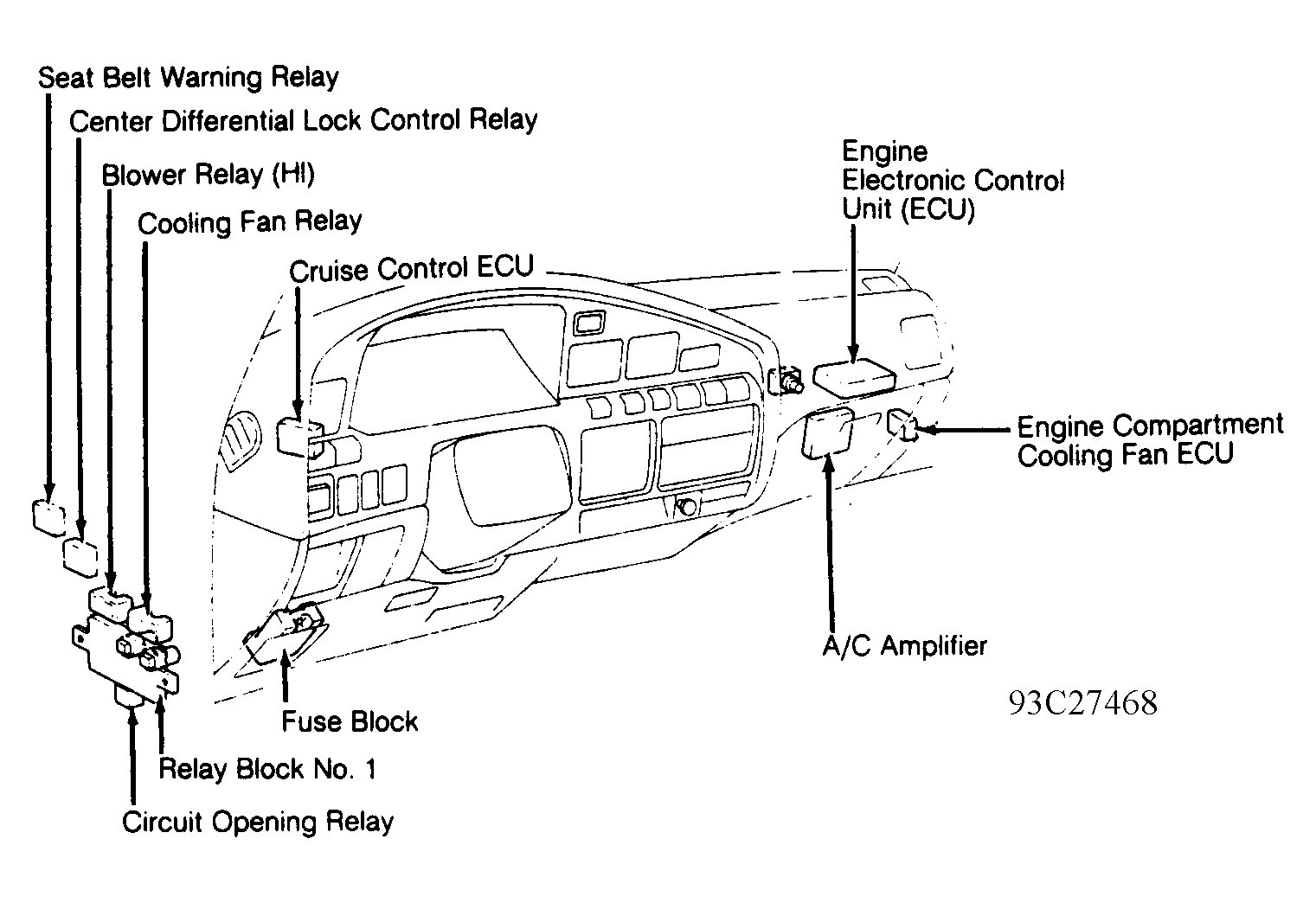

Cruise Control ECU Behind left side of instrument panel, left of cluster. See Figure.
Engine Electronic Control Unit (ECU) Above glove box. See Figure & Figure .
Engine Compartment Cooling Fan Control Unit At right side of glove box. See Figure.
Shift Lock ECU (A/T) Under center console, near gearshift lever.
