Starter Relay

Locate and remove starter relay. See STARTER RELAY LOCATION table. See Fig 2. Using ohmmeter, verify continuity between relay terminals No. 1 and 3. See Fig 1. Continuity should not exist between terminals No. 2 and 4. If continuity is not as indicated, replace relay.
Check relay operation by applying battery voltage through terminals No. 1 and 3. See Fig 1. Continuity should now exist between terminals No. 2 and 4. If relay does not test as indicated, replace relay.

Fig 1: Testing Starter Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

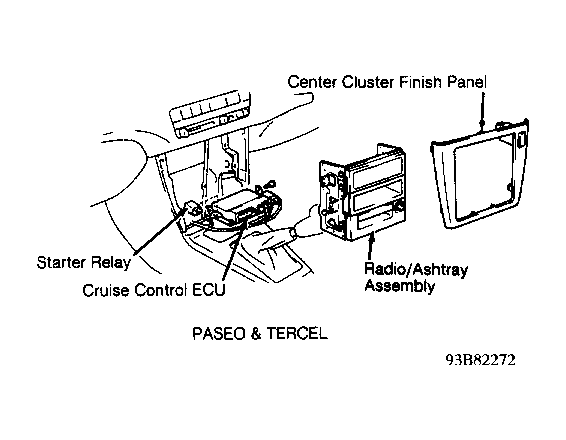

Fig 2: Locating Starter Relay

STARTER RELAY LOCATION

Application	Location
Tercel	In Center Console, Above Radio
