Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

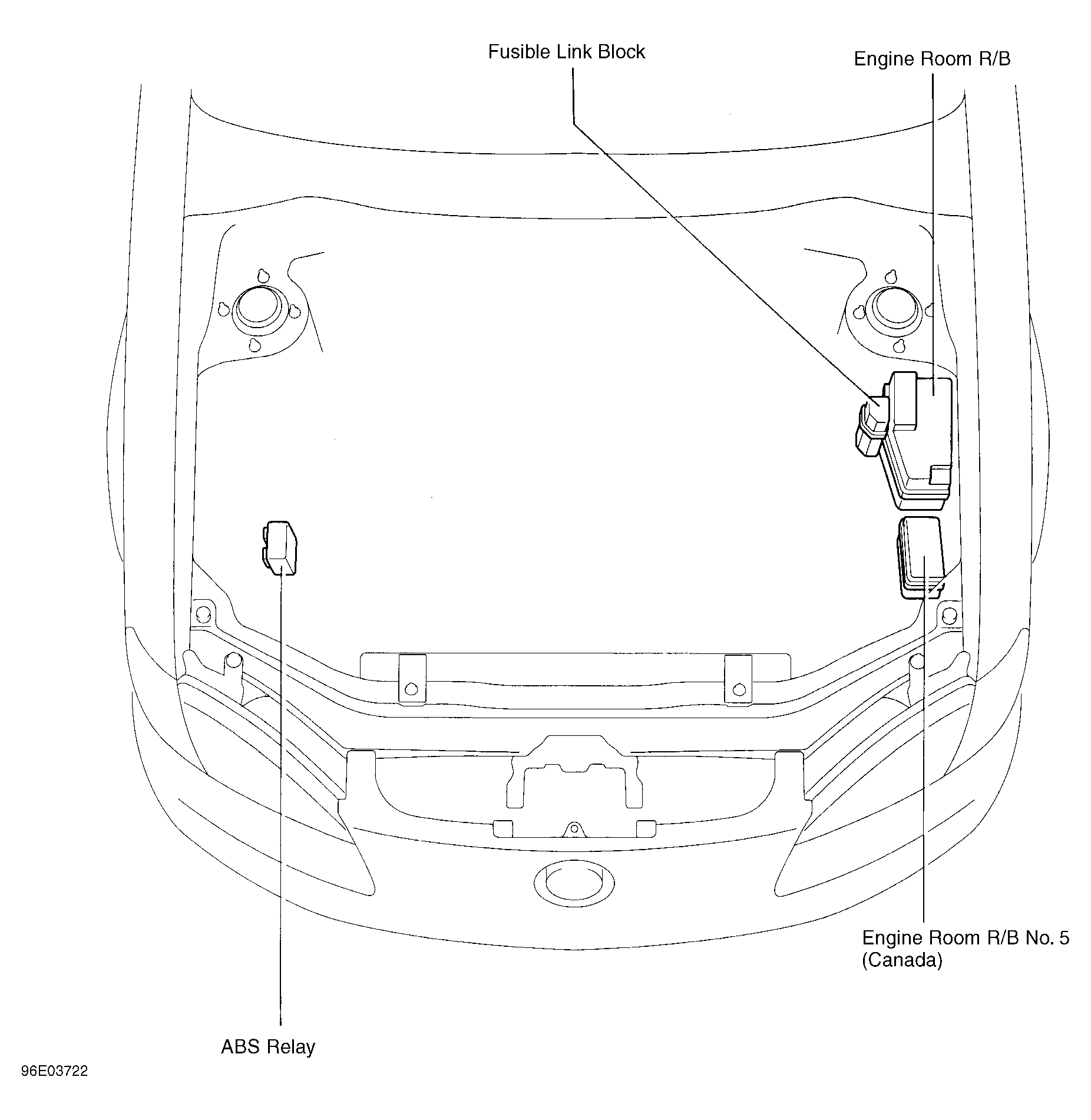

| Fusible Link Box | On left side of engine compartment, clipped on side of engine room R/B. See Figure. |
| Fuse Block No. 2 | On J/B No. 1. |
| Driver's Side J/B | Behind dash, left of steering column. See Figure. |
| Engine Room R/B | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 5 (Canada) | On left side of engine compartment. See Figure. |
| Power Fuse | Behind dash, right of steering column. See Figure. |
| R/B No. 6 | Behind dash, left of steering column. |
