Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

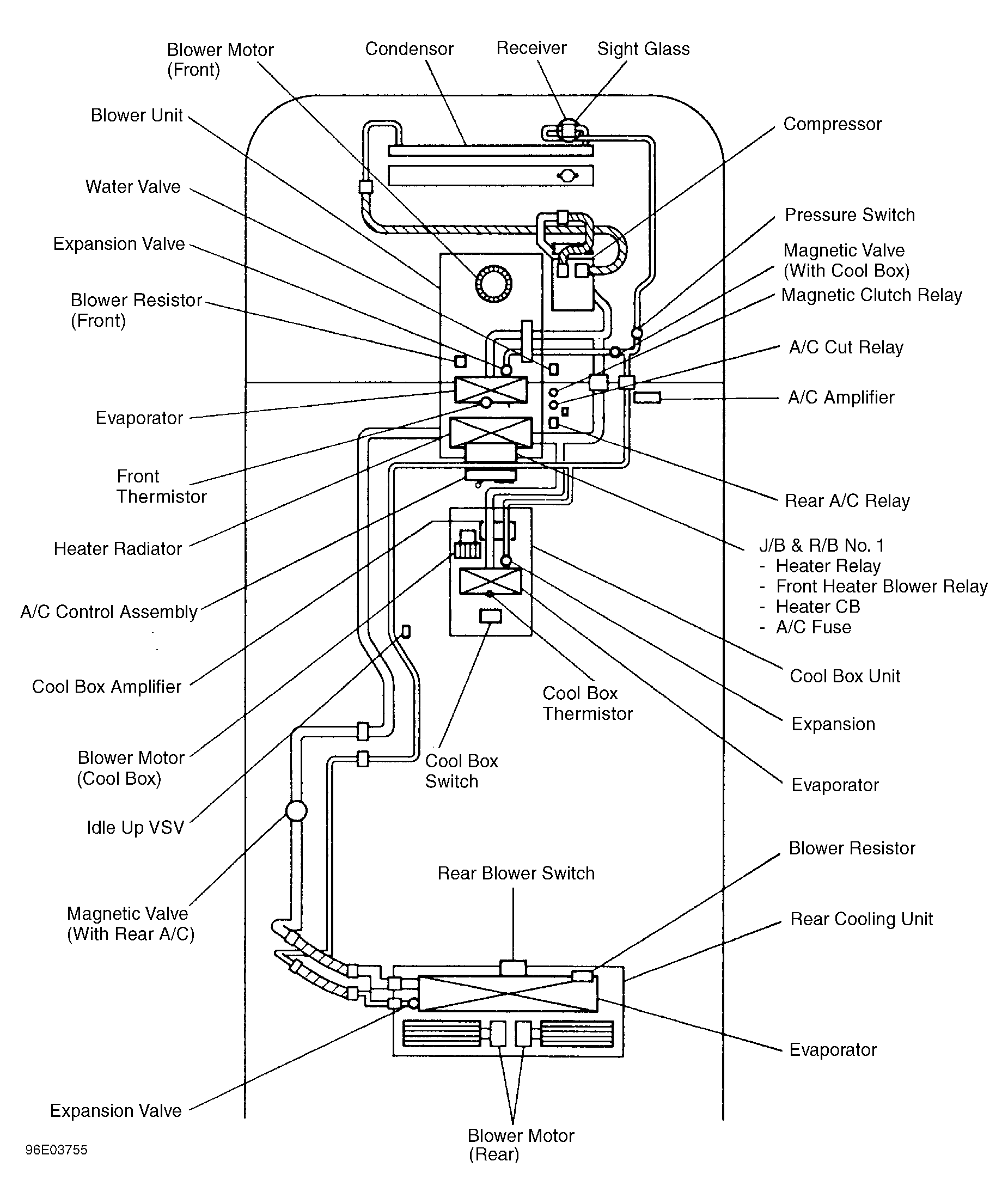

| A/C Fuse (Rear) | On J/B & R/B No. 1. See Figure. |
| Fuse Box (2TZ-FZE) | On right side of front compartment, by battery. |
| Fuse Box (2TZ-FE) | On left side of front compartment, by battery. |
| Fusible Link Block | On right front of front compartment, by battery. |
| Heater CB | On J/B & R/B No. 1. See Figure. |
| J/B & R/B No. 1 | Behind center of dash. See Figure. |
| J/B No. 3 | Below center console. See Figure. |
