Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

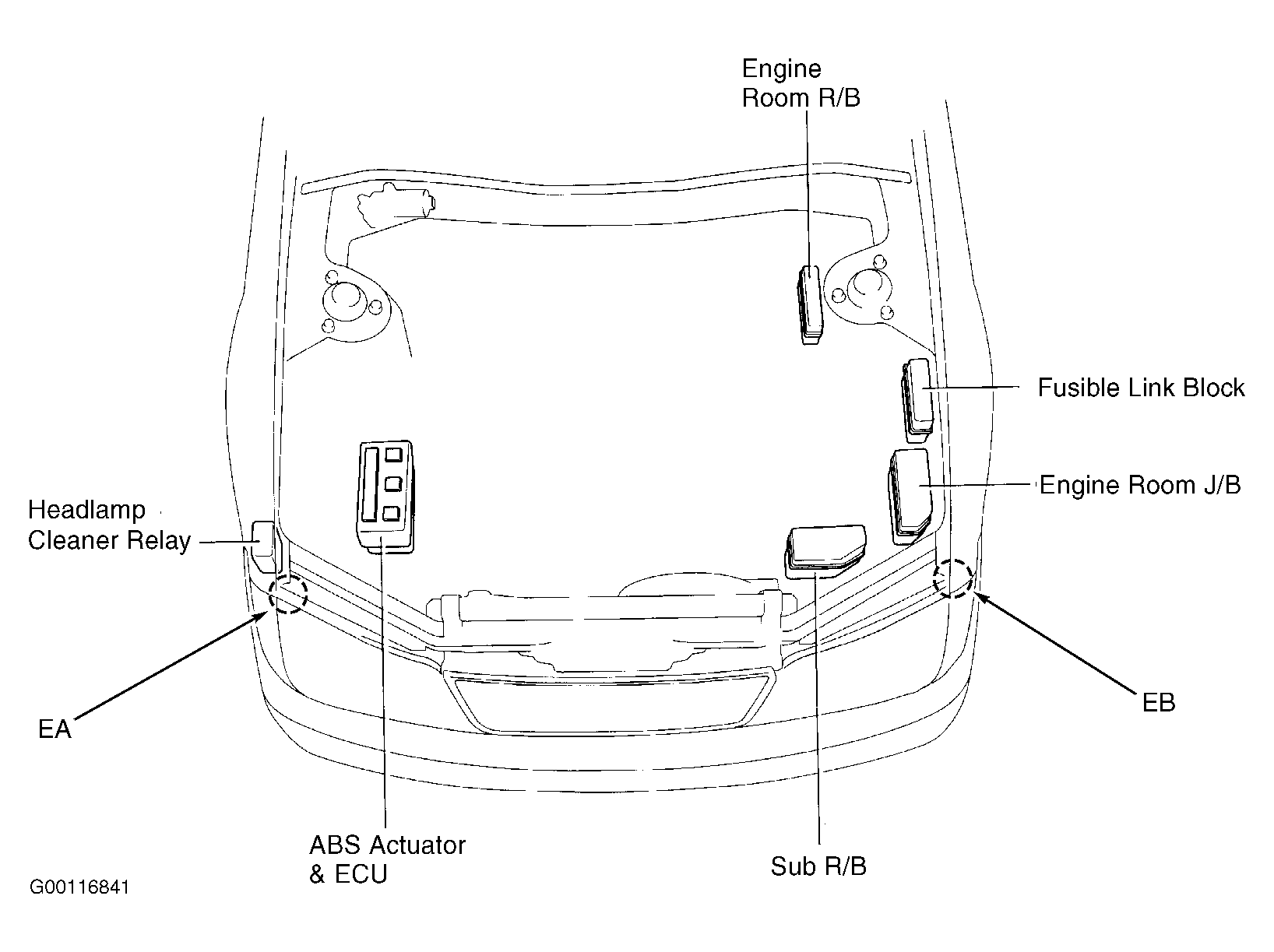

| ABS Actuator & ECU | On right front of engine compartment. See Figure. |
| ABS & Traction ECU | Behind right side of dash. |

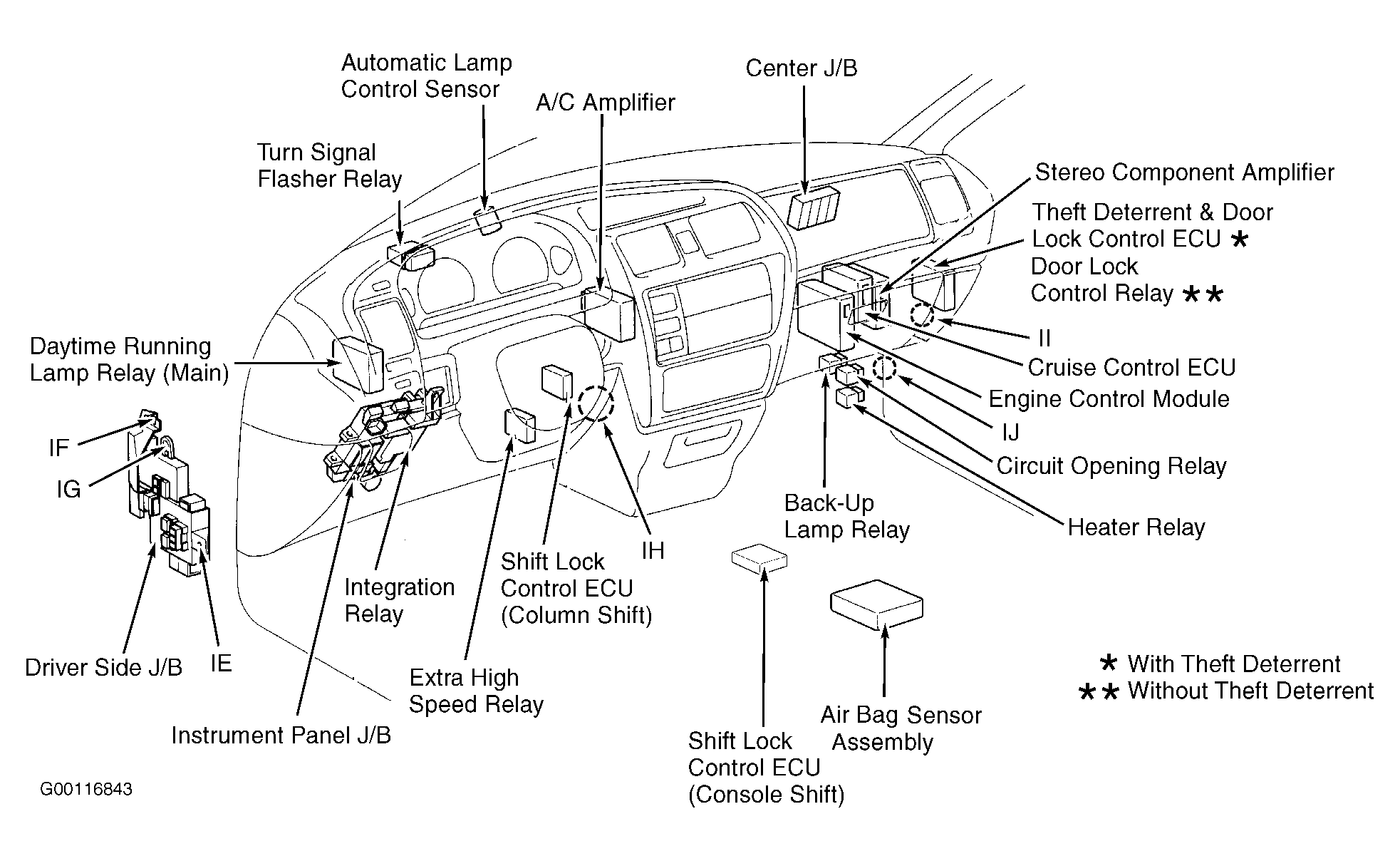

| A/C Amplifier | Behind left center of dash. See Figure. |
| Air Bag Sensor Assembly | Below rear of center console. See Figure. |
| Cruise Control ECU | Behind right side of dash. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Shift Lock Control ECU (Column Shift) | On underside of steering column. See Figure. |
| Shift Lock Control ECU (Console Shift) | Below center console, rear of gear selector. See Figure. |
| Stereo Component Amplifier | Behind right side of dash. See Figure. |
| Theft Deterrent & Door Lock Control ECU | Behind right side of dash. See Figure. |

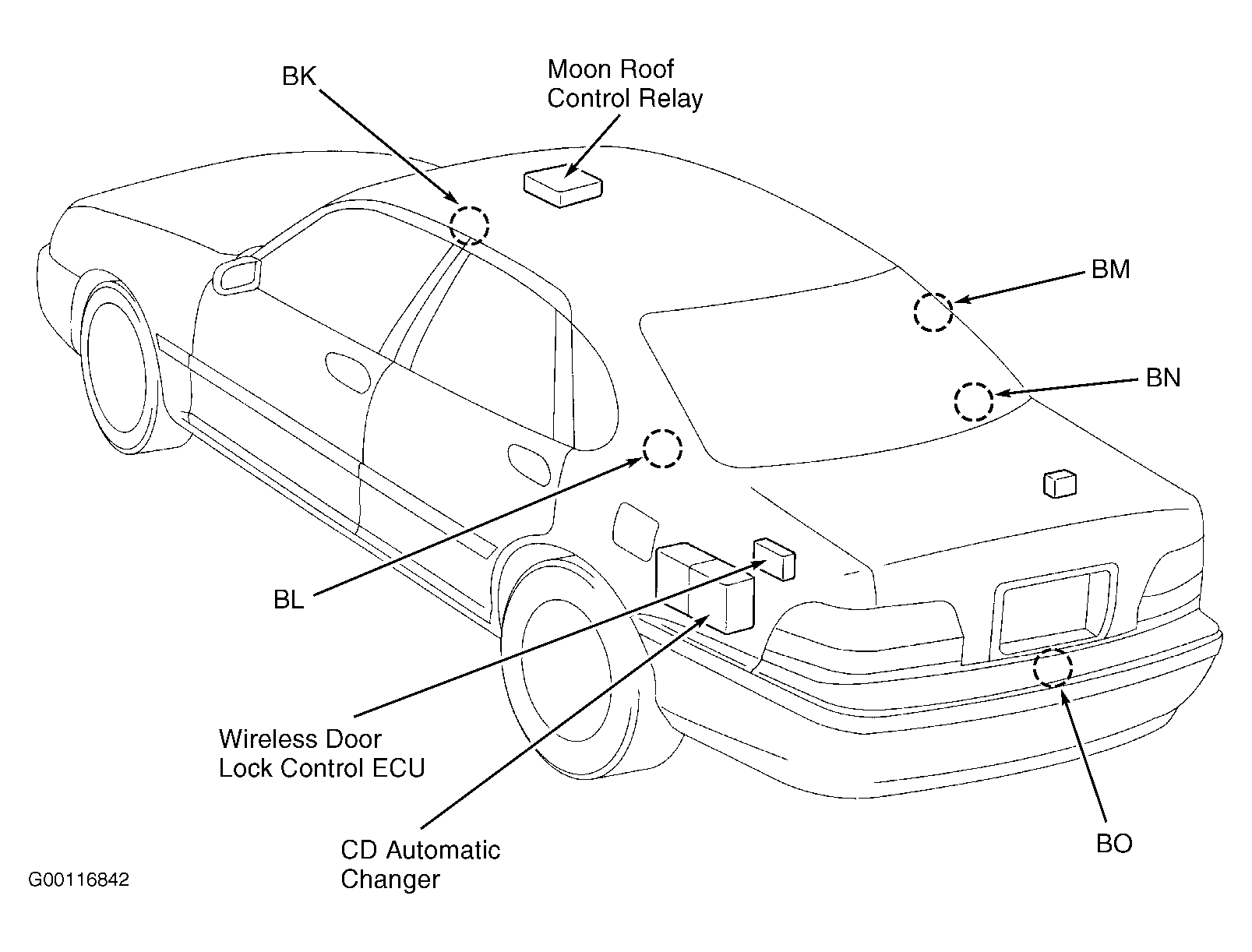

| Wireless Door Lock Control ECU | On left side of trunk. See Figure. |
