Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

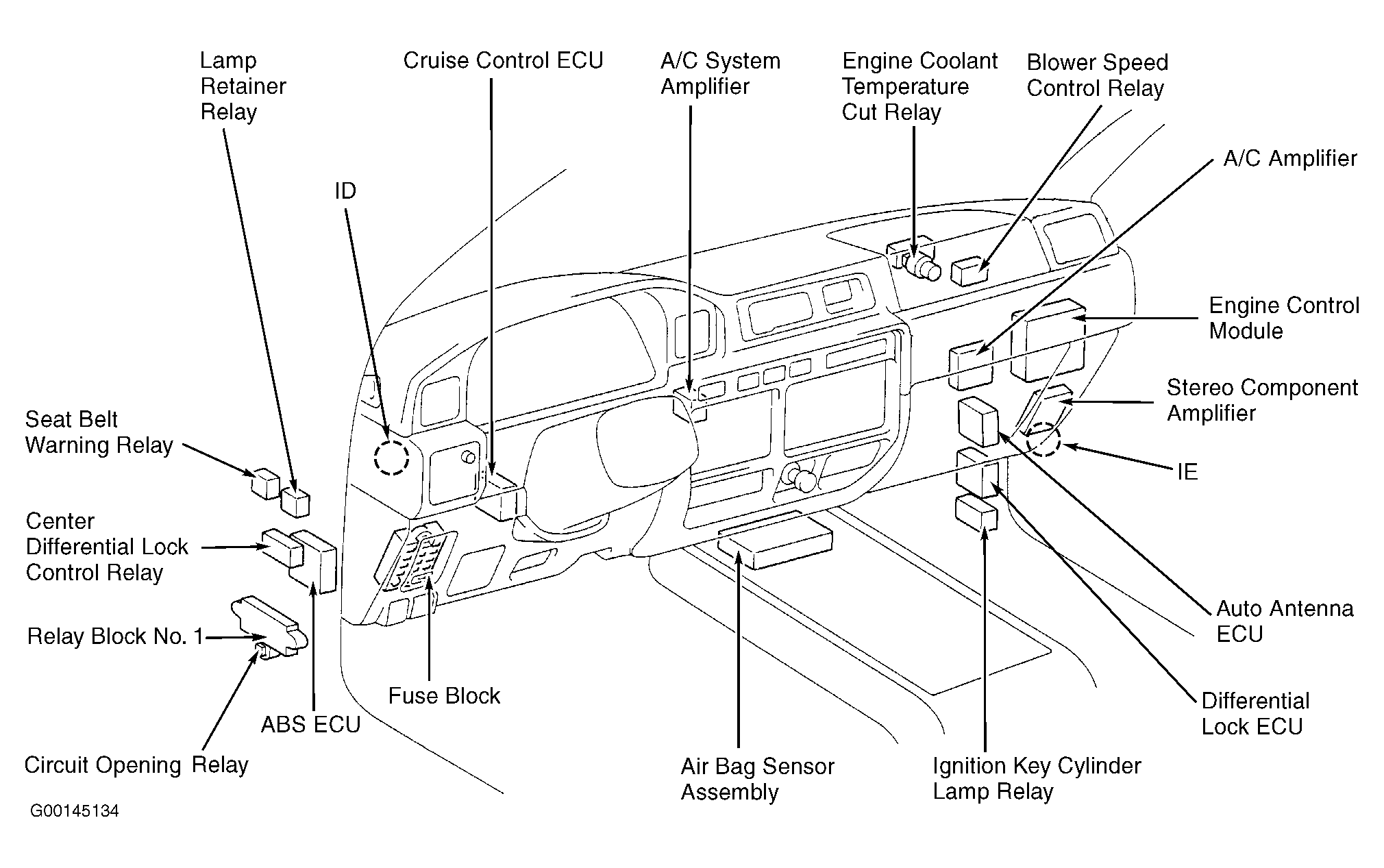

| ABS ECU | On left kick panel. See Figure. |
| Auto Antenna ECU | Behind right side of dash. See Figure. |
| Cruise Control ECU | Behind left side of dash. See Figure. |
| Differential Lock ECU | On right kick panel. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |

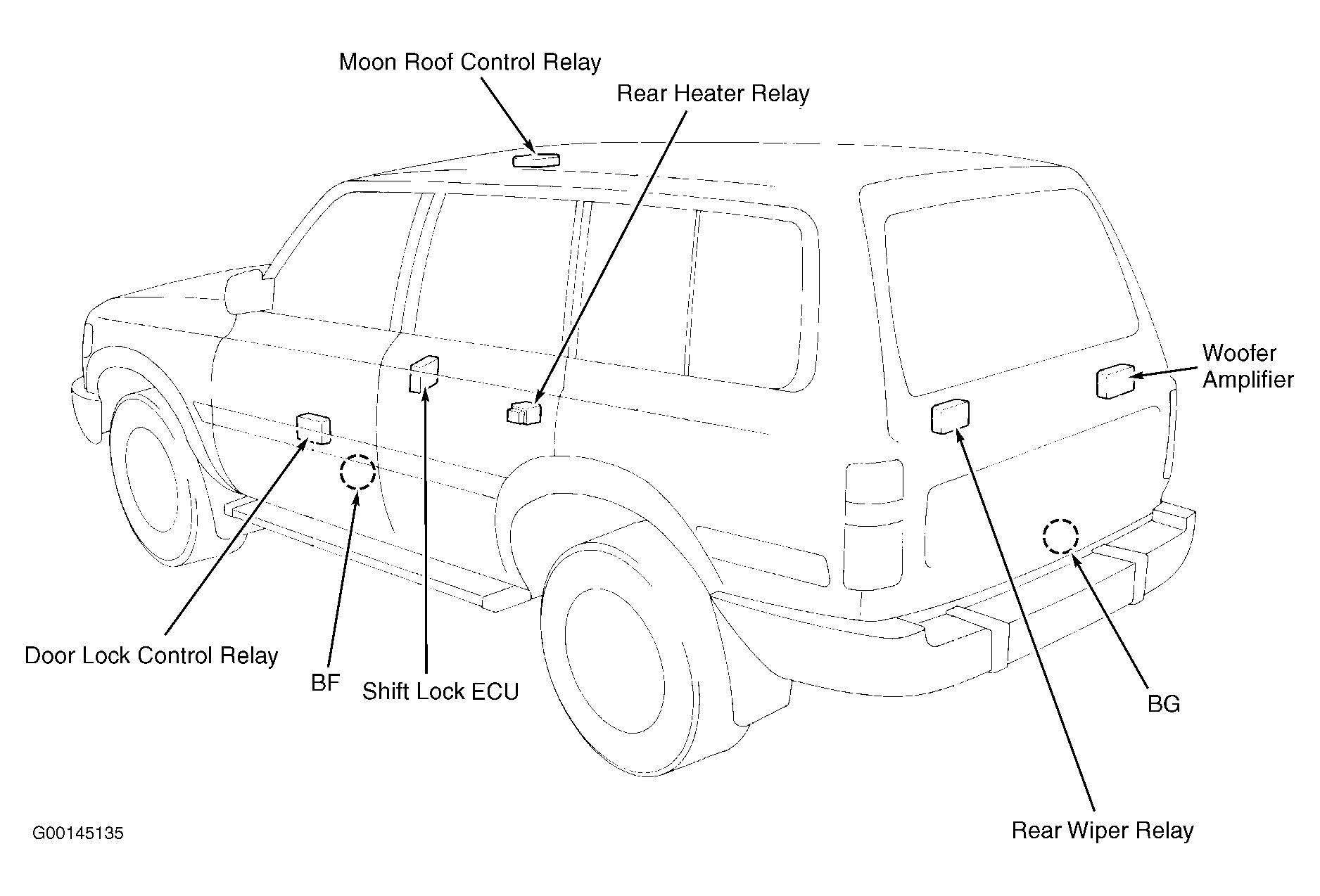

| Shift Lock ECU | Below rear of center console. See Figure. |
