Anti-Lock Brake System: Description
CAUTION:
See ANTI-LOCK BRAKE SAFETY PRECAUTIONS
article in GENERAL INFORMATION.

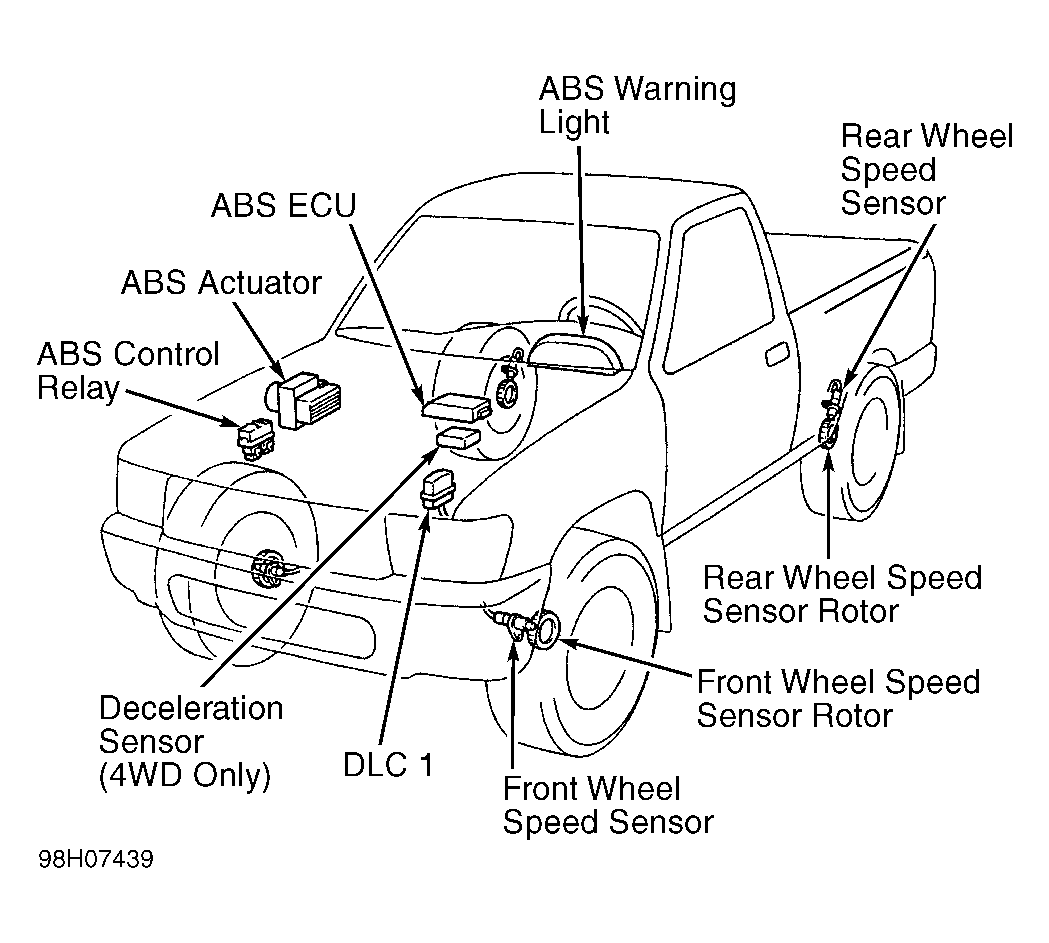

Anti-Lock Brake System (ABS) consists of ABS warning light, deceleration sensor (4WD), ABS actuator, ABS Electronic Control Unit (ABS ECU), ABS control relay and 4 wheel speed sensors. See Fig 1.
NOTE:
For additional brake system information, see appropriate BRAKE SYSTEM article.
