Ignition Coil Resistance: Non-Turbo

  1. Remove ignition coil. See REMOVE/INSTALL/OVERHAUL article.
  2. Using ohmmeter, check ignition coil primary resistance between positive (+) and negative (-) electrical terminals on ignition coil. See Fig 1. Replace ignition coil if ignition coil primary resistance is not within specification. See IGNITION COIL RESISTANCE  table.
  3. Using ohmmeter, check ignition coil secondary resistance between electrical terminals on ignition coil. See Fig 2. Replace ignition coil if ignition coil secondary resistance is not within specification. See IGNITION COIL RESISTANCE  table. Reinstall ignition coil.

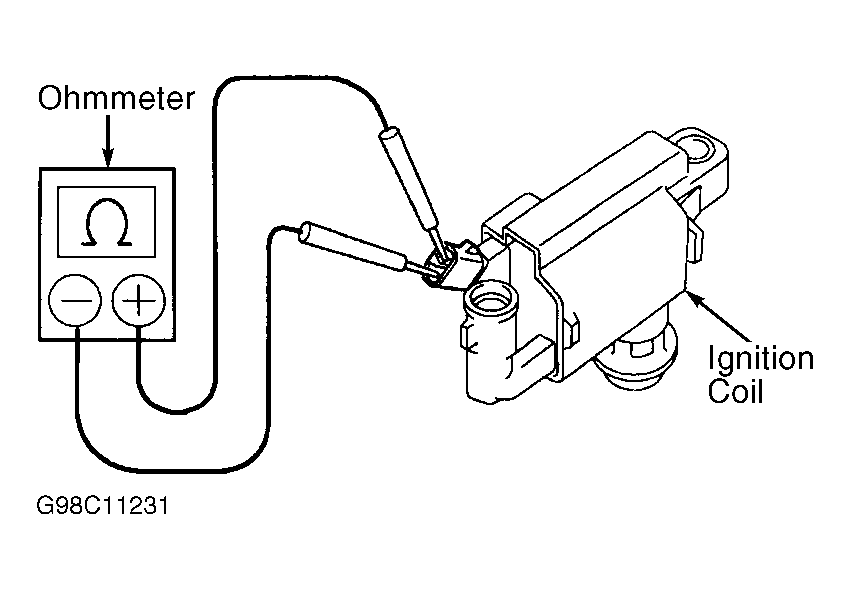

Fig 1: Checking Ignition Coil Primary Resistance (Non-Turbo)
G98C11231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

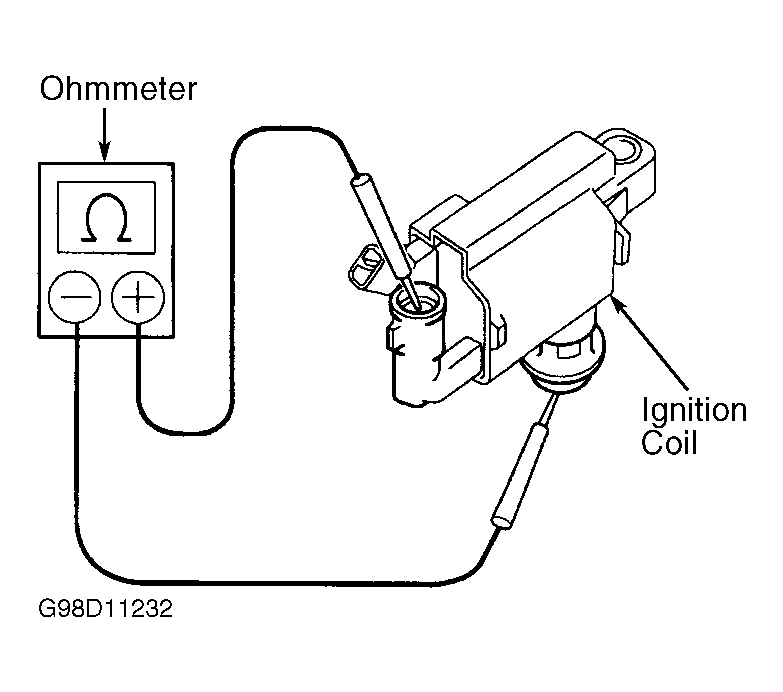

Fig 2: Checking Ignition Coil Secondary Resistance (Non-Turbo)
G98D11232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
