Front Interior Light

  1. Front interior light is located on the headliner. See Figure. Remove front interior light and disconnect electrical connector.
  2. Using ohmmeter, check that continuity exists between terminals No. 1 and 3 with switch on front interior light in ON position. See Fig 1. Check that continuity exists between terminals No. 2 and 3 with switch on front interior light in DOOR position. See Fig 1. Replace switch for front interior light if continuity is not as specified.

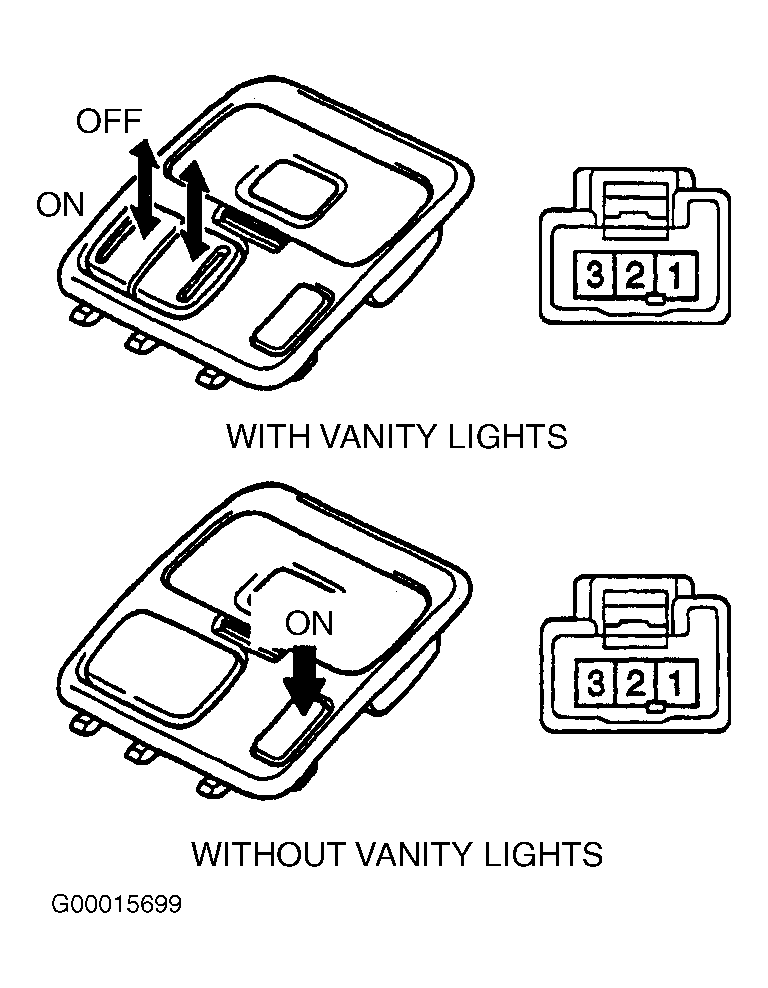

    Fig 1: Testing Front Interior Light
    G00015699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
