Instrument Panel: Components

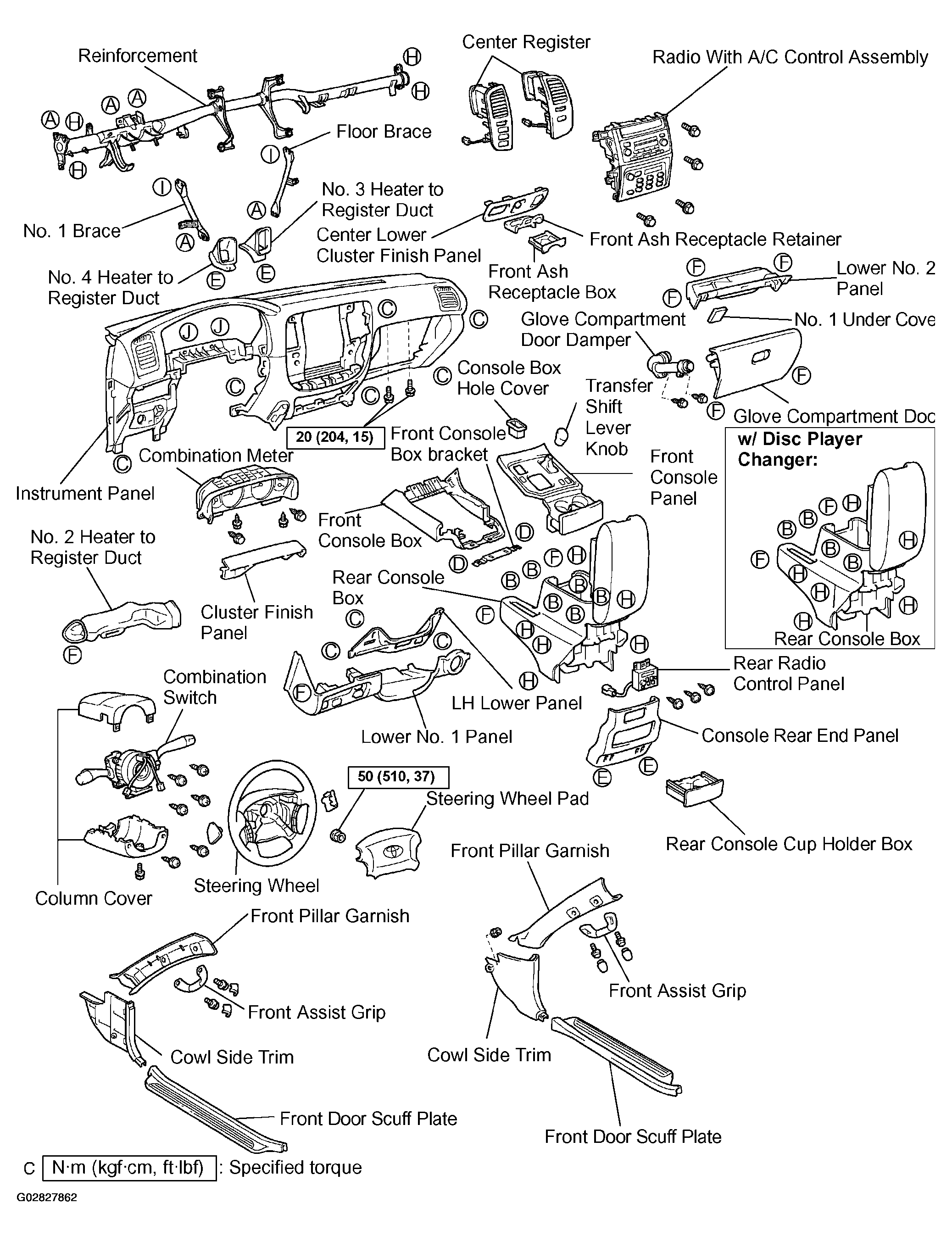

Fig 1: Exploded View Of Instrument Panel Assembly (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Instrument Panel Assembly (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:  Screw shapes and sizes are indicated in the table. See Fig 3. The codes ("A" to "I") correspond to those indicated in Fig 1 and Fig 2.

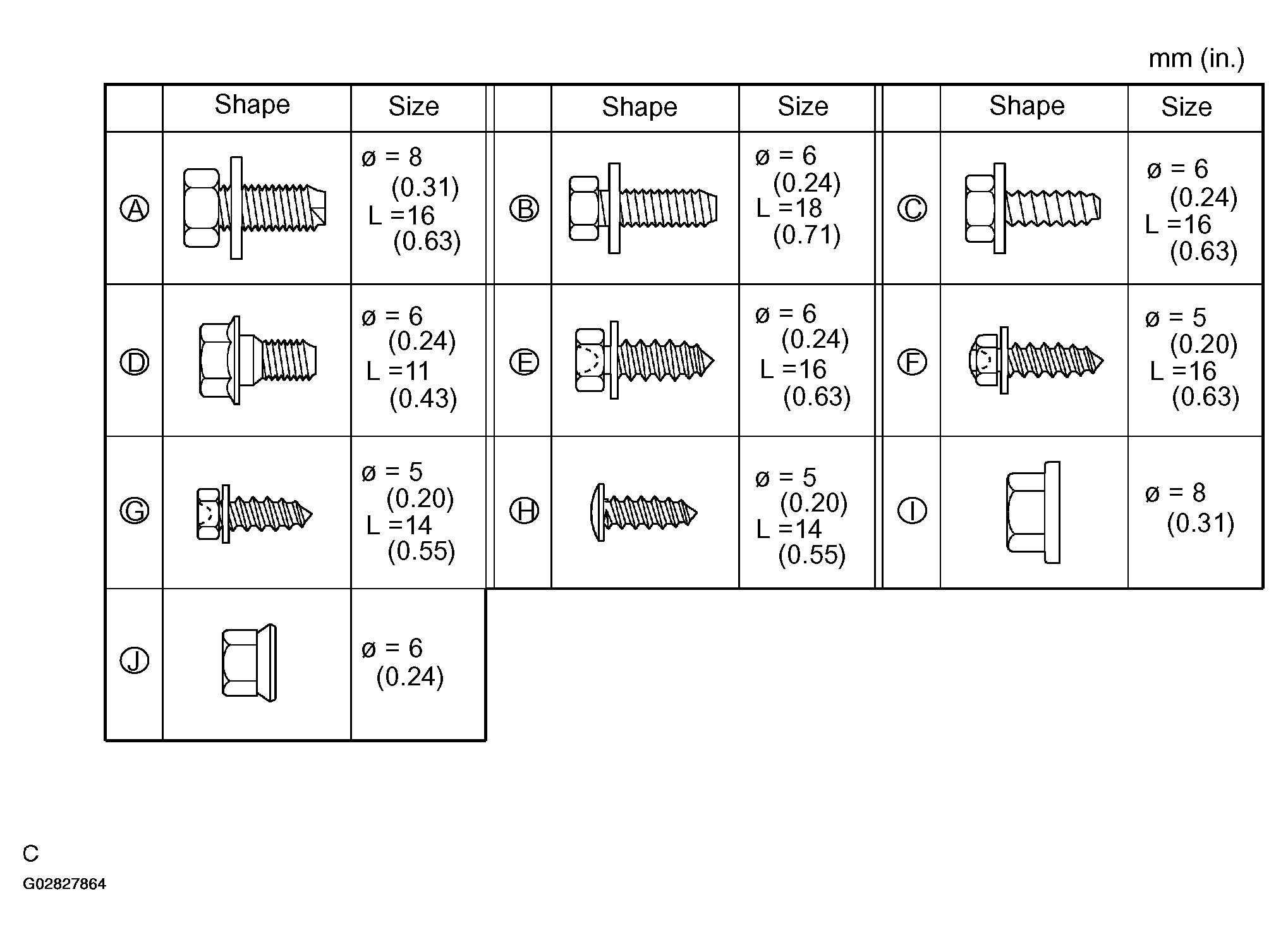

Fig 3: Identifying Instrument Panel Retaining Screw Shapes & Sizes

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
