Instrument Panel: Components

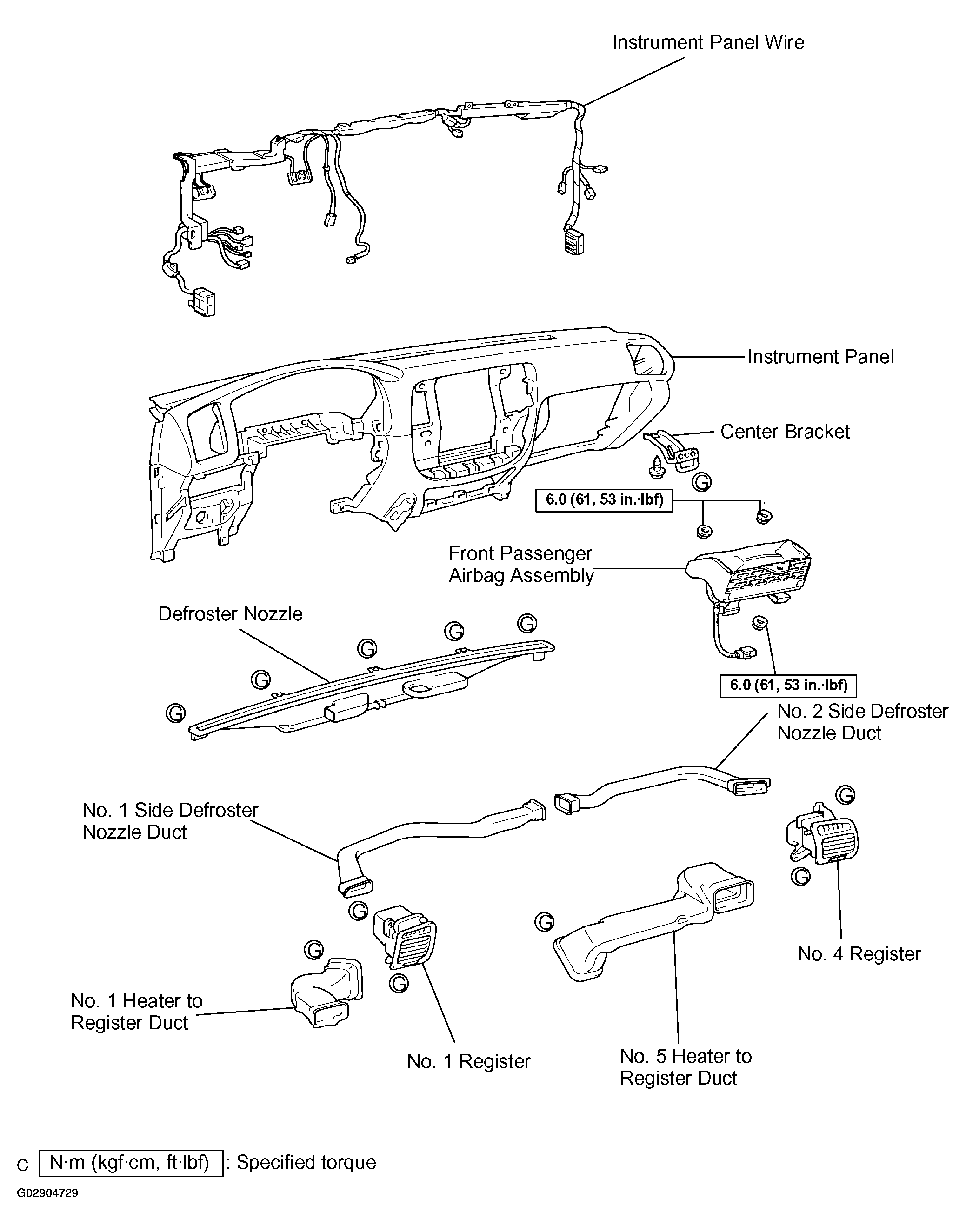

Fig 1: Exploded View Of Instrument Panel (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

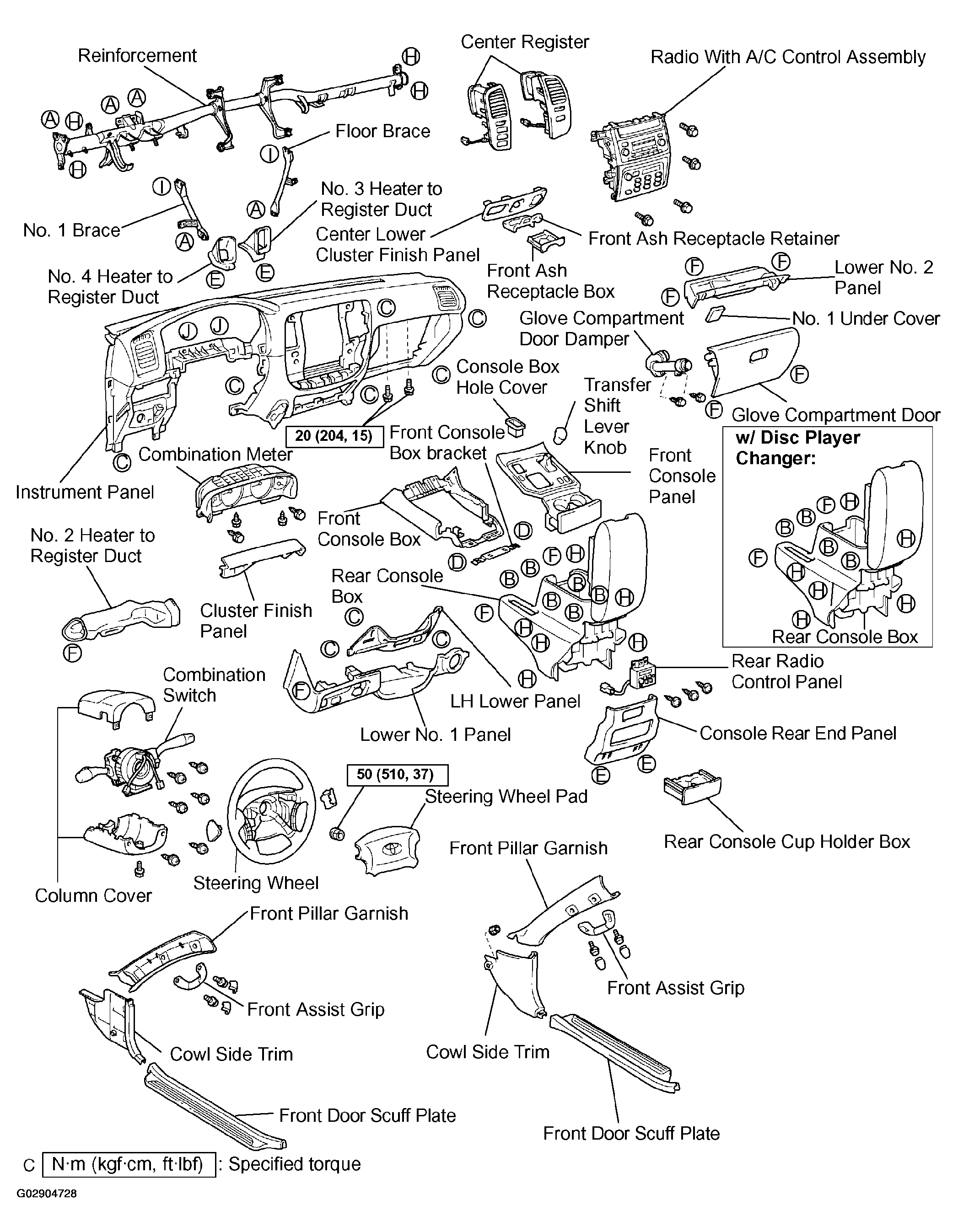

Fig 2: Exploded View Of Instrument Panel (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Screw shapes and sizes are indicated in the Fig 3 . The codes ("A" to "I") correspond to those indicated

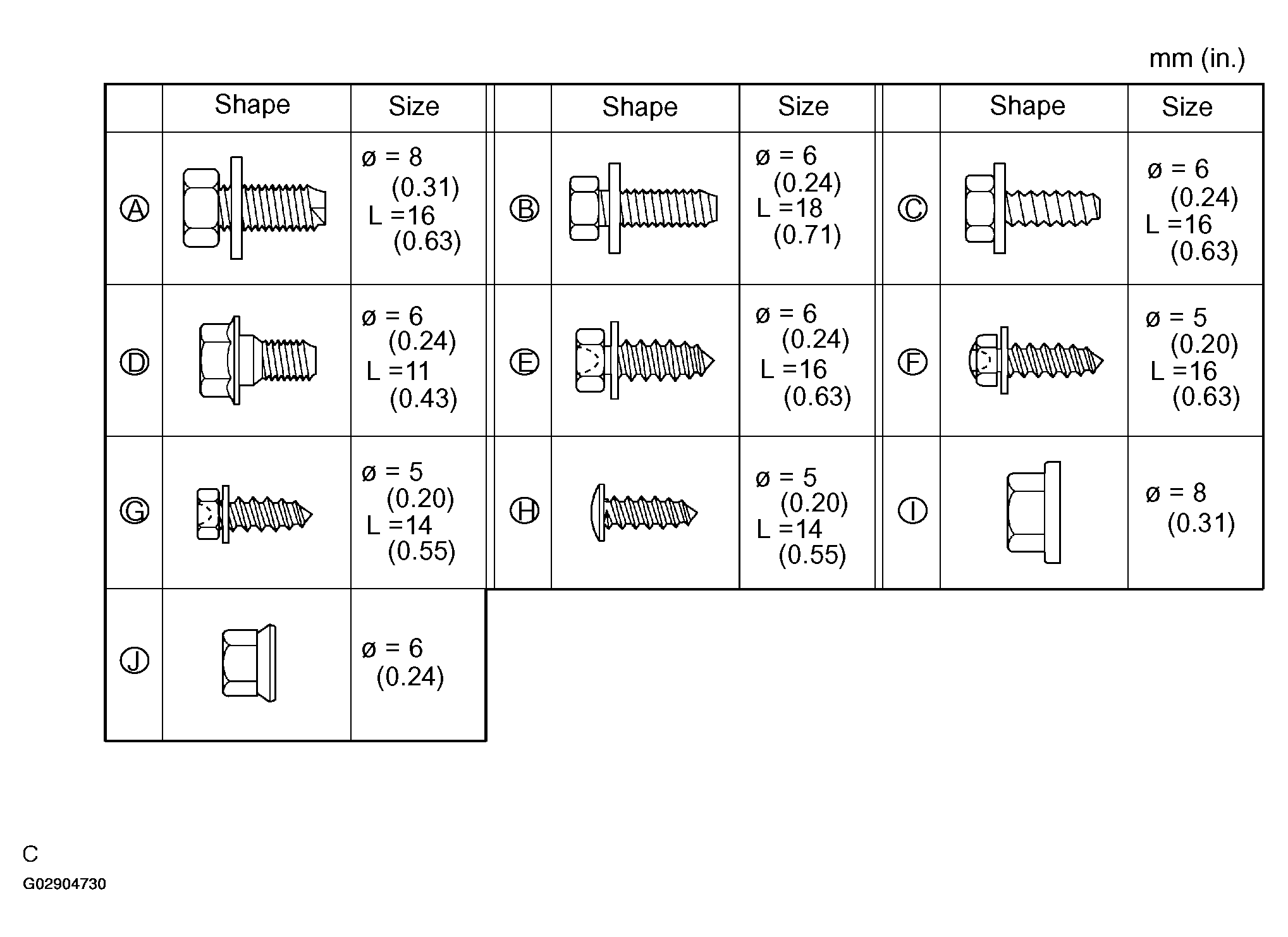

Fig 3: Identifying Different Screw Shapes & Sizes (Table)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
