Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

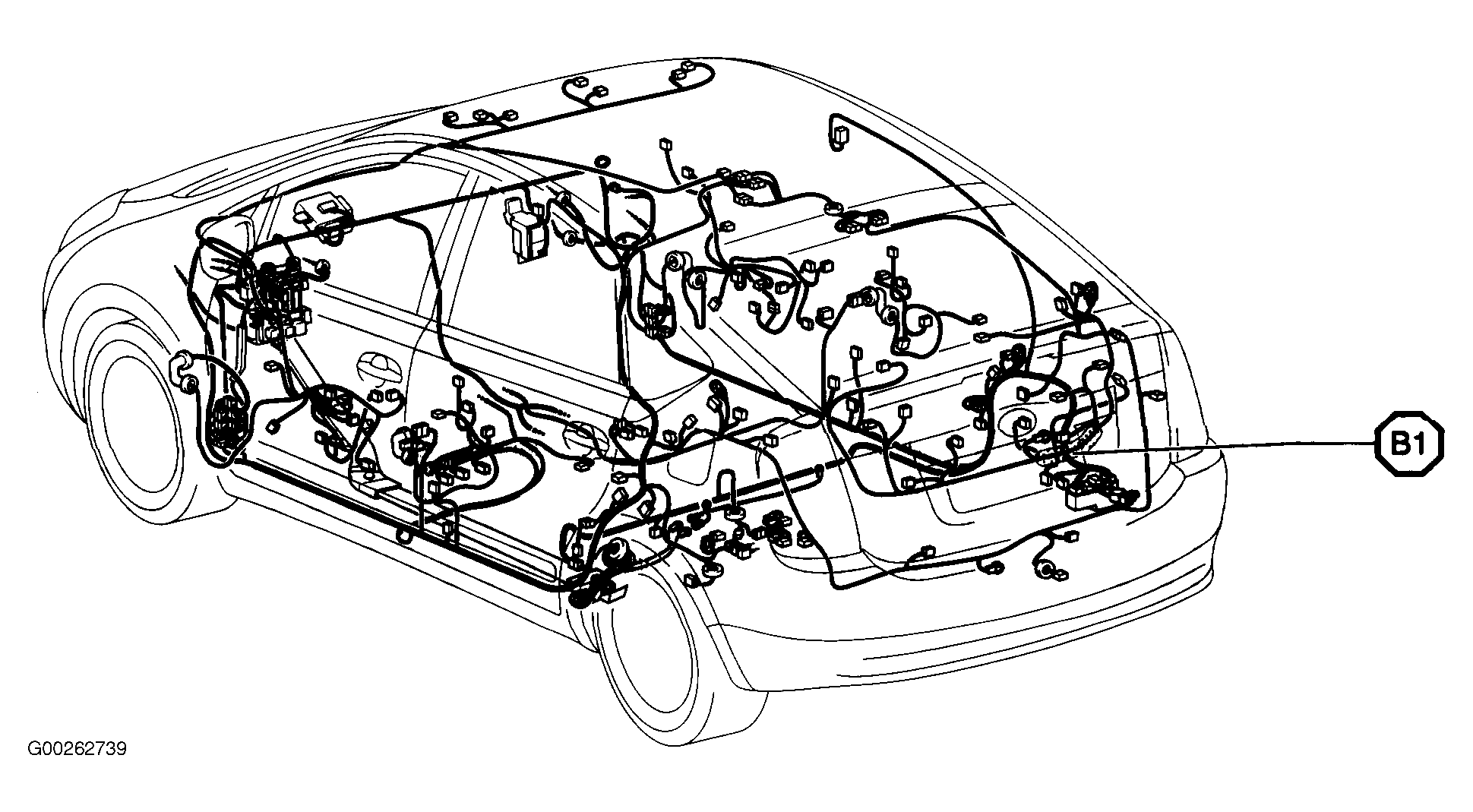

| B1 | Right rear of vehicle. See Figure. |

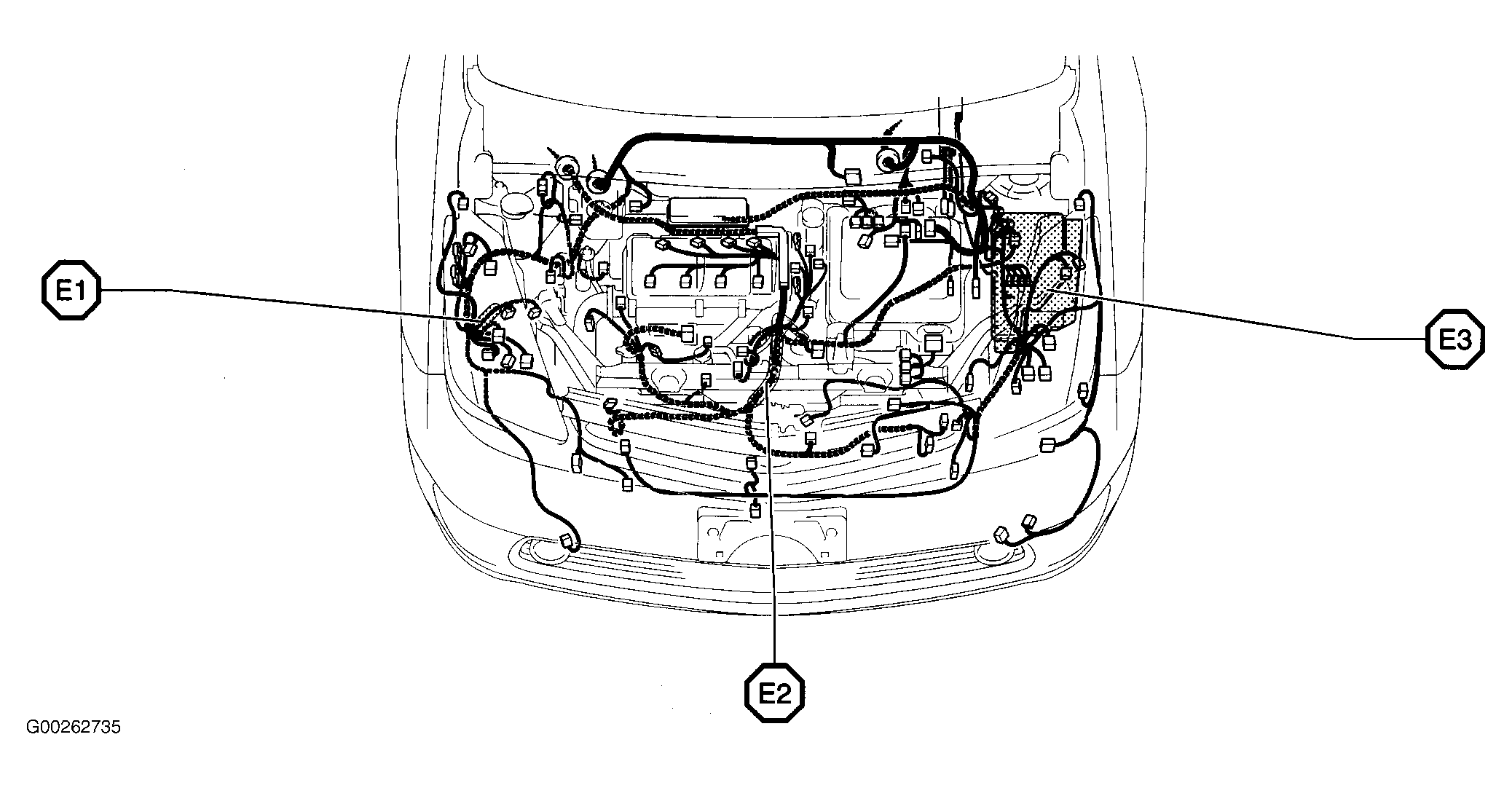

| E1 | Right side of engine compartment. See Figure. |
| E2 | Front center of engine compartment. See Figure. |
| E3 | Left side of engine compartment. See Figure. |

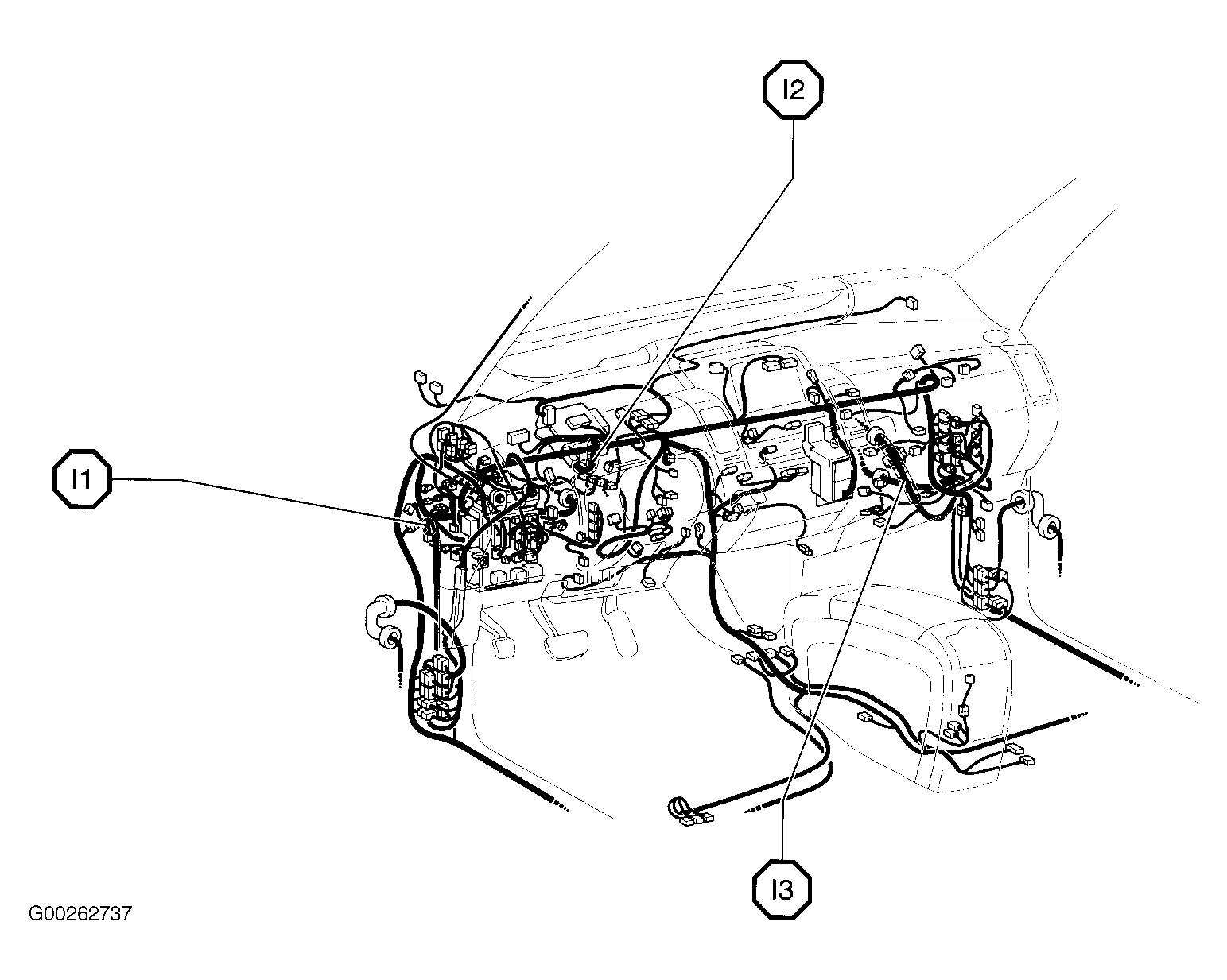

| I1 | In dash harness, behind left side of dash. See Figure. |
| I2 | In dash harness, behind left side of dash. See Figure. |
| I3 | In dash harness, right end of dash. See Figure. |
