Clock ASSY: Replacement

HINT:

• Installation is in the reverse order of removal.
• SEE :COMPONENTS

1. REMOVE INSTRUMENT PANEL REGISTER ASSY No. 1 (SEE  REPLACEMENT  )
2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (SEE  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
4. REMOVE INSTRUMENT PANEL REGISTER ASSY No. 3 (SEE  REPLACEMENT  )
5. REMOVE INSTRUMENT PANEL REGISTER ASSY No. 4 (SEE  REPLACEMENT  )
6. REMOVE MULTI-DISPLAY ASSY (SEE  REPLACEMENT  )
7. REMOVE CLOCK ASSY
   1. Disengage the 2 claws and then remove the clock assy.

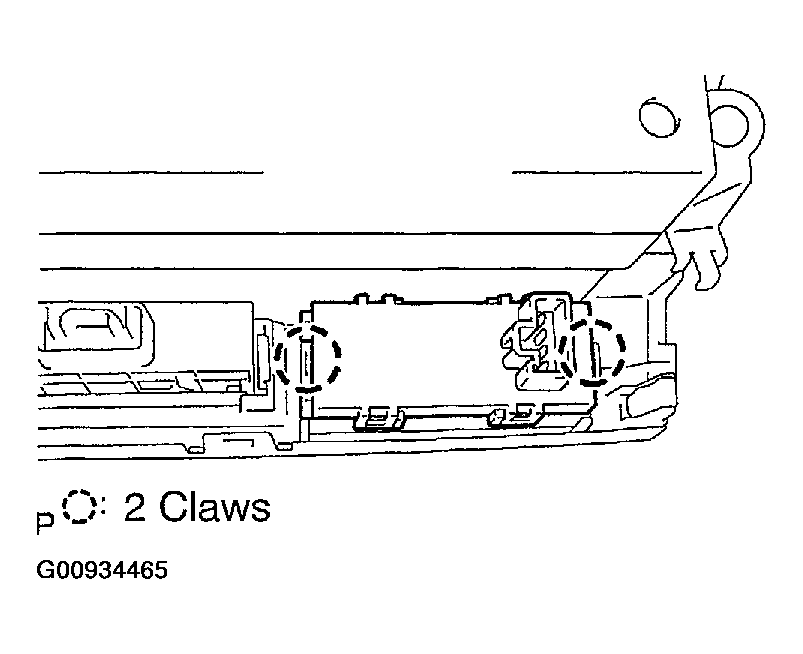

   Fig 1: Removing Clock Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
