Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

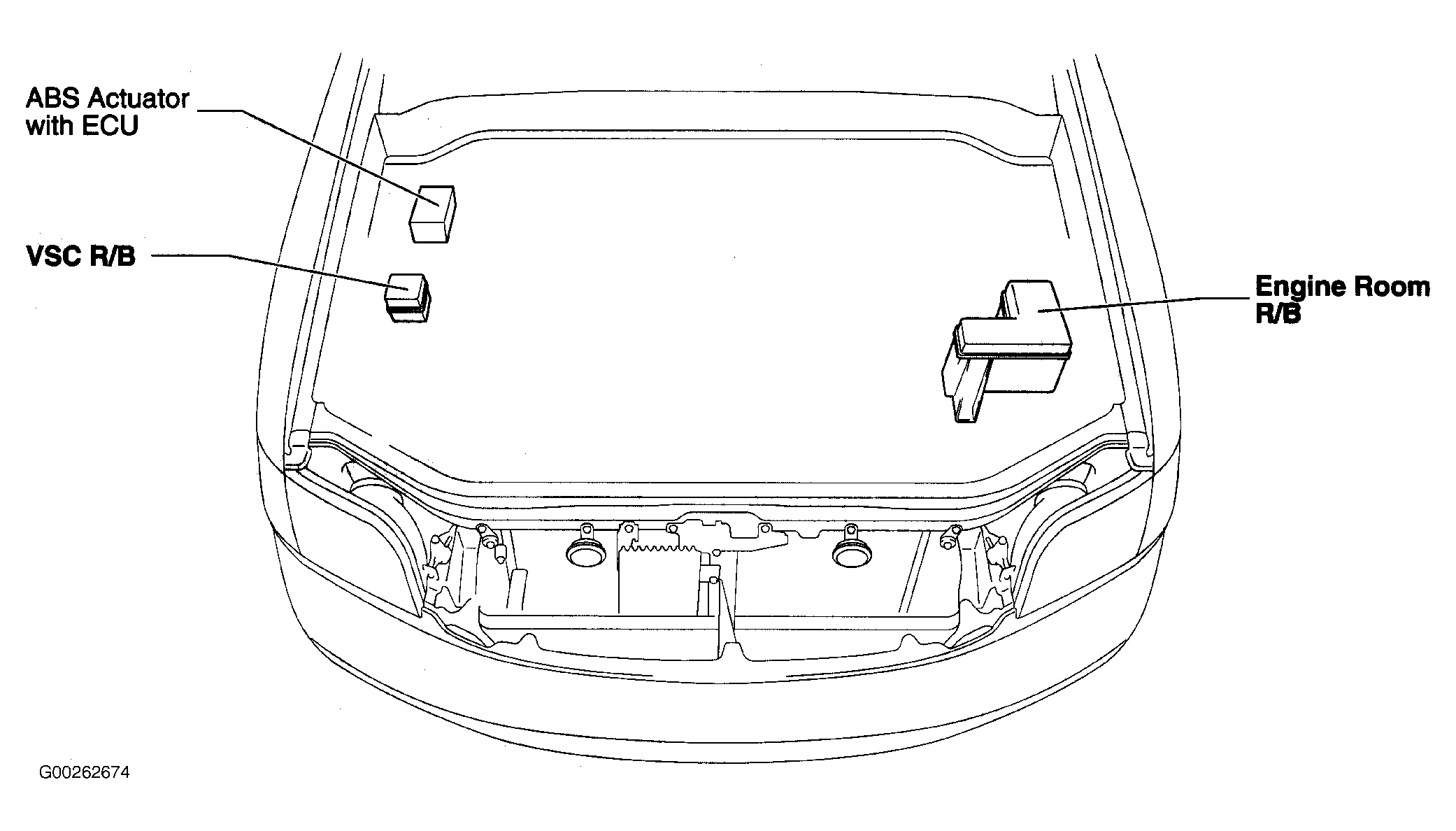

| ABS Actuator With ECU (Access & Standard Cab) | In right rear corner of engine compartment. See Figure. |

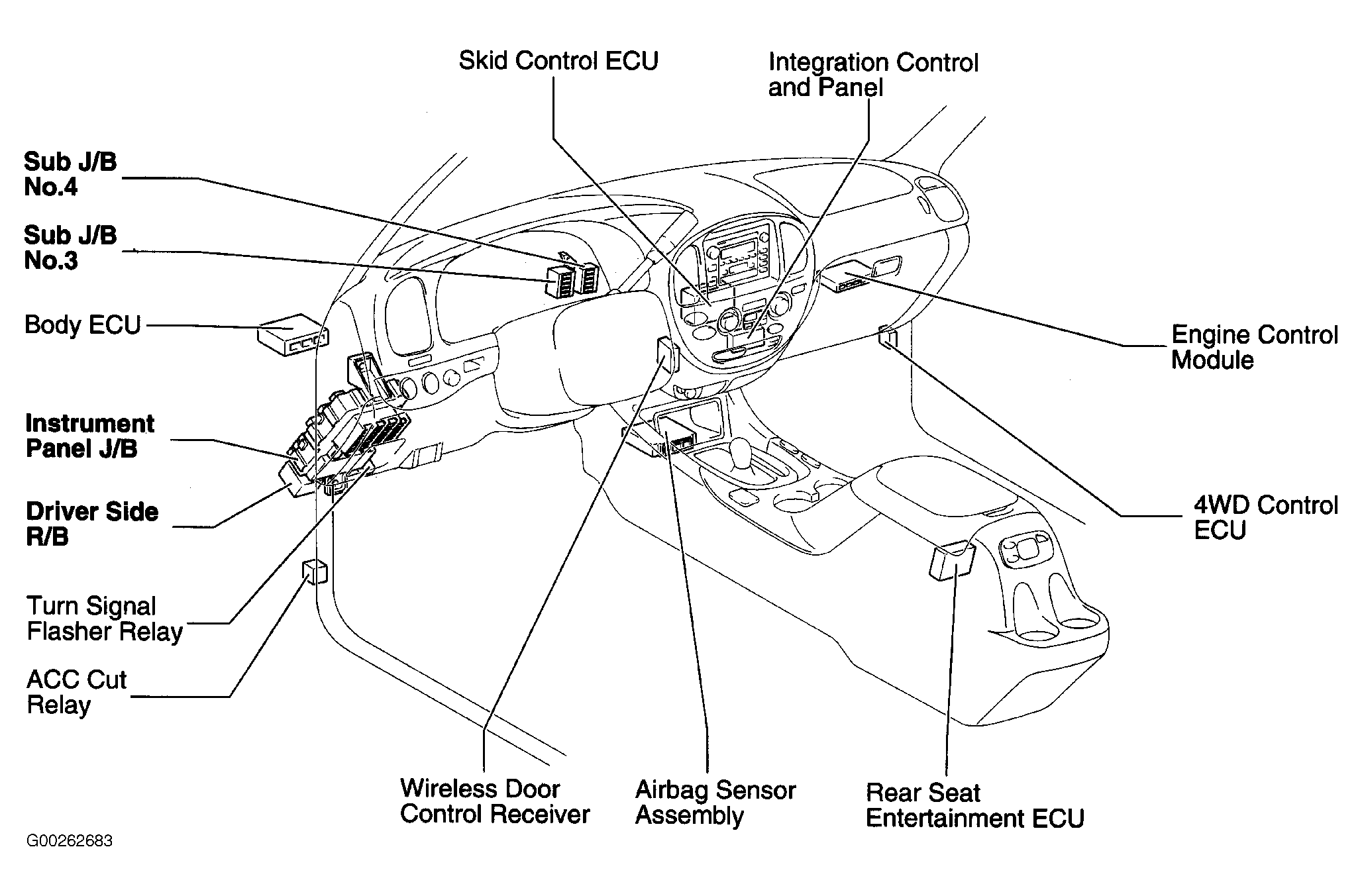

| Body ECU (Double Cab) | Behind left side of dash. See Figure. |

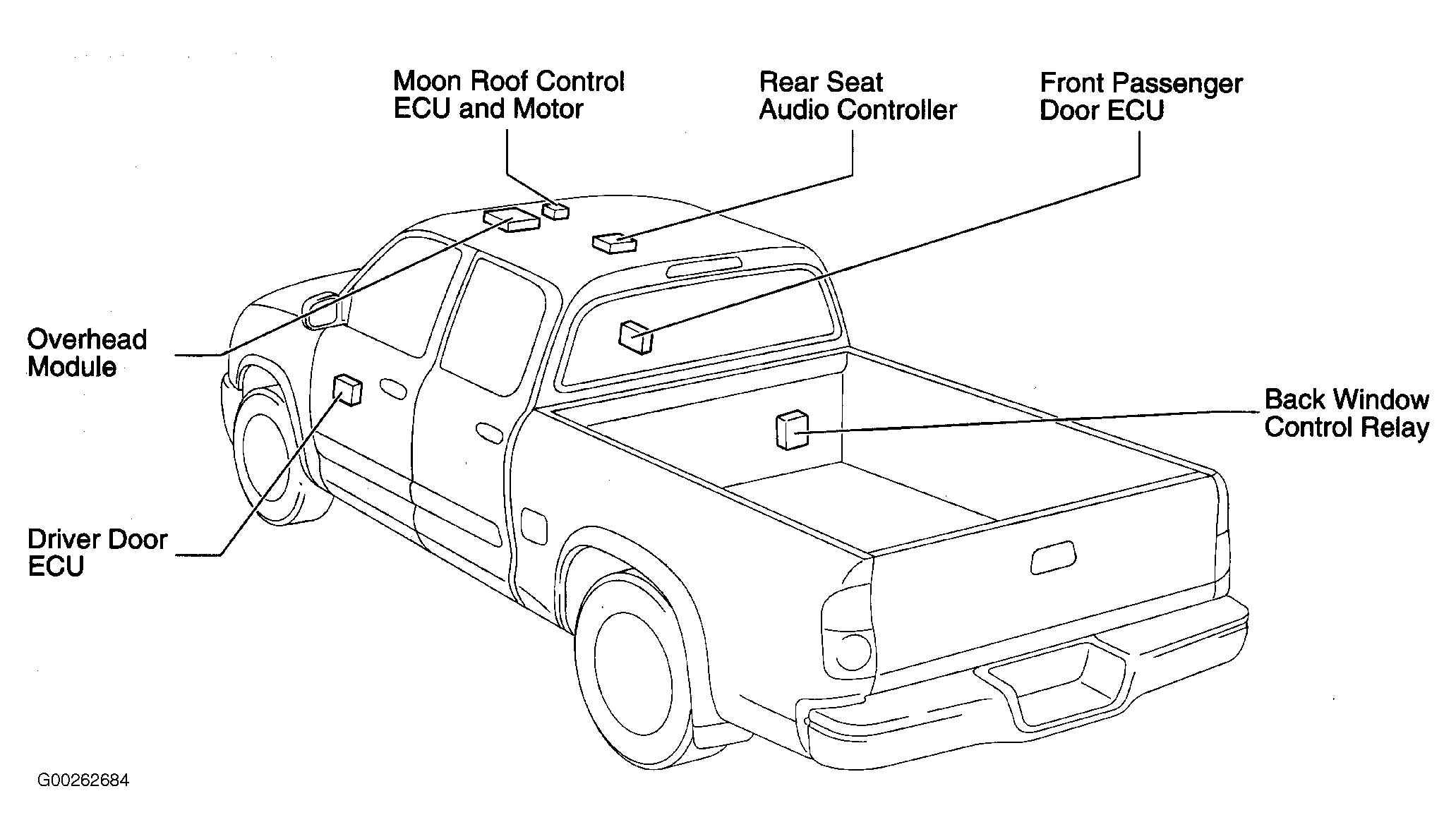

| Driver Door ECU (Double Cab) | In driver's door. See Figure. |

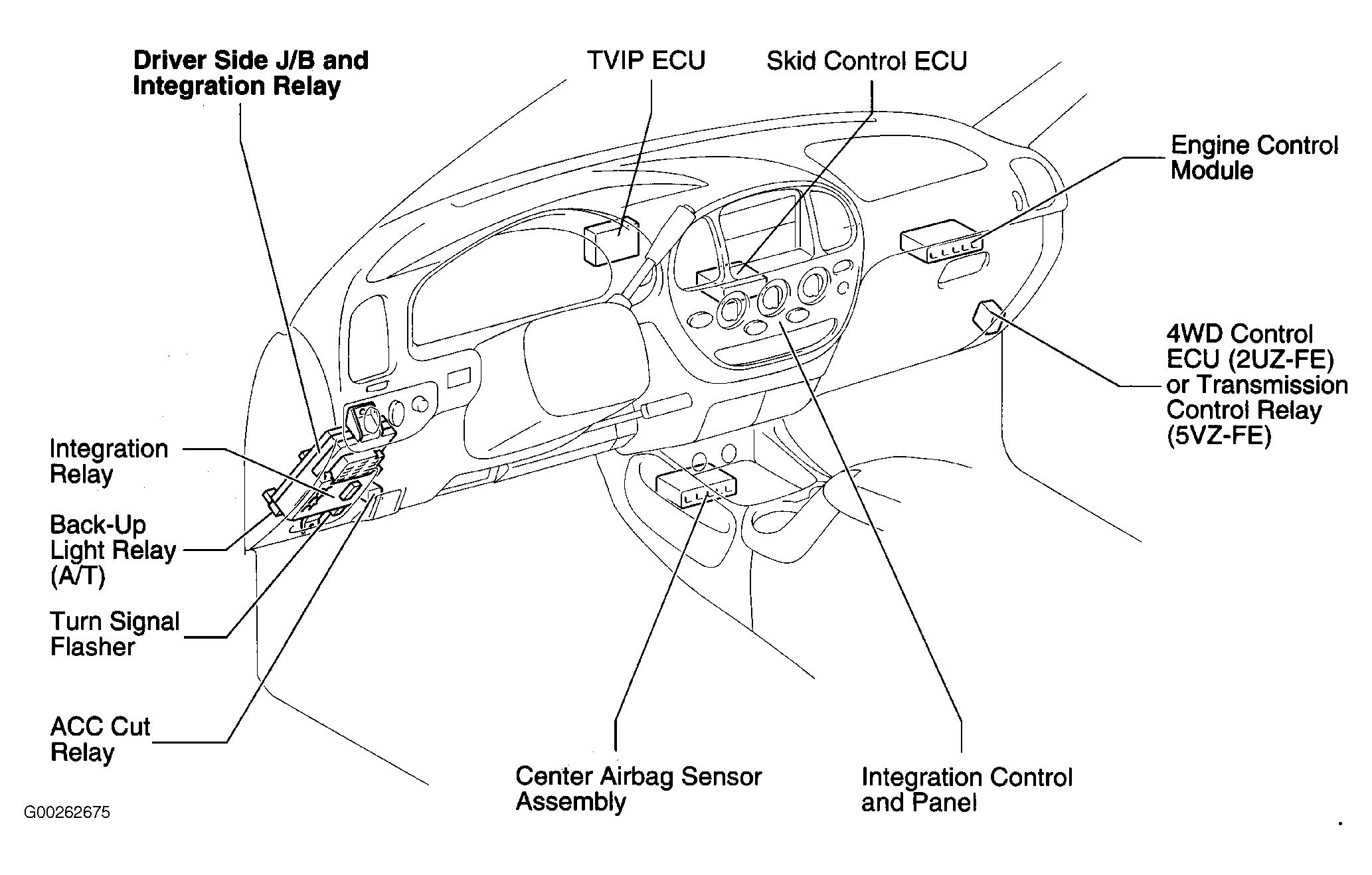

| Engine Control Module (Access & Standard Cab) | Behind right side of dash. See Figure. |
| Engine Control Module (Double Cab) | Behind right side of dash. See Figure. |
| Front Passenger Door ECU (Double Cab) | In front passenger's door. See Figure. |
| Moon Roof Control ECU & Motor (Double Cab) | At center front of roof. See Figure. |
| Overhead Module (Double Cab) | At center front of roof. See Figure. |
| Rear Seat Audio Controller (Double Cab) | At center of roof. See Figure. |
| Rear Seat Entertainment ECU (Double Cab) | Under rear of center console. See Figure. |
| Skid Control ECU (Access & Standard Cab) | Behind center of dash. See Figure. |
| Skid Control ECU (Double Cab) | Behind center of dash. See Figure. |

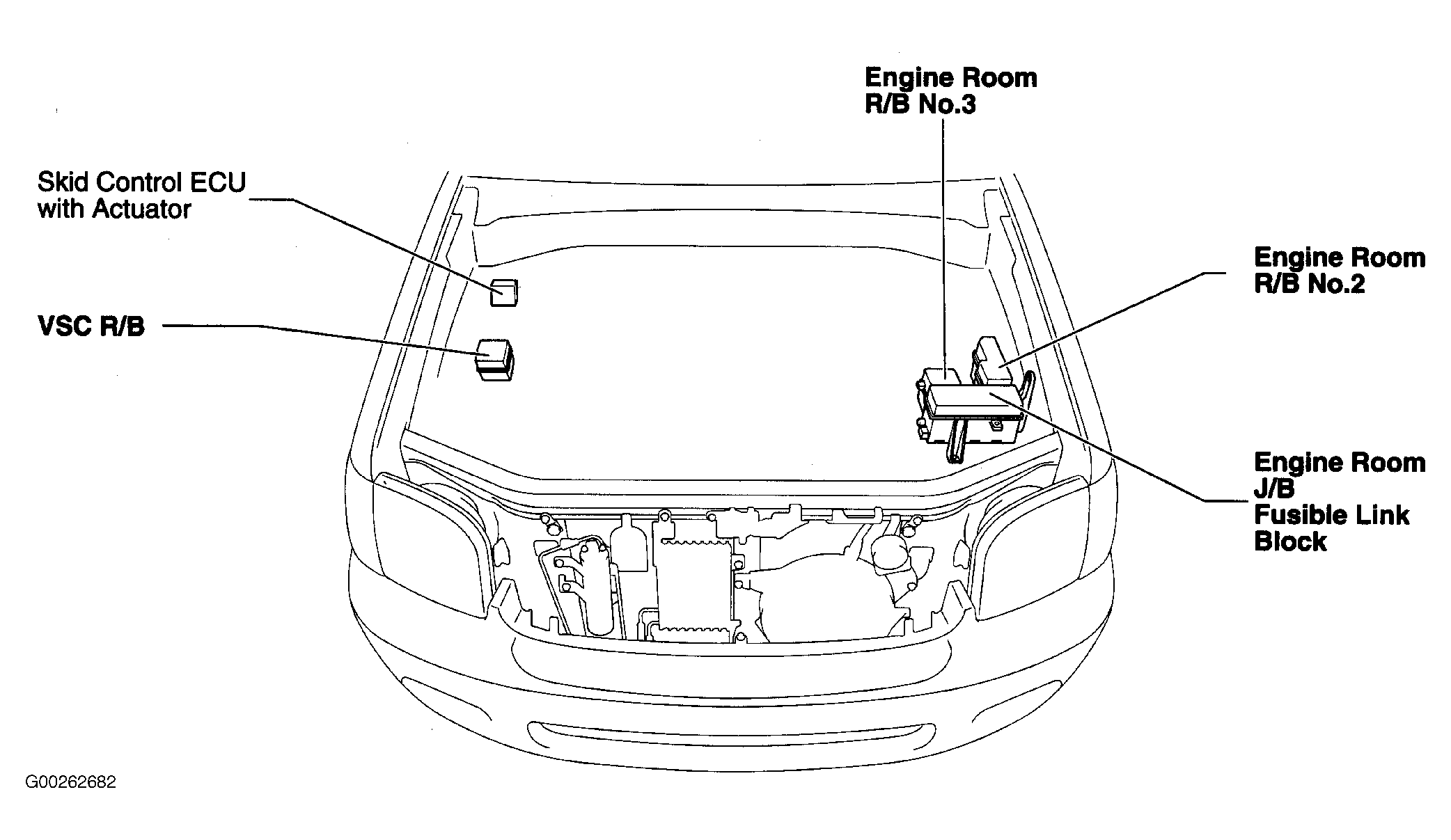

| Skid Control ECU With Actuator (Double Cab) | At right rear of engine compartment. See Figure. |
| TVIP ECU (Access & Standard Cab) | Behind center of dash. See Figure. |
| Wireless Door Control Receiver (Double Cab) | Behind center of dash. See Figure. |
| 4WD Control ECU (Access & Standard Cab) | Behind lower right side of dash. See Figure. |
| 4WD Control ECU (Double Cab) | Behind right kick panel. See Figure. |
