Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| ABS R/B | On left front corner of engine compartment. See Figure. |

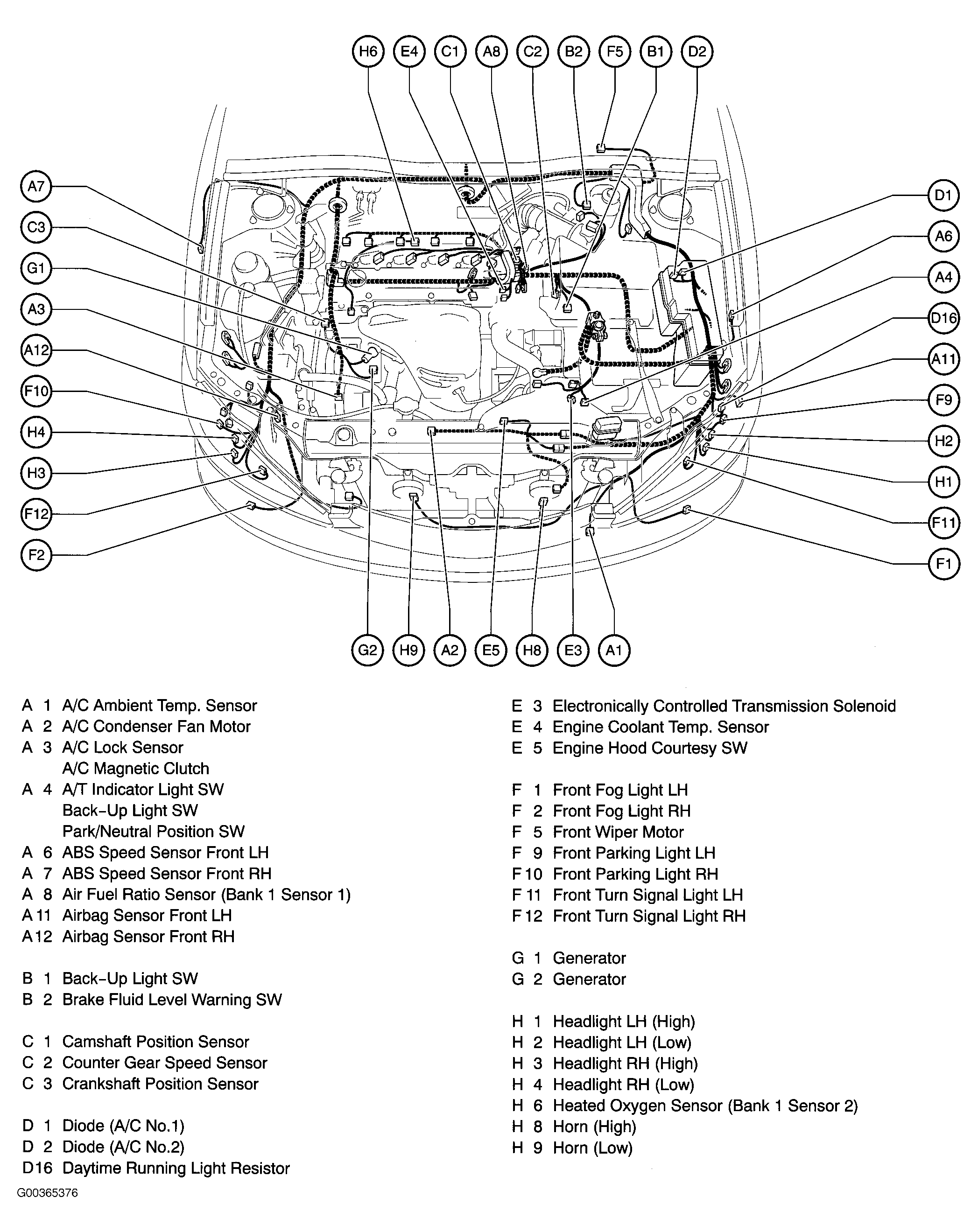

| Diode (A/C No. 1) | Left side of engine compartment. See Figure. |
| Diode (A/C No. 2) | Left side of engine compartment. See Figure. |
| Driver Side J/B | Behind left side of dash. See Figure. |
| Engine Room J/B | On left side of engine compartment. See Figure. |
| Engine Room R/B | On left side of engine compartment. See Figure. |
| Passenger Side J/B | Behind right center of dash. See Figure. |
