Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

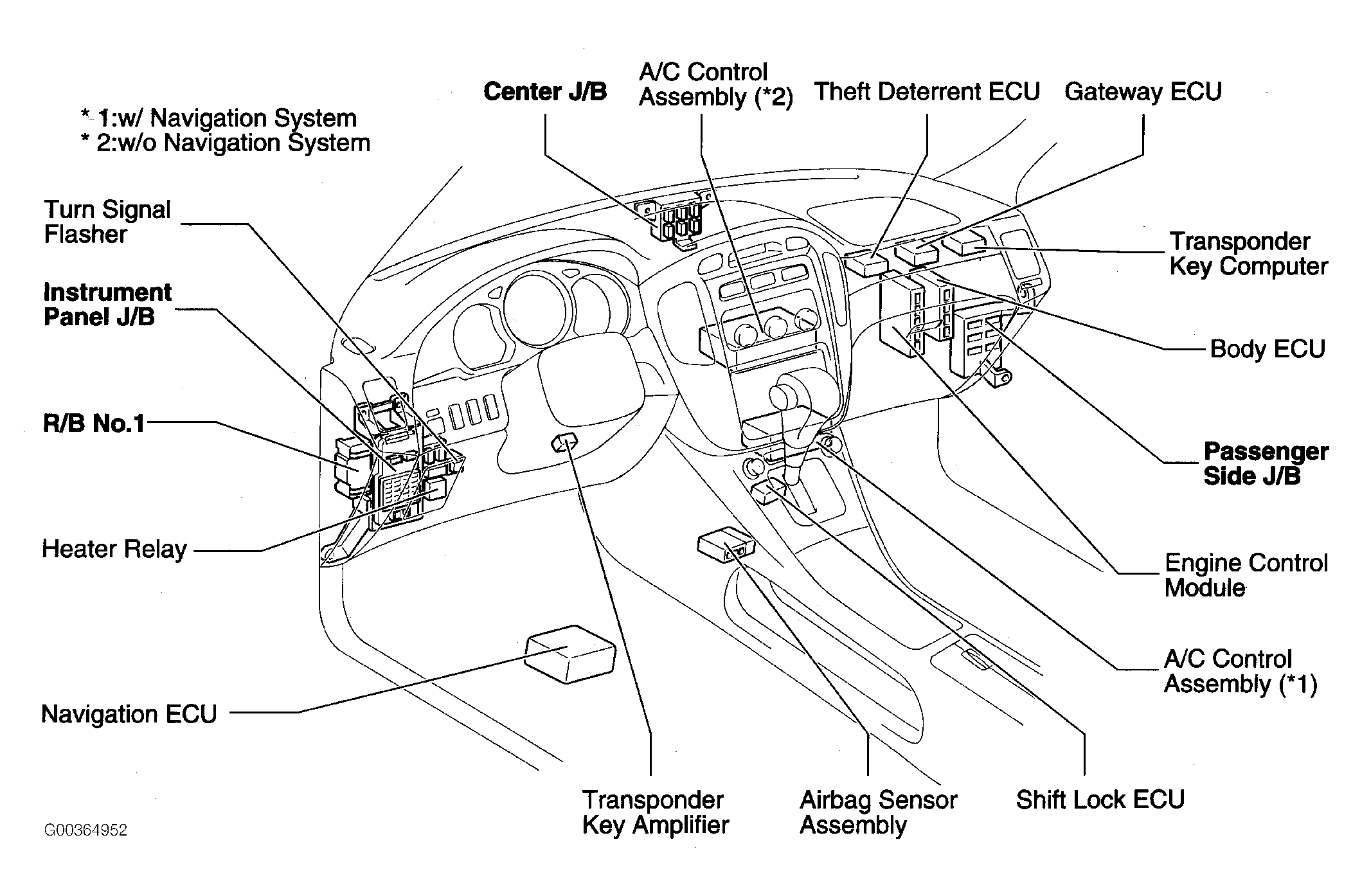

| A/C Control Assembly | Behind center of dash. See Figure. |
| Airbag Sensor Assembly | Below front of center console. See Figure. |
| Body ECU | Behind right side of dash. See Figure. |
| Cruise Control ECU | Behind left side of dash. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Gateway ECU | Behind right side of dash. See Figure. |
| Navigation ECU | Below driver's seat. See Figure. |

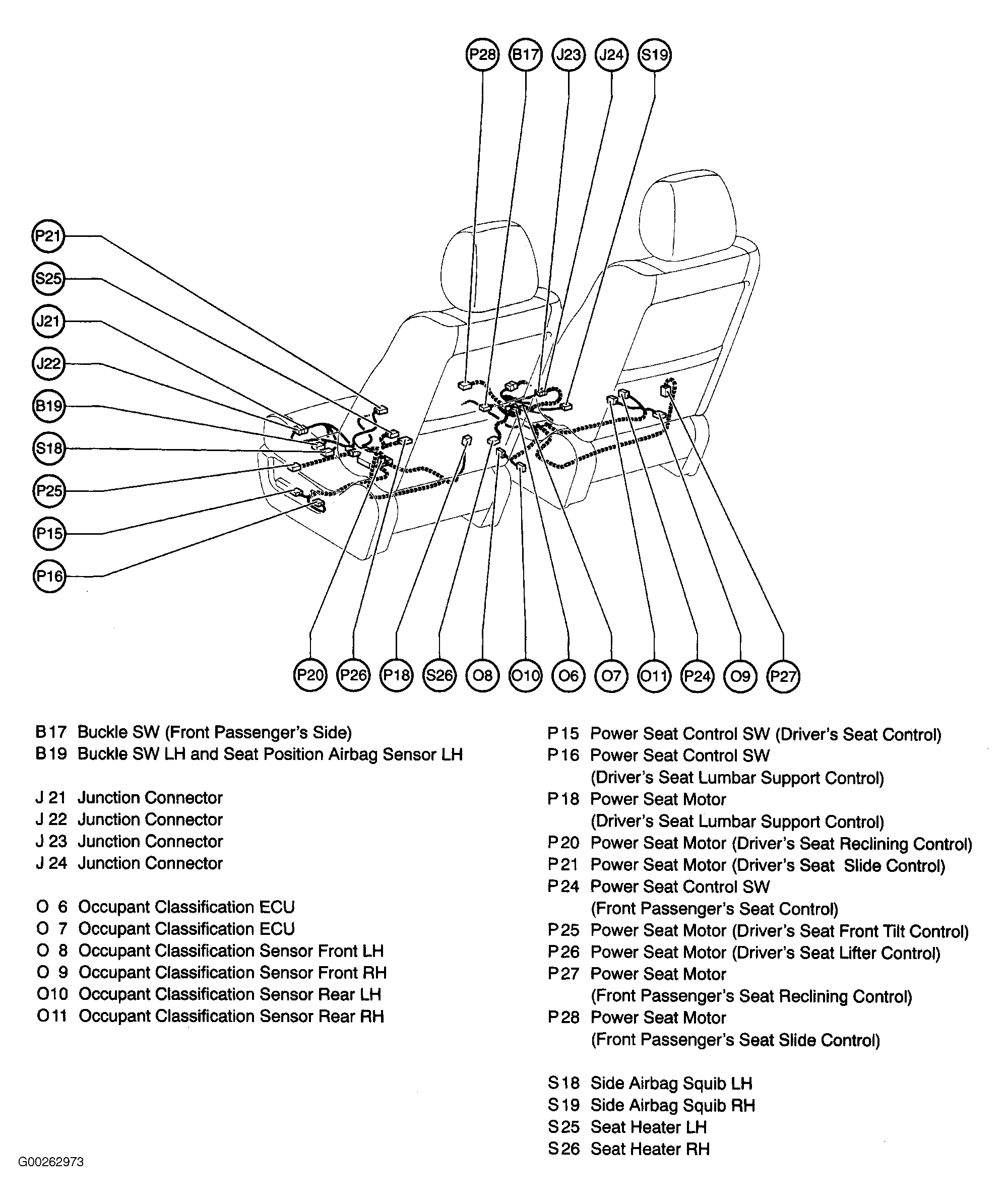

| Occupant Classification ECU | Below right front seat. See Figure. |

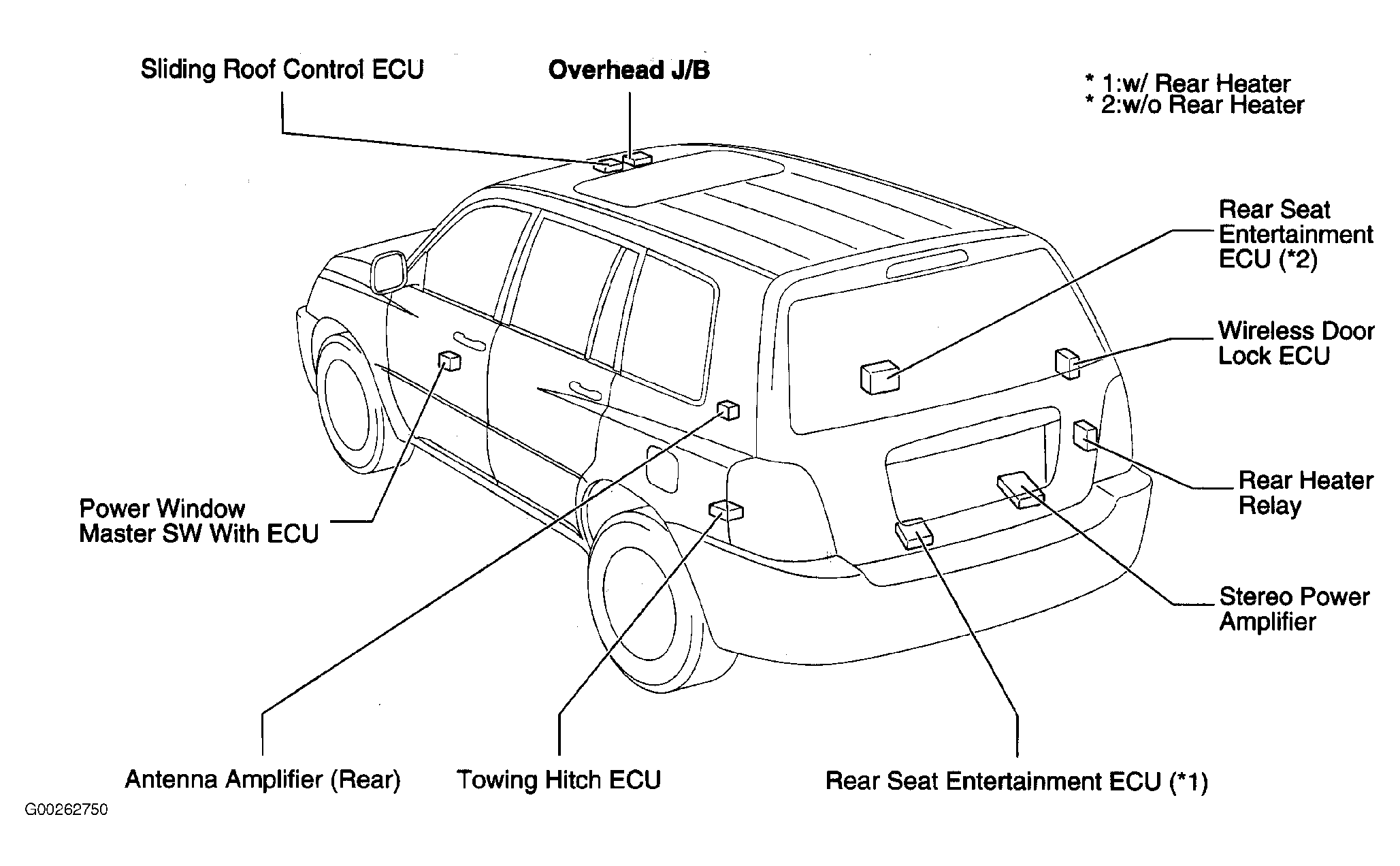

| Power Window Master Switch With ECU | In driver's door. See Figure. |
| Rear Seat Entertainment ECU | Rear of vehicle. See Figure. |
| Shift Lock ECU | At base of shifter lever. See Figure. |

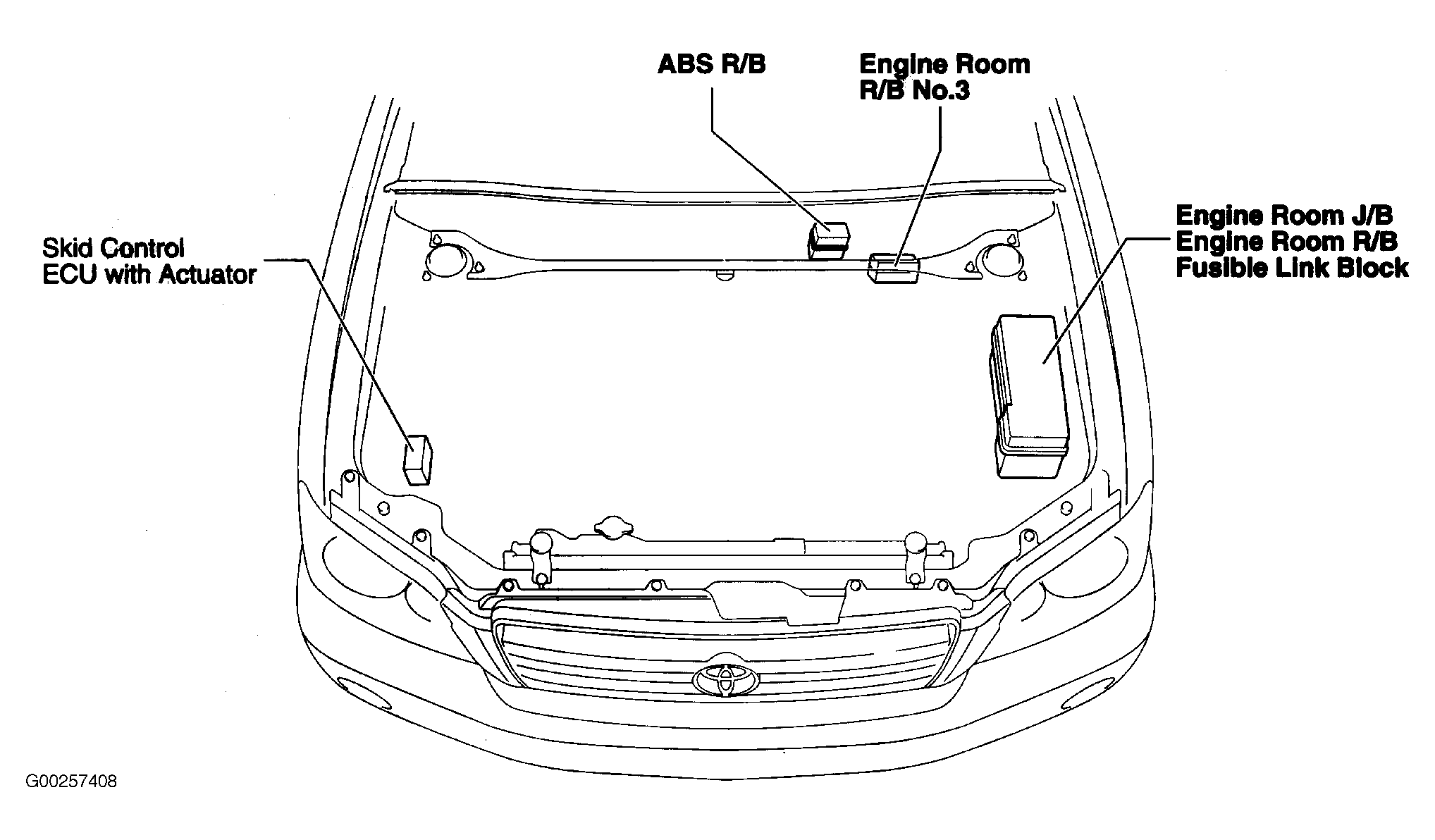

| Skid Control ECU With Actuator | Right front of engine compartment. See Figure. |
| Sliding Roof Control ECU | On front of sliding roof. See Figure. |
| Theft Deterrent ECU | Behind right side of dash. See Figure. |
| Towing Hitch ECU | Left rear of vehicle. See Figure. |
| Transponder Key Computer | Behind right side of dash. See Figure. |
| Wireless Door Lock ECU | On right side of luggage compartment. See Figure. |
