Instrument Panel: Components

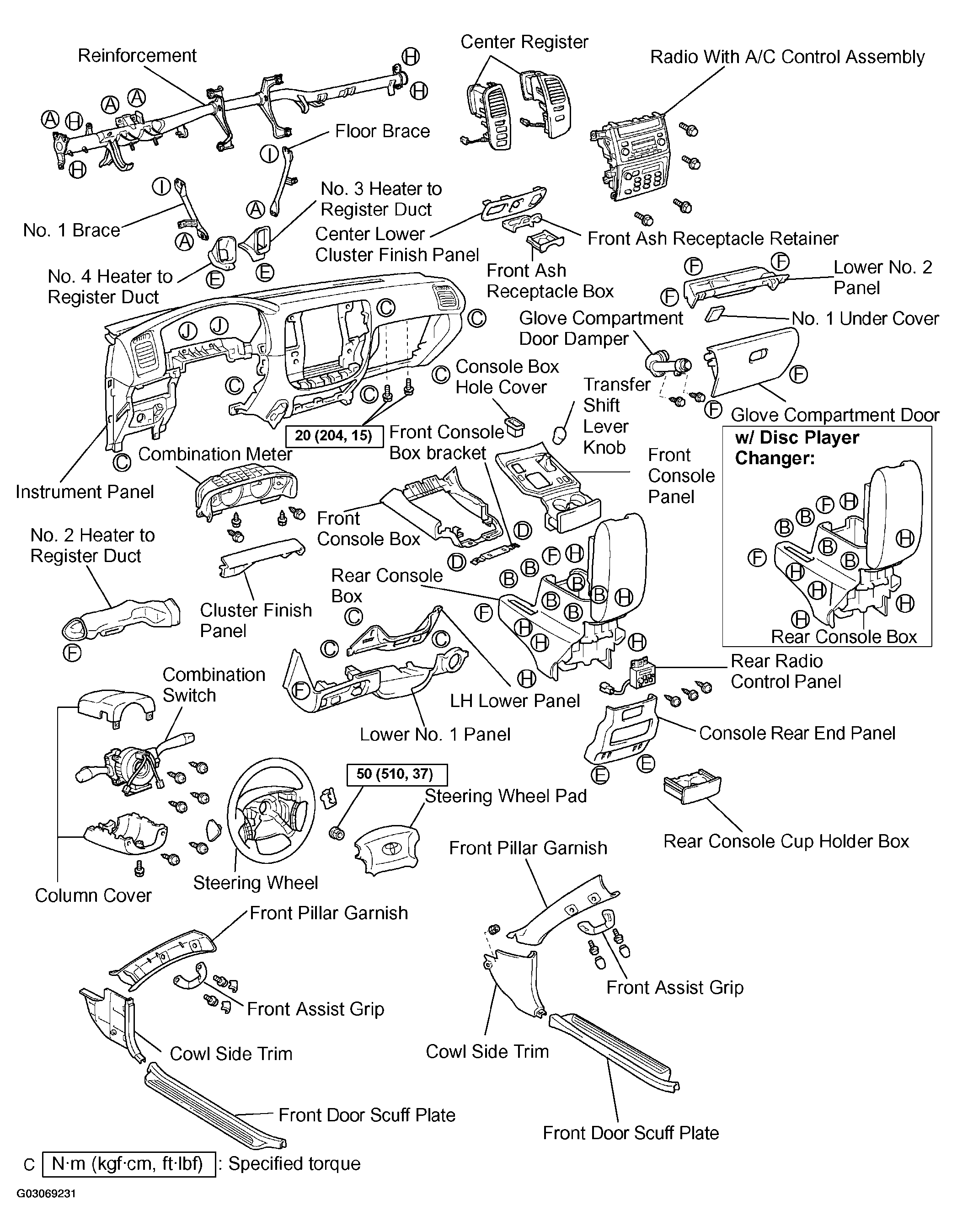

Fig 1: Instrument Panel Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

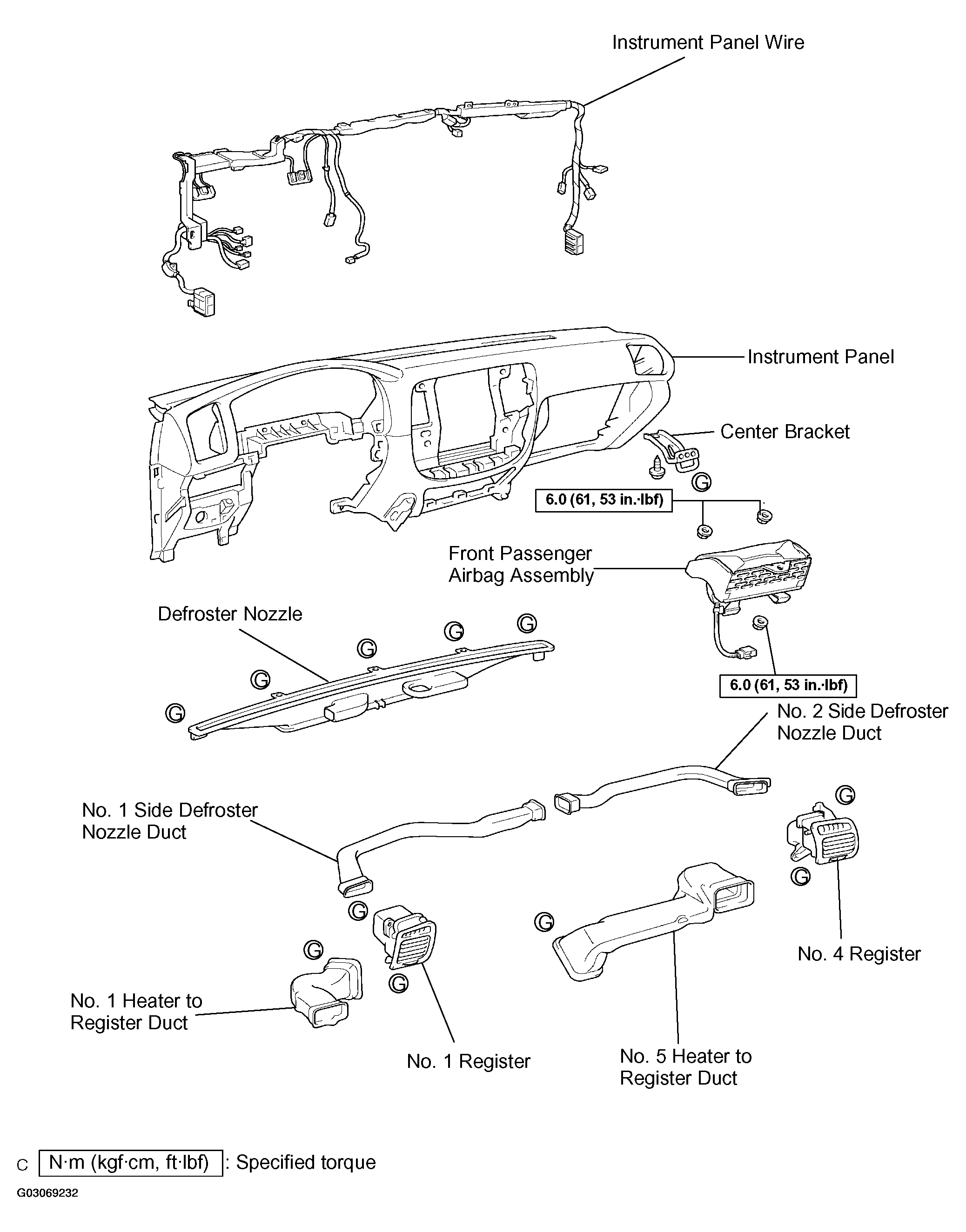

Fig 2: Instrument Panel Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Screw shapes and sizes are indicated in Fig 3 . The codes ("A" to "I") correspond to those indicated in the previous illustrations.

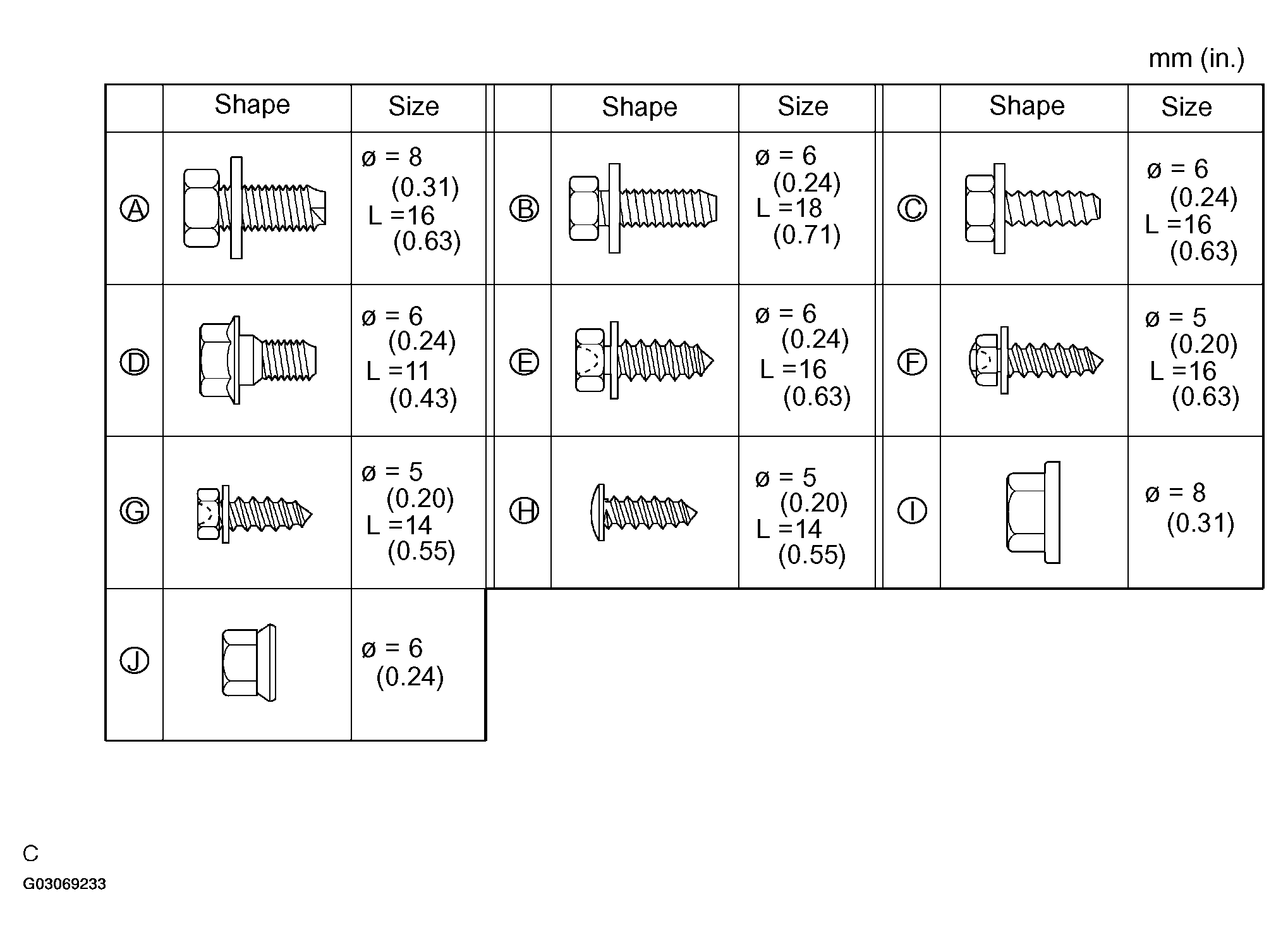

Fig 3: Identifying Screw Shapes & Sizes Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
