Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

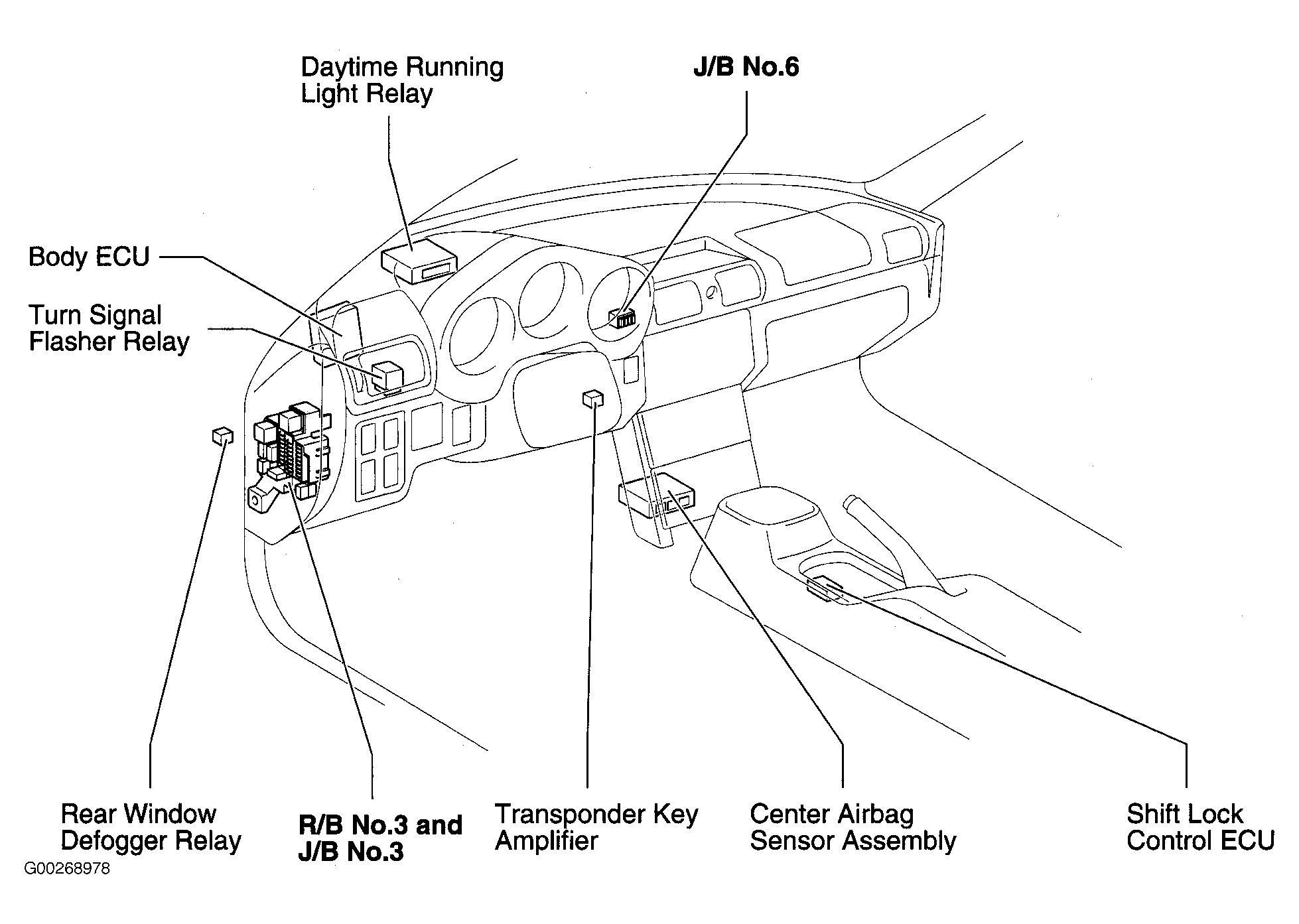

| Body ECU | Behind left side dash. See Figure. |
| Center Air Bag Sensor Assembly | Behind center of dash, forward of gear shifter. See Figure. |

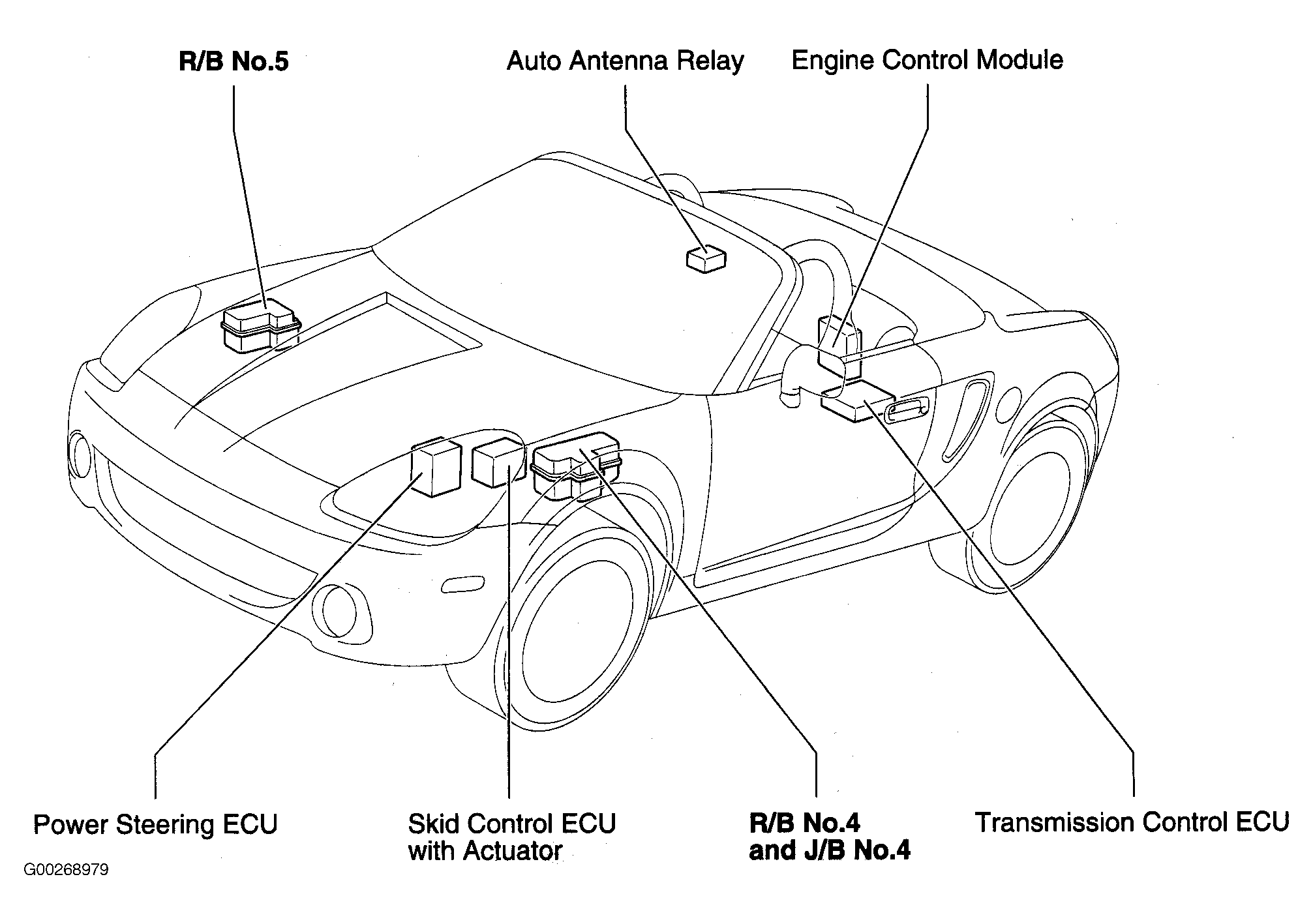

| Engine Control Module | Behind driver's seat, on panel. See Figure. |
| Power Steering ECU | On left side of front compartment. See Figure. |
| Shift Lock Control ECU | Below floor console. See Figure. |
| Skid Control ECU W/ Actuator | In front compartment, on left front fenderwell. See Figure. |
| Transmission Control ECU | Behind driver's seat, on panel. See Figure. |
