Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Airbag Sensor Assembly Center | Under front of center floor console. See Figure. |

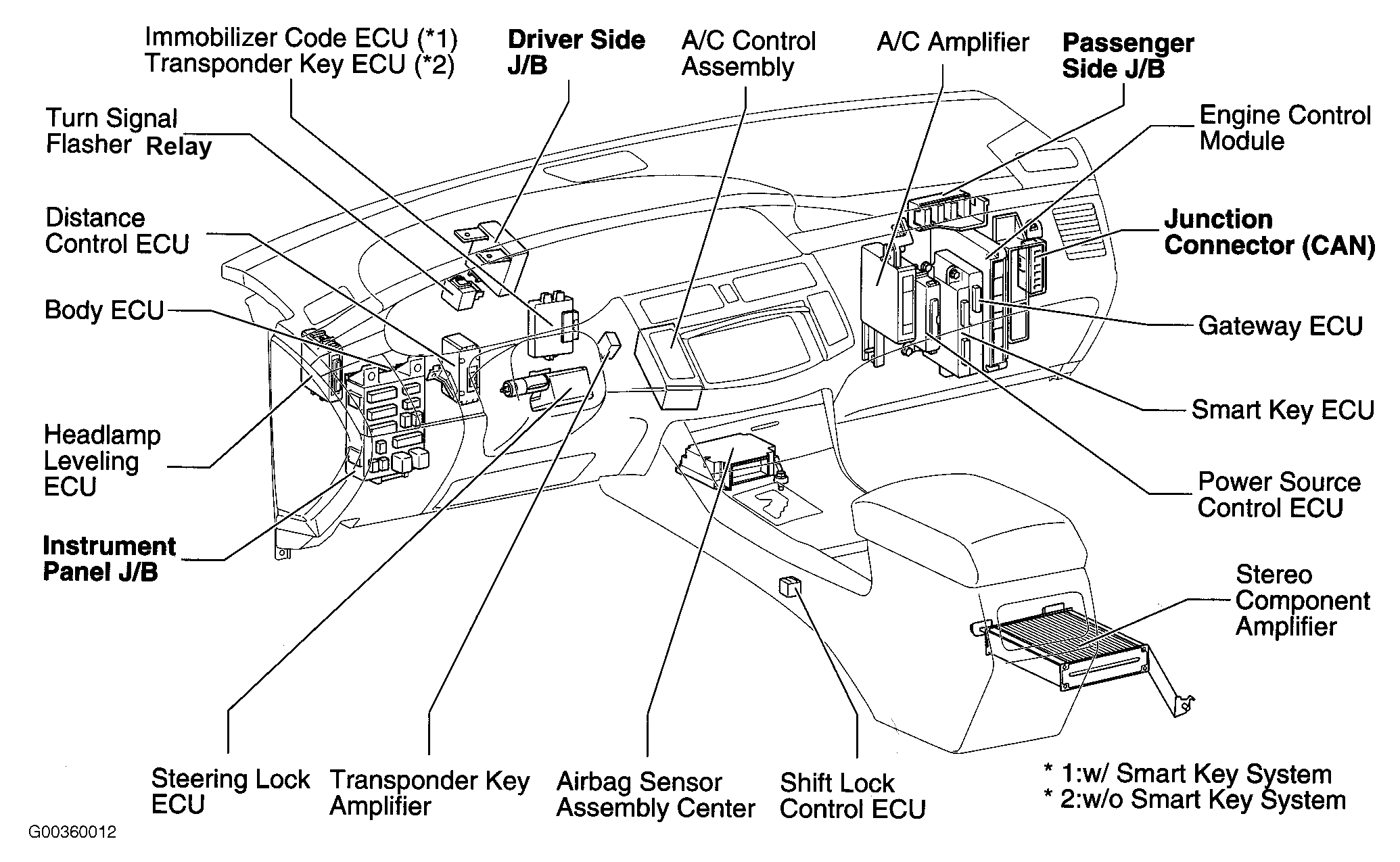

| Body ECU | Attached to driver side J/B. See Figure. |

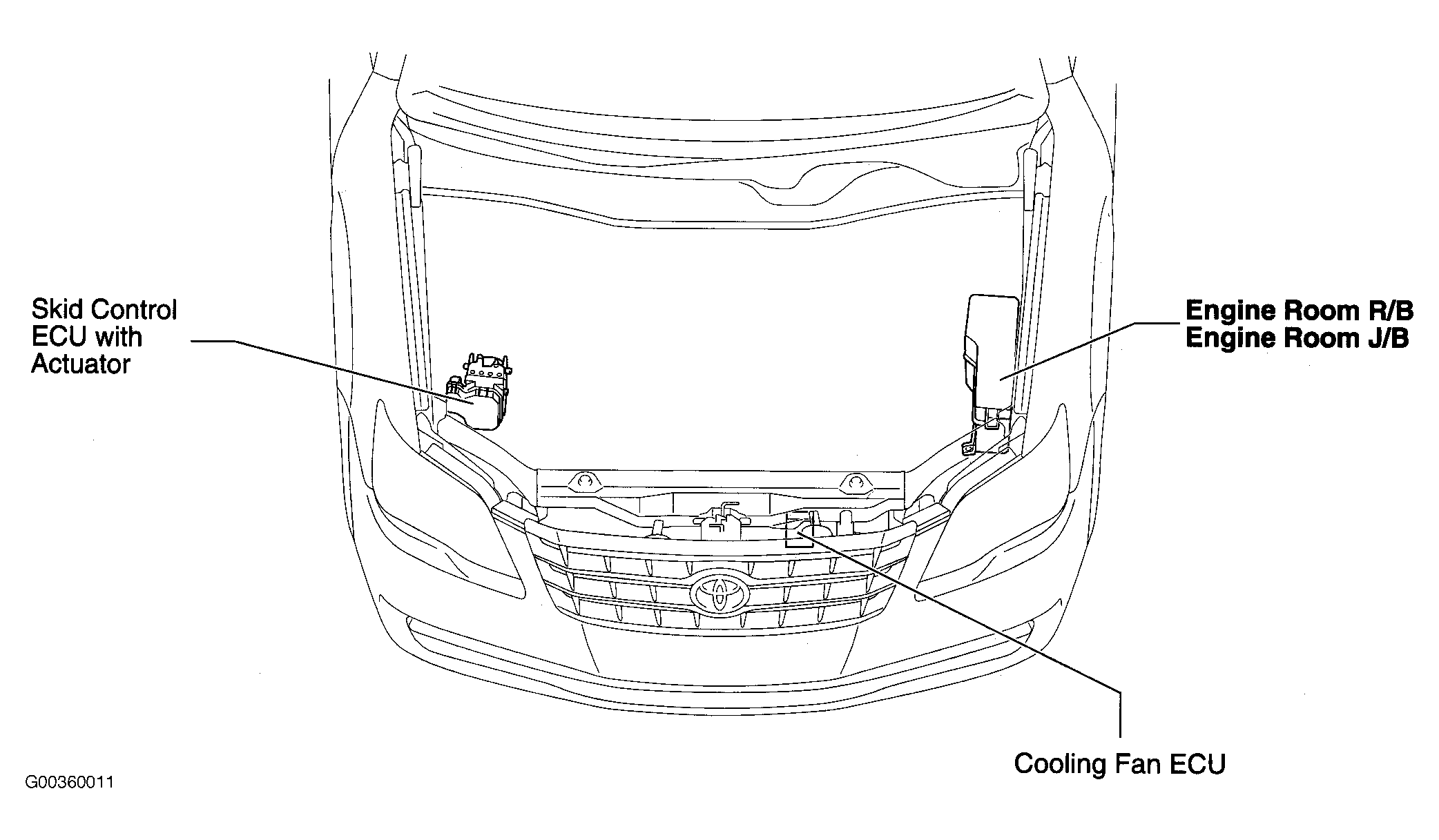

| Cooling Fan ECU | Front of engine compartment. See Figure. |
| Distance Control ECU | Behind left side of dash. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Gateway ECU | Behind right side of dash. See Figure. |
| Headlamp Leveling ECU | Behind left side of dash. See Figure. |
| Immobilizer Code ECU | Behind left side of dash. See Figure. |

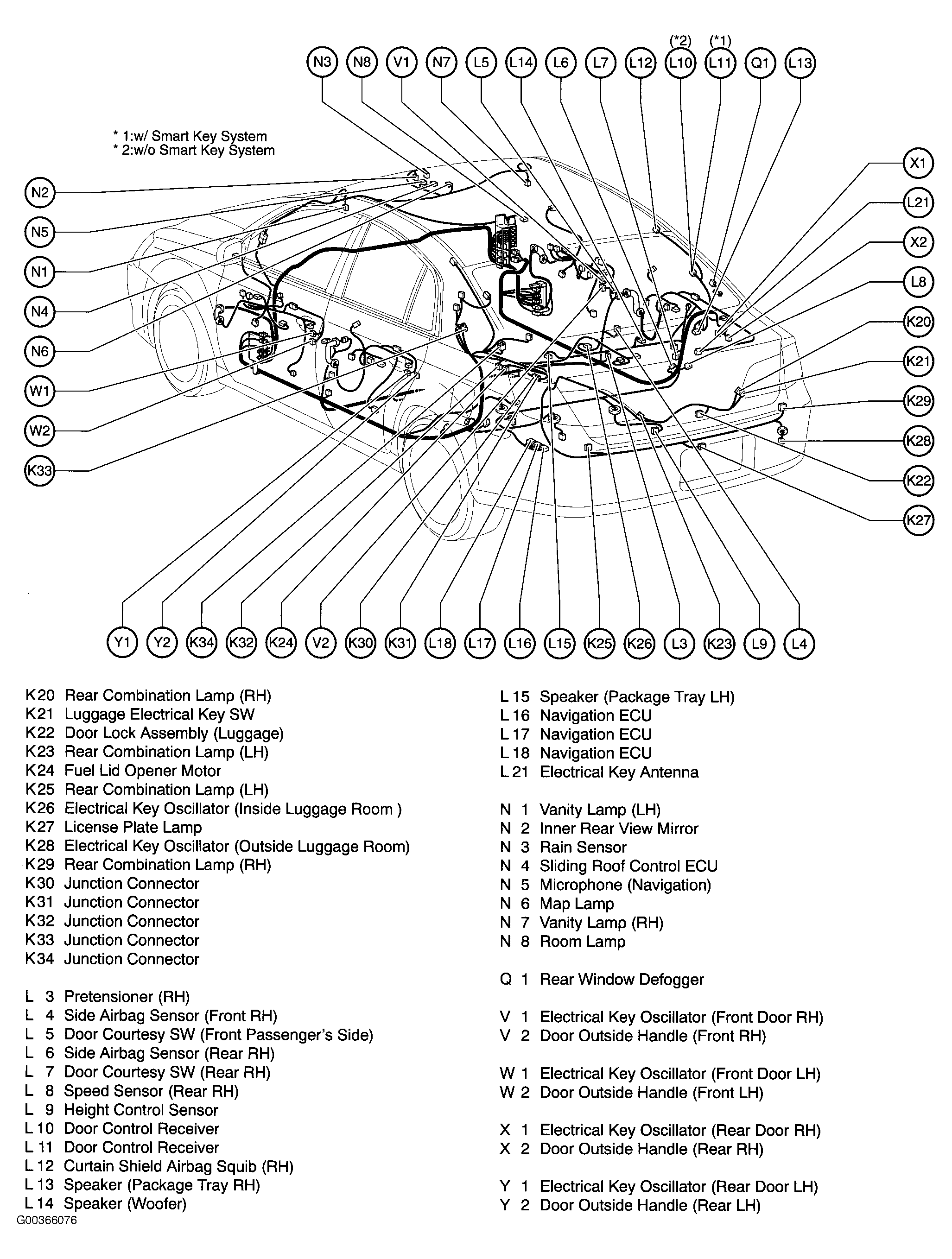

| Navigation ECU | Left side of luggage compartment. See Figure. |
| Occupant Classification ECU | In front passenger's seat. See Figure. |

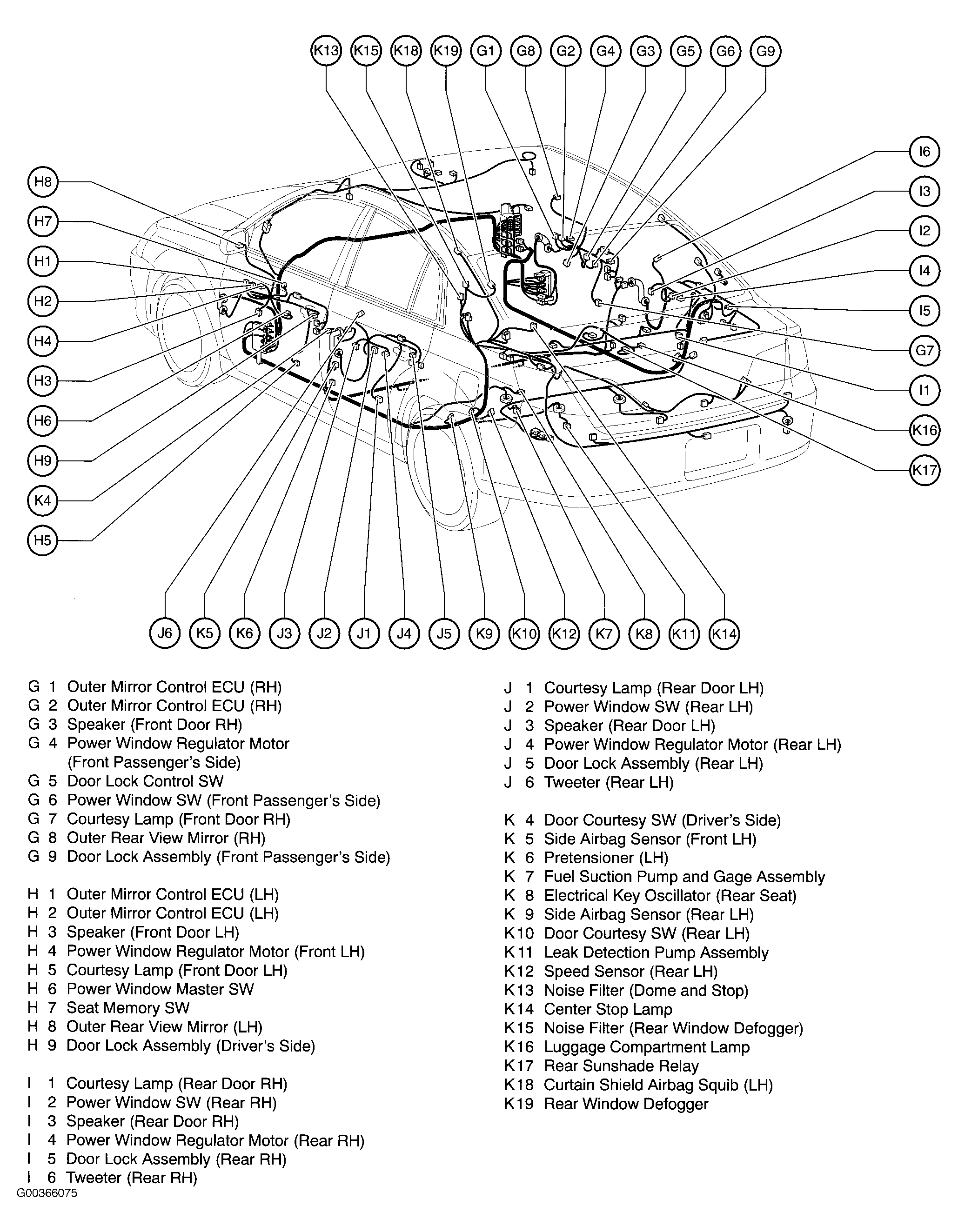

| Outer Mirror Control ECU (LH) | In driver's door. See Figure. |
| Outer Mirror Control ECU (RH) | In right front door. See Figure. |
| Position Control ECU And SW | Left side of driver's seat. See Figure. |
| Power Source Control ECU | Behind right side of dash. See Figure. |
| Shift Lock Control ECU | Under center floor console, near parking brake lever. See Figure. |
| Skid Control ECU W/Actuator | At right side of engine compartment. See Figure. |
| Sliding Roof Control ECU | Front of roof. See Figure. |
| Smart Key ECU | Behind right side of dash. See Figure. |
| Steering Lock ECU | Behind left side of dash. See Figure. |
| Transponder Key ECU | Behind left side of dash. See Figure. |
